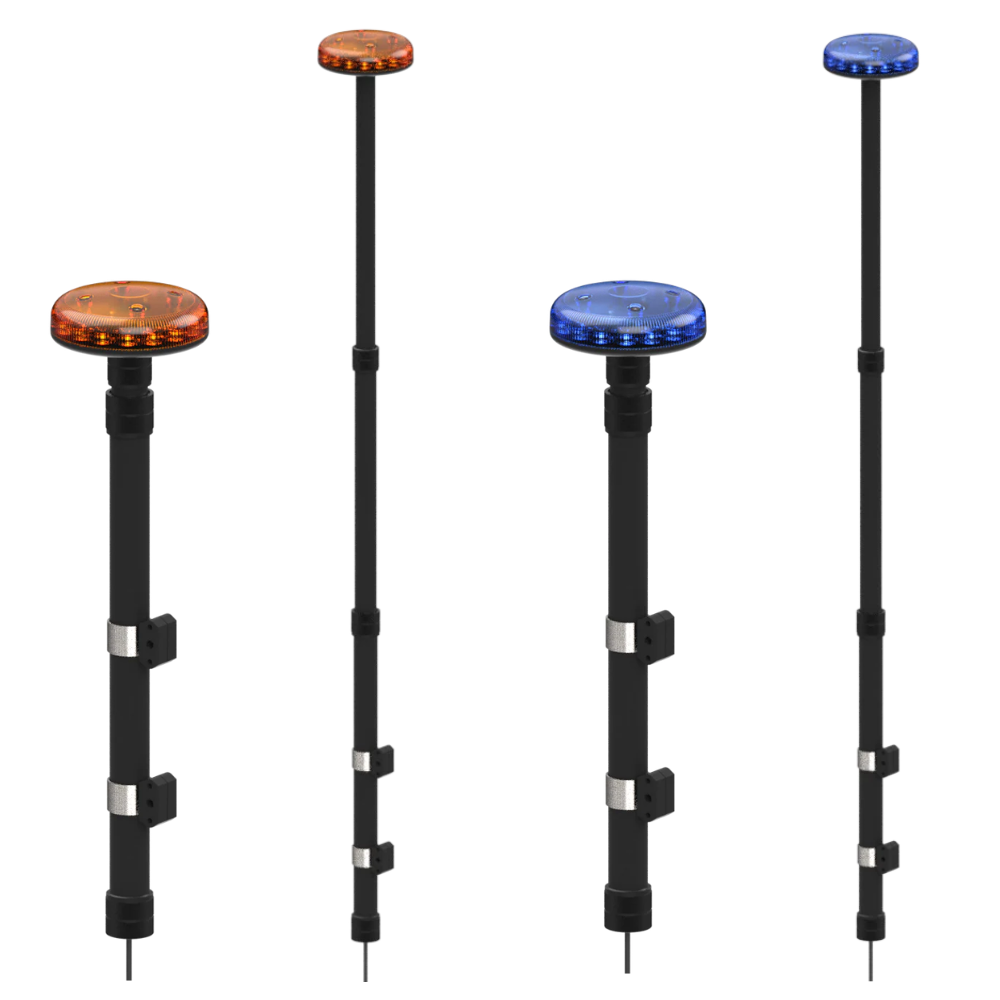

Redtronic Motorcycle Pole Mount Amber Tornado B47 PN: BTNP-047-AA

Redtronic Motorcycle Pole Mount Tornado B47 PN: BTNP-047-AA is a UK-manufactured, premium, low-profile LED warning beacon widely deployed on emergency services, utility, and safety vehicles.

Other Colour Options:

• BTNP-047-AC [Amber flash / Clear Lens]
• BTNP-047-BC [Blue flash / Clear Lens]
• BTNP-047-BC [Blue flash / Blue Lens]
• BTNP-047-GC [Green flash / Clear Lens]
• BTNP-047-RC [Red flash / Blue Lens]

Technical Specifications:

• Model Code: BTNP-047-AA (P = Pole Mount, AA = Amber LED + Amber Lens)
• Optics: Wide-angle FX optics with latest-generation ultra-bright LEDs
• Power Output: 48 Watts
• Voltage Compatibility: 11–30 VDC (Auto-sensing)
• Current Draw: 2.8A at 12VDC / 1.4A at 24VDC
• Dimensions: (Pole Variant)Diameter: 150mm | Height Range: 645mm (min) to 1045mm (max extended)
• Environmental Protection: Rated up to IP69K (maximum resistance against water jet wash and dust ingress)
• Speed Rating: DEKRA tested up to 236 km/h (146.6 mph)

Key Features

• Auto-Dim Sensor: Standard on the B47 series, an onboard photocell automatically detects dark environments and scales the output down to 50% brightness to prevent blinding public traffic while strictly maintaining ECE R65 adherence.
• Cruise Mode: Allows the beacon to remain continuously illuminated at a low dim level without flashing, acting as a steady-burn presence marker.
• 9 Flash Patterns: Includes distinct flash frequencies (Quad, Triple, Double, Single, etc.) and two separate rotation simulations.
• Sync Compatibility: Capable of synchronizing its flash patterns natively with other onboard Redtronic warning lights or directional indicators.
• Regulatory Compliance: Fully certified to ECE R65 Class II (Amber/Blue), EMC R10 compliant, and meets CISPR 25 Level 3 suppression standards to eliminate radio frequency interference with critical emergency communication gear.
