Redtronic BTN110 Tornado B110 Series R65 & CAP168 LED Beacon PN: BTN110
(incl. VAT £95.99)

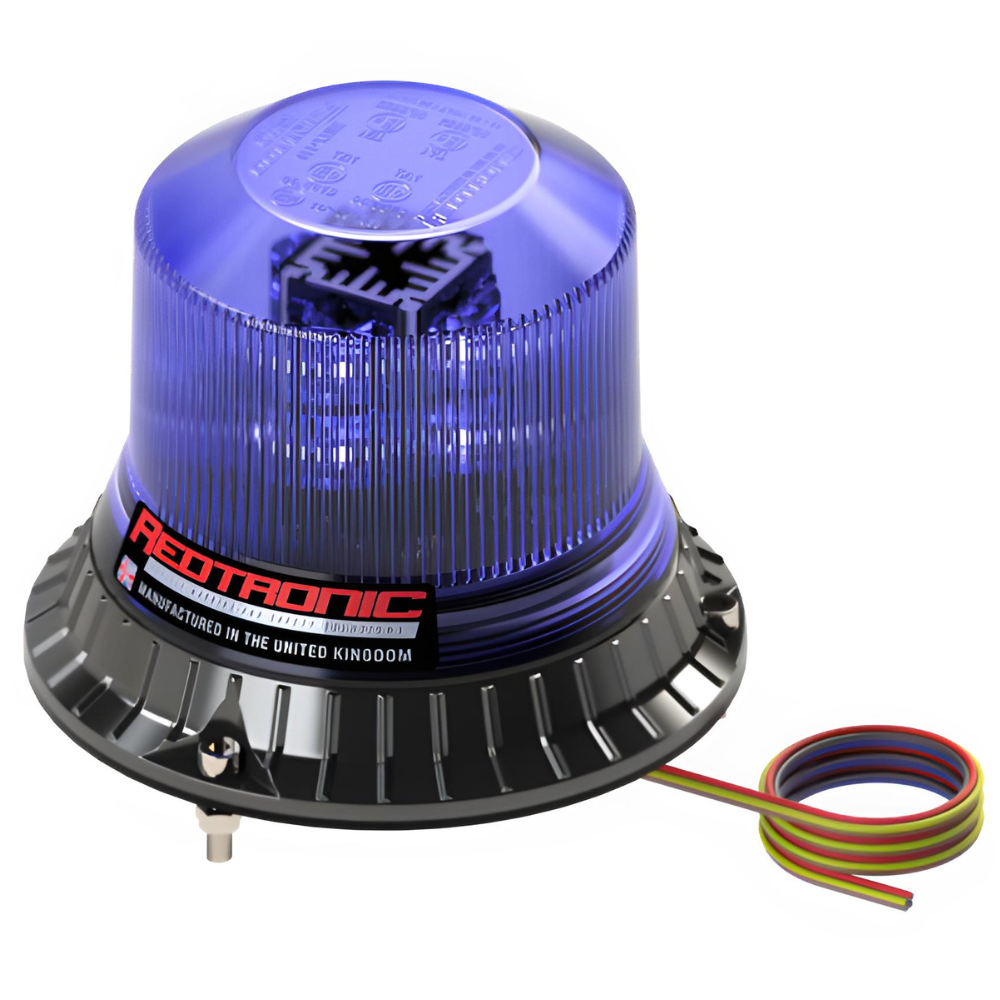

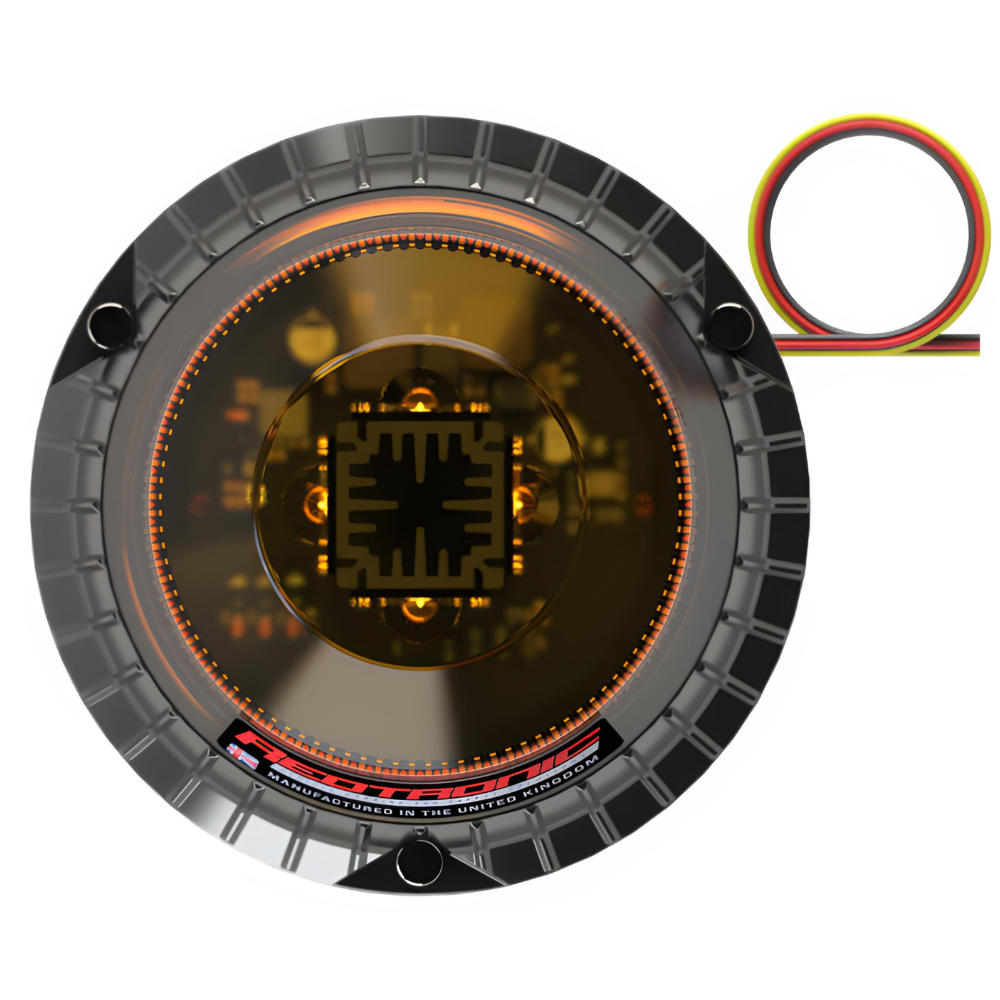

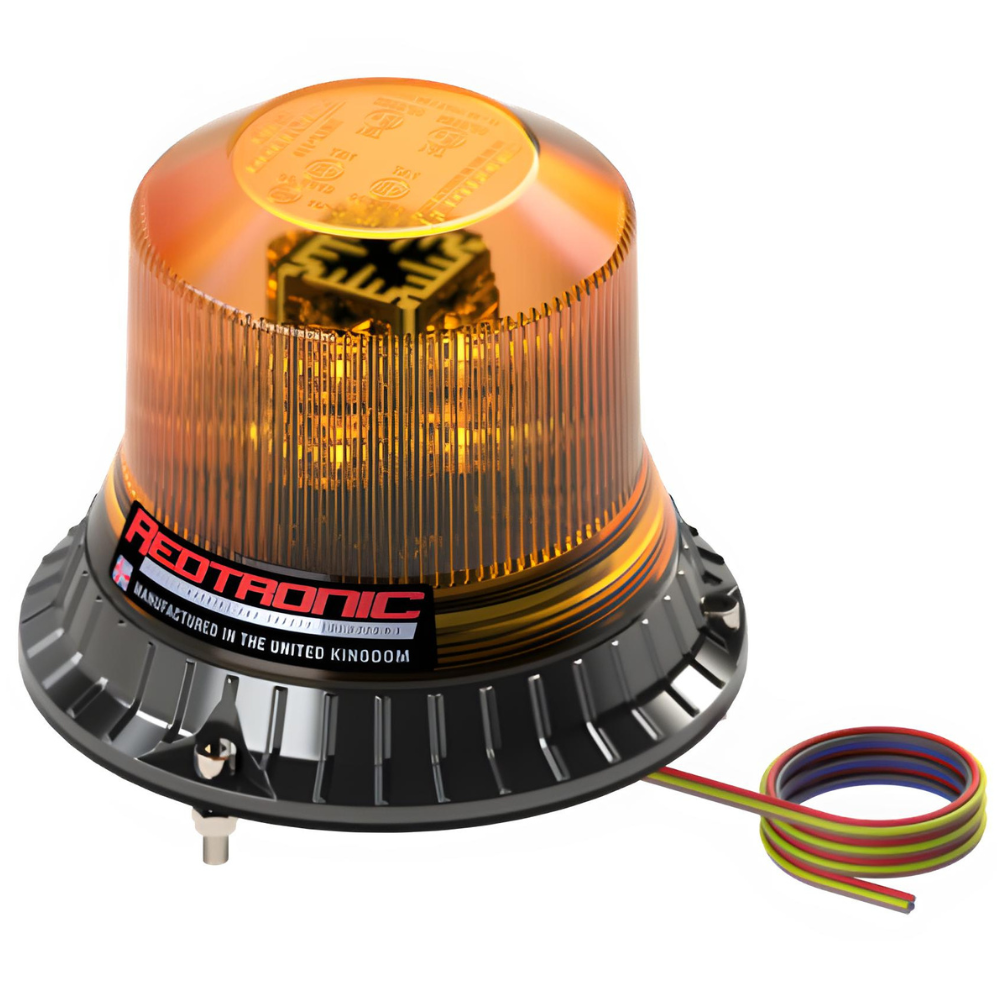

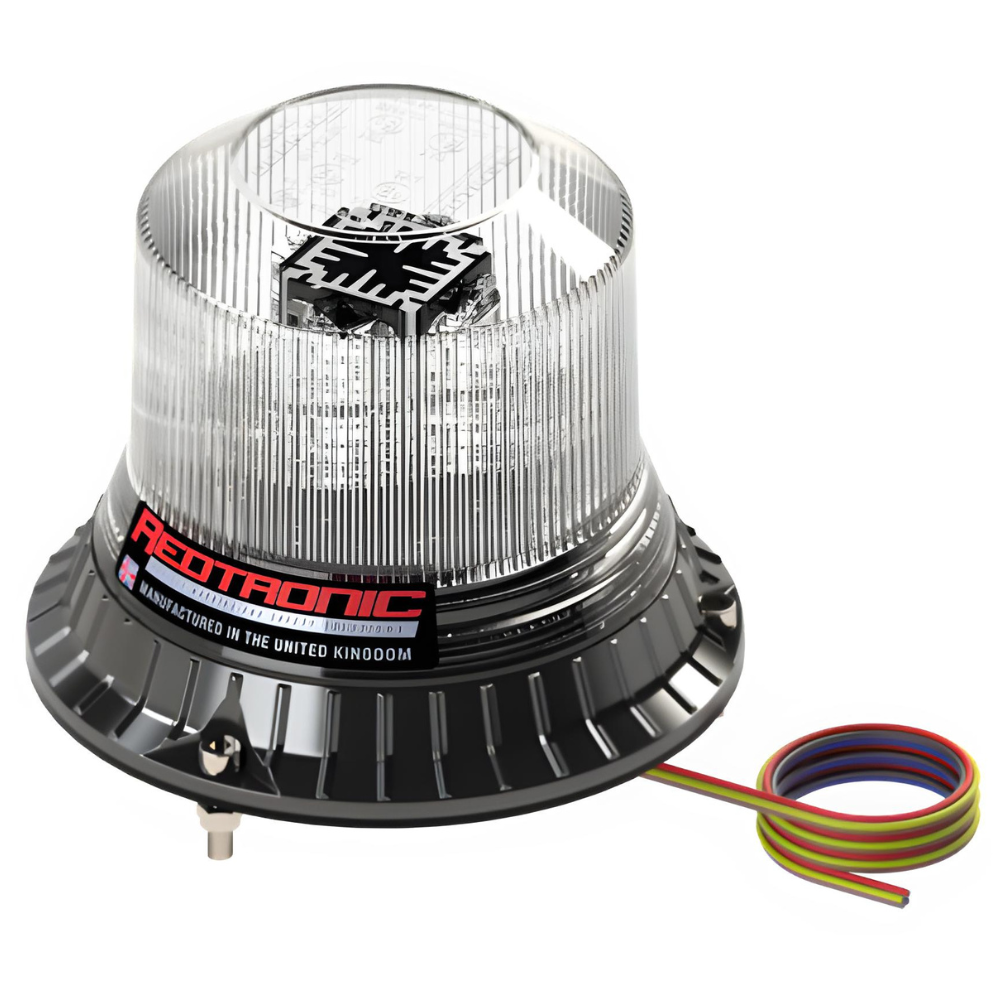

Redtronic’s Tornado B110 beacon is designed to incorporate a sleek design whilst providing the ultimate light output to meet R65 Class I in amber and blue. The Tornado B110 beacon meets IP69K to protect against water and dust and features include CAP168/ICAO approval, multiple flash patterns and a variety of mounting options to meet most vehicle fitting needs. Contributing to the vast features and approvals of the Tornado B110 beacon includes CISPR25 Level 3 and as standard built in auto dim sensor. It features ultra-bright latest generation LEDs under an ultra-strong UV stabilised polycarbonate lens offering multiple lens colour options and LED colours. The Tornado B110 beacon is tough enough for any job and that is why it has been designed for a fit-and-forget purpose and has a 3-year warranty.
Specifications:

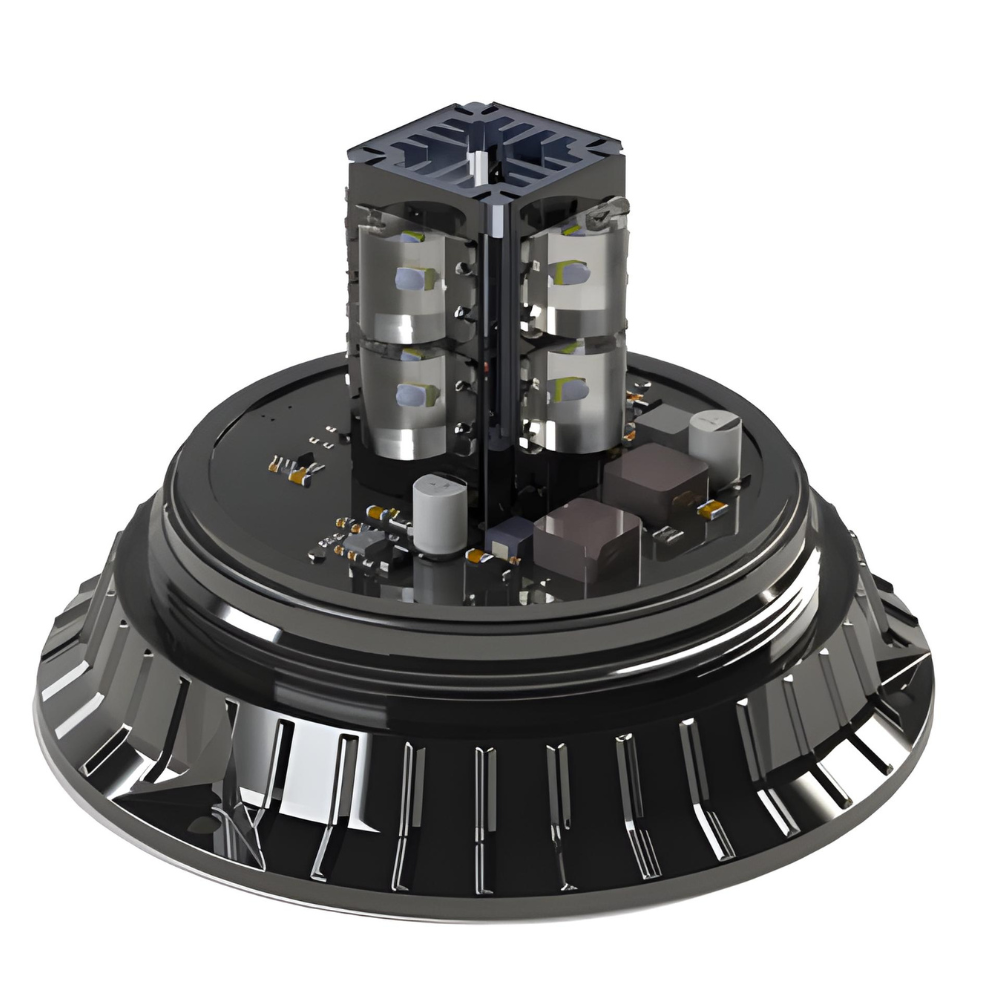

- Directional Type: Intense and Wide-angle Optic with Ultra-bright latest generation LED's
- Material Type: Ultra-strong UV stabilised polycarbonate lens (Makrolon 2407 PC)
- Shape: Modern Style Beacon
- R65: R65 Class I (Amber, Blue)
- EMC: EMC/R10 Compliant
- CISPR 25: Level 3
- IP Rating: Expected IP69K
- Dekra Speed Rating: Expected 236km/h
- CAP168/ICAO: CAP168/ICAO Airport Flash
- Dim Mode: Night & Day (Dim mode) (50% Brightness)
- AutoDIM Mobule: Activation Night Mode - 100[lx] (-50/+100) Provided Activated as Standard
- Cruise: Yes
- Voltage Spec: 8.5-32v DC
- Operating Temperature: -40°C / +105°C
- Flash Patterns: 9 Flash Patterns
- Flash Patterns: Quad, Triple, Double, Single, Quad/Single, Quad/Triple/Double/Single, Rotate Slow, Rotate Fast + CAP168
- Sync: Synchronisation with other Redtronic products
- Warranty: 3 Year Warranty

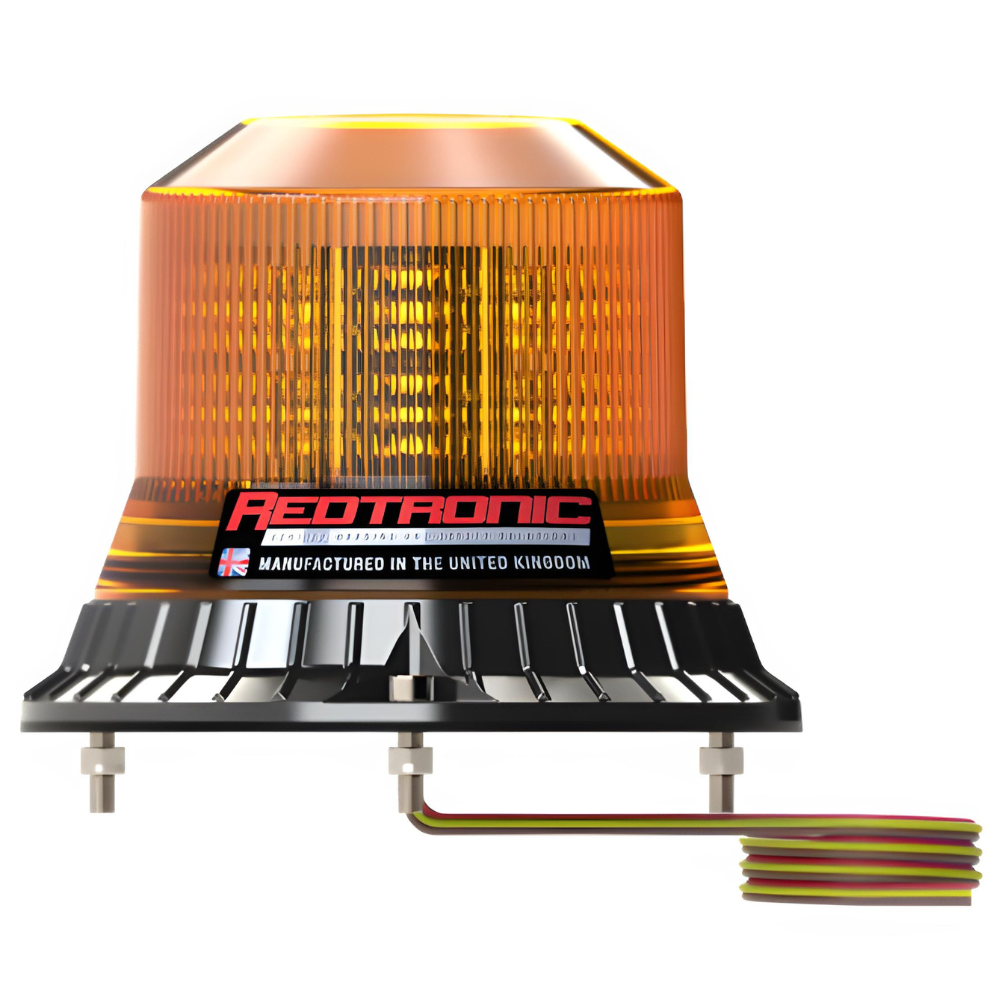

- Mount Option 1: 3 Bolt
- Mount Option 2: 1 Bolt
- Mount Option 3: Magnetic
- Mount Option 4: Flexi DIN
- Dimensions (3 Bolt): 98.35mm x 110mm
- Dimensions (1 Bolt): 98.35mm x 110mm
- Dimensions (Magnetic): 98.35mm x 118mm
- Dimensions (Flexi DIN): 158 mm x 224mm
- LED Power (Watts): 24watt
- Light Output (Lumens): Amber 2746lm / Blue 1905lm
- Weight: 520g (3 Bolt) , 540g (Single Bolt), 840g (Mag), 780g Flexi DIN
- Current Draw (12V): 2.0A @12V / 1.0A @24V

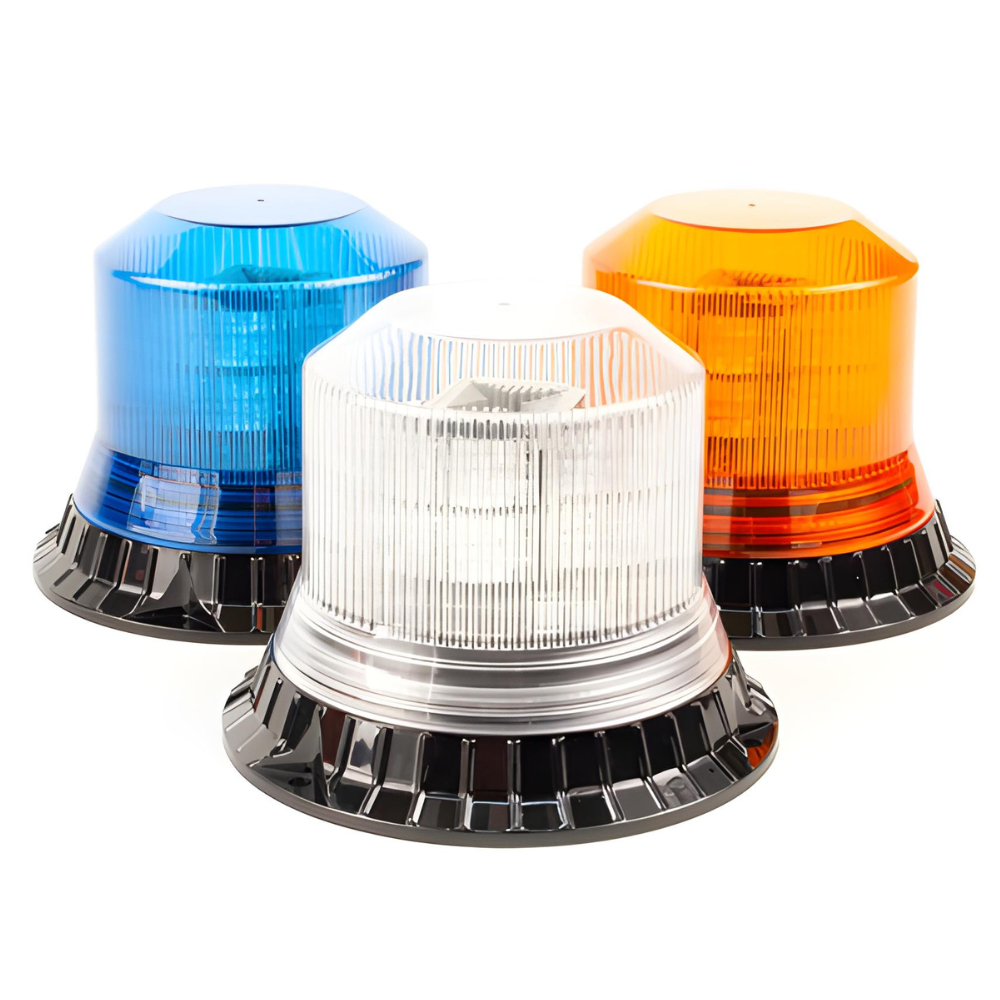

Lens colours available:
- Amber
- Blue
- Clear
