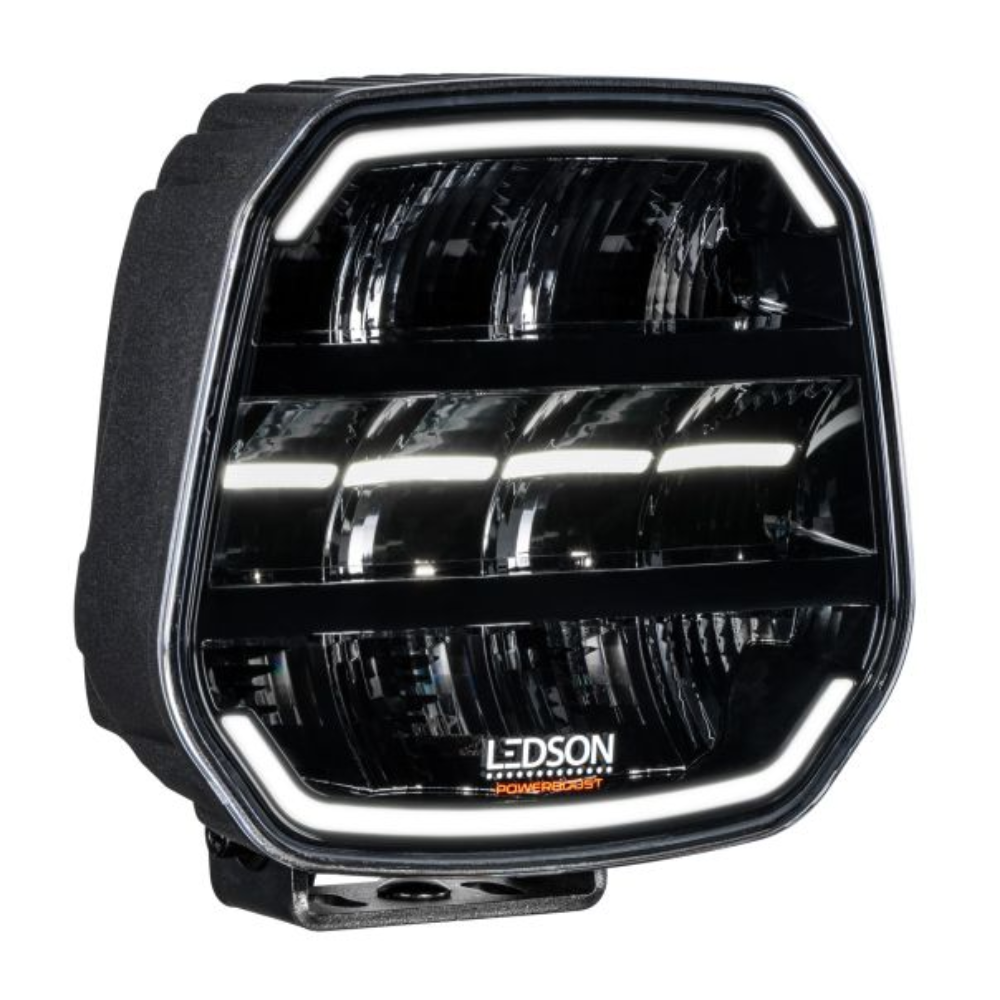

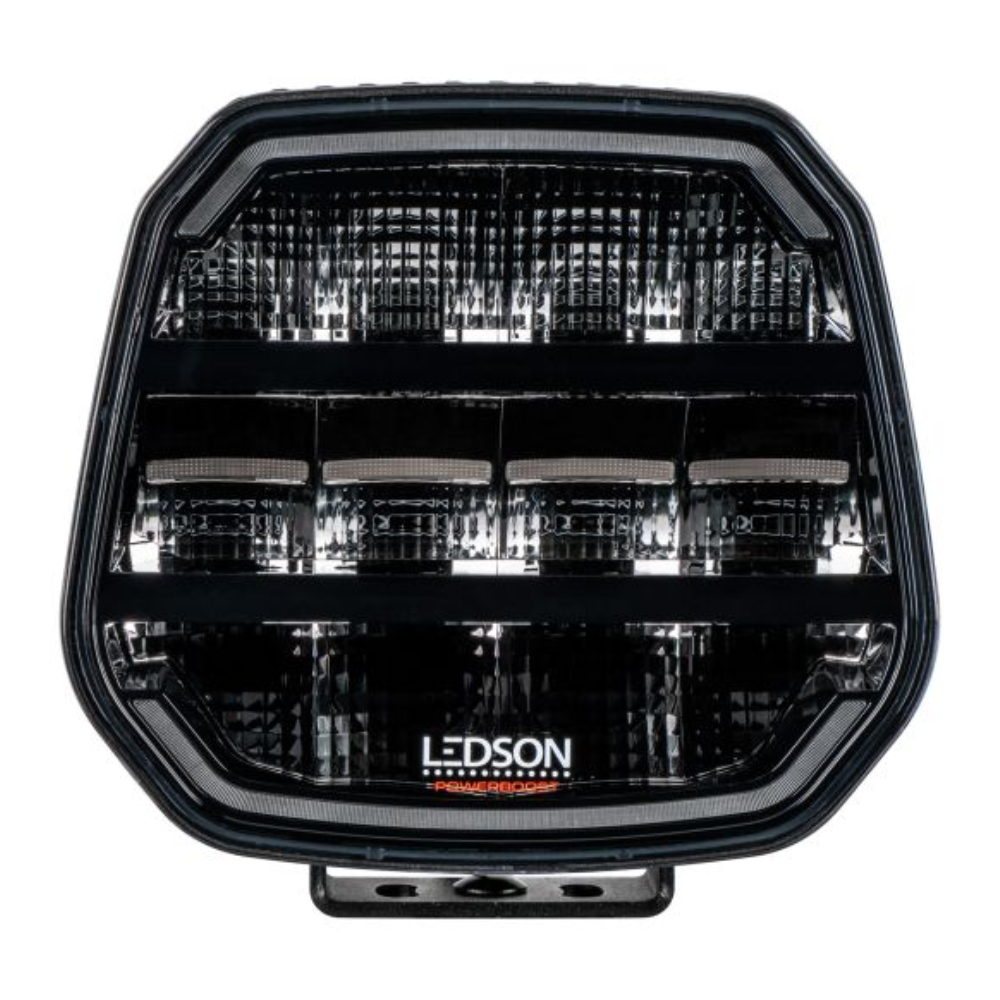

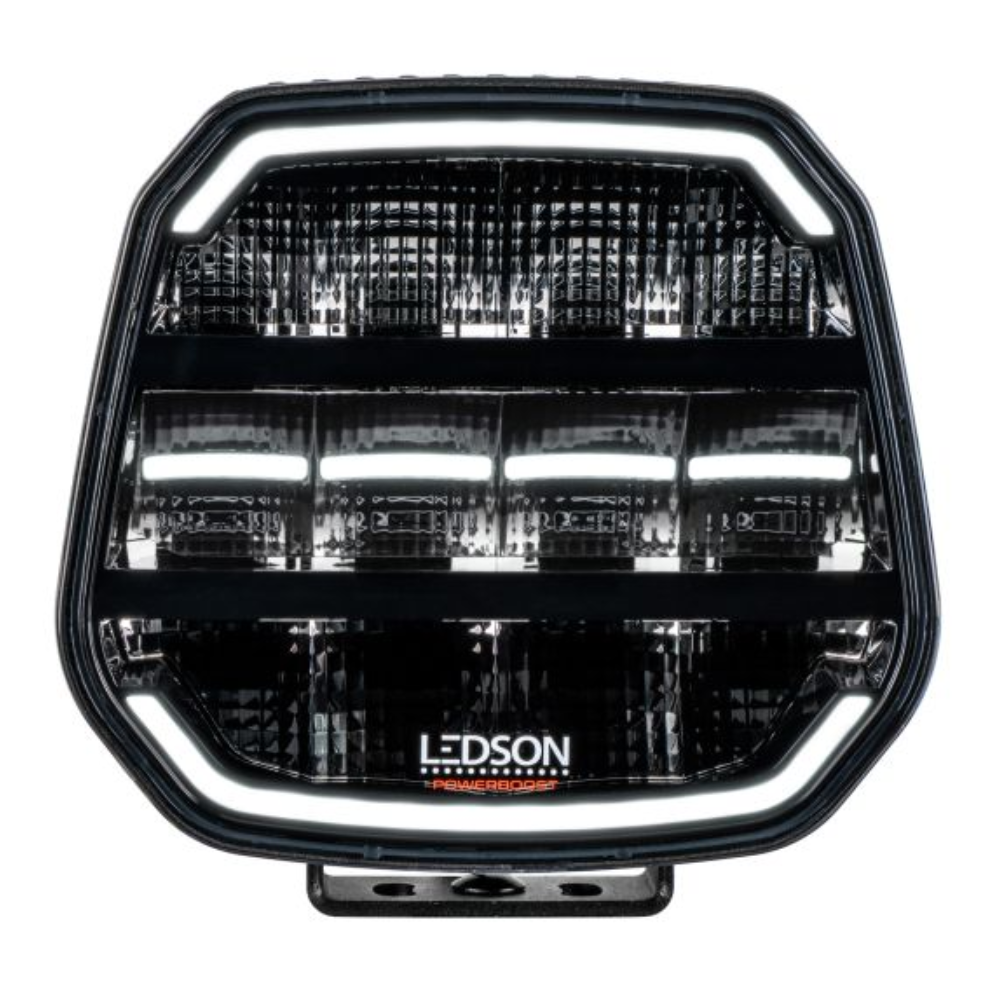

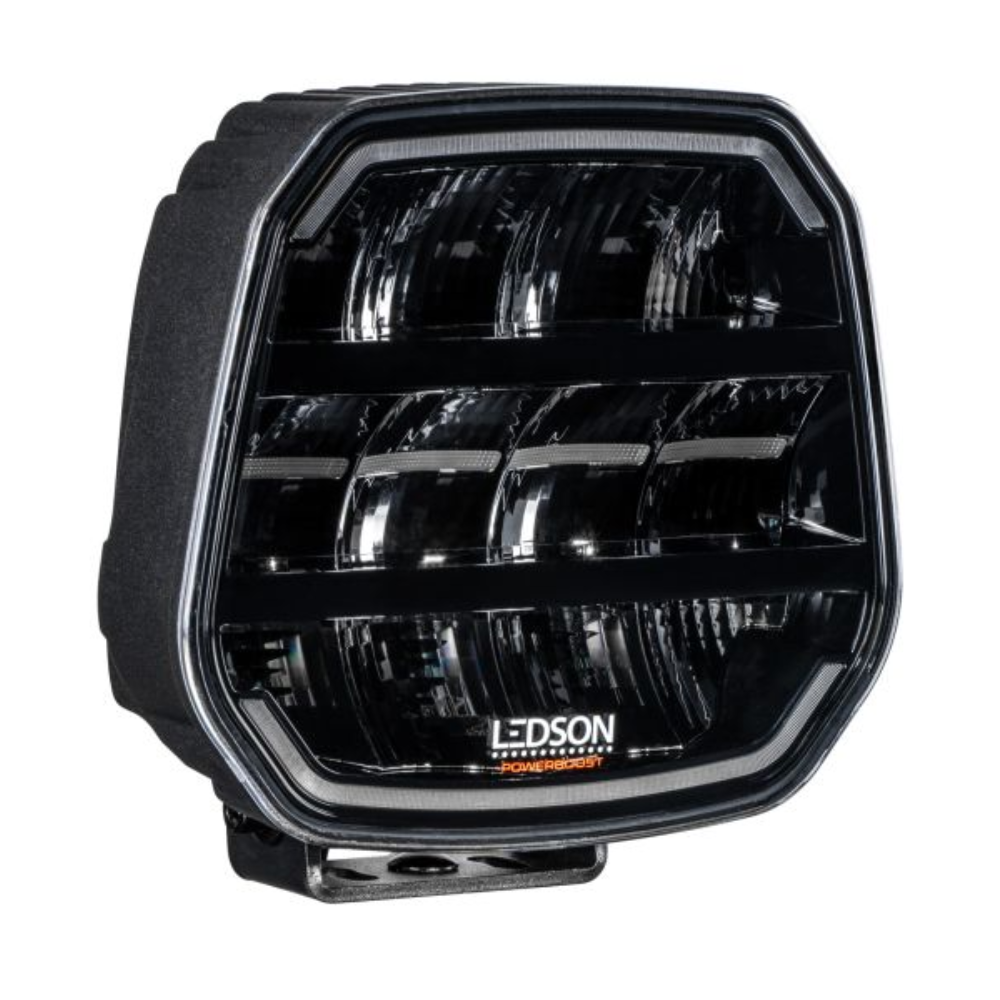

Ledson EPIX7+ 7" Round LED Driving Lamp With Position Light PN: 33491246
33491246
✓ Next generations auxiliary light with top-tier performance
✓ Ledson developed Swedish design with a unique appearance
✓ Sleek dynamic activation enhances your presence
✓ Ledson developed Swedish design with a unique appearance
✓ Sleek dynamic activation enhances your presence
excl. VAT £163.95
(incl. VAT £196.74)
(incl. VAT £196.74)
Ledson developed Swedish design
Epix7+ from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. The 7" size of this auxiliary light is particularly suitable for passenger cars or smaller vehicles, as it is slightly smaller than its big brother, the Epix9, with its 9" size (approximately 45 mm smaller in width). With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.
Dynamic Position Light

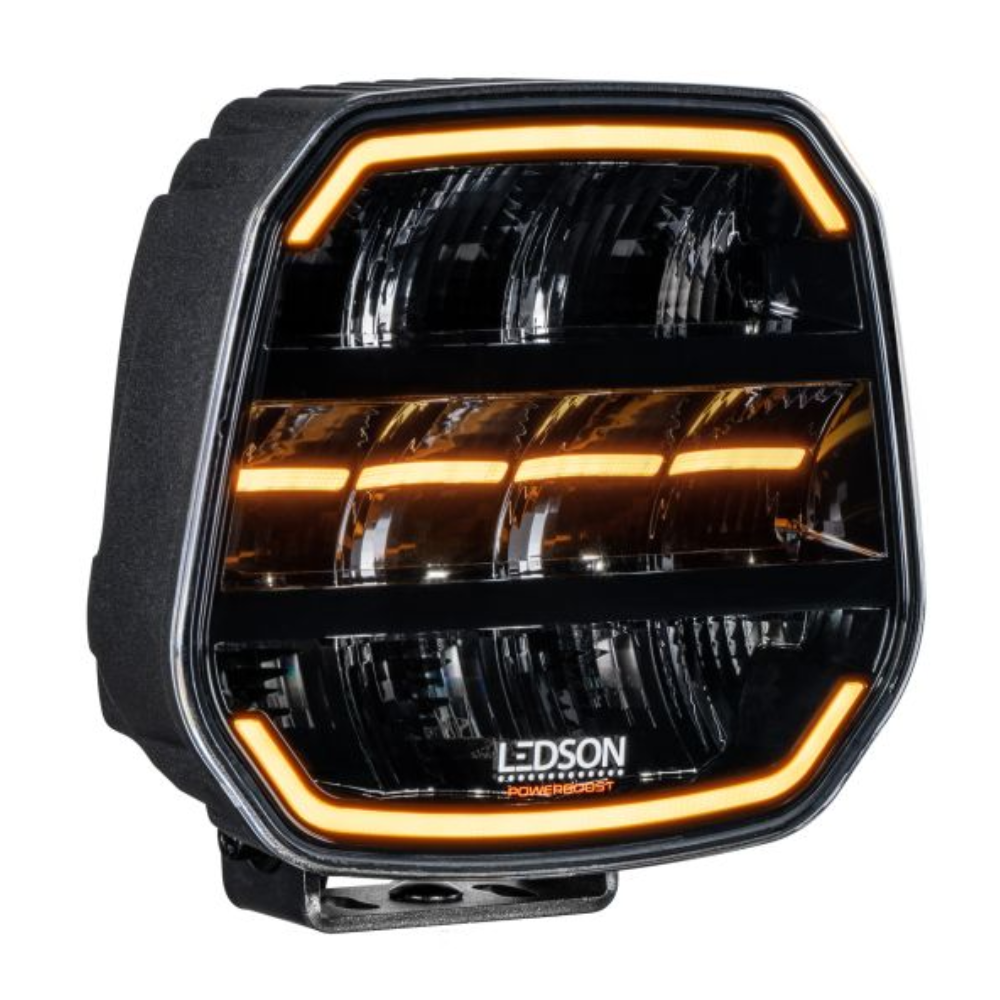

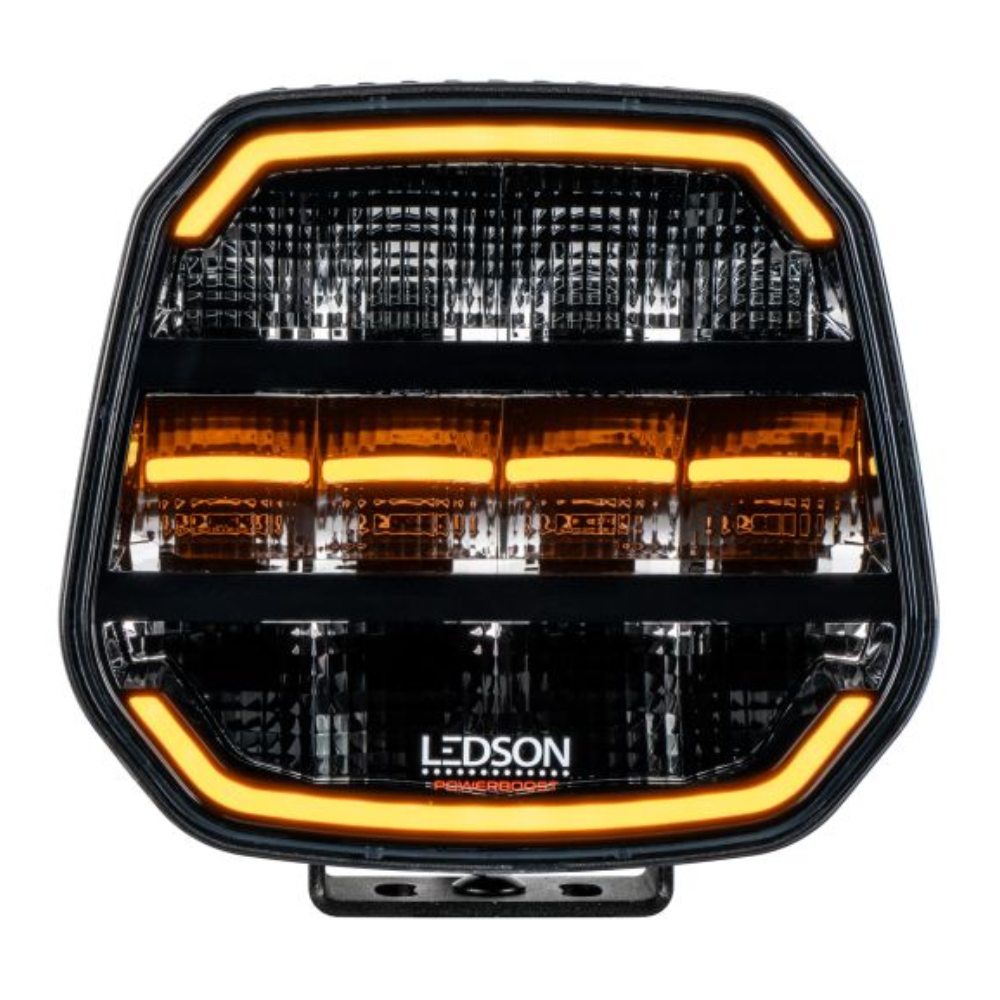

The Epix7+ activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.
Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This
Epix7+ comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.
Features and technical specifications:
Technical data:
Dimensions & Weight:
Included:
Cable instructions (detailed instructions included)
Red: Auxiliary light (+)
Black: Auxiliary light / Position light (- Ground)
White: Position light (+) White light
Yellow: Position light (+) Yellow-orange light
Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
Epix7+ from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. The 7" size of this auxiliary light is particularly suitable for passenger cars or smaller vehicles, as it is slightly smaller than its big brother, the Epix9, with its 9" size (approximately 45 mm smaller in width). With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.
Dynamic Position Light
The Epix7+ activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.
Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This
Epix7+ comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.
Features and technical specifications:
- Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)

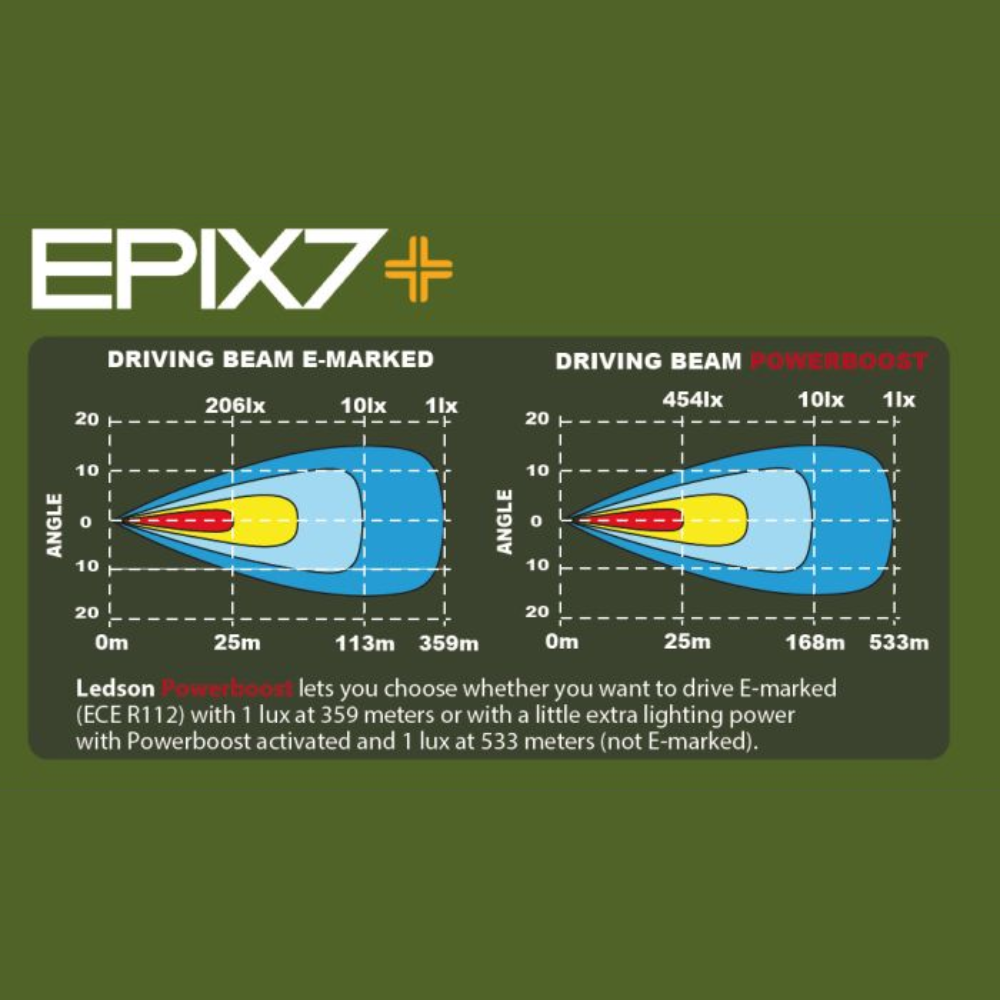

- Range in E-approved mode: 359 m (1 lux)
- Range in Powerboost mode: 533 m (1 lux)
- Driving beam pattern
- E-marked: ECE R112 (Ref. 30), R7 (White position light)
- EMC certified: ECE R10 (does not interfere with radio)
- 11,500 lumens (theoretical), 8,200 lumens (actual)
- Neutral white light: 5000K
- ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
- Side-reflecting optical system
- Pressure equalization membrane
- Aluminum heat sink
- Adjustable stainless steel mount
- Polycarbonate lens
- 36-month warranty
Technical data:
- 120W (12 x 10 LED)
- IP69K (water and dust proof)
- Cable with 4-pin DT Connector
- Voltage: 9-36 V
- Load in E-Approved Mode: 3,2A @ 12V and 1,6A @ 24V (high beam only, no position light)
- Load in High Beam Powerboost Mode: 10,1A @ 12V and 4,6A @ 24V (high beam only, no position light)
Dimensions & Weight:
- Width: 180 mm
- Height: 177 mm (incl bracket)
- Depth: 70 mm
- Weight: 1,36 kg
Included:
- One Ledson Epix7+ LED auxiliary light 9"
- Mounting bracket, bolts, and screws for single or dual mounting points
- DT Connector (4-pin) (you will also need a DT harness)
- Installation instructions
Cable instructions (detailed instructions included)
Red: Auxiliary light (+)
Black: Auxiliary light / Position light (- Ground)
White: Position light (+) White light
Yellow: Position light (+) Yellow-orange light
Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
