Ledson Commander12 Gen2 Remote Controlled Relay Box PN: 7800325
7800325
✓ Programmable control panel with remote (12-24V)
✓ Commander12 Gen2 relay box with 12 individual outputs
✓ Control with app or RGB backlight controller
✓ Commander12 Gen2 relay box with 12 individual outputs
✓ Control with app or RGB backlight controller
excl. VAT £288.42
(incl. VAT £346.10)
(incl. VAT £346.10)
Commander12 Gen2 lets you switch on and off LED bars, auxiliary lights, work lights, etc. and turn on and off other devices at the touch of a button! 2nd generation Commander is upgraded with a memory that remembers your settings even after you turn off the ignition/vehicle.
Programmable control panel with 12 individual outputs, controls up to 12 units separately or together. A control with RGB selectable backlight included (with 315 cm cable) but you can also use a free app for Android or Apple.

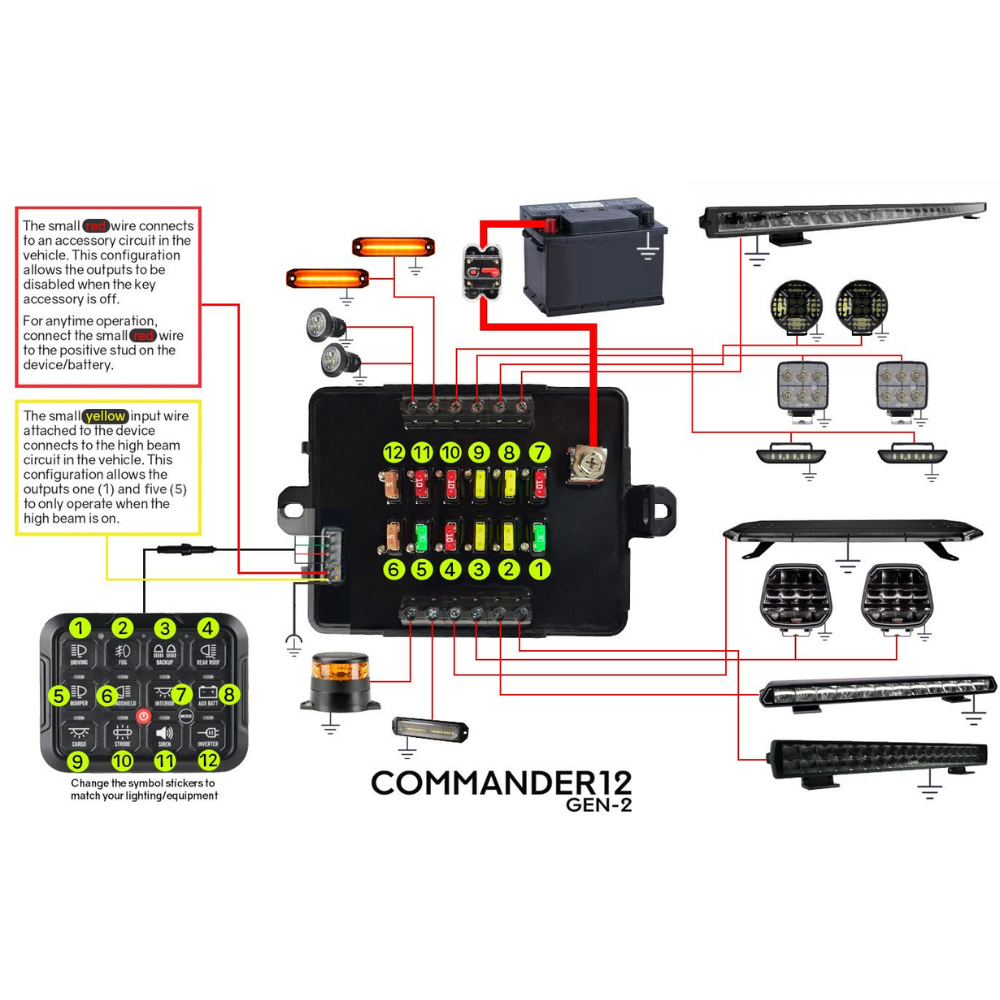

Ledson Commander has a direct input (yellow cable) to be able to control the LED bar/auxiliary lights etc via the vehicle's analogue high beam signal/high beam bulb. Works with 12V / 24V with MosFet / electronic relays, app support for control via Bluetooth, protection against overheating, overload, short circuit and polarity protection.

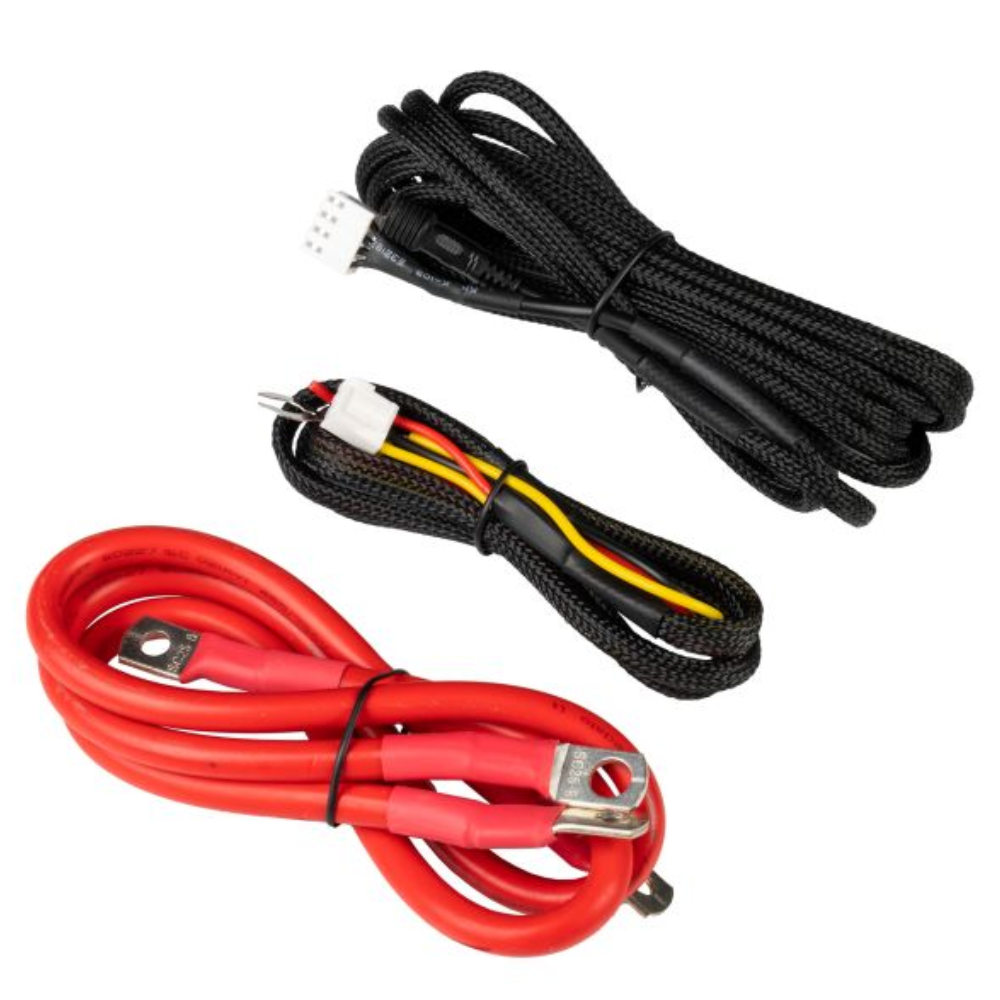

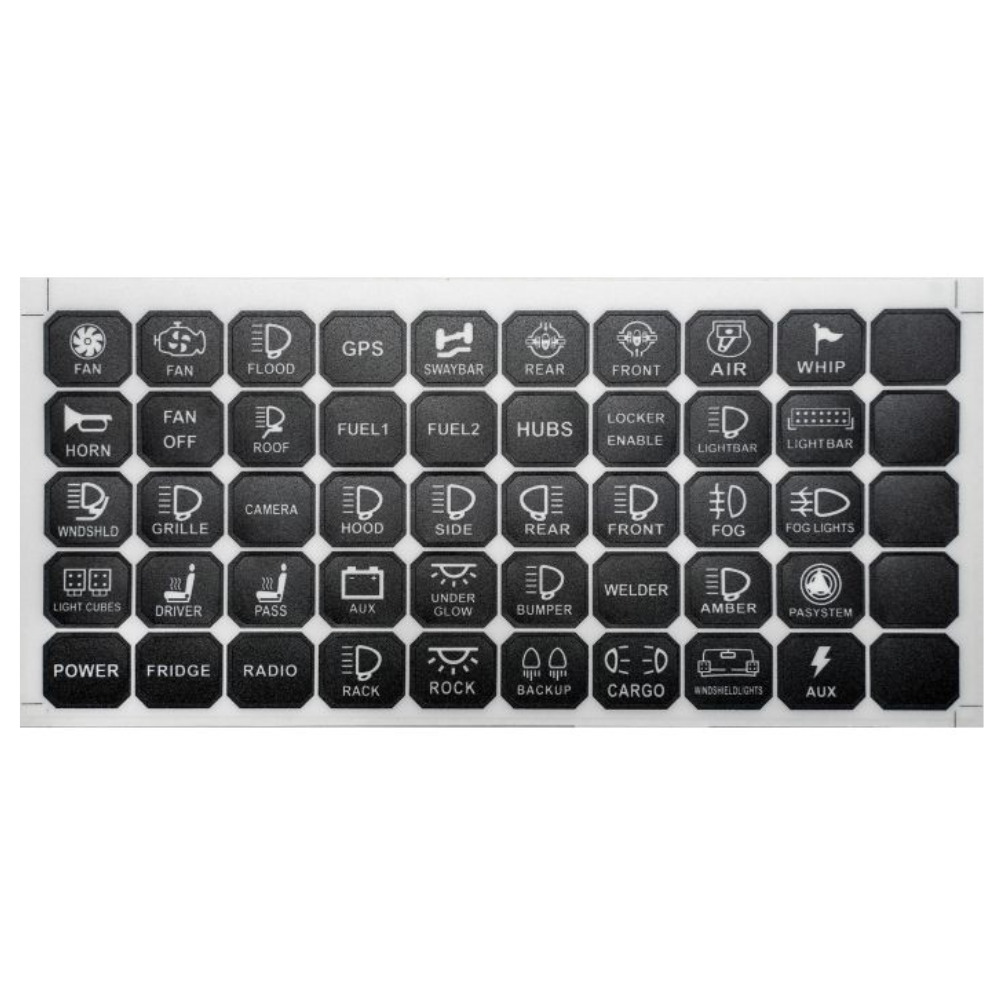

Included: Commander12 relay box with remote control, battery wiring, fuses, 70 different symbols / stickers to attach to the remote control, bracket with screws for relay box and remote control, assembly instructions.
Do you need a longer cable between the control and relay box? Check out our extension cable, which adds 2.4 meters (giving you a total of 5.5 meters). Also, take a look at our symbol sheet with 38 additional symbols.
More information:
1. Max total current: 100A (1200W at 12V, 2400W at 24V).
2. 12 individually programmable switches.
3. The maximum total current of this device is 100A.
4. Maximum current per output at 12V:
- Output fuses 1 and 5 is 30A - activated when yellow cable receives power
- Output fuses 2, 3, 8 and 9 is 20A
- Output fuses 4, 7, 10 and 11 is 10A
- Output fuses 6 and 12 is 5A
- If the output has been overloaded, a red LED will indicate next to the blown fuse
5. Built-in Bluetooth for app control.
6. Protection against overheating, overload, short circuit, polarity protection.
7. Direct high beam control to circuit 1 and circuit 5.
8. Programmable icons.
9. Backlit switches with selectable backlight color.
10. LED indication for overload/broken fuse.
11. Each switch can be programmed for three different functions:
- Switch between On/Off
- Switch between On/Off as long as the button is pressed
- Strobe function

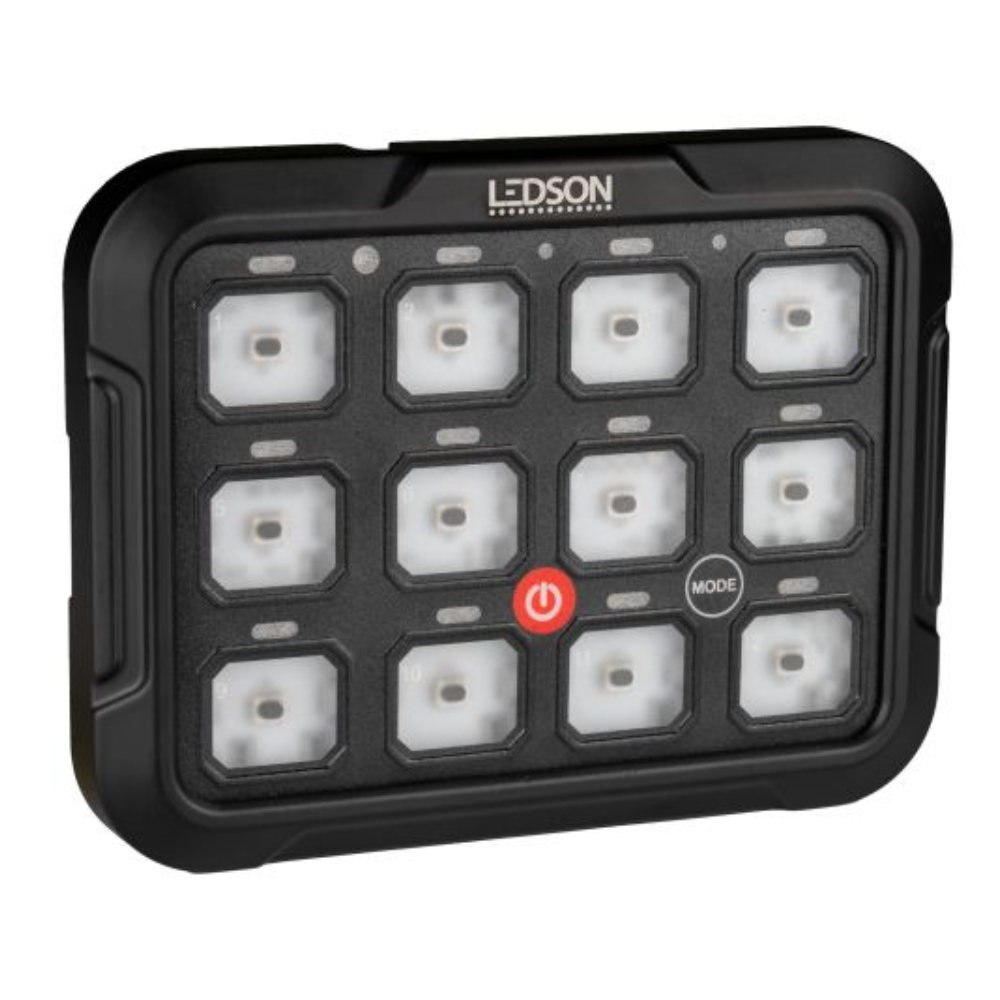

Measurements on the Control panel:
Length: 116mm
Width: 89mm
Height: 14mm

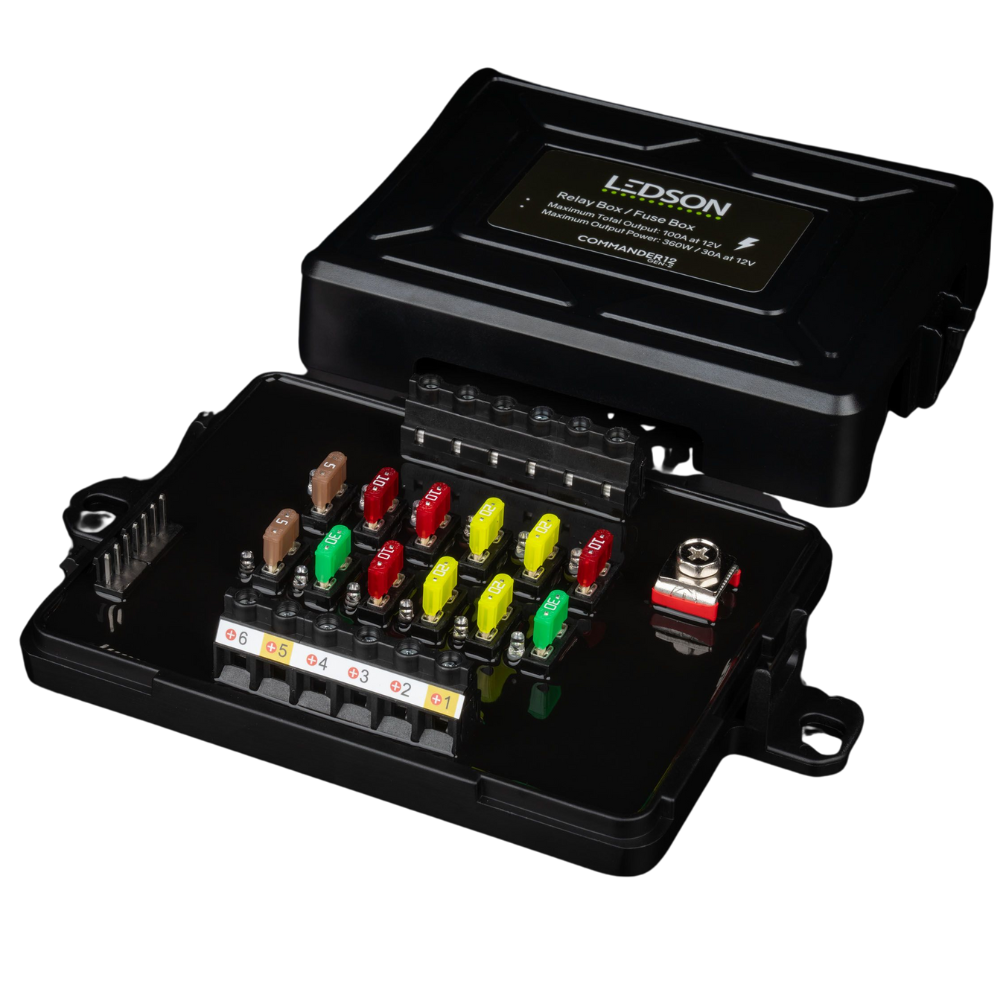

Relay box:
Length: 150mm
Width: 117mm
Height: 38mm
Programmable control panel with 12 individual outputs, controls up to 12 units separately or together. A control with RGB selectable backlight included (with 315 cm cable) but you can also use a free app for Android or Apple.
Ledson Commander has a direct input (yellow cable) to be able to control the LED bar/auxiliary lights etc via the vehicle's analogue high beam signal/high beam bulb. Works with 12V / 24V with MosFet / electronic relays, app support for control via Bluetooth, protection against overheating, overload, short circuit and polarity protection.
Included: Commander12 relay box with remote control, battery wiring, fuses, 70 different symbols / stickers to attach to the remote control, bracket with screws for relay box and remote control, assembly instructions.
Do you need a longer cable between the control and relay box? Check out our extension cable, which adds 2.4 meters (giving you a total of 5.5 meters). Also, take a look at our symbol sheet with 38 additional symbols.
More information:
1. Max total current: 100A (1200W at 12V, 2400W at 24V).
2. 12 individually programmable switches.
3. The maximum total current of this device is 100A.
4. Maximum current per output at 12V:
- Output fuses 1 and 5 is 30A - activated when yellow cable receives power
- Output fuses 2, 3, 8 and 9 is 20A
- Output fuses 4, 7, 10 and 11 is 10A
- Output fuses 6 and 12 is 5A
- If the output has been overloaded, a red LED will indicate next to the blown fuse
5. Built-in Bluetooth for app control.
6. Protection against overheating, overload, short circuit, polarity protection.
7. Direct high beam control to circuit 1 and circuit 5.
8. Programmable icons.
9. Backlit switches with selectable backlight color.
10. LED indication for overload/broken fuse.
11. Each switch can be programmed for three different functions:
- Switch between On/Off
- Switch between On/Off as long as the button is pressed
- Strobe function
Measurements on the Control panel:
Length: 116mm
Width: 89mm
Height: 14mm
Relay box:
Length: 150mm
Width: 117mm
Height: 38mm
