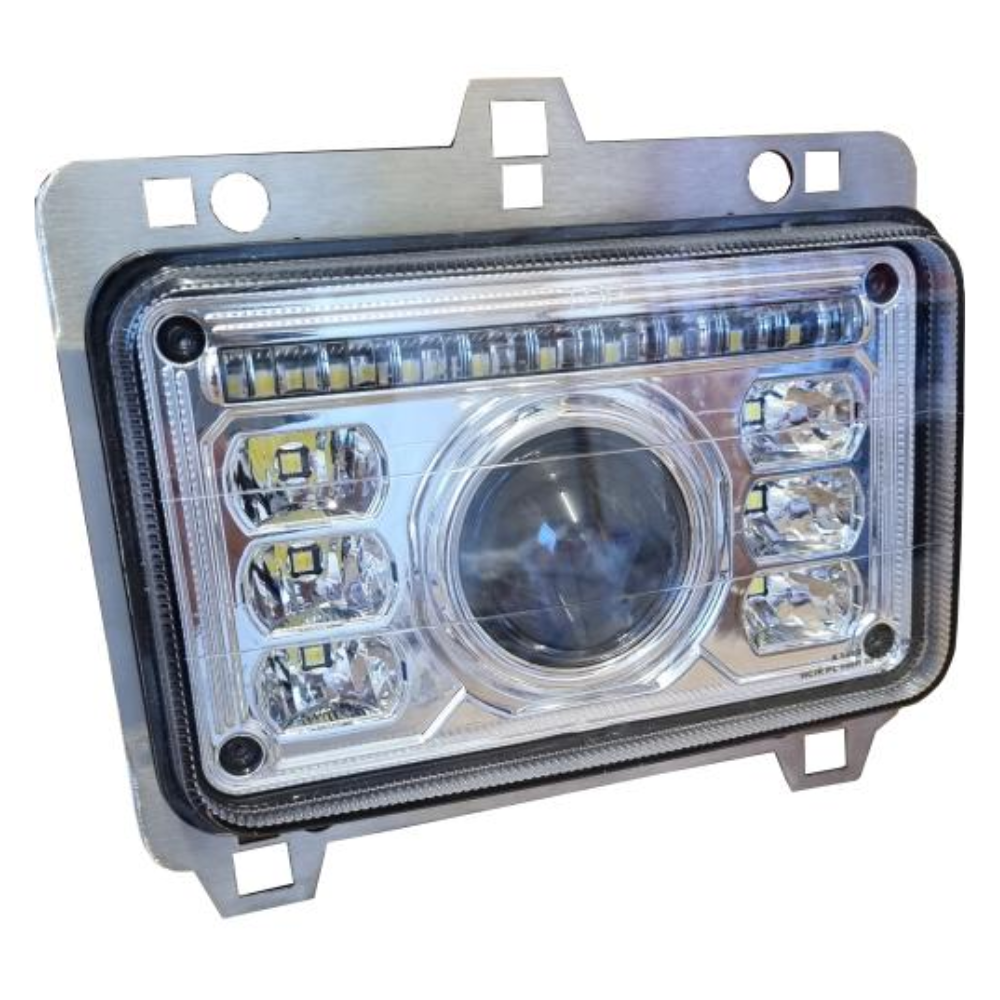

LED Global 69W LED High & Low Beam Headlight with DRL PN: LG838
LG838
102 Watt LED High & Low Beam Headligt with DRL& Brackets, 5760 Lumen - LG838
excl. VAT £76.95
(incl. VAT £92.34)
(incl. VAT £92.34)
102 Watt LED High & Low Beam Headligt with DRL& Brackets, 5760 Lumen - LG838
General Characteristics
Housing: Powder coated aluminium
69 Watt
9w DRL ( Daytime Running Light)
9/32V
50,000h
E Mark Certificate
IP68
ECE R10, ECE R112, ECE R148 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied With H4 Plug & Play Connection
Dimensions 165 x 105 x 80mm
Technical Light Properties
Light colour: Cold white
Ireland / UK Headlight
Colortemperature: 6000K
Electrical Characteristics
69 Watt
High intensity CREE XTE LEDs
Suitable for 9-32V DC
5,760 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G
Dimensions
Lamp width: 165 mm
Lamp height: 105 mm
Lamp thickness: 80 mm
O.E.M Ref:
3809346M91, 3824712M91,3713798M91 3713799M91,72514546 D45080006
Hella: 1AB003177611 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91,
3550746M91 , 3550746M92, 3550747M91, 3550747M92, 1693943M93,
COMPATIBLE WITH THE FOLLOWING:
Case IH
CS100 (CS Series) , CS110 (CS Series) , CS120 (CS Series) , CS130 (CS Series) , CS150 (CS Series)
Claas
ARES 540 RX , ARES 546 RX , ARES 550 RX , ARES 556 RX , ARES 566 RX , ARES 610 RX , ARES 616 RX ,
ARES 620 RX , ARES 626 , ARES 630 RX , ARES 636 , ARES 640RZ ,ARES 656 RZ , ARES 696 RZ
Fendt
916 VARIO (916) , 920 VARIO (920) , 924 VARIO (924) , 926 VARIO (926) , 930 VARIO (930)
Fiat
M100 (M Series) , M115 (M Series) , M135 (M Series) , M160 (M Series)
Ford New Holland
5640 (40 Series) , 6640 (40 Series) , 7740 (40 Series) , 7840 (40 Series) , 8160 (60 Series ) , 8240 (40 Series) ,
8260 (60 Series ) , 8340 (40 Series) , 8360 (60 Series ) , 8560 (60 Series ) , TM115 (TM Series) , TM120 (TM Series) ,
TM125 (TM Series) , TM130 (TM Series) , TM135 (TM Series) , TM140 (TM Series) , TM150 (TM Series) , TM155 (TM Series) ,
TM165 (TM Series) , TM175 (TM Series) , TM190 (TM Series)
Massey Ferguson
(3000 Series), 3050, 3055, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095,
(3100 Series), 3115, 3120, 3125, 3140
(300 Series), 340, 342, 350, 352, 360, 365, 372, 374, 375, 382, 384, 387, 390, 390T, 396, 397, 398, 399,
(3600 Series), 3610, 3615, 3625, 3630, 3635, 3645, 3650, 3655, 3660, 3670, 3680, 3690
4225 (4200/4300 Series) , 4235 (4200/4300 Series) , 4240 (4200/4300 Series) , 4245 (4200/4300 Series) , 4255 (4200/4300 Series) ,
4260 (4200/4300 Series) , 4265 (4200/4300 Series) , 4270 (4200/4300 Series) , 4315 (4200/4300 Series) , 4320 (4200/4300 Series),
4325 (4200/4300 Series) , 4335 (4200/4300 Series) , 4345 (4200/4300 Series) , 4355 (4200/4300 Series) , 4360 (4200/4300 Series) ,
4365 (4200/4300 Series) , 4370 (4200/4300 Series) , 6235 (6200 Series) , 6245 (6200 Series) , 6255 (6200 Series) , 6260 (6200 Series) ,
6265 (6200 Series) , 6270 (6200 Series) , 6280 (6200 Series) , 6290 (6200 Series) , 8210 (8200 Series) , 8220 (8200 Series) ,
8240 (8200 Series) , 8250 (8200 Series) , 8260 (8200 Series),3809346M91, 3824712M91, 3713798M91 , 3713799M91 , 72514546,
D45080006 , Hella: 1AB003177611 , 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91, 3550746M91 ,
3550746M92, 3550747M91, 3550747M92, 1693943M93,
Renault
110-14 (12-14 Series) , 110-54 (52-54 Series) , 113-12 (12-14 Series) , 113-14 (12-14 Series) , 120-14 (12-14 Series) , 120-54 (52-54 Series) ,
133-14 (12-14 Series) , 133-54 (52-54 Series) , 145-14 (12-14 Series) , 145-54 (52-54 Series) , 155-54 (52-54 Series) , 160-94 , 175-74 , 180-94 ,
Ares 540 (Ares) , Ares 546 (Ares) , Ares 550 (Ares) , Ares 556 (Ares) , Ares 566 (Ares) , Ares 610 (Ares) , Ares 616 (Ares) , Ares 620 (Ares) ,
Ares 626 (Ares) , Ares 630 (Ares) , Ares 636 (Ares) , Ares 640 (Ares) , Ares 656 (Ares) , Ares 696 (Ares) , Ares 710 (Ares) , Ares 715 (Ares) ,
Ares 720 (Ares) , Ares 725 (Ares) , Ares 735 (Ares) , Ares 815 (Ares) , Ares 816 (Ares) , Ares 825 (Ares) , Ares 826 (Ares) , Ares 836 (Ares) ,
ATLES 915 , ATLES 925 , ATLES 926 , ATLES 935 , ATLES 936 ,Temis550 (Temis) ,Temis610 (Temis) ,Temis630 (Temis) ,Temis650 (Temis)
Steyr
9105 , 9115 , 9125 , 9145 , CVT 120 , CVT 130 , CVT 150 , CVT 170
General Characteristics
Housing: Powder coated aluminium
69 Watt
9w DRL ( Daytime Running Light)
9/32V
50,000h
E Mark Certificate
IP68
ECE R10, ECE R112, ECE R148 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied With H4 Plug & Play Connection
Dimensions 165 x 105 x 80mm
Technical Light Properties
Light colour: Cold white
Ireland / UK Headlight
Colortemperature: 6000K
Electrical Characteristics
69 Watt
High intensity CREE XTE LEDs
Suitable for 9-32V DC
5,760 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G
Dimensions
Lamp width: 165 mm
Lamp height: 105 mm
Lamp thickness: 80 mm
O.E.M Ref:
3809346M91, 3824712M91,3713798M91 3713799M91,72514546 D45080006
Hella: 1AB003177611 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91,
3550746M91 , 3550746M92, 3550747M91, 3550747M92, 1693943M93,
COMPATIBLE WITH THE FOLLOWING:
Case IH
CS100 (CS Series) , CS110 (CS Series) , CS120 (CS Series) , CS130 (CS Series) , CS150 (CS Series)
Claas
ARES 540 RX , ARES 546 RX , ARES 550 RX , ARES 556 RX , ARES 566 RX , ARES 610 RX , ARES 616 RX ,
ARES 620 RX , ARES 626 , ARES 630 RX , ARES 636 , ARES 640RZ ,ARES 656 RZ , ARES 696 RZ
Fendt
916 VARIO (916) , 920 VARIO (920) , 924 VARIO (924) , 926 VARIO (926) , 930 VARIO (930)
Fiat
M100 (M Series) , M115 (M Series) , M135 (M Series) , M160 (M Series)
Ford New Holland
5640 (40 Series) , 6640 (40 Series) , 7740 (40 Series) , 7840 (40 Series) , 8160 (60 Series ) , 8240 (40 Series) ,
8260 (60 Series ) , 8340 (40 Series) , 8360 (60 Series ) , 8560 (60 Series ) , TM115 (TM Series) , TM120 (TM Series) ,
TM125 (TM Series) , TM130 (TM Series) , TM135 (TM Series) , TM140 (TM Series) , TM150 (TM Series) , TM155 (TM Series) ,
TM165 (TM Series) , TM175 (TM Series) , TM190 (TM Series)
Massey Ferguson
(3000 Series), 3050, 3055, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095,
(3100 Series), 3115, 3120, 3125, 3140
(300 Series), 340, 342, 350, 352, 360, 365, 372, 374, 375, 382, 384, 387, 390, 390T, 396, 397, 398, 399,
(3600 Series), 3610, 3615, 3625, 3630, 3635, 3645, 3650, 3655, 3660, 3670, 3680, 3690
4225 (4200/4300 Series) , 4235 (4200/4300 Series) , 4240 (4200/4300 Series) , 4245 (4200/4300 Series) , 4255 (4200/4300 Series) ,
4260 (4200/4300 Series) , 4265 (4200/4300 Series) , 4270 (4200/4300 Series) , 4315 (4200/4300 Series) , 4320 (4200/4300 Series),
4325 (4200/4300 Series) , 4335 (4200/4300 Series) , 4345 (4200/4300 Series) , 4355 (4200/4300 Series) , 4360 (4200/4300 Series) ,
4365 (4200/4300 Series) , 4370 (4200/4300 Series) , 6235 (6200 Series) , 6245 (6200 Series) , 6255 (6200 Series) , 6260 (6200 Series) ,
6265 (6200 Series) , 6270 (6200 Series) , 6280 (6200 Series) , 6290 (6200 Series) , 8210 (8200 Series) , 8220 (8200 Series) ,
8240 (8200 Series) , 8250 (8200 Series) , 8260 (8200 Series),3809346M91, 3824712M91, 3713798M91 , 3713799M91 , 72514546,
D45080006 , Hella: 1AB003177611 , 1693944M91 , 1693944M93 , 1693945M93 , 3542816M91 , 3542817M91, 3550746M91 ,
3550746M92, 3550747M91, 3550747M92, 1693943M93,
Renault
110-14 (12-14 Series) , 110-54 (52-54 Series) , 113-12 (12-14 Series) , 113-14 (12-14 Series) , 120-14 (12-14 Series) , 120-54 (52-54 Series) ,
133-14 (12-14 Series) , 133-54 (52-54 Series) , 145-14 (12-14 Series) , 145-54 (52-54 Series) , 155-54 (52-54 Series) , 160-94 , 175-74 , 180-94 ,
Ares 540 (Ares) , Ares 546 (Ares) , Ares 550 (Ares) , Ares 556 (Ares) , Ares 566 (Ares) , Ares 610 (Ares) , Ares 616 (Ares) , Ares 620 (Ares) ,
Ares 626 (Ares) , Ares 630 (Ares) , Ares 636 (Ares) , Ares 640 (Ares) , Ares 656 (Ares) , Ares 696 (Ares) , Ares 710 (Ares) , Ares 715 (Ares) ,
Ares 720 (Ares) , Ares 725 (Ares) , Ares 735 (Ares) , Ares 815 (Ares) , Ares 816 (Ares) , Ares 825 (Ares) , Ares 826 (Ares) , Ares 836 (Ares) ,
ATLES 915 , ATLES 925 , ATLES 926 , ATLES 935 , ATLES 936 ,Temis550 (Temis) ,Temis610 (Temis) ,Temis630 (Temis) ,Temis650 (Temis)
Steyr
9105 , 9115 , 9125 , 9145 , CVT 120 , CVT 130 , CVT 150 , CVT 170
