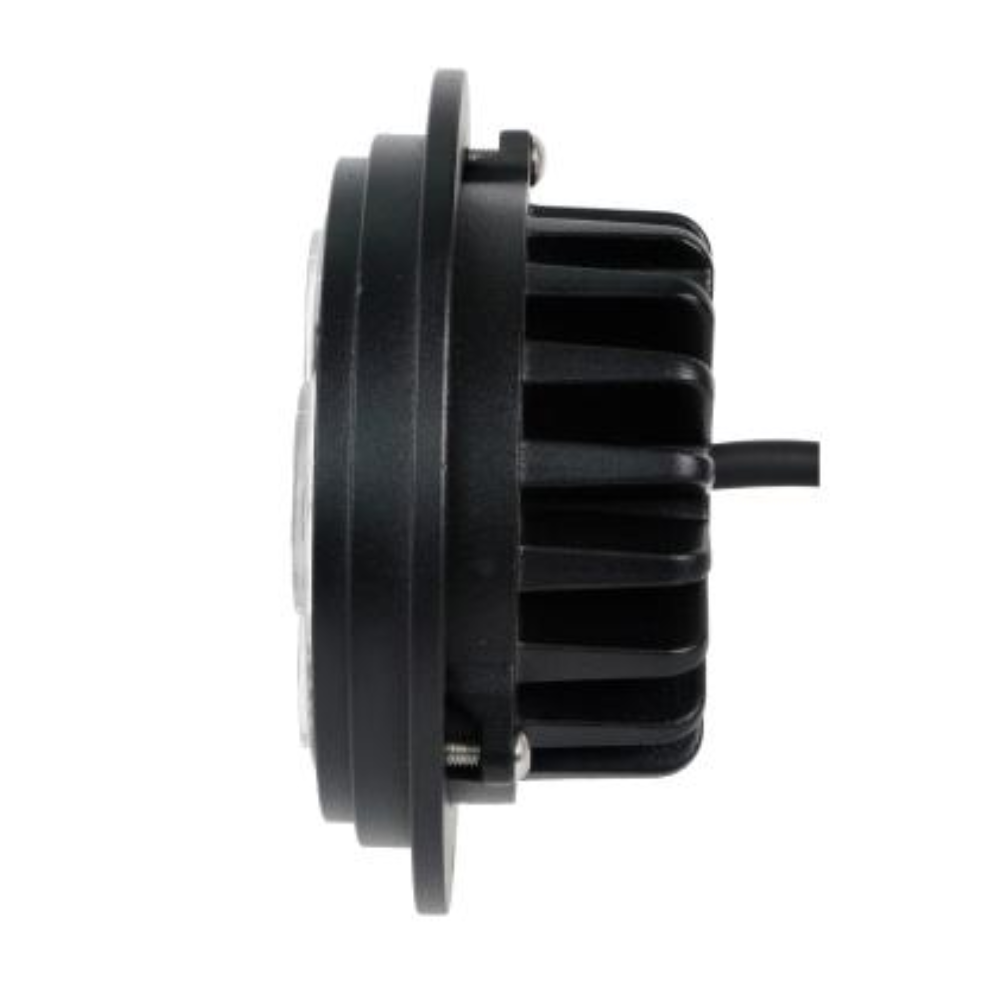

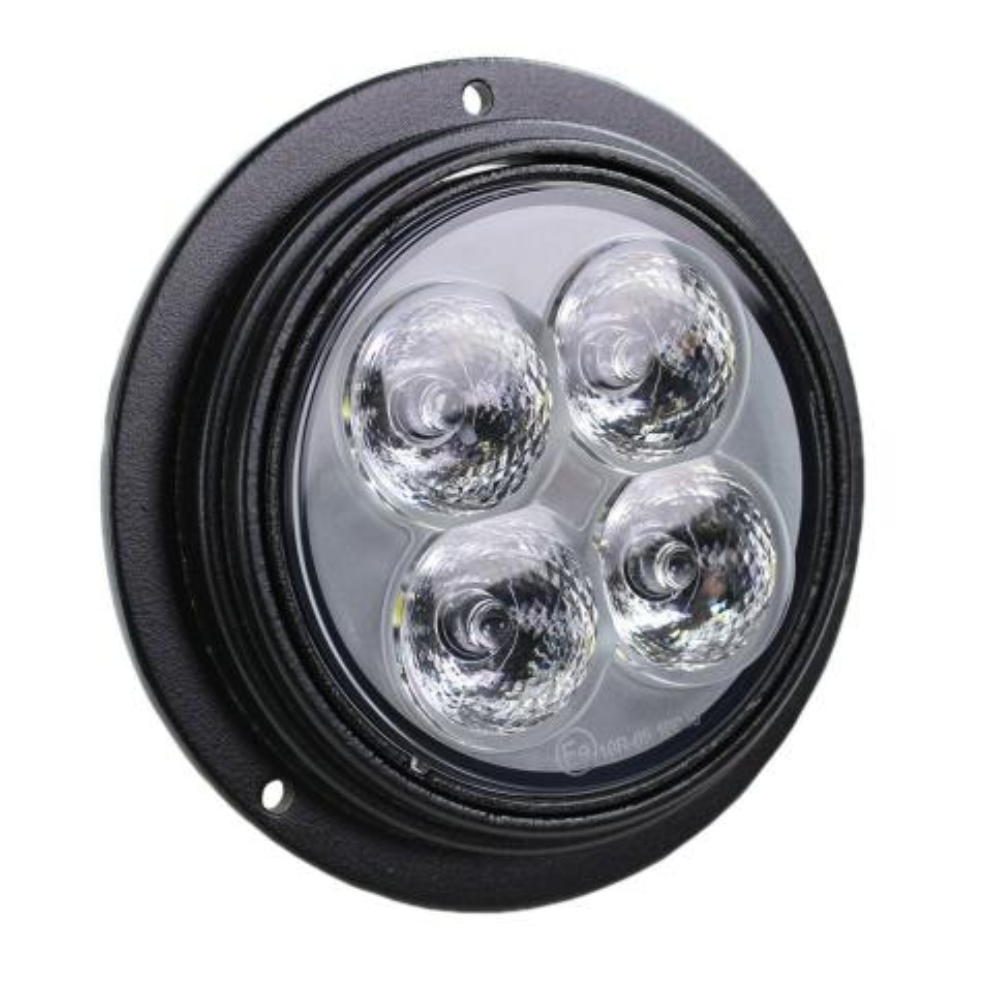

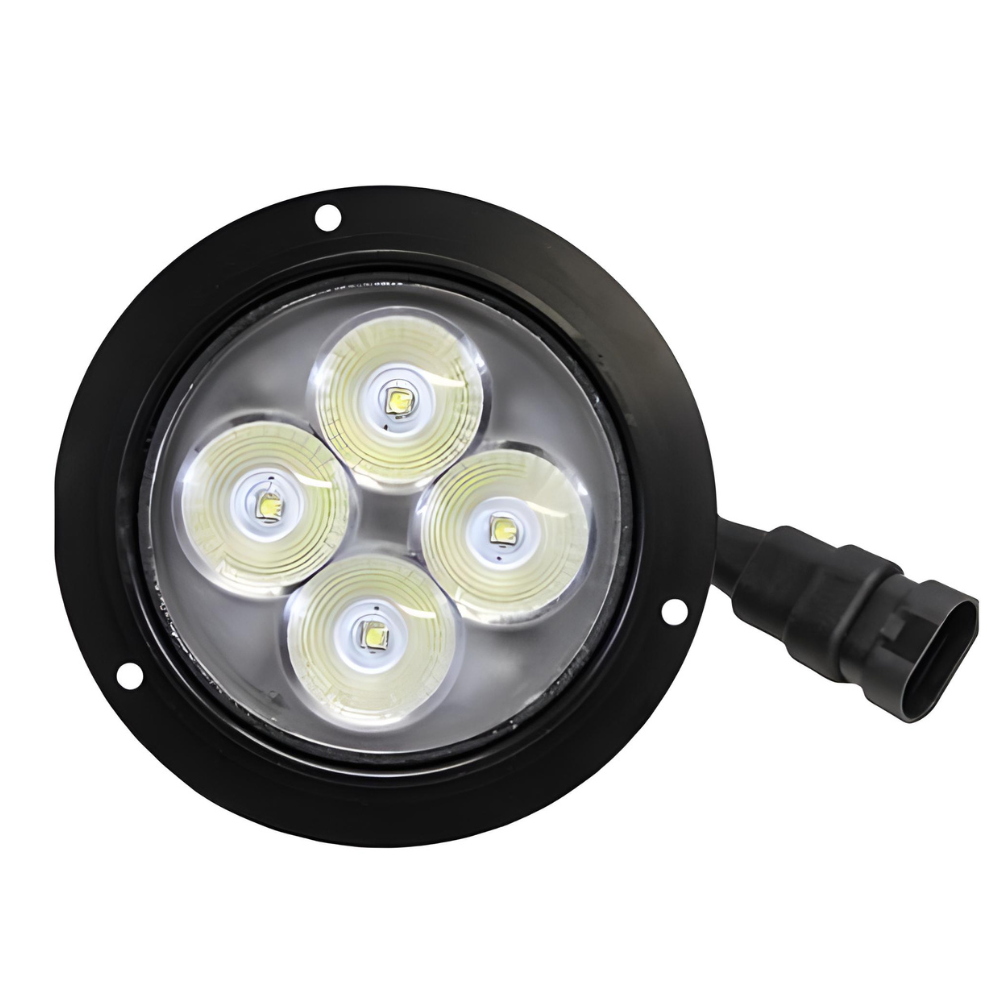

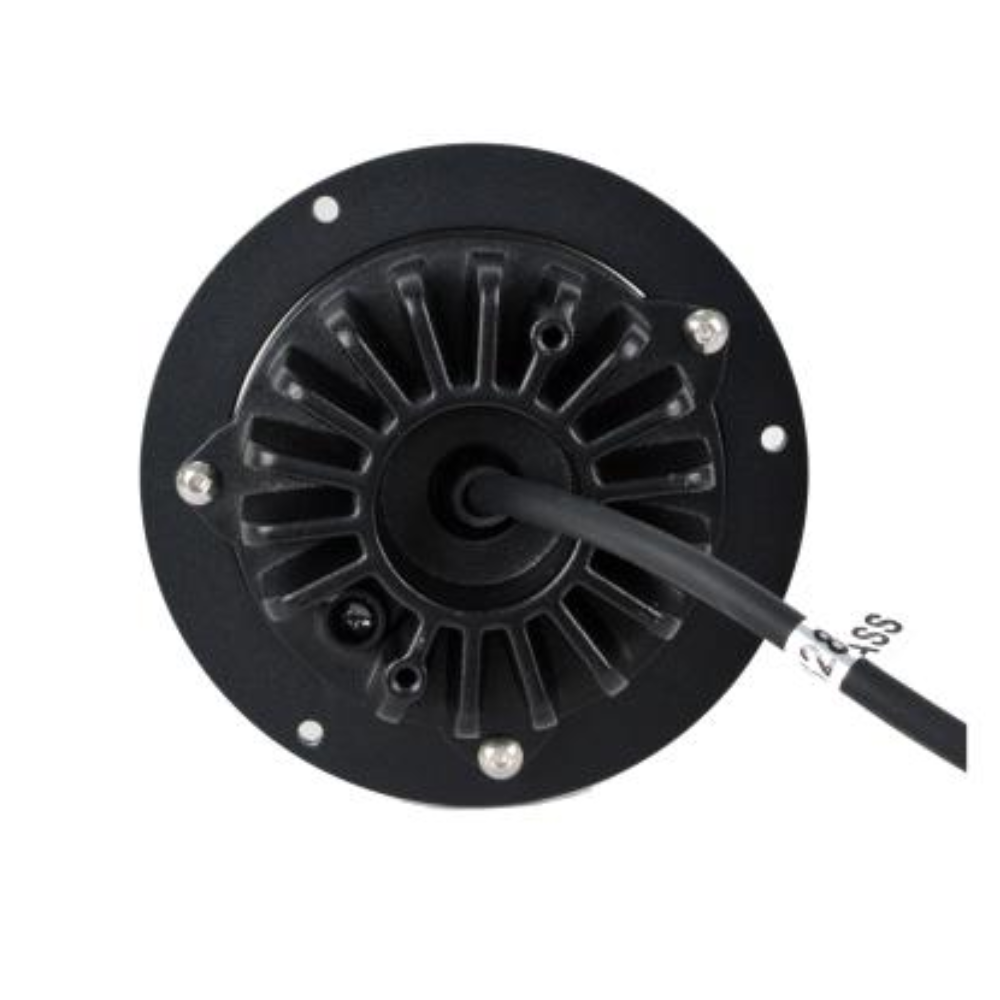

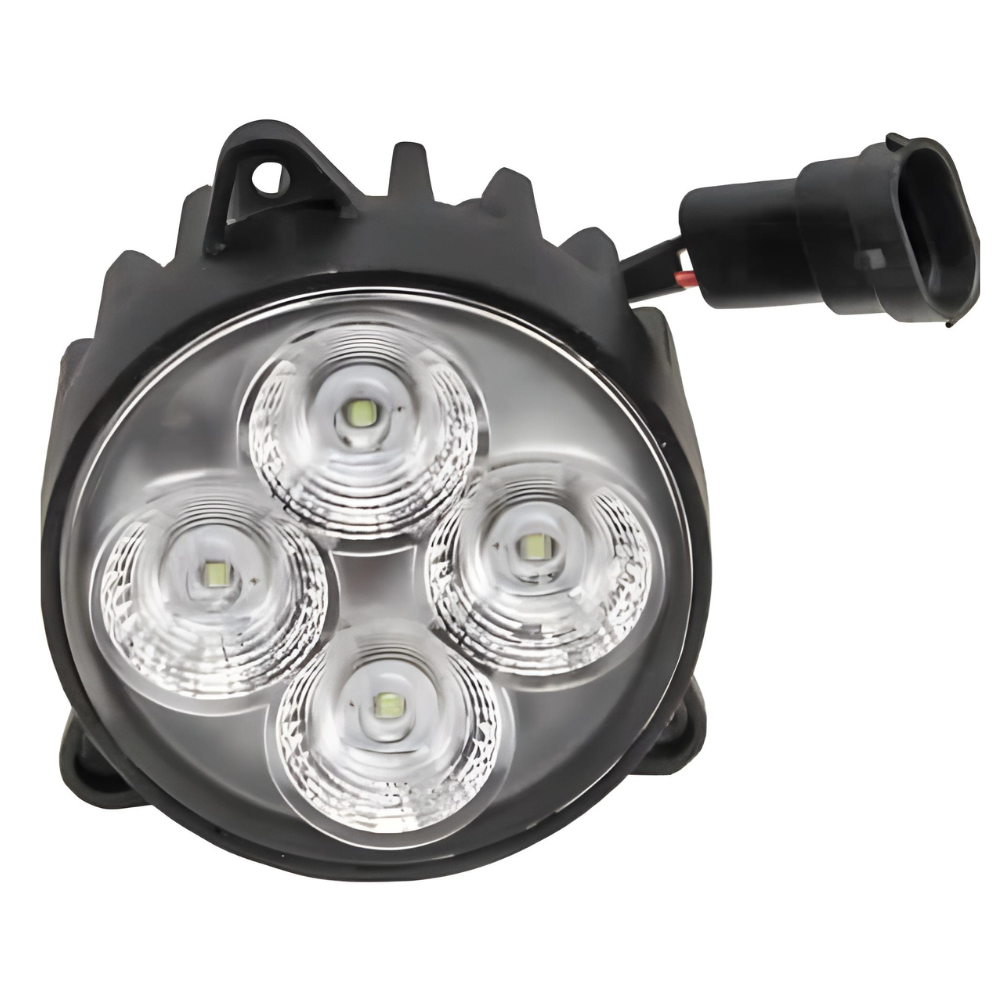

LED Global 3200 Lumen LED Round Bonnet Work Light PN: LG830
LG830
40 Watt LED Oval Bonnet Work Light, 3200 Lumen - LG830 - Suited For Ford New Holland, John Deere and Case IHC Tractors
excl. VAT £51.30
(incl. VAT £61.56)
(incl. VAT £61.56)
40 Watt LED Oval Bonnet Work Light, 3200 Lumen - LG830
General Characteristics
Housing: Diecast Aluminium
Flood Beam
40w LED Bonnet Work Light
9/32V
50,000h
IP68
ECE R10 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied with 9005 Plug & Play Connector
Dimensions 93.5 x 83 x 55mm
Technical Light Properties
Light Colour: Cold white
Colour temperature: 6000K
Electrical Characteristics
Nominal lamp power: 40 Watt
40W high intensity CREE XTE LEDs
Suitable for 9-32V DC
3200 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G
Dimensions
Lamp width: 93.5 mm
Lamp height: 83 mm
Lamp thickness: 55 mm
*O.E.M Ref:AL209455, 87539115, 87328621, 87539115, 87328621
*Compatible with the following:
Ford New Holland
TG Series
TG210, TG230, TG255, TG285, TG215, TG245, TG275, TG305
T8000 Series
T8010, T8020, T8030, T8040, T8050
John Deere
6M Series
6105 M, 6115 M, 6125 M, 6130 M, 6140 M, 6150 M, 6170 M, 6120 M, 6145 M, 6155 M, 6175 M, 6195 M, 6110 M
6R Series
6105 R, 6115 R, 6125 R, 6140 R, 6150 R, 6170 R, 6190 R, 6210 R, 6130 R, 6145 R, 6155 R, 6175 R, 6215 R, 6110 R, 6120 R, 6195 R, 6155 RH, 6150 RH
Case IHC
Magnum Series
Magnum 190, Magnum 210, Magnum 225, Magnum 250, Magnum 280, Magnum 310, Magnum 335, Magnum 215, Magnum 245, Magnum 275, Magnum 305, Magnum 240, Magnum 220, Magnum 200, Magnum 235, Magnum 260, Magnum 290, Magnum 315, Magnum 340, Magnum 370, Magnum 380
Magnum MX Series
MX215
Puma Series
Puma 165, Puma 180, Puma 195, Puma 210, Puma 225, Puma 170, Puma 185, Puma 215, Puma 200, Puma 230, Puma 220, Puma 240
*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
General Characteristics
Housing: Diecast Aluminium
Flood Beam
40w LED Bonnet Work Light
9/32V
50,000h
IP68
ECE R10 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied with 9005 Plug & Play Connector
Dimensions 93.5 x 83 x 55mm
Technical Light Properties
Light Colour: Cold white
Colour temperature: 6000K
Electrical Characteristics
Nominal lamp power: 40 Watt
40W high intensity CREE XTE LEDs
Suitable for 9-32V DC
3200 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G
Dimensions
Lamp width: 93.5 mm
Lamp height: 83 mm
Lamp thickness: 55 mm
*O.E.M Ref:AL209455, 87539115, 87328621, 87539115, 87328621
*Compatible with the following:
Ford New Holland
TG Series
TG210, TG230, TG255, TG285, TG215, TG245, TG275, TG305
T8000 Series
T8010, T8020, T8030, T8040, T8050
John Deere
6M Series
6105 M, 6115 M, 6125 M, 6130 M, 6140 M, 6150 M, 6170 M, 6120 M, 6145 M, 6155 M, 6175 M, 6195 M, 6110 M
6R Series
6105 R, 6115 R, 6125 R, 6140 R, 6150 R, 6170 R, 6190 R, 6210 R, 6130 R, 6145 R, 6155 R, 6175 R, 6215 R, 6110 R, 6120 R, 6195 R, 6155 RH, 6150 RH
Case IHC
Magnum Series
Magnum 190, Magnum 210, Magnum 225, Magnum 250, Magnum 280, Magnum 310, Magnum 335, Magnum 215, Magnum 245, Magnum 275, Magnum 305, Magnum 240, Magnum 220, Magnum 200, Magnum 235, Magnum 260, Magnum 290, Magnum 315, Magnum 340, Magnum 370, Magnum 380
Magnum MX Series
MX215
Puma Series
Puma 165, Puma 180, Puma 195, Puma 210, Puma 225, Puma 170, Puma 185, Puma 215, Puma 200, Puma 230, Puma 220, Puma 240
*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
