LED Global 100 Watt LED Headlight with Front Rear Indicator (RH) & DR Lights PN: LG820R
LG820R
100 Watt LED Headlight with Front Rear Indicator (RH) & DRL, 5600 Lumen - LG820R
excl. VAT £114.75
(incl. VAT £137.70)
(incl. VAT £137.70)
You might also be interested in these
100 Watt LED Headlight with Front Rear Indicator (RH) & DRL, 5600 Lumen - LG820R
General Characteristics
Housing: Powder coated aluminium
60w High Beam
30w Low Beam
10w D.R.L
10w Indicator
9/32V
50,000h
E Mark Certified
IP68
ECE R10, ECE R149, ECE R112, ECE R148, ECE R7 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)

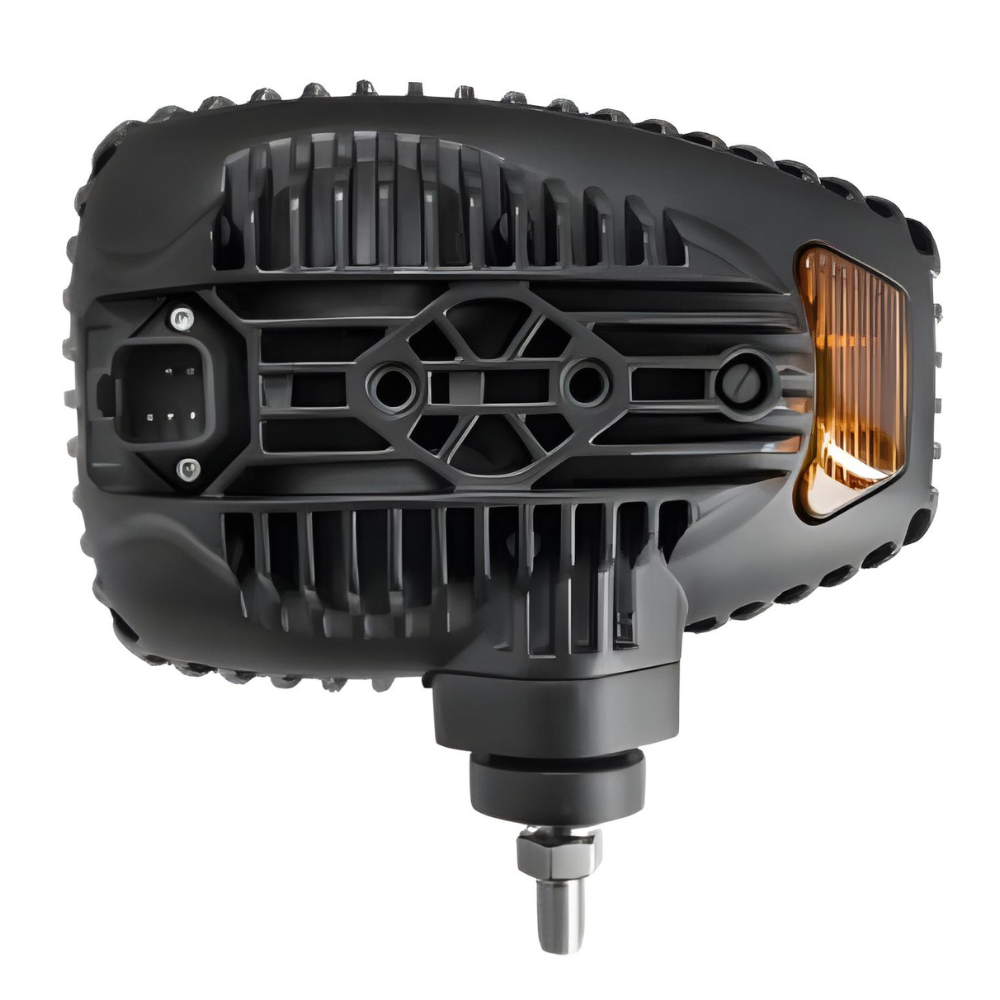

Supplied With 6 Pin Deutsch Socket & Plug
Dimensions 229 x 152 x 106mm
Technical Light Properties
Light color: Cold white
Color temperature: 6000K
Electrical Characteristics
Nominal lamp power: 100 Watt
60W high intensity CREE XTE LEDs
Suitable for 9-32V DC
5,600 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G

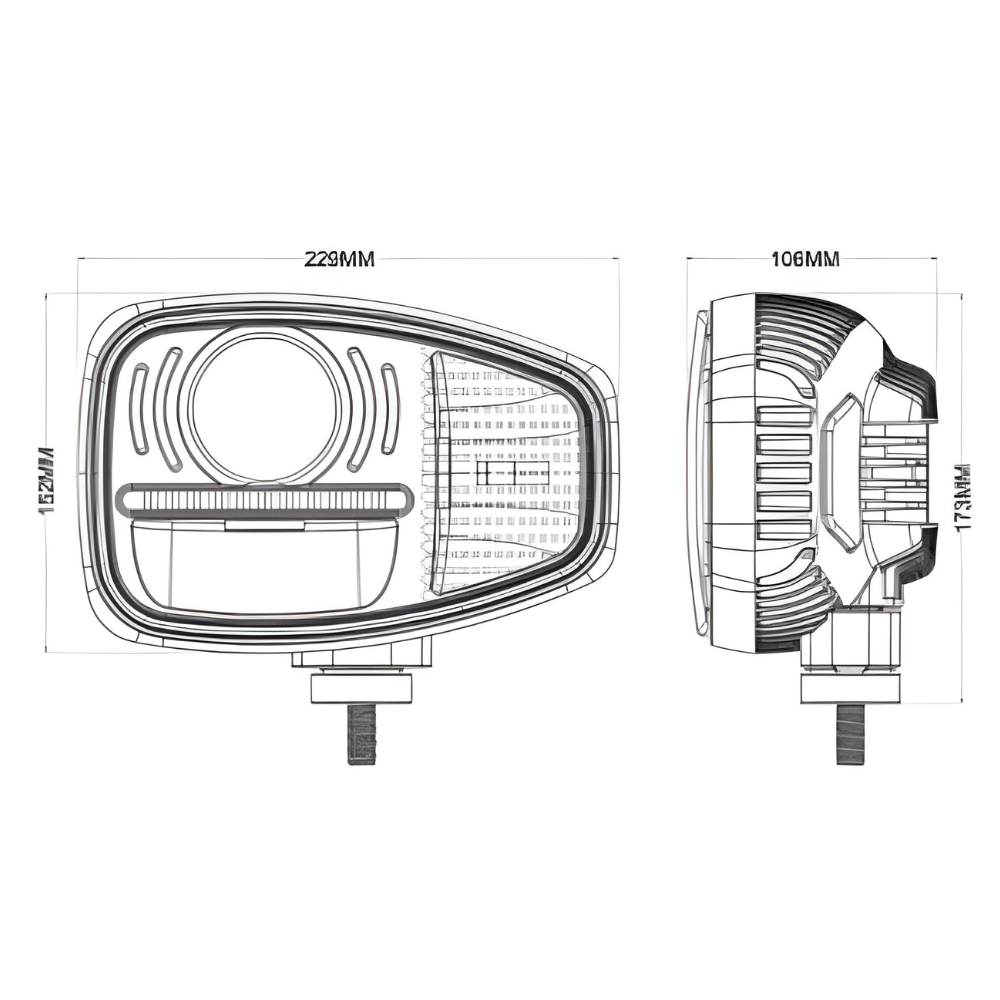

Dimensions
Lamp width: 229 mm
Lamp height: 152 mm
Lamp thickness: 106 mm
O.E.M Ref:
JCB 700/50192,JCB 700/50193
Hella 1EE 996 174-401,1SA996120107,1EE996174201
AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)
MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)
SCANIA (20223061),VOLVO (17 286 451),Faresin(ME11096A40)
COMPATIBLE WITH THE FOLLOWING:
Manitou
MLT625 , MLT627 , MLT629 , MT1030 , MT1135 , MT1235 , MT1335 , MT1435 , MT1440
MT1840 , MT625 , MT732 , MT835 , MT928 , MT932 , MT940 , MTX625 , MTX731 , MTX732
JCB
526-56 , 527-58 , 531-70 , 533-105 , 533-140 , 535-95 (Loader) , 536-60 , 540-140 , 540-170 , 540-200 ,
550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,
FASTRAC 7200 , FASTRAC 7230 ,FASTRAC 7270 , FASTRAC 8250 , FASTRAC 8280 , FASTRAC 8310
Caterpillar,Volvo,Terex
Wiring Diagram
Black is earth
White is DRL
Blue is Indicator
Brown is Dip
Red is Full Beam
General Characteristics
Housing: Powder coated aluminium
60w High Beam
30w Low Beam
10w D.R.L
10w Indicator
9/32V
50,000h
E Mark Certified
IP68
ECE R10, ECE R149, ECE R112, ECE R148, ECE R7 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied With 6 Pin Deutsch Socket & Plug
Dimensions 229 x 152 x 106mm
Technical Light Properties
Light color: Cold white
Color temperature: 6000K
Electrical Characteristics
Nominal lamp power: 100 Watt
60W high intensity CREE XTE LEDs
Suitable for 9-32V DC
5,600 lumens
Lux Reading: 50Mtr @ 12Lux
Lux Reading: 186Mtr @ 1Lux
Vibration Test to 15G
Dimensions
Lamp width: 229 mm
Lamp height: 152 mm
Lamp thickness: 106 mm
O.E.M Ref:
JCB 700/50192,JCB 700/50193
Hella 1EE 996 174-401,1SA996120107,1EE996174201
AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)
MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)
SCANIA (20223061),VOLVO (17 286 451),Faresin(ME11096A40)
COMPATIBLE WITH THE FOLLOWING:
Manitou
MLT625 , MLT627 , MLT629 , MT1030 , MT1135 , MT1235 , MT1335 , MT1435 , MT1440
MT1840 , MT625 , MT732 , MT835 , MT928 , MT932 , MT940 , MTX625 , MTX731 , MTX732
JCB
526-56 , 527-58 , 531-70 , 533-105 , 533-140 , 535-95 (Loader) , 536-60 , 540-140 , 540-170 , 540-200 ,
550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,
FASTRAC 7200 , FASTRAC 7230 ,FASTRAC 7270 , FASTRAC 8250 , FASTRAC 8280 , FASTRAC 8310
Caterpillar,Volvo,Terex
Wiring Diagram
Black is earth
White is DRL
Blue is Indicator
Brown is Dip
Red is Full Beam
