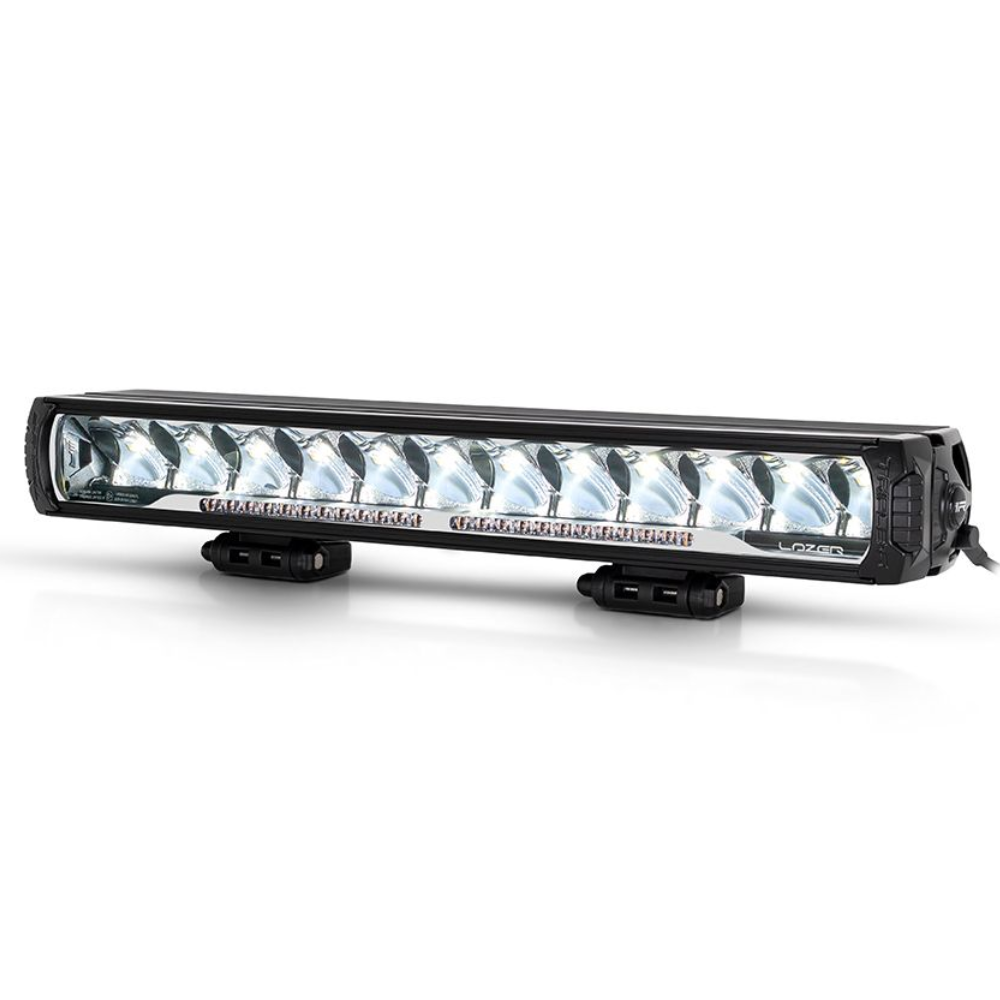

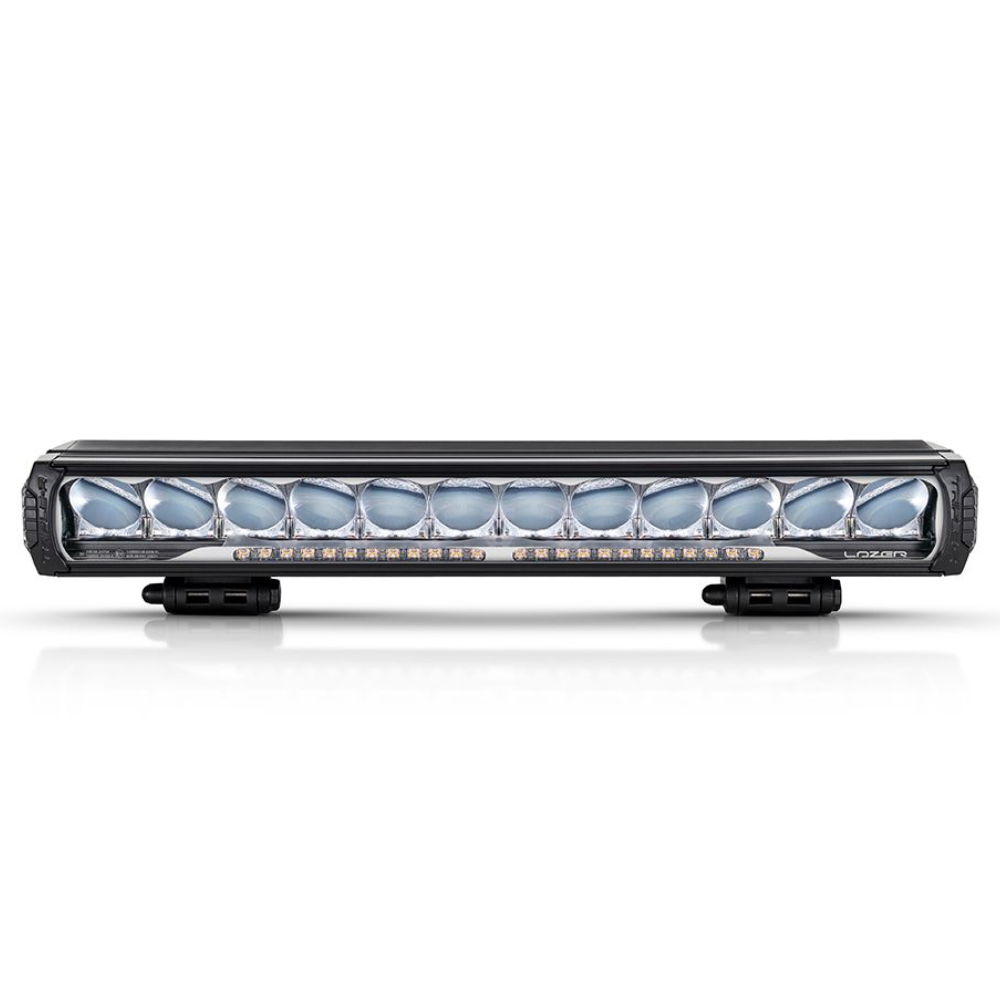

Lazer Lamps Triple-R 1250 Lamp With Beacon Light Gen 2 590mm PN: 00R12-BCN-B

The Triple-R 1250, an increasingly popular option amongst the heavy truck and LCV sectors, now features an integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high-beam driving light function, to really set the lamp apart from the competition.

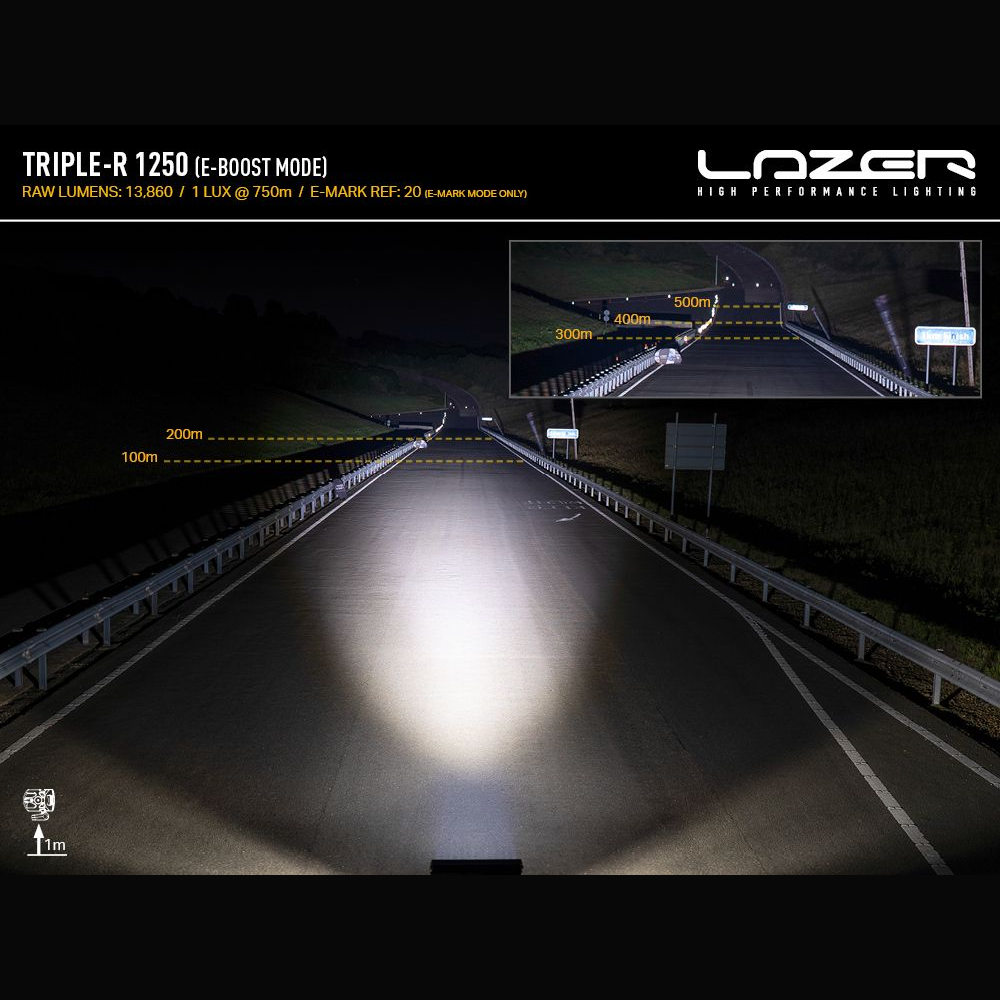

The Triple-R 1250 delivers a spot beam pattern ideal for road use. The lamp’s design is clean and contemporary, with an aggressive edge, matching the aesthetic design prevalent on modern vehicles. Boasting an impressive 13,860 lumens and delivering 1 lux to 750m, the auxiliary LED driving light provides a good horizontal spread of light without compromising the up/down spread, ensuring the suitability of the lights, even when mounted high on vehicles such as heavy trucks. Approved to UNECE Regulation 149 as a high-beam driving light, the lamp incorporates Lazer’s innovative dual-output E-Boost technology, activated by a quick flash of the lights on and off, with the output rapidly reducing to minimise glare from reflective road signs via the Flash-to-Dim function. Additionally, the Triple-R 1250 Beacon can be programmed to operate permanently in either High or Low Output mode, with the Low Output mode fully compliant with UNECE Reg 149 for on-road high-beam use.

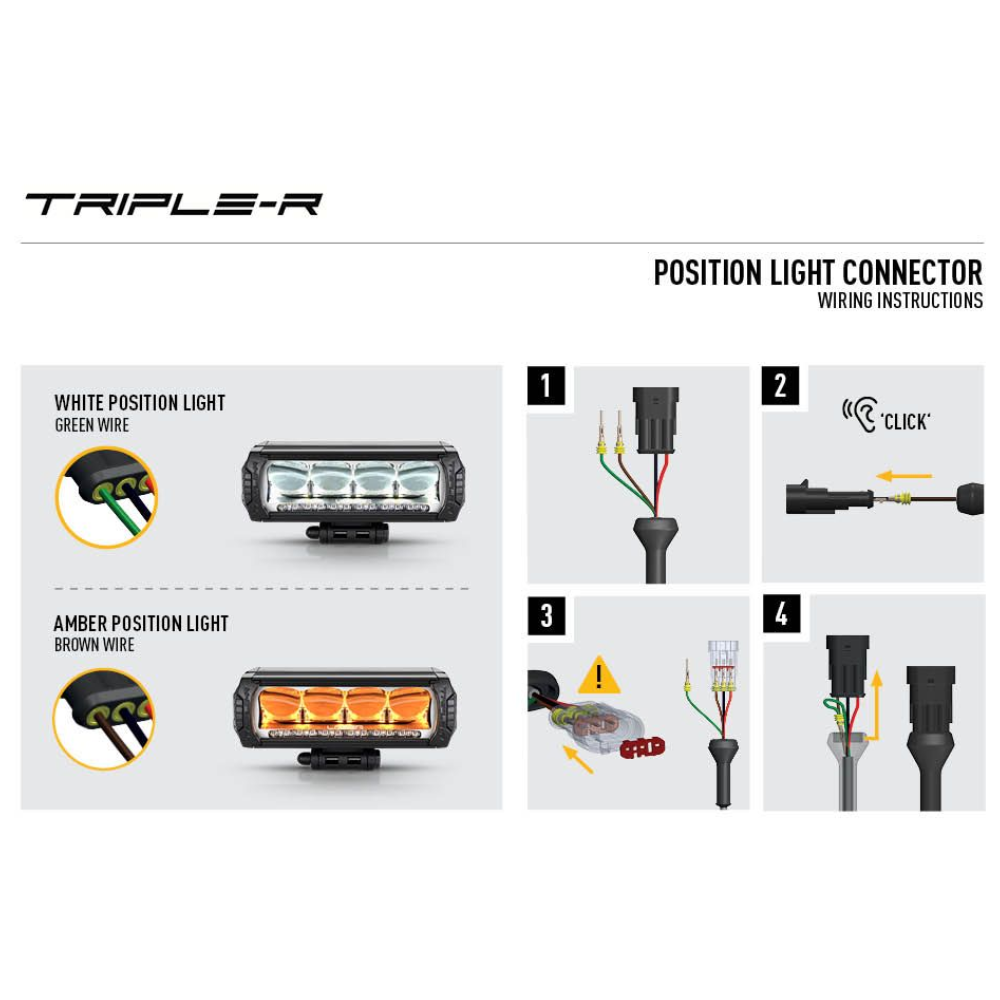

Included within the lamp is the option to connect an integrated position/side light function, helping you get noticed as much during the day as at night. Connect the white or amber-coloured position light by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1250 Beacon act as a high-beam driving light only. The position light function (white only) is approved to ECE Regulation 148 to operate in parallel with your standard vehicle lights.

For customers seeking a dynamic start-up or welcome mode, the Triple-R 1250 Beacon’s position lights can be set to gradually brighten at start-up, or smoothly cycle between white and amber (or vice versa) when the vehicle is started or the side lights are activated.

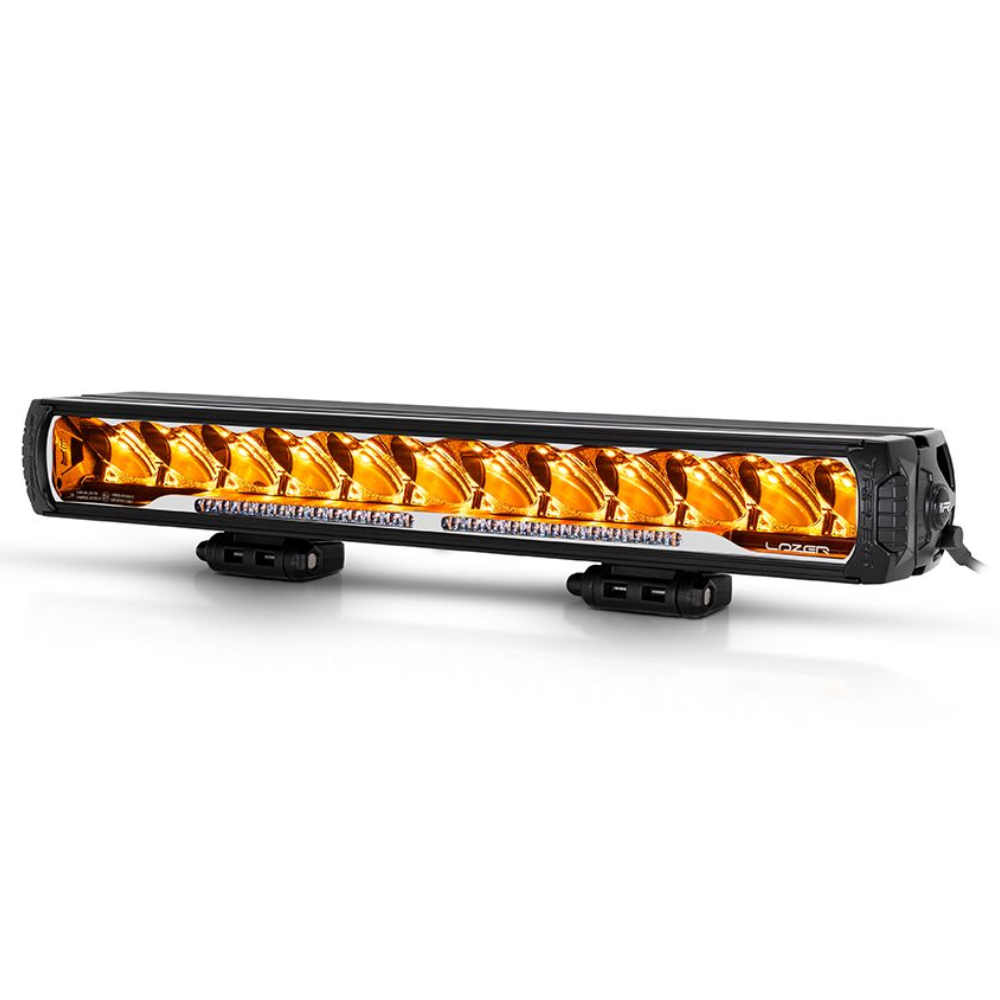

Also approved to ECE Regulation 65 as a narrow-field special warning light, the lamp offers 16 selectable amber warning flash patterns. These can be set and synchronised across multiple lamps during installation, or adjusted on demand using a momentary switch. Examples of the various flash patterns can be viewed in the Videos section below.

Like all Lazer products, the Triple-R 1250 with Beacon function has been designed and engineered to deliver a powerful driving light with a perfectly homogenous beam pattern. The colour temperature of the light, at 5000K, is carefully selected to maximise the definition of any obstacles ahead, while ensuring a comfortable drive, even over prolonged periods of time. Performance is complemented by a superior build quality, born of our in-house UK manufacturing, and backed by our comprehensive 5-year warranty.

Product Features:

• High density, premium-bin 11W LED technology
• Integrated white or amber position light function – UNECE Reg148 (White only)
• Integrated amber flashing beacon function – UNECE Reg65
• ECE approved for on-road high-beam use (dual-output technology) – UNECE Reg149
• Flash-to-Dim functionality for avoiding glare from road signs
• Dual-output functionality – High and Low Output modes
• Dynamic start-up / Welcome Mode – two options activated as/if required.
• Ultra-reflective vacuum-metallised optics delivering a spot beam pattern
• Contemporary lamp design
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and automotive-grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ hardcoated polycarbonate lens with lifetime guarantee.
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female 6-pin Superseal connectors
• Designed & manufactured in the UK

What's Included:

x1 Triple-R 1250 Beacon LED Lamp
x2 Centre Mount (1114k)
x1 Installation Instructions

Technical Specifications:

1x TRIPLE-R 1250 BEACON	BOOST MODE	LOW OUTPUT/ E-MARK MODE
Voltage Range (DC)	10-32V
LED Life	50,000 hours
Weight	2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux	13,860 Lm	2,772 Lm
Total Driver 'FOV' Flux †	8,358 Lm	1,672 Lm
Colour Temperature	5000K
Power Consumption	125 Watts	25 Watts
Peak Current Draw	10 Amps	2 Amps
Current Draw (14.4V)	8.7 Amps	1.7 Amp
Connector	6-Pin Superseal (+20cm Cable)

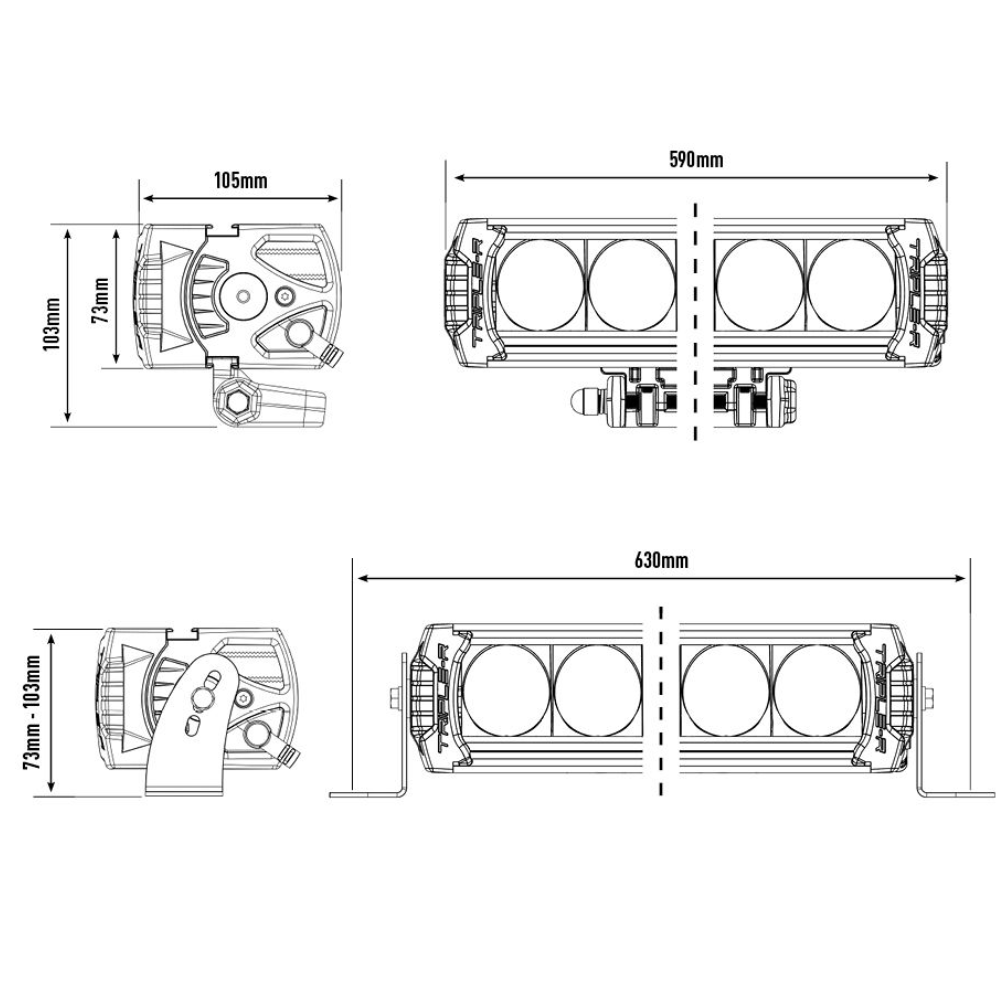

DIMENSIONS
Width	590 mm
Depth	105 mm
Height	73 mm
CERTIFICATION
IP Rating #	IP68
High Beam (E9 approval)	ECE R149 - Ref: 20 (in Low Output Mode only)
Position Light (white only)	ECE R148
Beacon Function	ECE R65 (XA1)
EMC Certification	ECE R10
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2

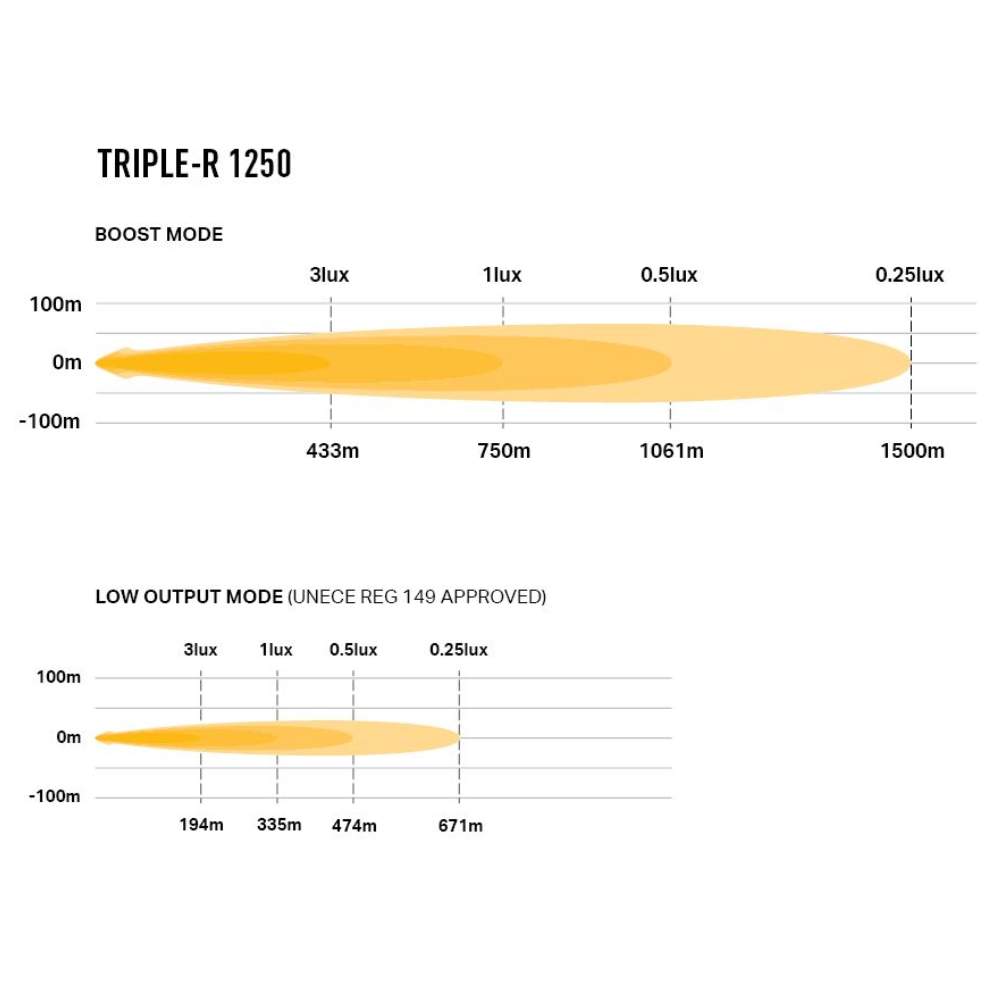

PHOTOMETRIC DATA

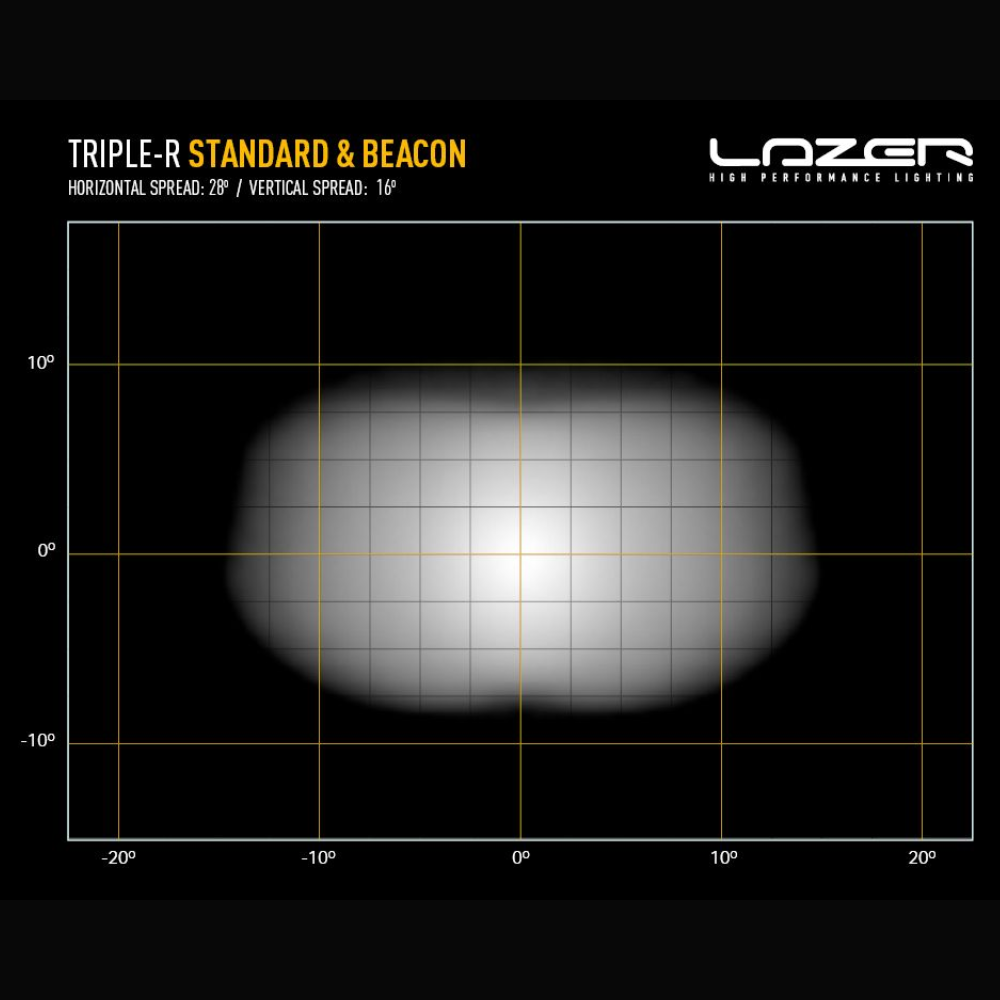

Horizontal / Vertical Beam Angle	28° / 16°
0.25 lx Line	1500m	671m
0.5 lx Line	1061m	474m
1 lx Line	750m	335m
3 lx Line	433m	194m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
