Lazer Lamps Toyota Land Cruiser 250 2024+ Carbon-2 Fog Light Upgrade Kit PN: BK-LC250-01K
BK-LC250-01K

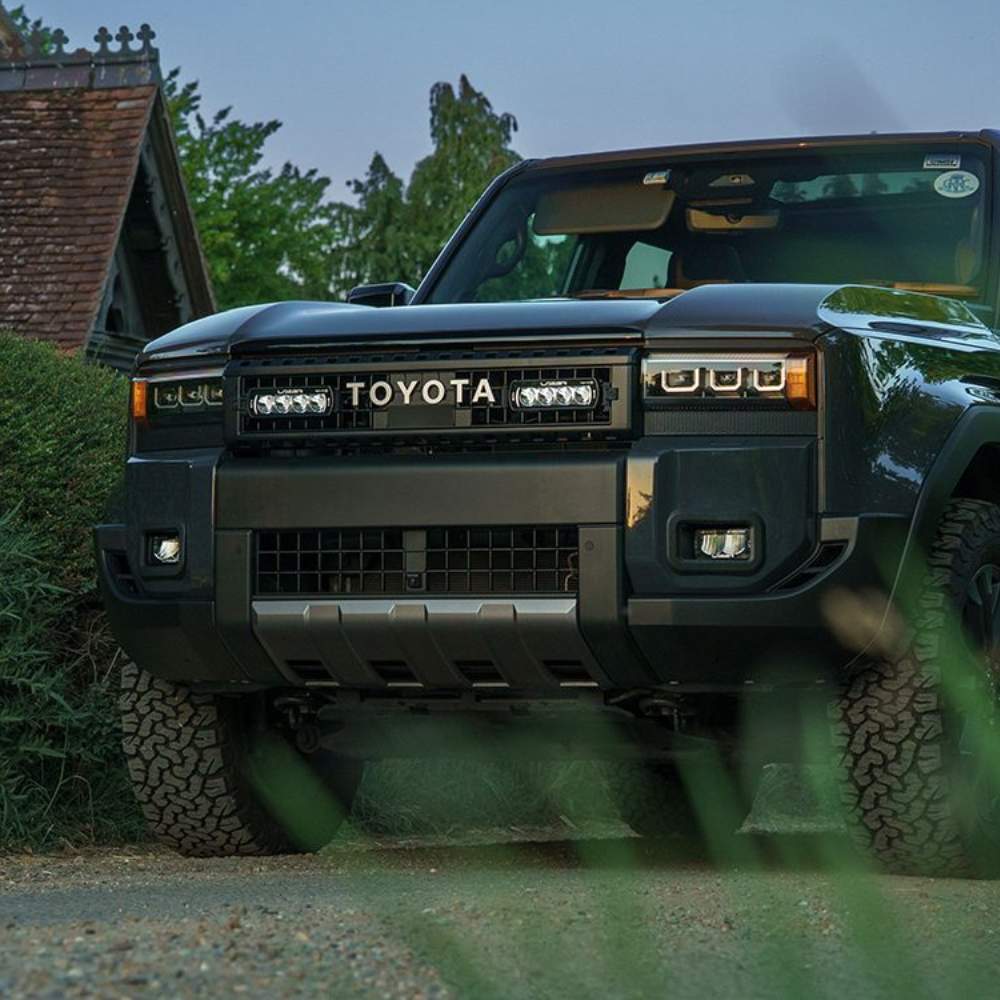

Compatible with the Toyota Land Cruiser 250/Prado (2024+), Lazer’s Fog Light Upgrade Kit features a pair of Carbon-2 ‘DRIVE’ LED lights elevating the Land Cruiser’s lighting capabilities to deliver a dynamic, safer, more enjoyable night driving experience.
excl. VAT £700.00
(incl. VAT £840.00)
(incl. VAT £840.00)
Compatible with the Toyota Land Cruiser 250/Prado (2024+), Lazer’s Fog Light Upgrade Kit features a pair of Carbon-2 ‘DRIVE’ LED lights elevating the Land Cruiser’s lighting capabilities to deliver a dynamic, safer, more enjoyable night driving experience. Supplied pre-mounted into left-hand / right-hand lamp holders complete with bezels, on the one-hand the Carbon-2 lamps deliver a supplemental high beam driving light, and at the flick of a switch, a supplemental yellow dipped beam light output (for off-road use). The lamp holders themselves feature Lazer’s grain texture finish, which give the kits a rugged and tough appearance, without needing to be additionally painted.

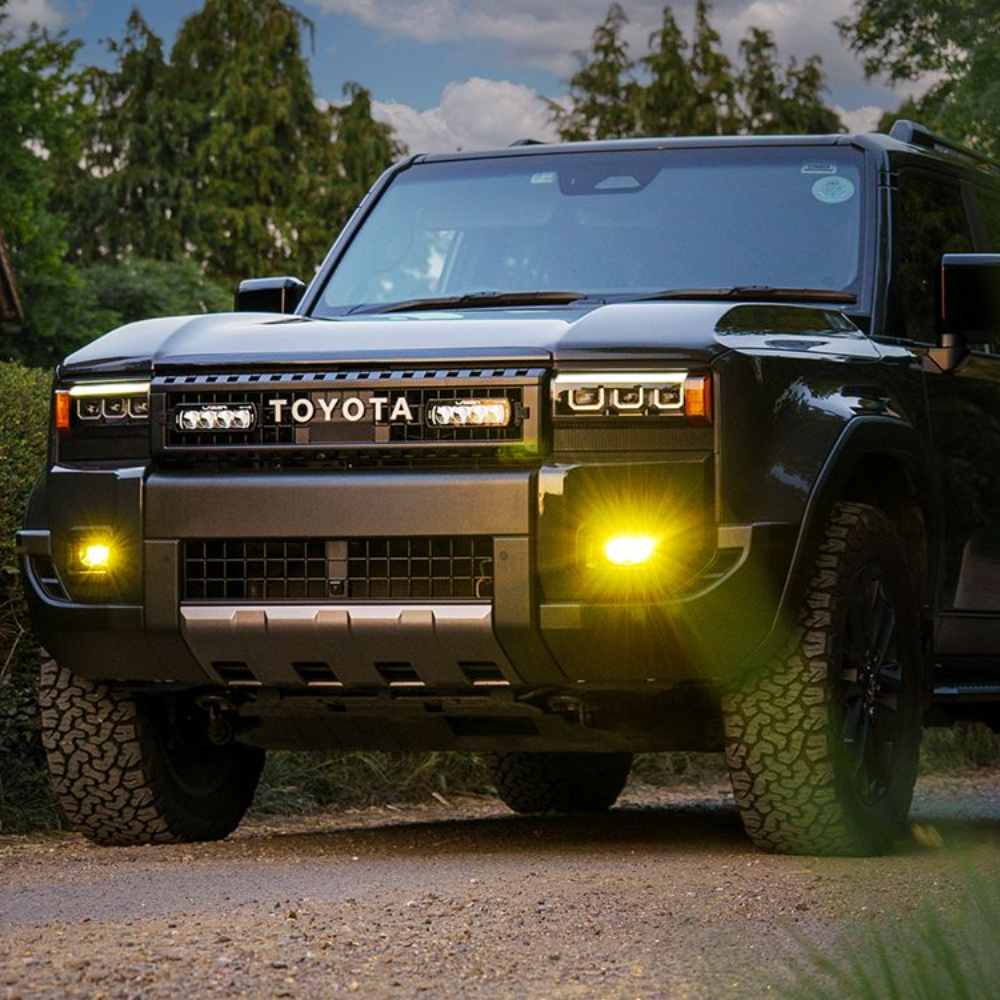

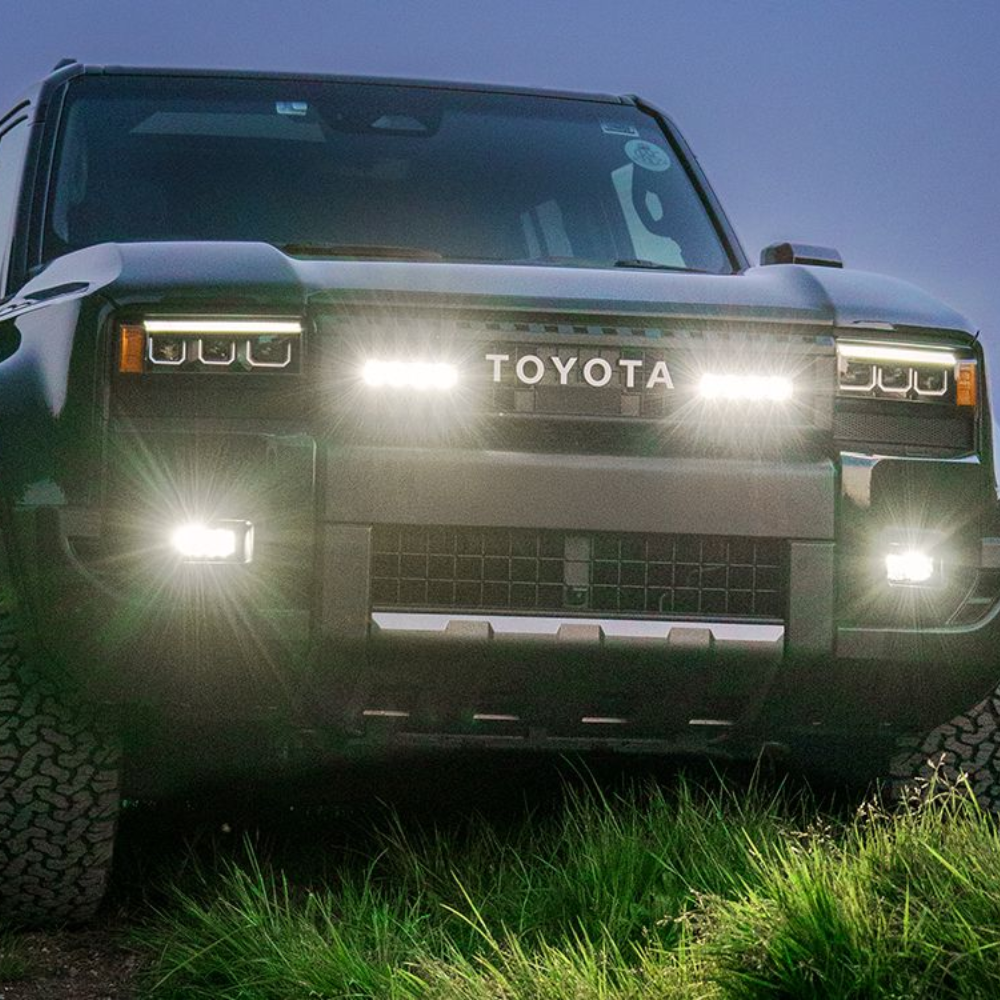

With a combined 6,240 raw lumens (high beam mode), the Carbon-2 lights bring cutting edge motorsport tech to the road and off-road. Recent upgrades to the lamps allow for: a UNECE Reg 149 approved (Class B, E-Ref 12.5) driving light function for additional high beam performance, an ‘off-road’ dipped beam function (in yellow light) that helps cut through adverse weather conditions such as fog, dust, or rain. In addition, white and amber backlight functions are included with the lamps (the customer is able to set which colour they want to use, by programming the backlight function during installation).
The Lazer Fog Light Upgrade Kit replaces the original OE fog lights on the vehicle. Having removed the original lights, supplied cutting templates facilitate the fit and fitment of the lamps (supplied pre-mounted within their lamp holders), and once secured in place are finished with Lazer branded bezel. Within the upgrade kit we supply a twin-lamp wiring kit, while for vehicle’s with LED headlights, it will be necessary to utilise Lazer’s market-leading CANNY solution, mindful that the dipped beam function is a non-approved function for off-road use only and in certain markets this will need to be deactivated.
Like all Lazer products, the LC250 Fog Light Upgrade Kit, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5 year warranty.
Product Features:
What's Included:
Technical Specifications:
With a combined 6,240 raw lumens (high beam mode), the Carbon-2 lights bring cutting edge motorsport tech to the road and off-road. Recent upgrades to the lamps allow for: a UNECE Reg 149 approved (Class B, E-Ref 12.5) driving light function for additional high beam performance, an ‘off-road’ dipped beam function (in yellow light) that helps cut through adverse weather conditions such as fog, dust, or rain. In addition, white and amber backlight functions are included with the lamps (the customer is able to set which colour they want to use, by programming the backlight function during installation).
The Lazer Fog Light Upgrade Kit replaces the original OE fog lights on the vehicle. Having removed the original lights, supplied cutting templates facilitate the fit and fitment of the lamps (supplied pre-mounted within their lamp holders), and once secured in place are finished with Lazer branded bezel. Within the upgrade kit we supply a twin-lamp wiring kit, while for vehicle’s with LED headlights, it will be necessary to utilise Lazer’s market-leading CANNY solution, mindful that the dipped beam function is a non-approved function for off-road use only and in certain markets this will need to be deactivated.
Like all Lazer products, the LC250 Fog Light Upgrade Kit, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5 year warranty.
Product Features:
- Fog Light Upgrade Kit for Toyota Land Cruiser 250/Prado (2024+) vehicles
- Compatible with vehicles with and without OE fog lights

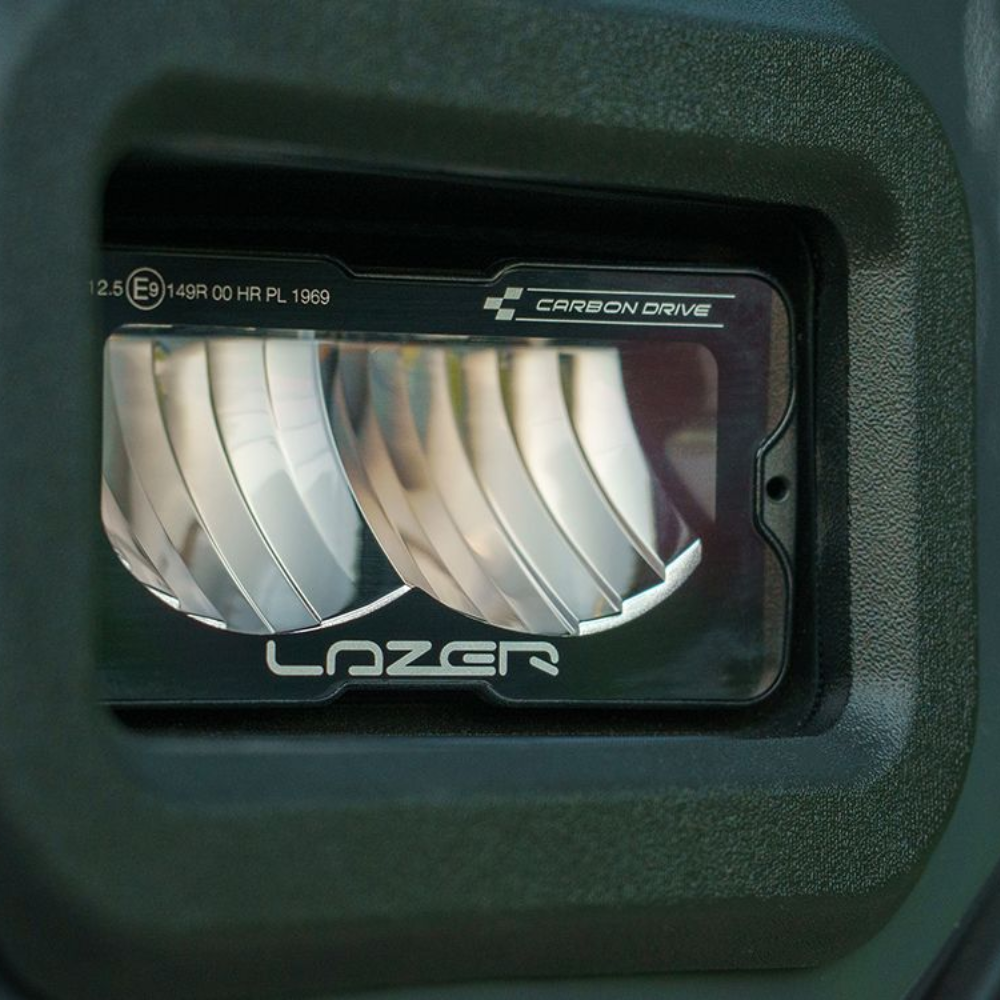

- Features Carbon-2 ‘Drive’ (with Yellow Dip Beam) LED driving lights
- UNECE approved Reg 149 (Class B Driving Light, E-Ref 12.5) for on-road high beam function
- Lamp housing and bezel made from UV-stable, high strength, PC-ABS material
- Supplied cutting templates facilitate fitment
- Includes twin-lamp wiring harness kits
- Black and White lens covers are available
- 5-year warranty
- Designed and manufactured in the UK

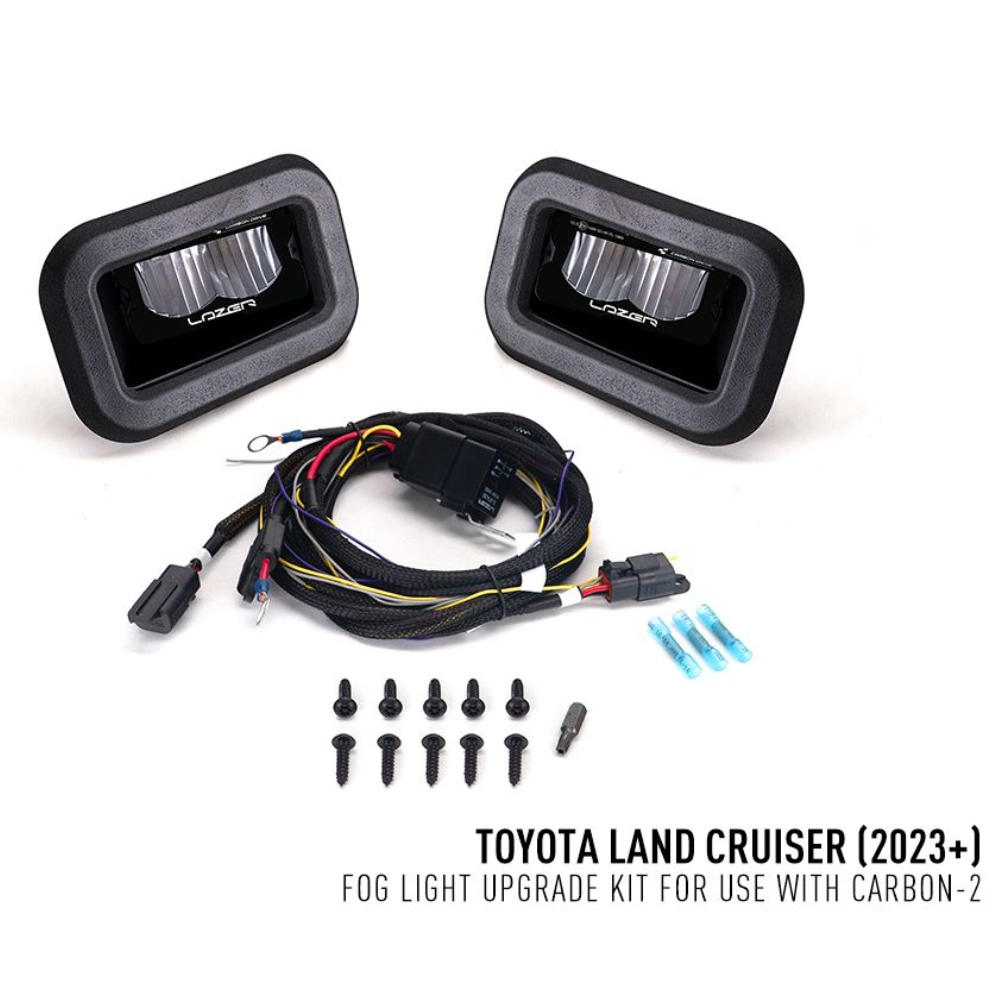

What's Included:
- Lamp Holder with 2x Carbon-2 DRIVE (Yellow Dip) pre-mounted (LH/RH)
- Lamp Holder Bezel (LH/RH)
- Positioning Templates (LH/RH)
- Two-Lamp Wiring Kit
- Black T-25 Torx Security Screws (x10) & Security Bit
- VHB Cleaning Sachet (x2)
Technical Specifications:
| ||
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2x 192g | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 6,240 Lm | |
| Total Driver 'FOV' Flux † | 3,672 Lm | |
| High Beam Colour Temperature | 5000K | |
| Dip Beam Colour | Yellow | |
| Power Consumption | 58 Watts | |
| Peak Current Draw | 5.2 Amps | |
| Current Draw (14.4V) | 4.2 Amps | |
| Connector | 4-Pin Deutsch DT (+15cm Cable) | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 2x 12.5 | |
| Backlight/PL | Not Approved | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |
| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 60° / 12° | |
| 0.25 lx Line | 748m | |
| 0.5 lx Line | 529m | |
| 1 lx Line | 374m | |
| 3 lx Line | 216m | |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
