Lazer Lamps Toyota Hilux GR Sport (2023-24) Triple-R 750 Grille Kit PN: GK-HILUX-05
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
(incl. VAT £96.00)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
The Toyota Hilux GR Sport kit, designed for model year 2022 vehicles, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Toyota Hilux Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Toyota Hilux GR Sport (MY 2022)
- Available with: Triple-R 750 High Performance LED Spotlights
- Added option for integrated white and amber backlight function (white only approved for on-road use - Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
Whats Included -
1x Grille Mounting Kit
2x Triple-R 750 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions
Techincal Specifications:
| 2x | 2x TRIPLE-R 750 | 2x | |
---|---|---|---|---|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
Total Driver 'FOV' Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
CERTIFICATION | ||||
IP Rating # | IP68 | IP68 | IP68 | IP68 |
High Beam (E9 approval) | ECE R149 - Ref: 2x 20 | ECE R112 - Ref: 2x 35 | ECE R149 - Ref: 2x 10 (Low Output Mode) | ECE R112 - Ref: 2x 12.5 (Low Output Mode) |
Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

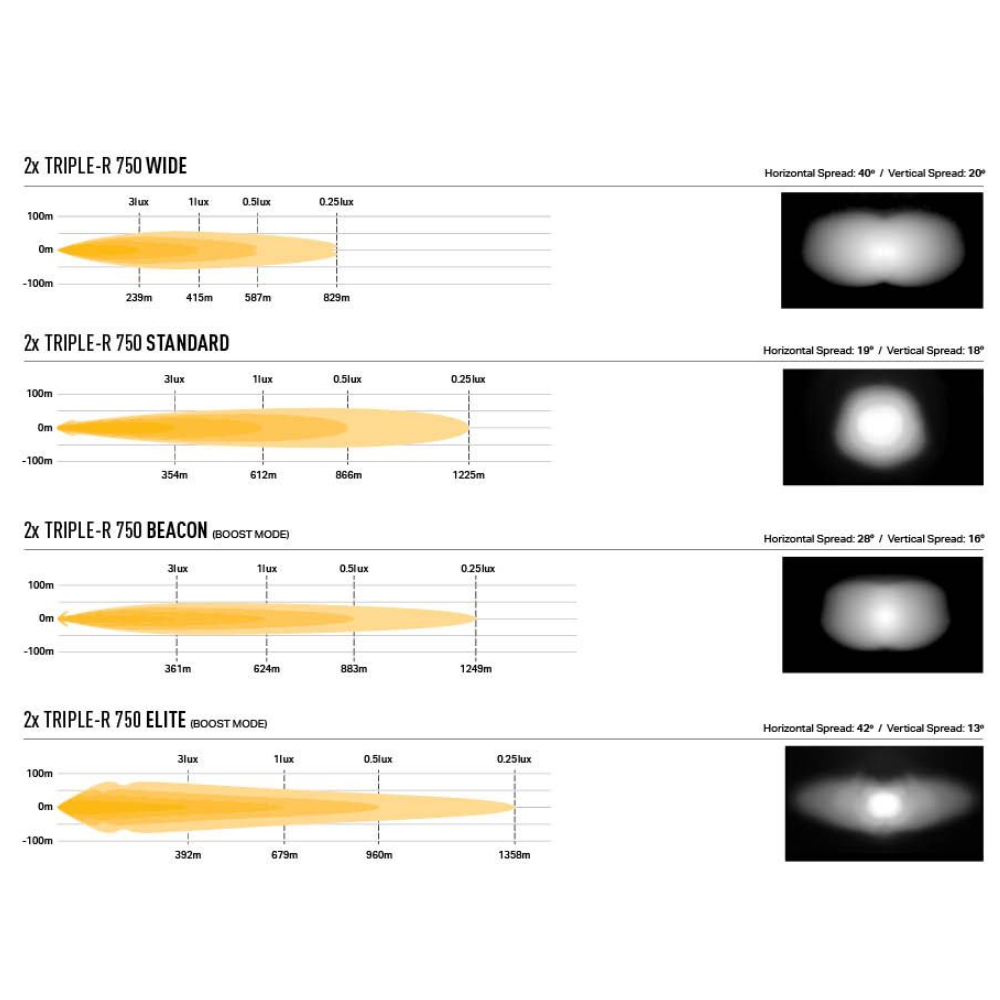

PHOTOMETRIC DATA | ||||
Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
0.25 Lux | 829m | 1225m | 1249m | 1358m |
0.5 Lux | 587m | 866m | 883m | 960m |
1 Lux | 415m | 612m | 624m | 679m |
3 Lux | 239m | 354m | 361m | 392m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
