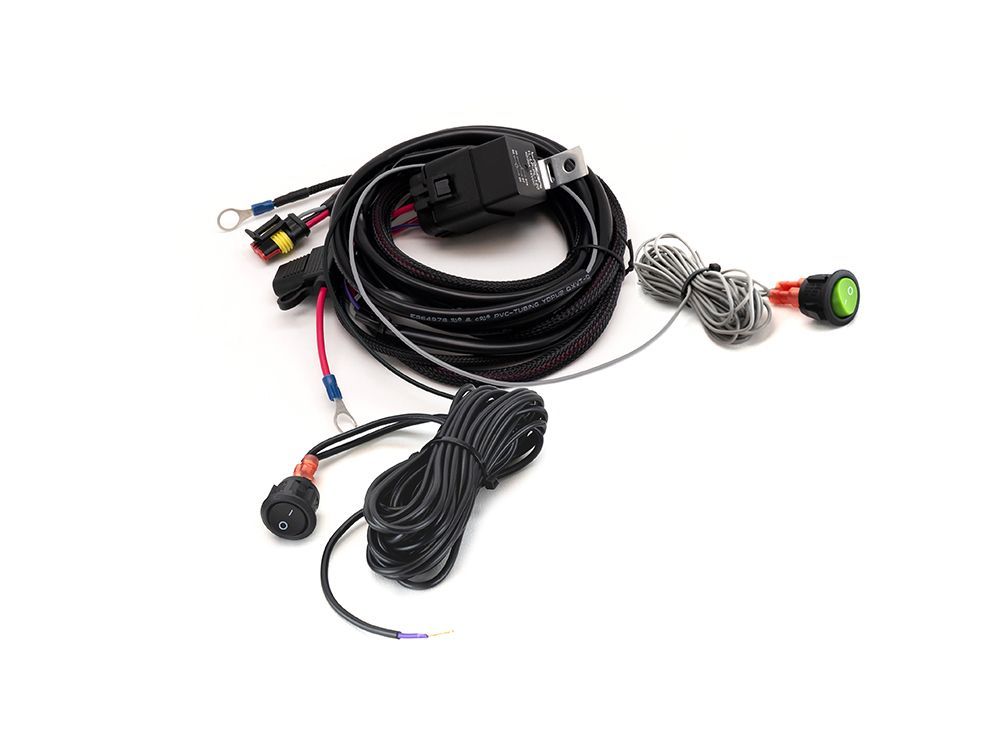

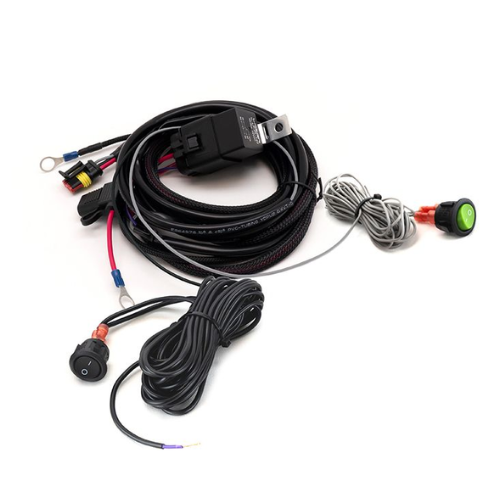

Lazer Lamps Single-Lamp Wiring Kit With Momentary Switch (3 Pin, Superseal, 12V) PN: 1L-LP-EP-120

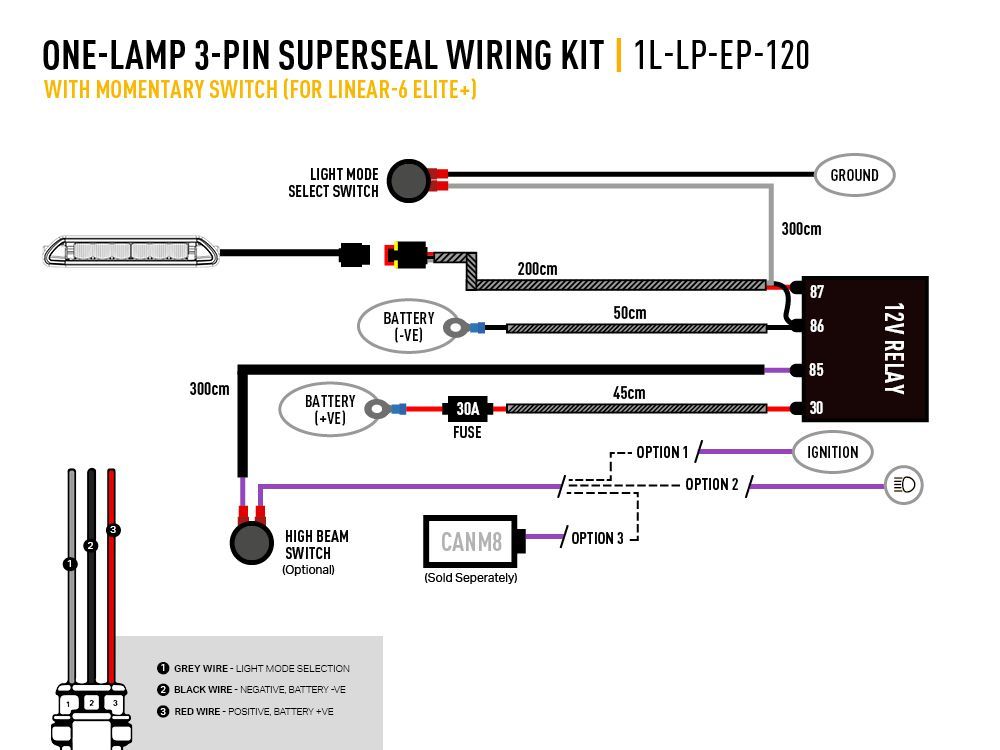

One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
Compatible with:
Linear-6 Elite+
- One-Lamp Wiring Kit for Linear-6 Elite+ LED High Performance Lights
- 1.2m cable length
- Includes 12V relay and 30 amp fuse
- Relay holder approved to IP53 when mounted in a vertical (upright) orientation
- Superseal connections
- Includes optional on/off switch for independent operation of high beam
- Includes Momentary switch for easy operation of the light modes
- Braided cable sections for added protection in engine bay
