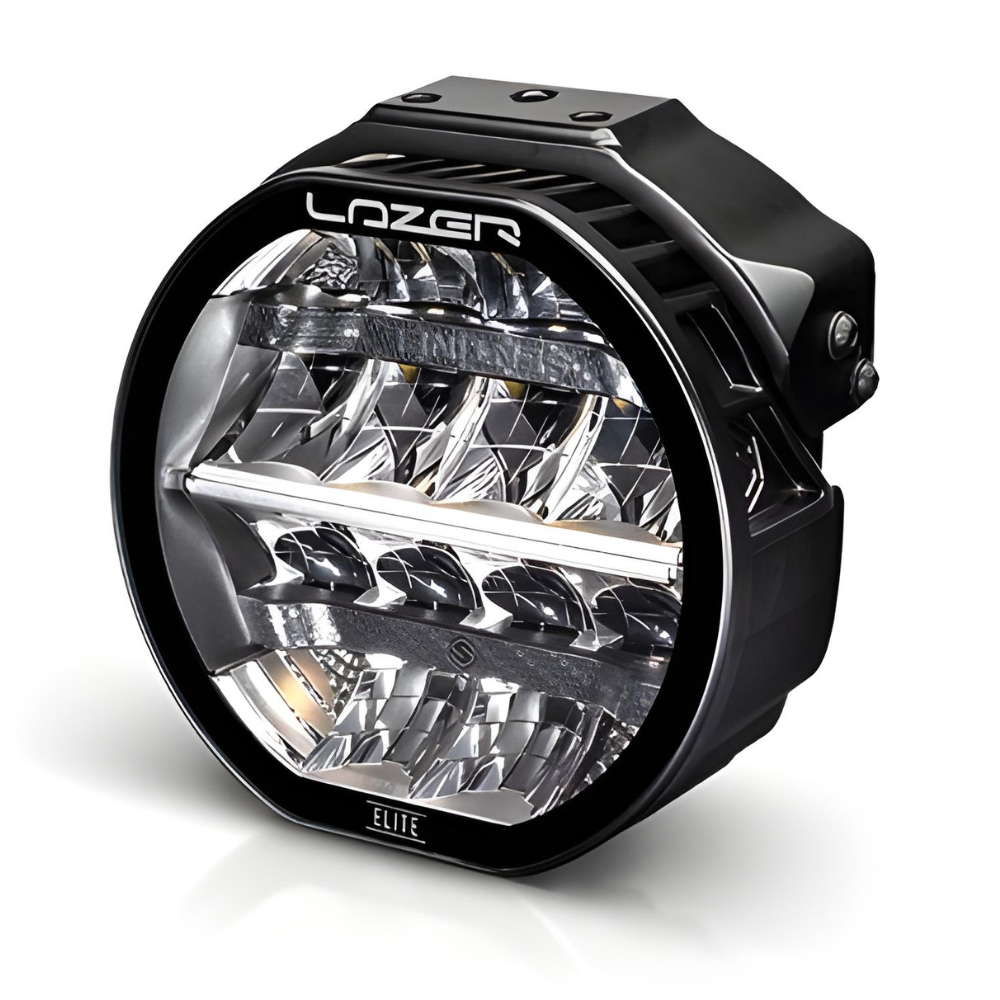

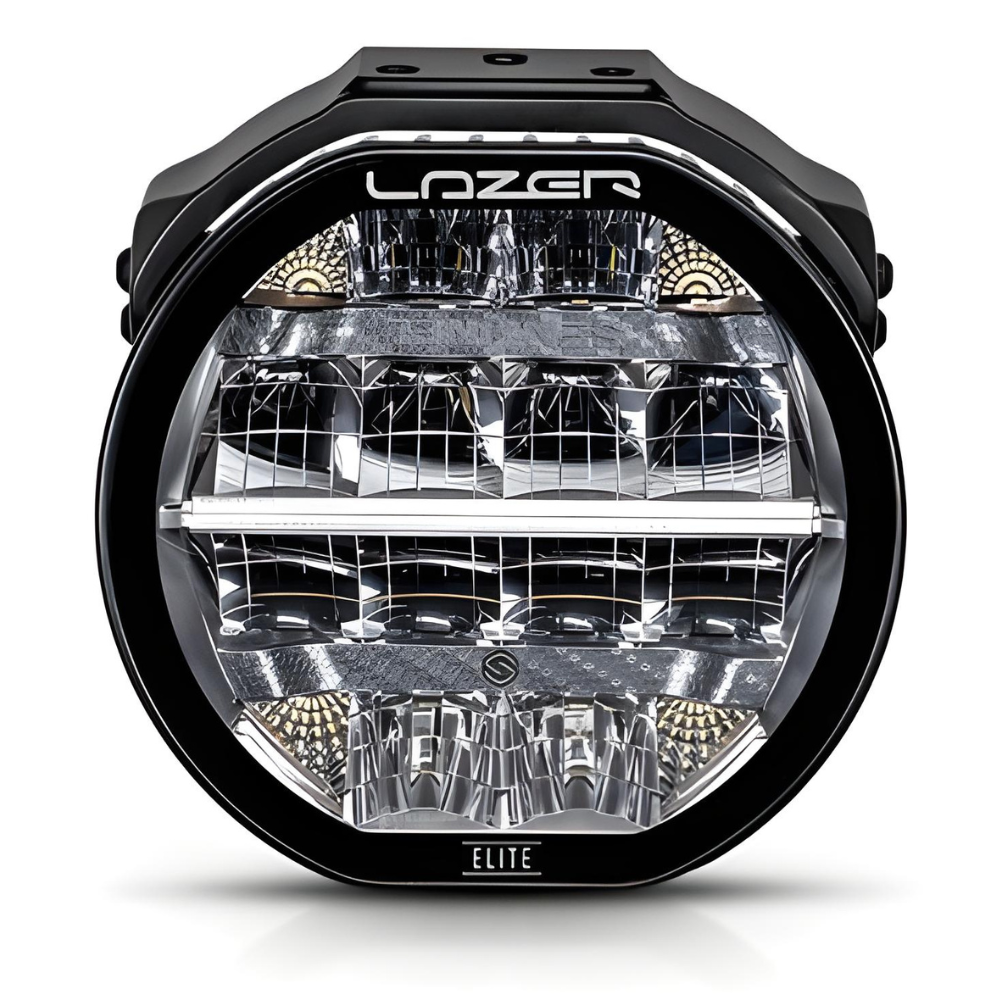

Lazer Lamps Sentinel ELITE 7" (Inverted Mounting) LED Driving Light With Position Light PN: 0S7-ELITE-PL-INV
The Sentinel 7" is now also available with an updated design suitable for inverted mounting (i.e. with the lamp hanging down from a mounting point), ensuring the lamp is perfectly suited to a wider array of install locations including roof rack systems. Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade).
(incl. VAT £390.00)
You might also be interested in these

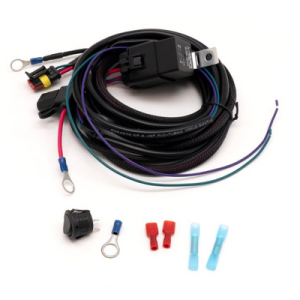

-01.png "Lazer Lamps Single-Lamp Wiring Kit (Position Light, 12V) PN 1L-LP-PL-120")
-01.png "Lazer Lamps Two-Lamp Wiring Kit (Position Light, 12V) PN: 2L-LP-PL-120")

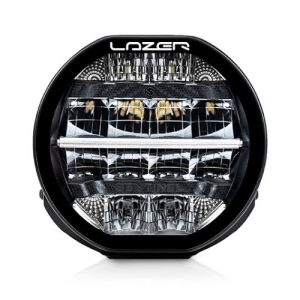

-01.png "Lazer Lamps Sentinel 7\" LED Driving Light PN: 0S7-STD-SM")

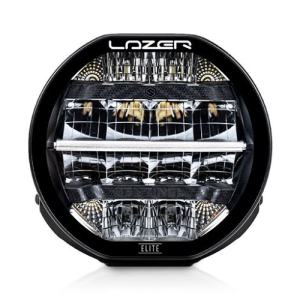

-01.png "Lazer Lamps Sentinel ELITE 7\" LED Driving Light With Position Light PN: 0S7-ELITE-PL-SM")
The Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high beam lighting performance, and product styling that exudes quality. At the Standard level, a combination of 12 high power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.

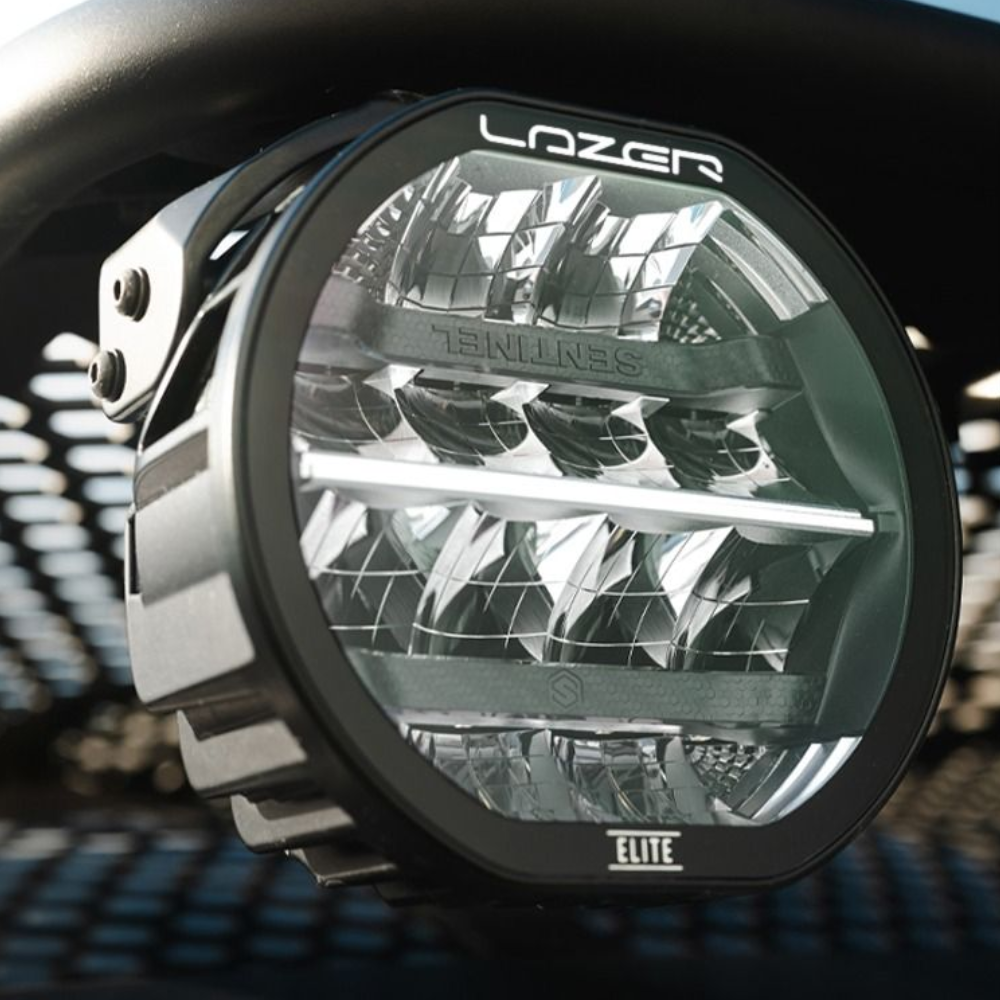

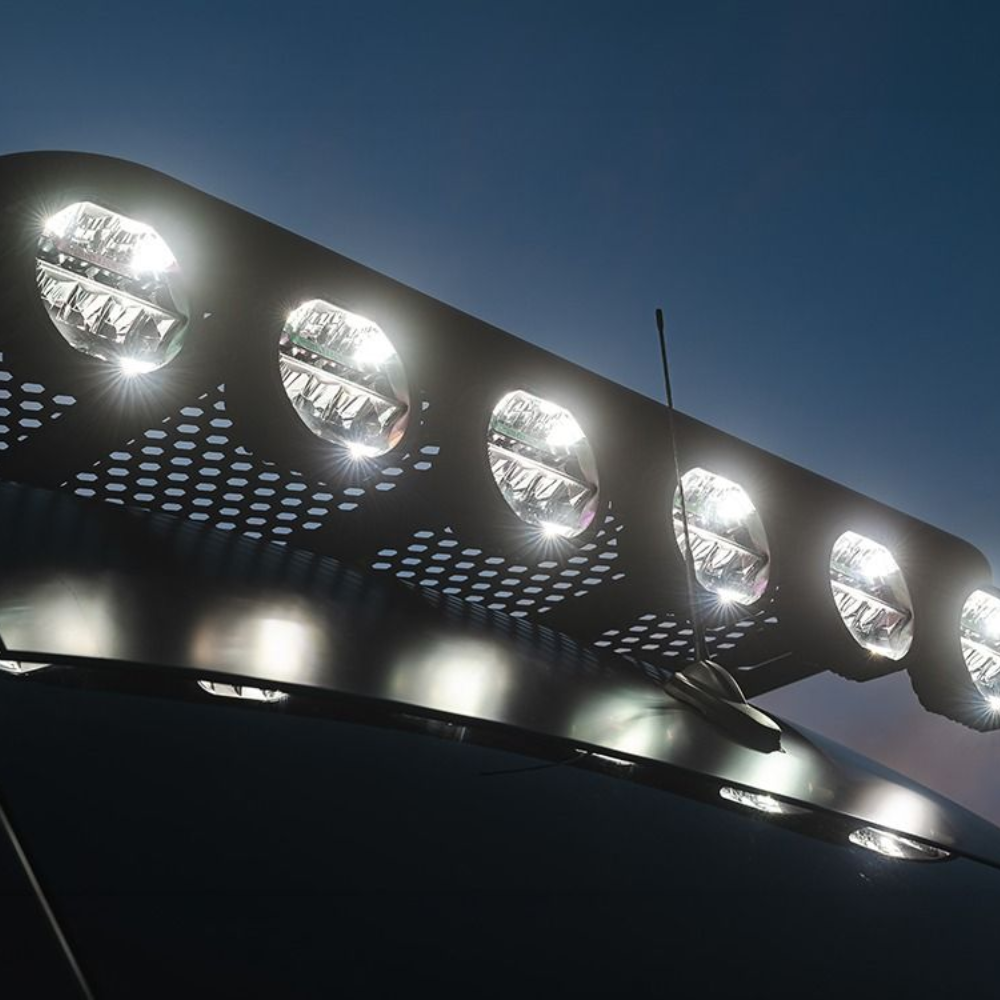

The Sentinel 7" is now also available with an updated design suitable for inverted mounting (i.e. with the lamp hanging down from a mounting point), ensuring the lamp is perfectly suited to a wider array of install locations including roof rack systems. Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade). The result, a perfectly balanced distribution of light, at a carefully selected 5000 kelvin colour temperature, to make night driving a safer and more enjoyable experience. Considering the lamps size and power rating (60W - Standard / 116W – Elite), these lamps outperform on every level, even against significantly larger, more powerful products.
Symbolic of the lighting power on show, operating at 100% the lamps exceed UNECE high beam driving light regulations, so both Standard and Elite lights adopt Lazer’s dual output E-Boost technology whereby removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the Regulation 149 limit, permitting use of the lights alongside the standard high beam driving lights on your vehicle.
The stealth design of the Sentinel 7” lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Furthermore, the Elite version has the option to connect white or amber position/side light function, for an even more distinct look, with the white version approved to UNECE Regulation 148. The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion.
As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.
What's included:
- x1 Sentinel 7'' Elite (with inverted lens) LED Lamp
- x1 'Slim' Mount Kit (1141-0S7-K)
- x1 Installation Instructions

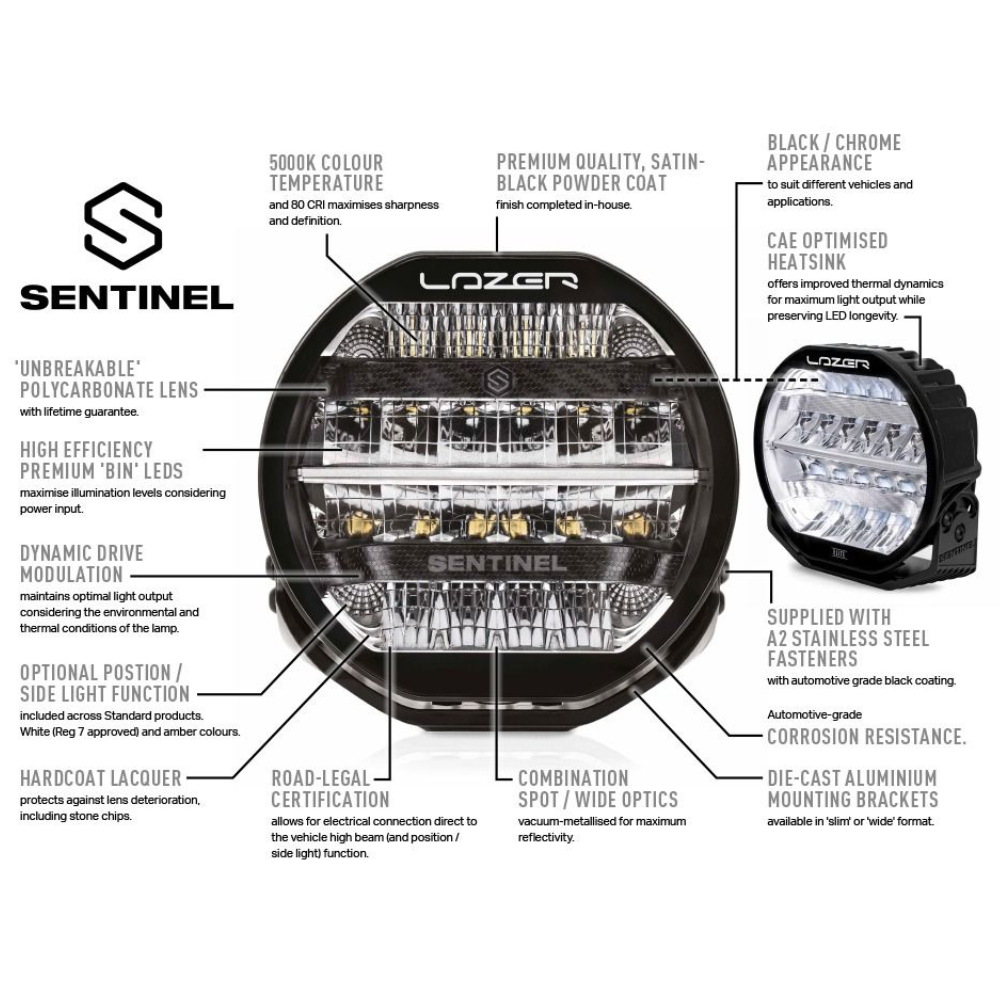

Key Features:
- Stealth black internal appearance
- 5000K LED colour temperature and 80CRI maximises sharpness and definition

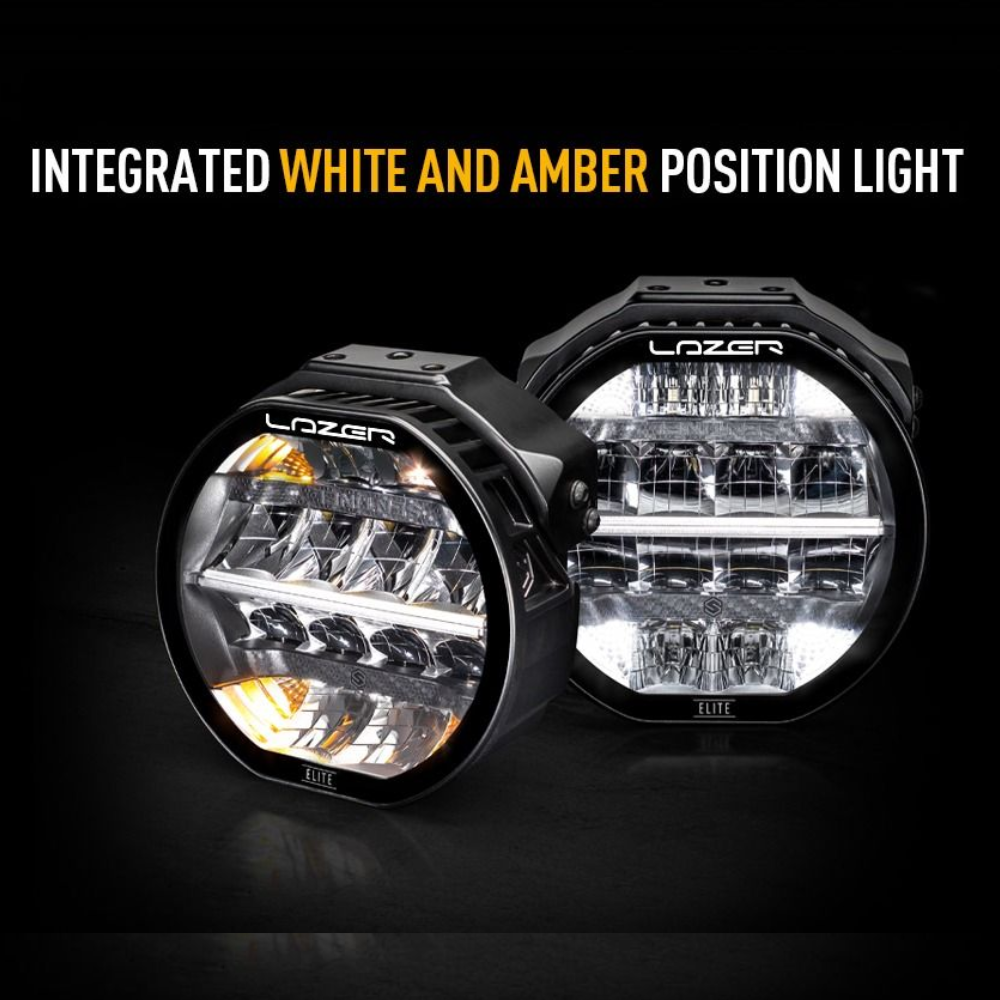

- Integrated white and amber position light function (Elite only)
- Ultra-reflective vacuum-metallised spot and wide optics
- UNECE Reg 149 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 148 position/side light function (white only)
- Contemporary lamp design
- Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
- Electronic thermal management system optimises light output to preserve longevity of the LEDs
- Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- CAE optimised heatsink offers improved thermal dynamics
- Over voltage protected
- Reverse polarity protected
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- A2 stainless steel fasteners with automotive grade black coating
- UNECE approved Reg 10
- IP68 watertight – 1.5m submersion (30mins)
- 5-year warranty
- Supplied with pre-wired male/female 3-Pin Superseal connectors
- Designed & manufactured in UK
| 1x SENTINEL 7'' ELITE | BOOST | LOW OUTPUT/ |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 1.5 kg | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10,248 Lm | 2,049 Lm |
| Total Driver 'FOV' Flux † | 6,380 Lm | 1,276 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 116 Watts | 23 Watts |
| Peak Current Draw | 8.8 Amps | 1.8 Amps |
| Current Draw (14.4V) | 7.6 Amps | 1.5 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) | |
| DIMENSIONS | ||
| Width | 178mm | |
| Depth | 81mm | |
| Height | 180mm | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 12.5 (in Low Output Mode only) | |
| Position Light (white only) | ECE R148 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |
| PHOTOMETRIC DATA | ||

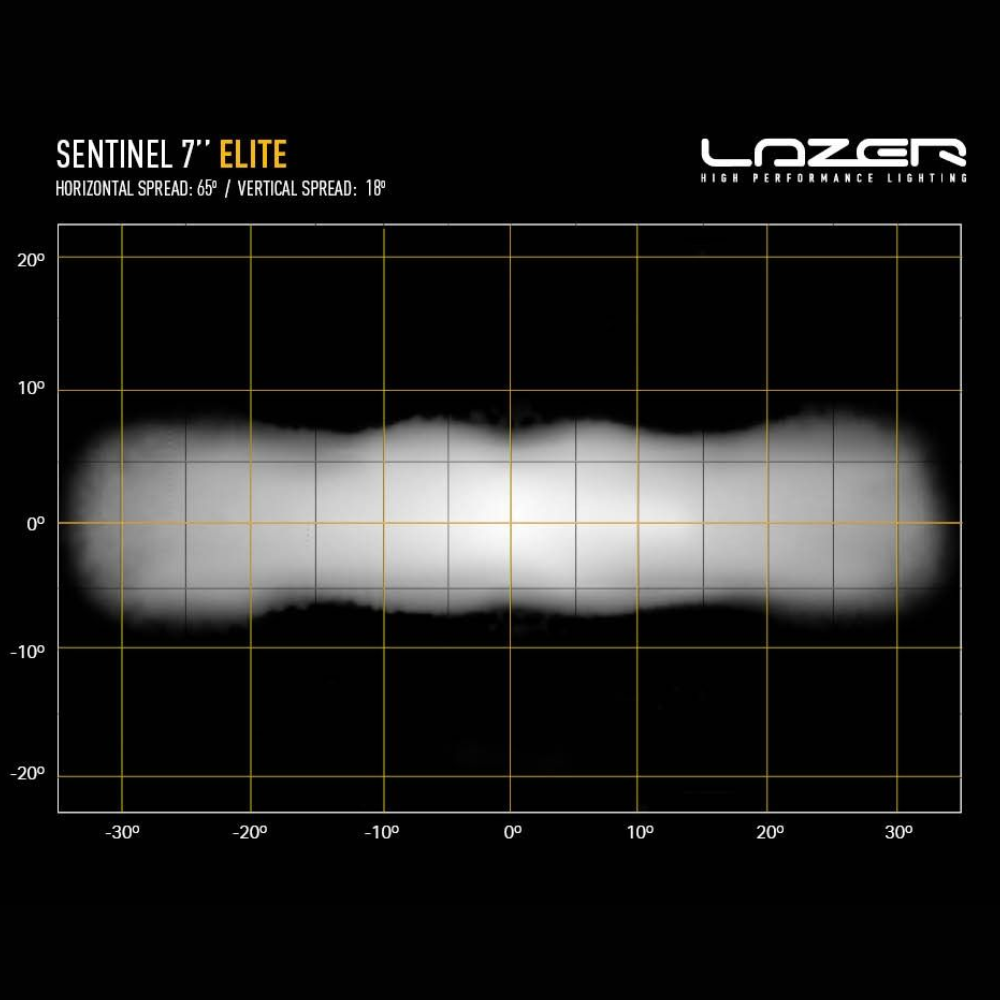

| Horizontal / Vertical Beam Angle | 65° / 18° | |

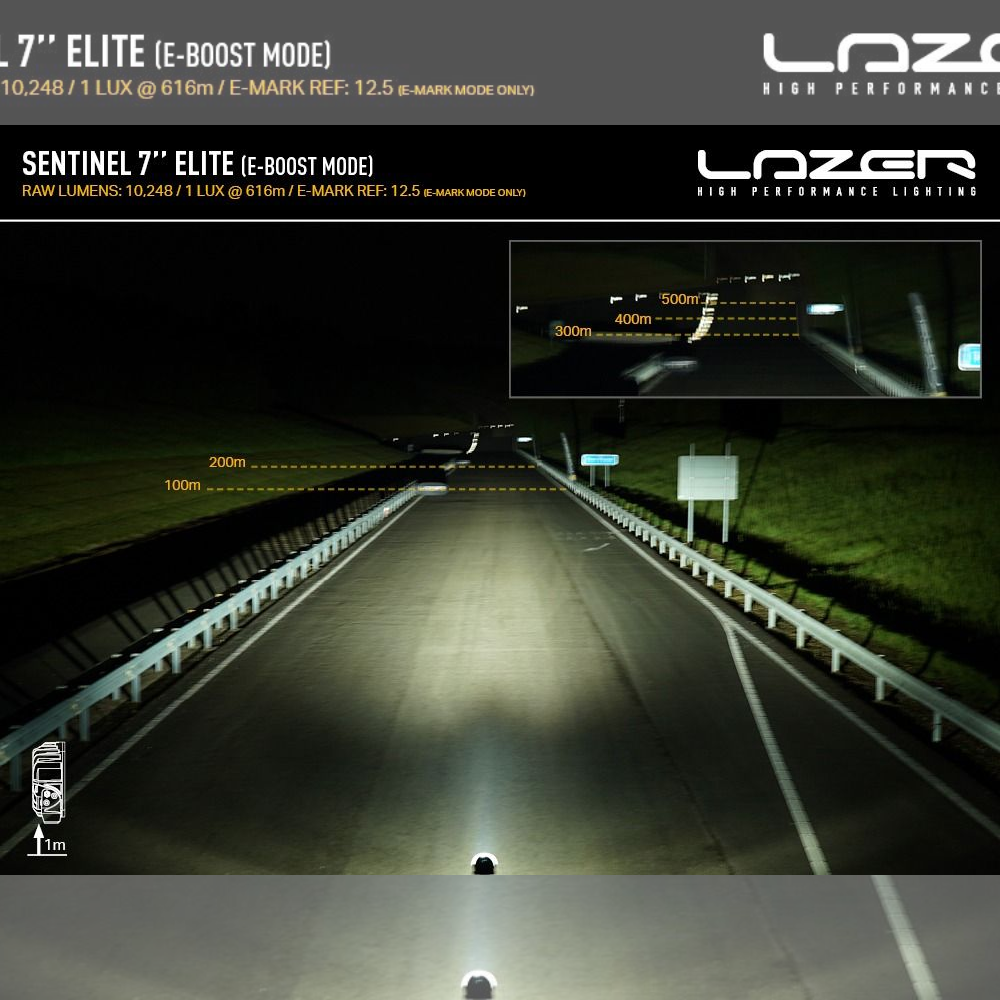

| 0.25 lx Line | 1233m | 551m |
| 0.5 lx Line | 872m | 390m |
| 1 lx Line | 616m | 276m |
| 3 lx Line | 356m | 159m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
