Lazer Lamps Mercedes Sprinter (2018+) Carbon-2 Fog Light Upgrade Kit PN: BK-MSP-01
BK-MSP-01
Compatible with the Mercedes Sprinter (W907/W910), Lazer’s Fog Light Upgrade Kit features a pair of Carbon-2 ‘DRIVE’ LED lights elevating the Sprinter’s lighting capabilities to deliver a dynamic, safer, more enjoyable night driving experience.
excl. VAT £700.00
(incl. VAT £840.00)
(incl. VAT £840.00)
Compatible with the Mercedes Sprinter (W907/W910), Lazer’s Fog Light Upgrade Kit features a pair of Carbon-2 ‘DRIVE’ LED lights elevating the Sprinter’s lighting capabilities to deliver a dynamic, safer, more enjoyable night driving experience. Supplied pre-mounted into left-hand / right-hand lamp holders, on the one-hand the Carbon-2 lamps deliver a supplemental high beam driving light, and at the flick of a switch, a supplemental yellow dipped beam light output (for off-road use). The lamp holders themselves feature Lazer’s grain texture finish, which give the kits a rugged and tough appearance, without needing to be additionally painted.
With a combined 6,240 raw lumens (high beam mode), the Carbon-2 lights bring cutting edge motorsport tech to the road and off-road. Recent upgrades to the lamps allow for: a UNECE Reg 149 approved (Class B, E-Ref 12.5) driving light function for additional high beam performance, an ‘off-road’ dipped beam function (in yellow light) that helps cut through adverse weather conditions such as fog, dust, or rain. In addition, white and amber backlight functions are included with the lamps (the customer is able to set which colour they want to use, by programming the backlight function during installation).
The appeal and relevance of the Sprinter Fog Light Upgrade kit is furthered by versions of the kit for vehicles with, and without, OE fog lights. In the case of vehicles with OE fogs, the supplied lamp holders can be retrofitted in the spaces vacated by removing the original fog lamps (please note – the corner lighting function is not retained when upgrading to this kit). As an upgrade for vehicles without the original fog lights, within the upgrade kit we supply cutting templates that facilitate the fit and fitment of the lamps, alongside a plug and play wiring kit.
For vehicle’s with LED headlights, it will be necessary to utilise Lazer’s market-leading CANNY solution. A Smart Button can also be used, which can then activate the Dip mode on the lamps in case of adverse conditions.
Like all Lazer products, the Sprinter Fog Light Upgrade Kit, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5 year warranty.
Product Features:
What's Included:
Technical Specifications:
With a combined 6,240 raw lumens (high beam mode), the Carbon-2 lights bring cutting edge motorsport tech to the road and off-road. Recent upgrades to the lamps allow for: a UNECE Reg 149 approved (Class B, E-Ref 12.5) driving light function for additional high beam performance, an ‘off-road’ dipped beam function (in yellow light) that helps cut through adverse weather conditions such as fog, dust, or rain. In addition, white and amber backlight functions are included with the lamps (the customer is able to set which colour they want to use, by programming the backlight function during installation).
The appeal and relevance of the Sprinter Fog Light Upgrade kit is furthered by versions of the kit for vehicles with, and without, OE fog lights. In the case of vehicles with OE fogs, the supplied lamp holders can be retrofitted in the spaces vacated by removing the original fog lamps (please note – the corner lighting function is not retained when upgrading to this kit). As an upgrade for vehicles without the original fog lights, within the upgrade kit we supply cutting templates that facilitate the fit and fitment of the lamps, alongside a plug and play wiring kit.
For vehicle’s with LED headlights, it will be necessary to utilise Lazer’s market-leading CANNY solution. A Smart Button can also be used, which can then activate the Dip mode on the lamps in case of adverse conditions.
Like all Lazer products, the Sprinter Fog Light Upgrade Kit, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5 year warranty.
Product Features:
- Fog Light Upgrade Kit for Mercedes Sprinter (2018+) W907/W910 vehicles
- Compatible with vehicles with and without OE fog lights
- Features Carbon-2 ‘Drive’ (with Yellow Dip Beam) LED driving lights
- UNECE approved Reg 149 (Class B Driving Light, E-Ref 12.5) for on-road high beam function
- Lamp housing and bezel made from UV-stable, high strength, PC-ABS material
- Includes cutting templates for easy installation on vehicles without OE fog lights
- Includes twin-lamp wiring harness kits
- Black and White lens covers available
- 5-year warranty
- Designed and manufactured in the UK

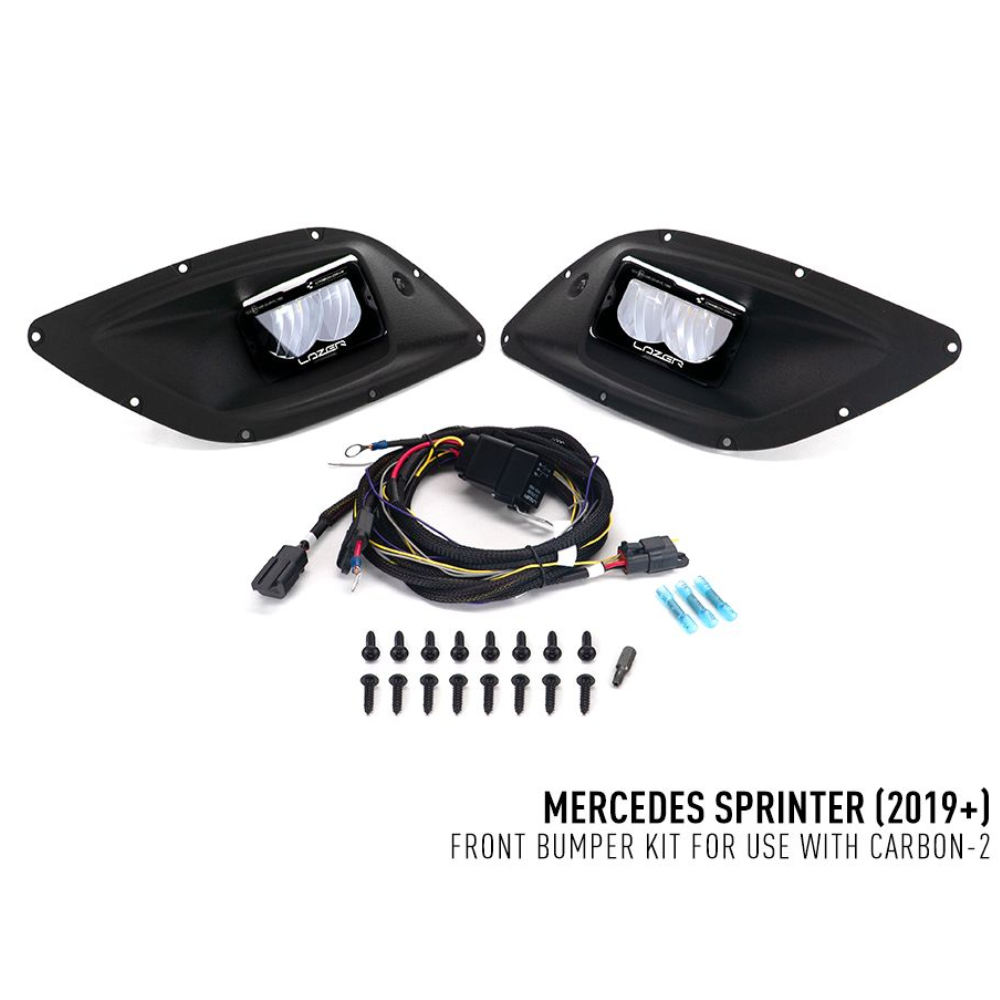

What's Included:
- Lamp Holder with Carbon-2 DRIVE (Yellow Dip) pre-mounted (LH/RH)
- Positioning Templates (LH/RH)
- Two-Lamp Wiring Kit
- Load Resistor (x2)
- Black T-25 Torx Security Screws (x10) & Security Bit
- T-30 Torx Security Bit
- Screw Clips (x6)
Technical Specifications:
| ||
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Life | 50,000 hours | |
| Weight | 2x 192g | |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 6,240 Lm | |
| Total Driver 'FOV' Flux † | 3,672 Lm | |
| High Beam Colour Temperature | 5000K | |
| Dip Beam Colour | Yellow | |
| Power Consumption | 58 Watts | |
| Peak Current Draw | 5.2 Amps | |
| Current Draw (14.4V) | 4.2 Amps | |
| Connector | 4-Pin Deutsch DT (+15cm Cable) | |
| CERTIFICATION | ||
| IP Rating # | IP68 | |
| High Beam (E9 approval) | ECE R149 - Ref: 2x 12.5 | |
| Backlight/PL | Not Approved | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

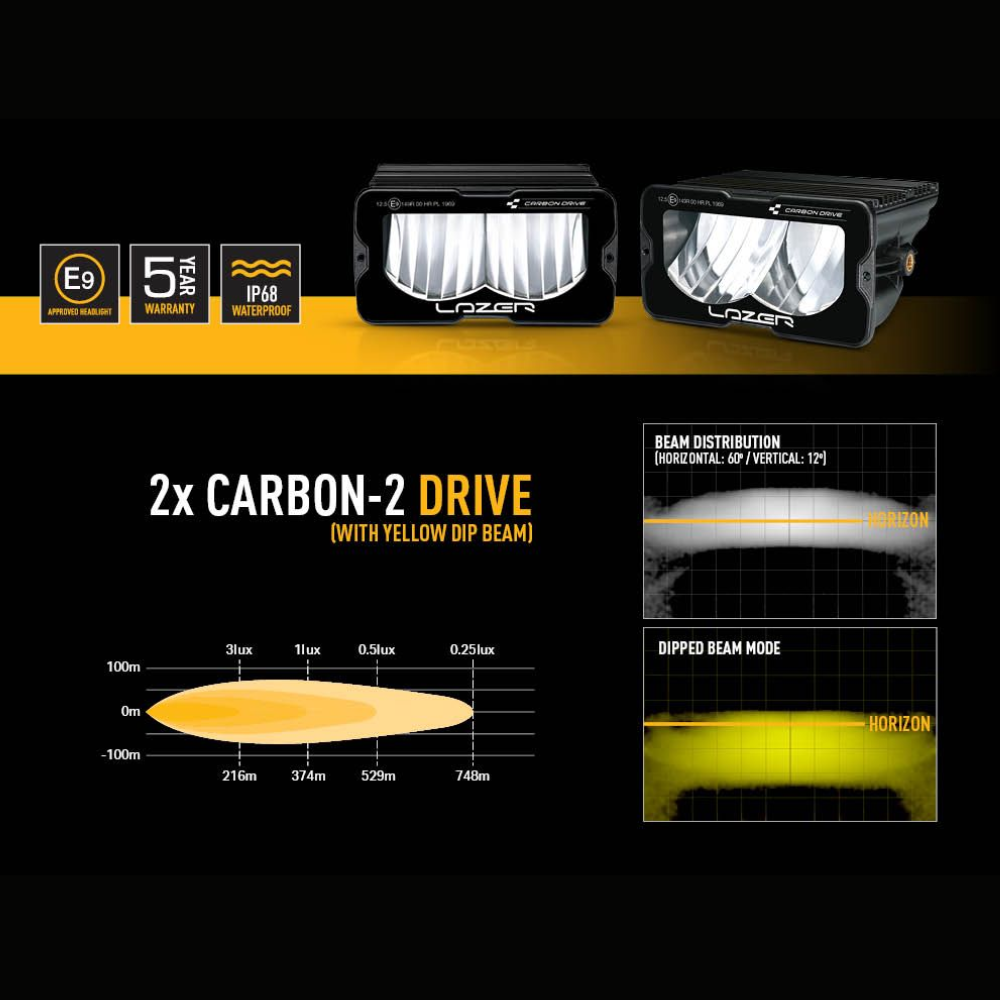

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 60° / 12° | |
| 0.25 lx Line | 748m | |
| 0.5 lx Line | 529m | |
| 1 lx Line | 374m | |
| 3 lx Line | 216m | |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
