Lazer Lamps Isuzu D-Max (2025+) Linear-6 Grille Kit PN: GK-DMAX-04K

GK-DMAX-04K
Upgrade the look and performance of your Isuzu D-Max (2025+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.
10% OFF WITH CODE KIT10 ENDS 14/09
Product Options
From excl. VAT £80.00
(incl. VAT £96.00)
Upgrade the look and performance of your Isuzu D-Max (2025+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

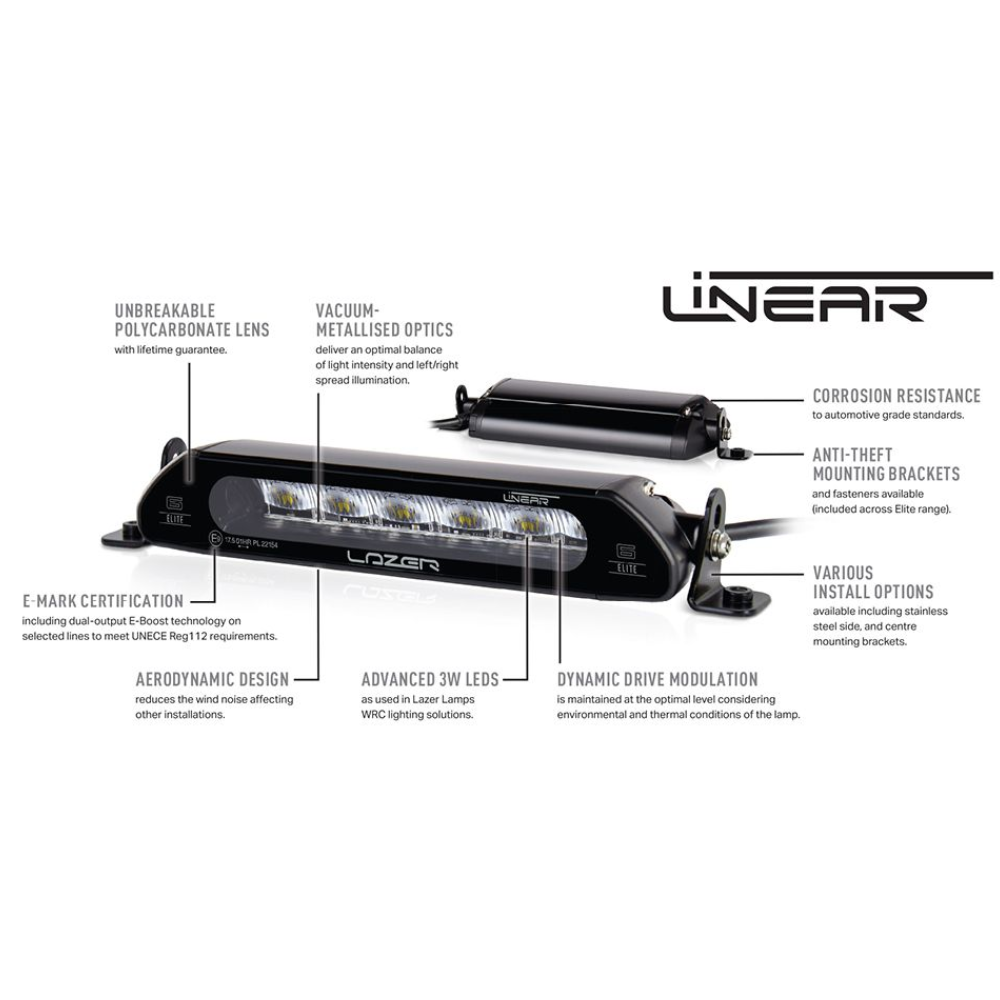

Each kit includes a pair of Linear-6 High Performance LED driving lights, available in three variants to suit different driving needs. Standard is the everyday hero, with six precision LEDs that cast a bright, even beam to keep country lanes crystal clear while staying 100 % road-legal; Elite turns night into day by doubling the LEDs for a wider, longer reach that inspires confidence on remote roads and trails; and Elite+ is the all-round champion, letting you flick between Boost for maximum punch, Combo for white-plus-amber clarity, Snow/Fog for bad-weather vision, or a ECE approved/low-glare road mode —four lighting options in one, ready for whatever the sky throws at you.

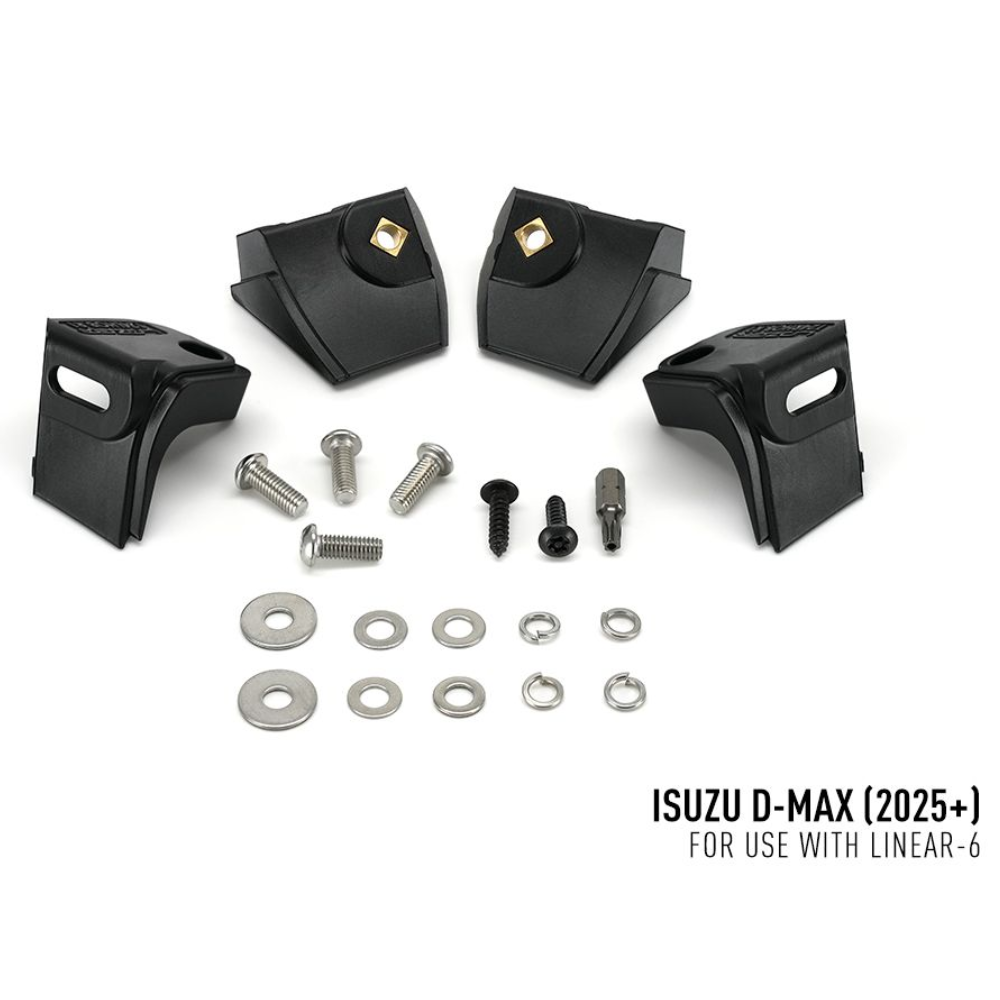

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: The Isuzu D-Max (2025+) Grille Integration Kit is carefully engineered and optimised for use with Linear-6 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Compatible with models: D-Max (DL20 and DL40), V-Cross and Utility (Extended and Double Cab).

Product Features:

  • Vehicle-specific brackets for seamless, OE-style grille integration
  • Tailored fit for Isuzu D-Max (2025+)
  • Compatible with models: D-Max (DL20, DL40 and V-Cross) Utility (Extended and Double Cab)
  • Designed for use with Linear-6 LED Lights – Standard, Elite, and Elite+ variants
  • Includes precision-engineered brackets and a two-lamp wiring kit
  • Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install
  • Brackets manufactured from high-strength, UV-stable composite material
  • Fully road-legal and ECE approved
  • Backed by a comprehensive 5-year warranty

What's Included:

1x Grille Mounting Kit (Includes cutting guides)
2x Linear-6 LED Lamps

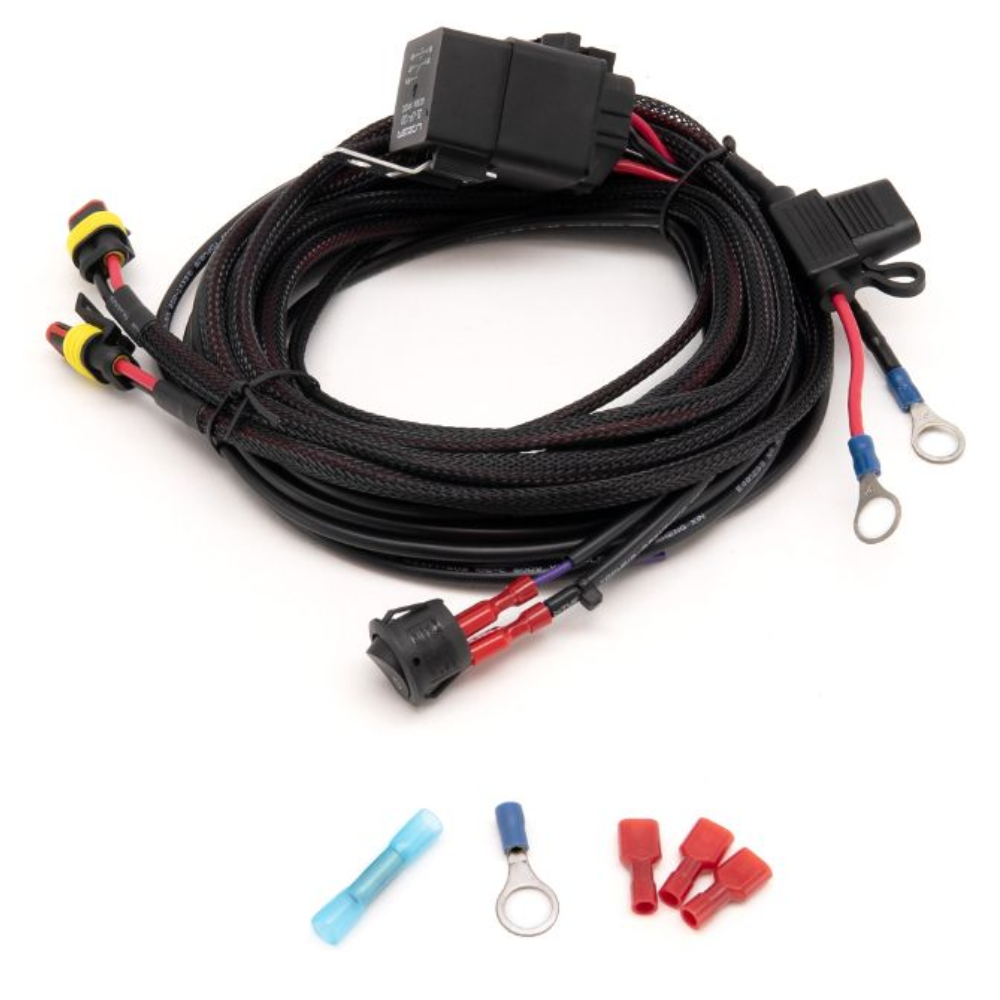

1x Two-Lamp Wiring Kit
Installation Instructions

Technical Specifications

2x LINEAR-6

2x LINEAR-6
ELITE

2x LINEAR-6
ELITE+
(Boost / Low
Output Mode)

Voltage Range (DC)10-32V10-32V10-32V
LED Life50,000 hours50,000 hours50,000 hours
Weight0.99 kg0.99 kg0.99 kg
HIGH BEAM FUNCTION
Total Luminous Flux4500 Lm8100 Lm10200 /
5000 Lm
Total Driver 'FOV' Flux †3204 Lm5767 Lm7290 /
3644 Lm
Colour Temperature5000K5000K5000K
Power Consumption42 W84 W96 / 48 W
Current Draw (14.4V)2.92 A5.8 A7.2 / 3.6 A
Connector2-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)
3-Pin Superseal
(+25cm Cable)
CERTIFICATION
IP Rating #IP68IP68IP68
High Beam (e9 approval)ECE R112 - Ref: 2x 12.5ECE R112 - Ref: 2x 17.5ECE R149 - Ref: 2x 12.5
(Low Output Mode only)
EMC CertificationECE R10ECE R10ECE R10
Salt Spray TestISO 9227ISO 9227ISO 9227
Dump Load ProtectionISO 7637-2ISO 7637-2ISO 7637-2

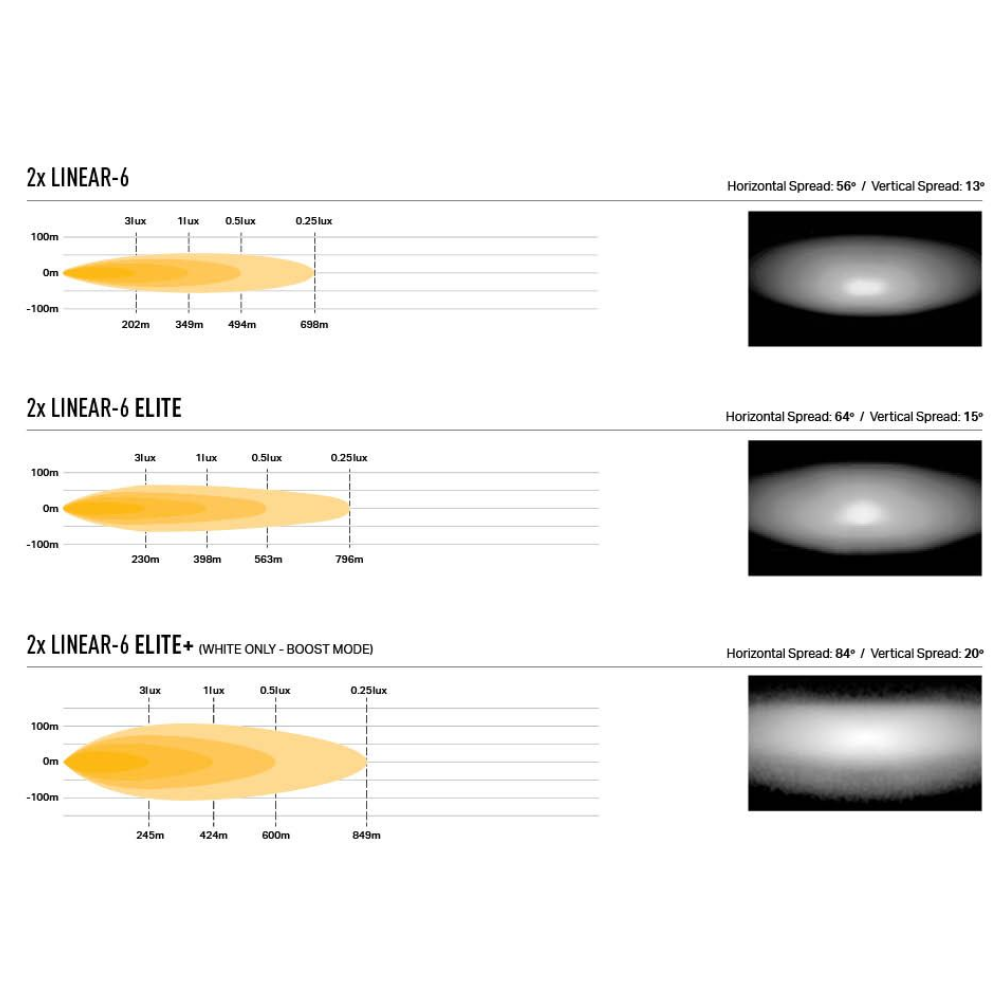

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle56° / 13°64° / 15°84° / 20°
0.25 lx Line698m796m849 / 600m
0.5 lx Line494m563m600 / 424m
1 lx Line349m398m424 / 300m
3 lx Line202m230m245 / 173m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
