Lazer Lamps Isuzu D-Max (2023-2024) Triple-R 750 Grille Kit PN: GK-DMAX-02K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
(incl. VAT £96.00)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
The Isuzu D-Max (2023+) integration kit includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Whats Included:
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
- Bespoke mounting bracket kit for Lazer LED light installation
- Custom fit for Isuzu D-Max (2023+)
- Kits include: 4x brackets, cutting guides, and fasteners
- Made from high strength, UV-stable, composite material
- Road legal – fully UNECE approved for on-road use
- 5-year warranty
- Made in Britain
- Optimised for use with Triple-R 750 LED lights
Technical Specifications:
| 2x | 2x TRIPLE-R 750 | 2x | |
|---|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
| HIGH BEAM FUNCTION | ||||
| Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
| Total Driver 'FOV' Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K |
| Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
| Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
| CERTIFICATION | ||||
| IP Rating # | IP68 | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R149 - Ref: 2x 20 | ECE R112 - Ref: 2x 35 | ECE R149 - Ref: 2x 10 (Low Output Mode) | ECE R112 - Ref: 2x 12.5 (Low Output Mode) |
| Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

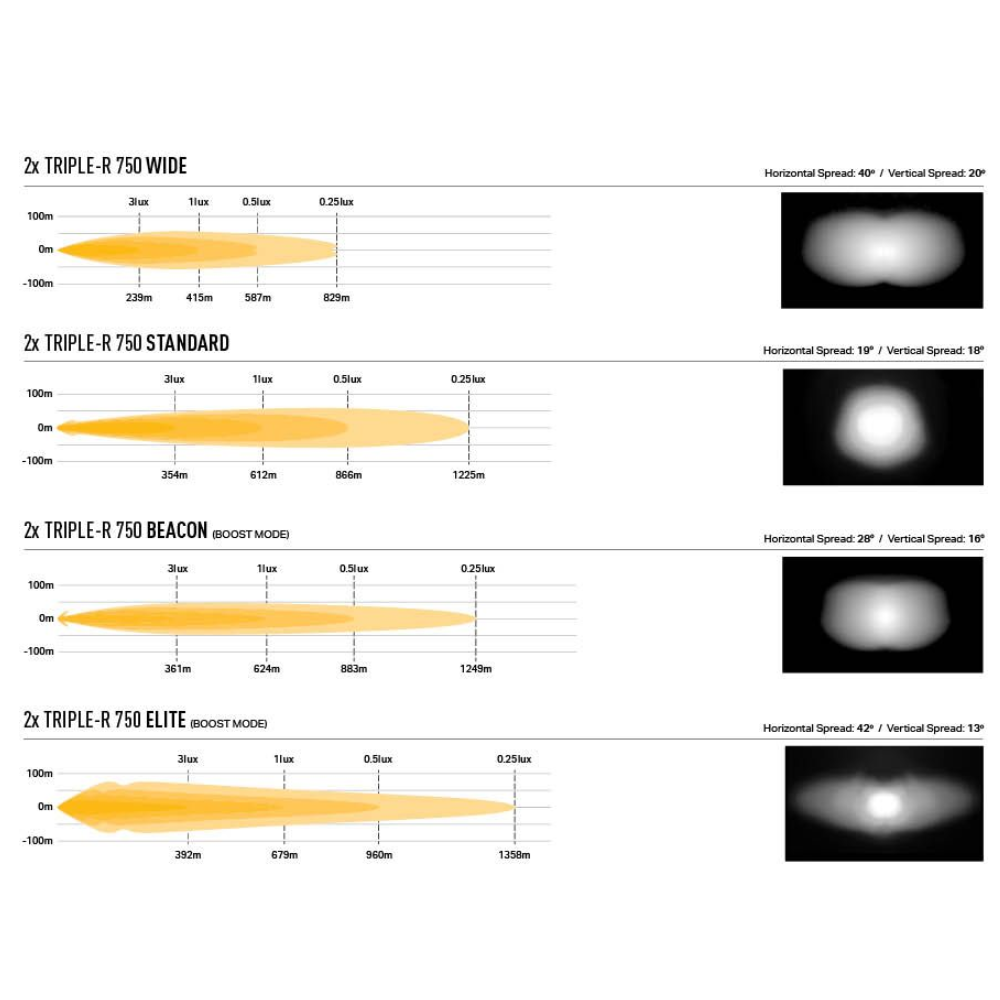

| PHOTOMETRIC DATA | ||||
| Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
| 0.25 Lux | 829m | 1225m | 1249m | 1358m |
| 0.5 Lux | 587m | 866m | 883m | 960m |
| 1 Lux | 415m | 612m | 624m | 679m |
| 3 Lux | 239m | 354m | 361m | 392m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
