Lazer Lamps Ford Transit Connect 2023+ Linear or Glide Grille Kit PN: GK-FTCON-02
GK-FTCON-02
For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.
Product Options
From excl. VAT £345.00
(incl. VAT £414.00)
(incl. VAT £414.00)
You might also be interested in these
-01.png "Lazer Lamps Linear 18 532mm Auxiliary LED Driving Lamp PN: 0L18-LNR")
.png "Lazer Lamps Linear 18 Elite 532mm Auxiliary LED Driving Lamp PN: 0L18-EL-LNR")
-01.png "Lazer Lamps Linear 18 Elite With Low Beam Assist 532mm Auxiliary LED Driving Lamp PN: 0L18-LBA-B")
For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

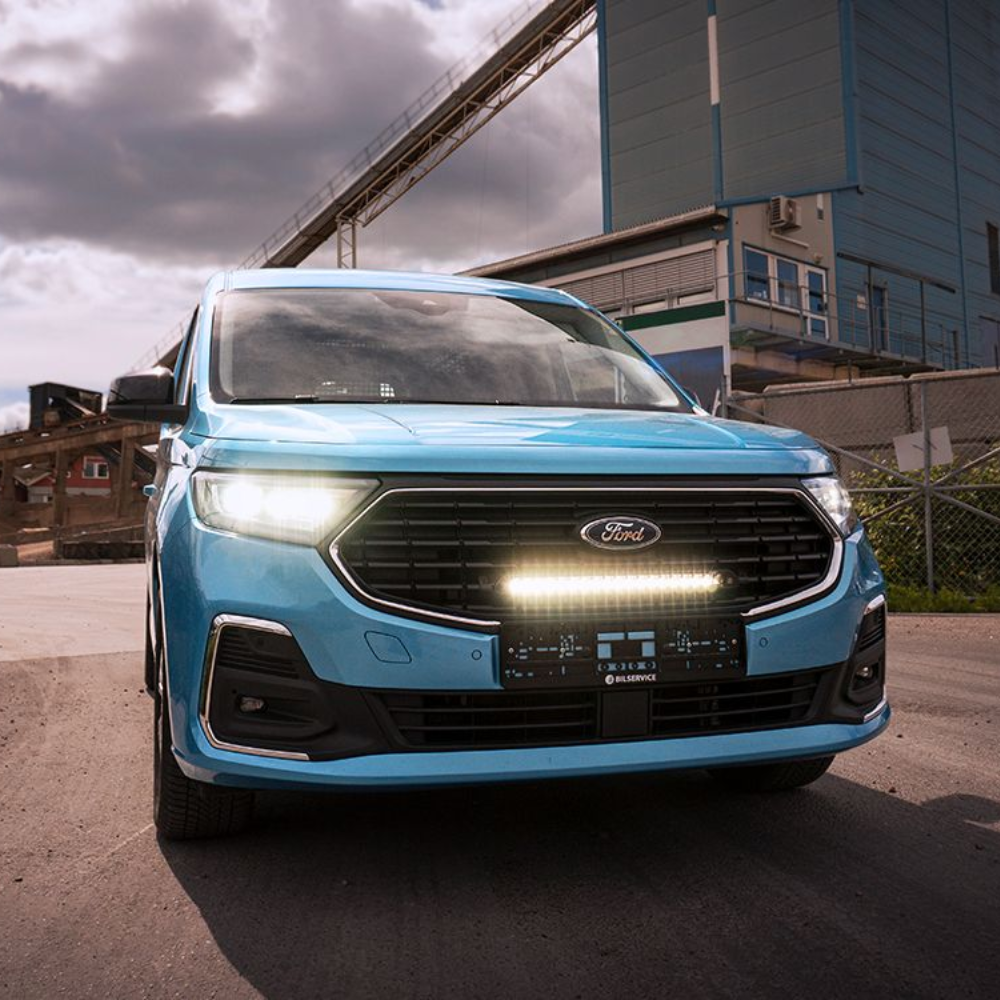

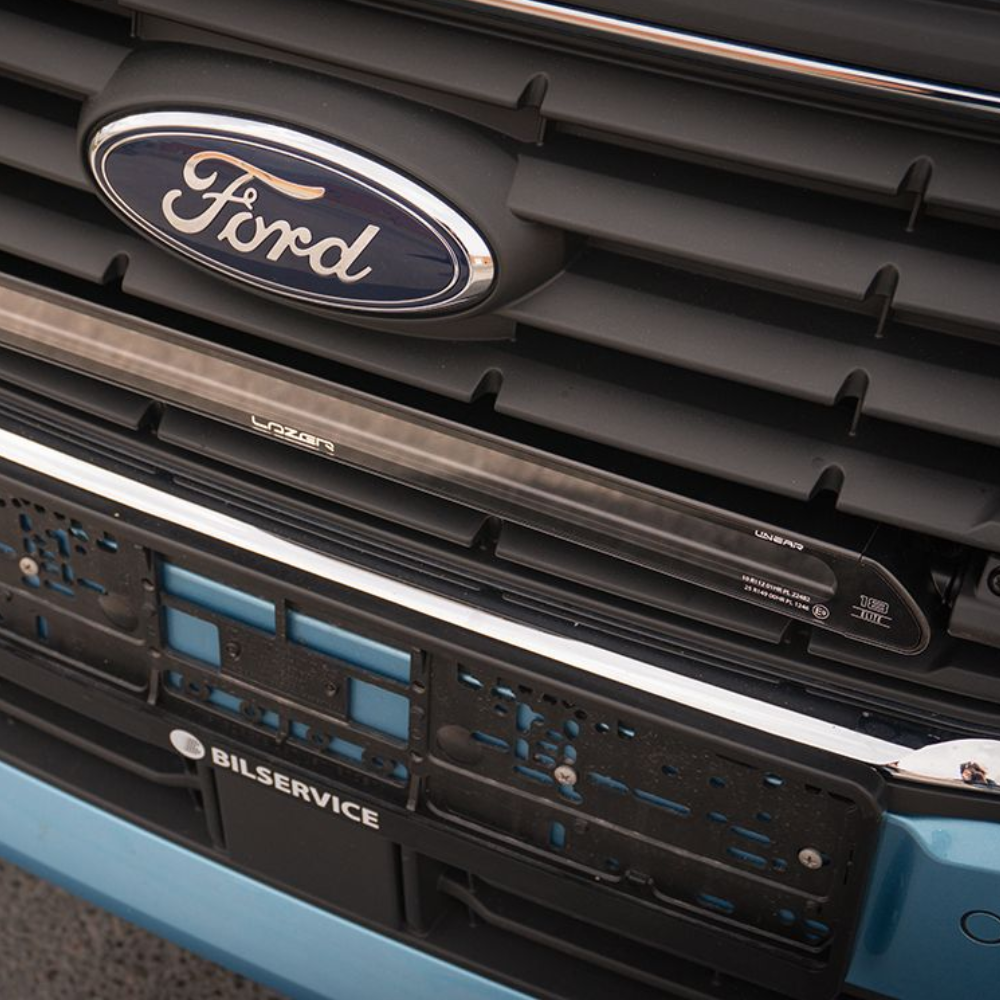

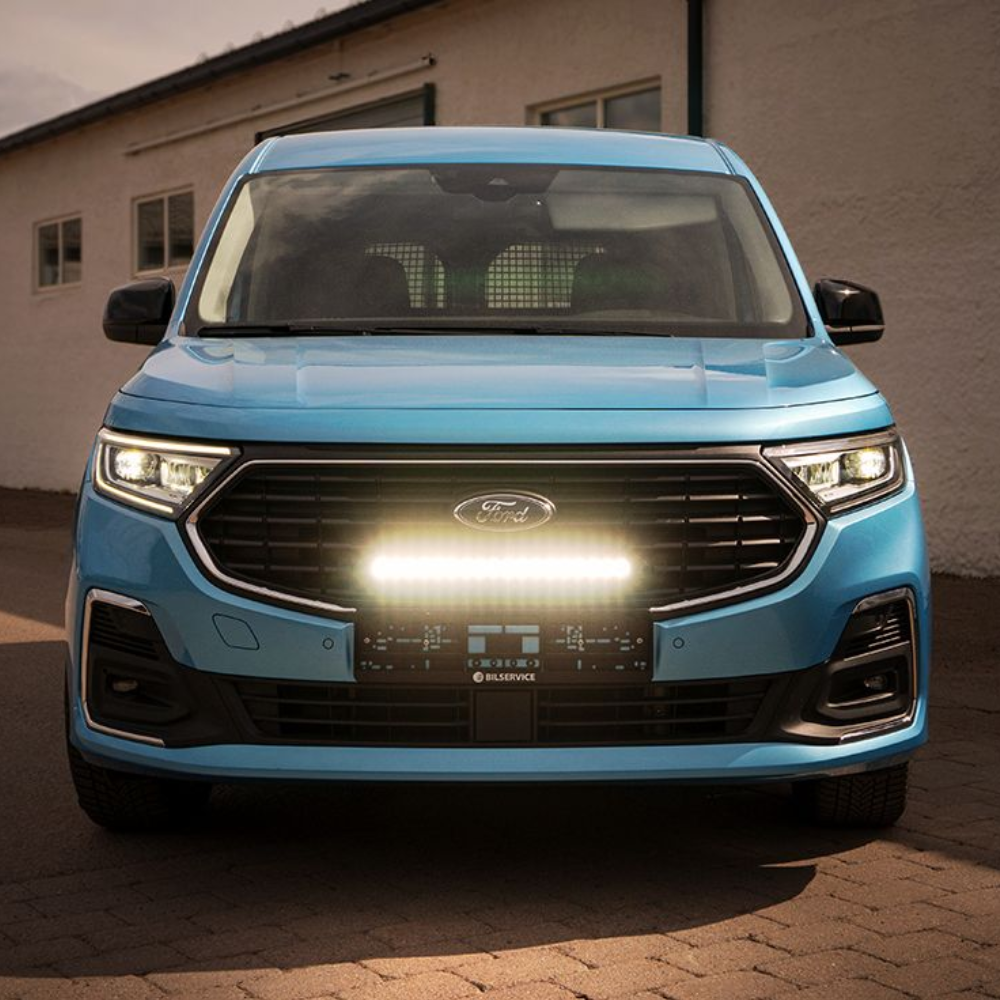

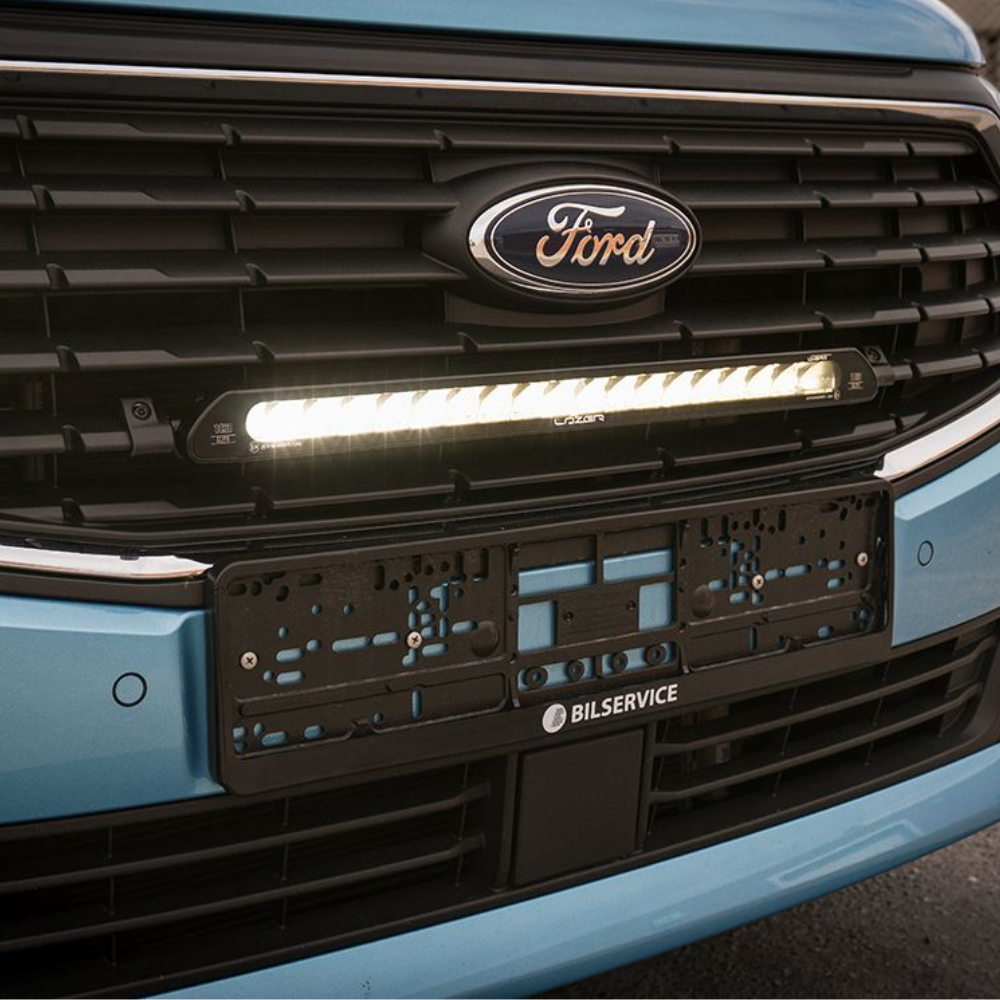

The Ford Transit Connect (2023+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) or Linear-18 (Standard, Elite, Elite+, or Elite i-LBA) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.
Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The Ford Transit Connect (2023+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide and Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Product Features:
What's Included:
1x Grille Mounting Kit
1x LED Lightbar (Linear-18/Glide)
1x One-Lamp Wiring Kit
Installation Instructions
Techincal Specifications:
The Ford Transit Connect (2023+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) or Linear-18 (Standard, Elite, Elite+, or Elite i-LBA) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.
Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The Ford Transit Connect (2023+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide and Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Product Features:
- Bespoke vehicle brackets for seamless integration
- Custom fit for Ford Transit Connect (2023+)
- Compatible with Linear-18 / Glide LED Lightbars
- Kit also includes bespoke mounting brackets and wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
What's Included:
1x Grille Mounting Kit
1x LED Lightbar (Linear-18/Glide)
1x One-Lamp Wiring Kit
Installation Instructions
Techincal Specifications:
LINEAR-18 | GLIDE | LINEAR-18 | GLIDE | LINEAR-18 | LINEAR-18 | |
|---|---|---|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 1.1 kg | 0.68 kg | 1.1 kg | 0.68 kg | 1.1 kg | 1.1 kg |
| HIGH BEAM FUNCTION | ||||||
| Total Luminous Flux | 6,750 Lm | 11,500 Lm | 13,500 Lm | 12,800 Lm | 14,850 Lm | 18,000 Lm |
| Total Driver 'FOV' Flux † | 4,806 Lm | 6,958 Lm | 9,612 Lm | 8,012 Lm | 10,573 Lm | 12,816 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K | 5000K | 5000K |
| Power Consumption | 63 Watts | 120 Watts | 130 Watts | 130 Watts | 134 Watts | 135 Watts |
| Current Draw (14.4V) | 4.4 Amps | 8.3 Amps | 9 Amps | 9.2 Amps | 9.9 Amps | 15 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | 2-Pin/3-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) | 2-Pin/3-Pin Superseal (+25cm Cable) | 3-Pin Aptiv (+25cm Cable) | 4-Pin Deutsch DT (+25cm Cable) |
| CERTIFICATION | ||||||
| IP Rating # | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R112 (Ref: 30) | ECE R149 (Ref: 12.5*) | ECE R112 (Ref: 2x 25) | ECE R149 (Ref: 12.5*) | ECE R149 (Ref: 27.5*) | ECE R112 (Ref: 17.5*) |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
| PHOTOMETRIC DATA | ||||||
| Horizontal/Vertical Beam Angle | 56° / 13° | 60° / 13° | 64° / 15° | 66° / 14° | 84° / 20° | 60° / 20° |
| 0.25 lux | 855m | 1095m | 1023m | 1249m | 1,152m | 1,043m |
| 0.5 lux | 605m | 775m | 723m | 883m | 815m | 738m |
| 1 lux | 428m | 548m | 511m | 624m | 576m | 522m |
| 3 lux | 247m | 316m | 295m | 361m | 333m | 301m |
* - The lamp is compliant with UNECE regulations only when operating in low-output mode.
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
