Lazer Lamps Ford Tourneo Custom (2024+) Triple-R 750 Grille Kit PN: GK-TC-01K
GK-TC-01K
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
Product Options
From excl. VAT £485.00
(incl. VAT £582.00)
(incl. VAT £582.00)
You might also be interested in these
-02.png "Lazer Lamps Triple-R 750 Elite Lamp Gen 2 230mm PN: 00R4-G2-EL-B")
-02.png "Lazer Lamps Triple-R 750 Lamp With Position Light Gen 2 230mm PN: 00R4-G2-B")
Upgrade the look and performance of your Ford Tourneo Custom (2024+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.
Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in four variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. The Wide offers a broader beam and a lower ECE Regulation 149 reference - no boost cap required, making it ideal for customers in countries with specific lighting regulations. Designed for versatility, the Beacon variant has an integrated amber beacon and Position Light function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

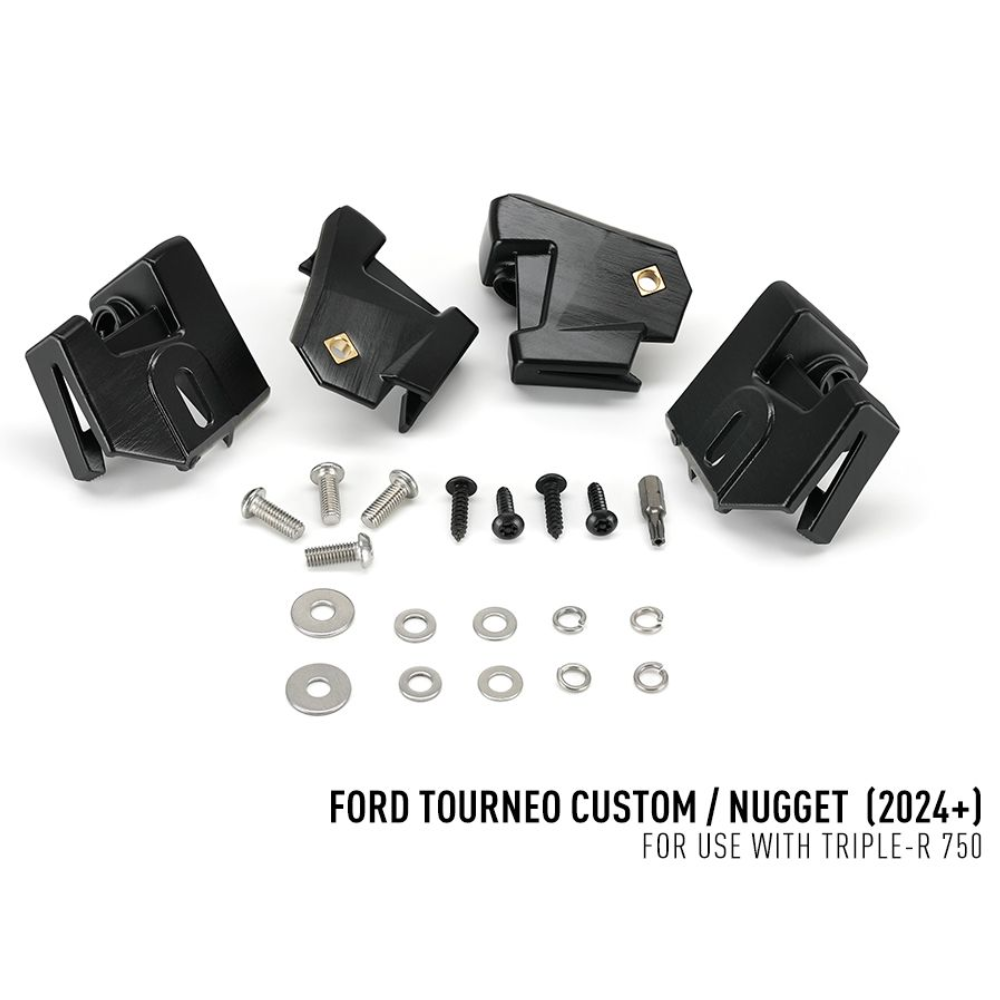

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.
Please note: The Ford Tourneo Custom (2024+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Also compatible with: Ford Transit Nugget (2024).
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Product Features:
What's Included:
1x Grille Mounting Kit
2x Triple-R 750 LED Lamps

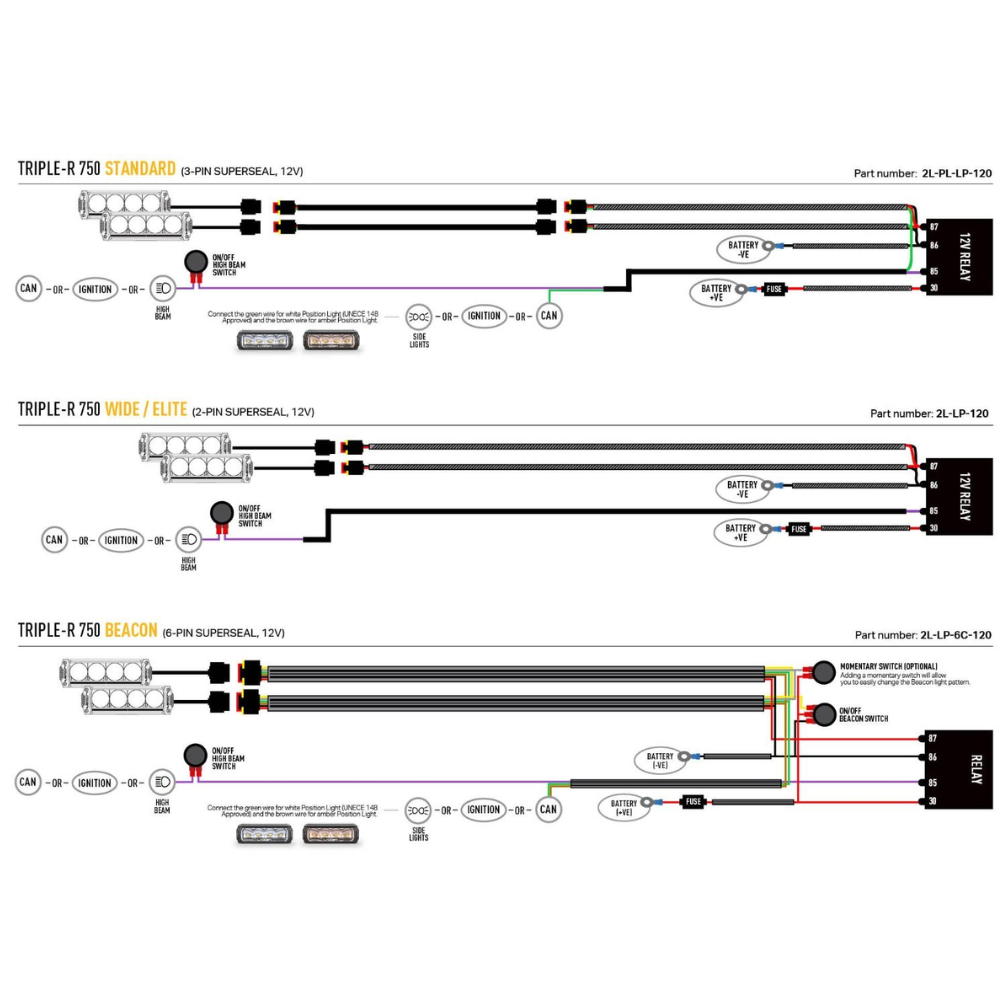

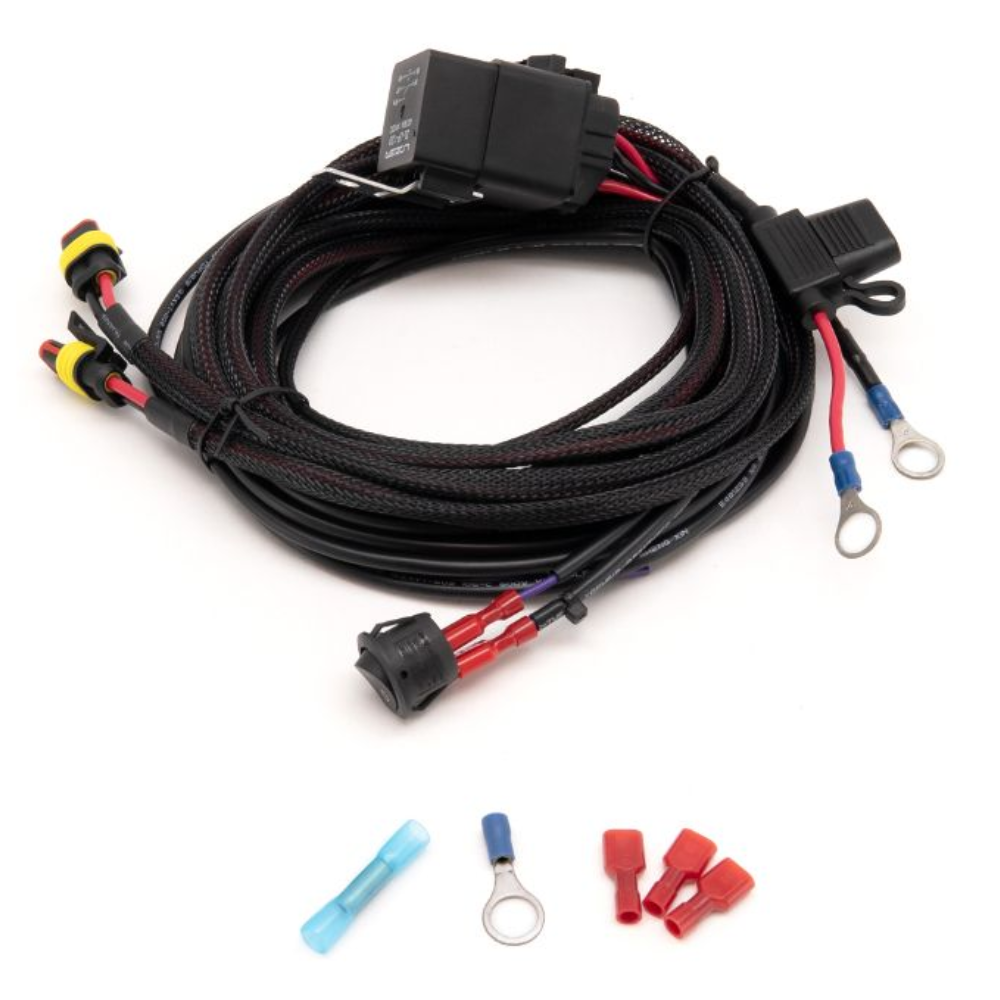

1x Two-Lamp Wiring Kit
Installation Instructions
Technical Specifications:
Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in four variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. The Wide offers a broader beam and a lower ECE Regulation 149 reference - no boost cap required, making it ideal for customers in countries with specific lighting regulations. Designed for versatility, the Beacon variant has an integrated amber beacon and Position Light function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.
The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.
Please note: The Ford Tourneo Custom (2024+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Also compatible with: Ford Transit Nugget (2024).
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.
Product Features:
- Bespoke vehicle integration kit for Lazer LED light installation
- Custom fit for Ford Tourneo Custom (2024+)
- Also compatible with Ford Transit Nugget (2024)
- Designed for use with Triple-R 750 High Performance LED lights
- Kit also includes bespoke mounting brackets and a two-lamp wiring kit
- Brackets made from high-strength, UV-stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
What's Included:
1x Grille Mounting Kit
2x Triple-R 750 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions
Technical Specifications:
2x | 2x | 2x TRIPLE-R 750 | 2x | |
|---|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
| HIGH BEAM FUNCTION | ||||
| Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
| Total Driver 'FOV' Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K |
| Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
| Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
| CERTIFICATION | ||||
| IP Rating # | IP68 | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R149 - Ref: 2x 20 | ECE R112 - Ref: 2x 35 | ECE R149 - Ref: 2x 10 (Low Output Mode) | ECE R112 - Ref: 2x 12.5 (Low Output Mode) |
| Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

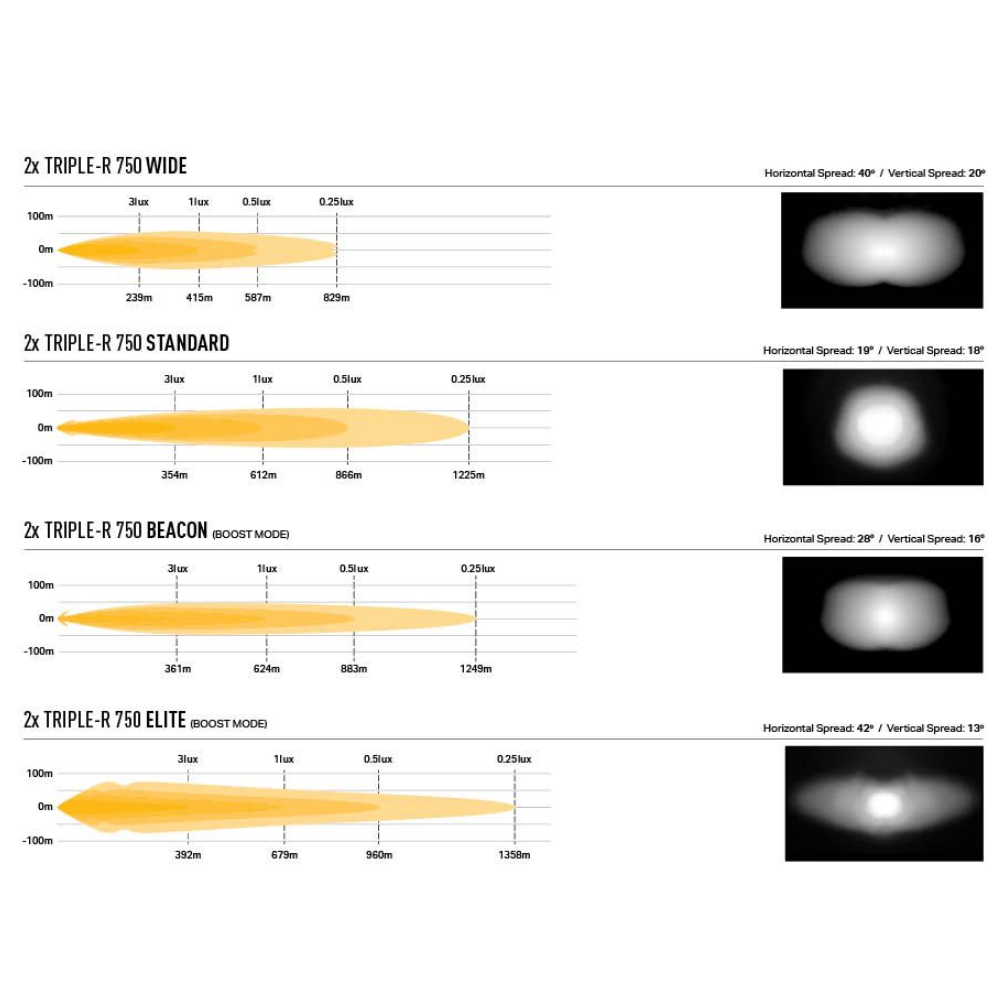

| PHOTOMETRIC DATA | ||||
| Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
| 0.25 Lux | 829m | 1225m | 1249m | 1358m |
| 0.5 Lux | 587m | 866m | 883m | 960m |
| 1 Lux | 415m | 612m | 624m | 679m |
| 3 Lux | 239m | 354m | 361m | 392m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
