Lazer Lamps Ford Ranger XL/XLT/TREMOR (2023+) Triple-R 750 Grille Kit

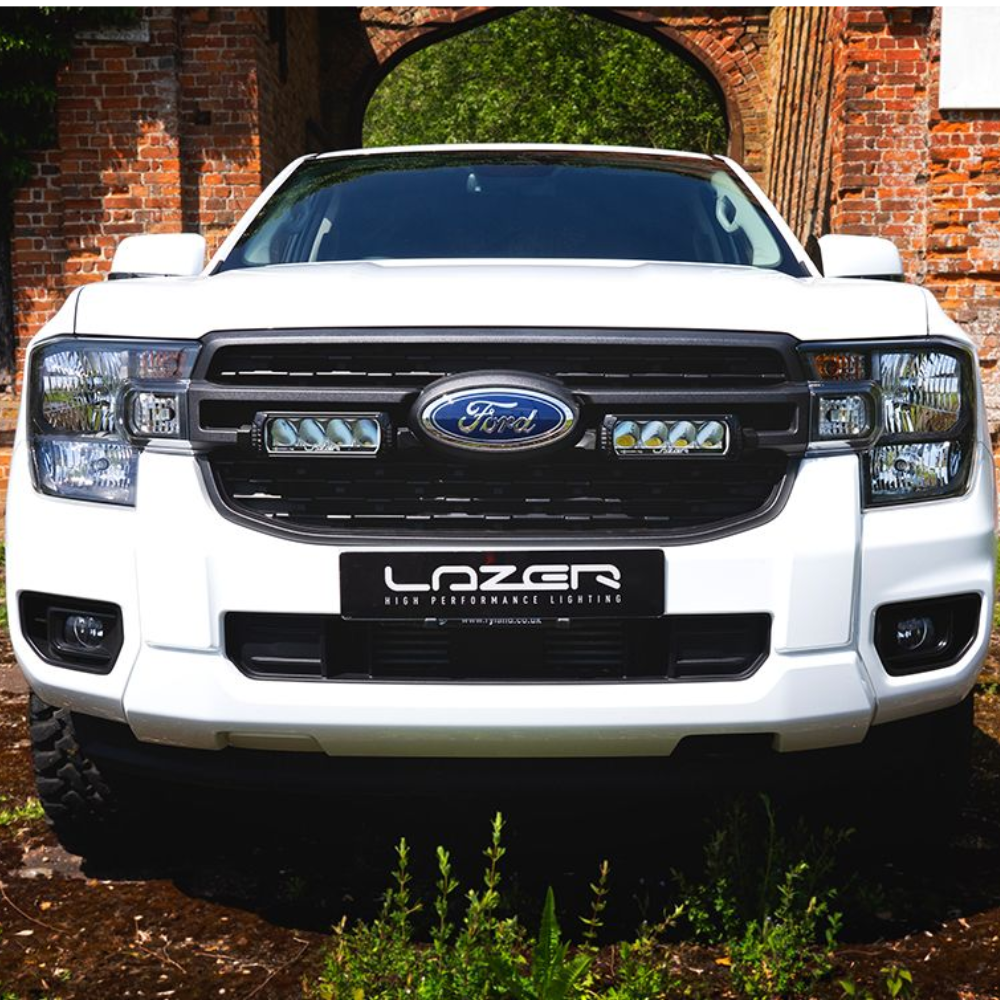

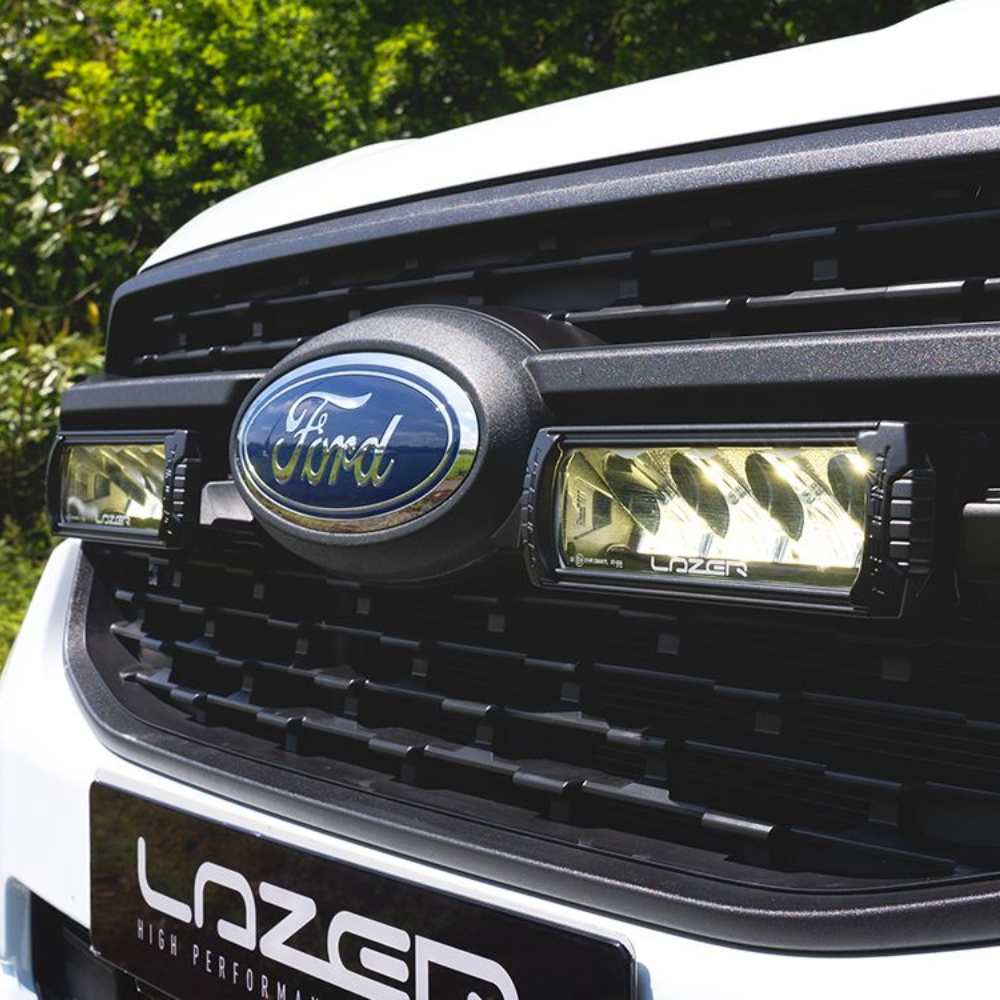

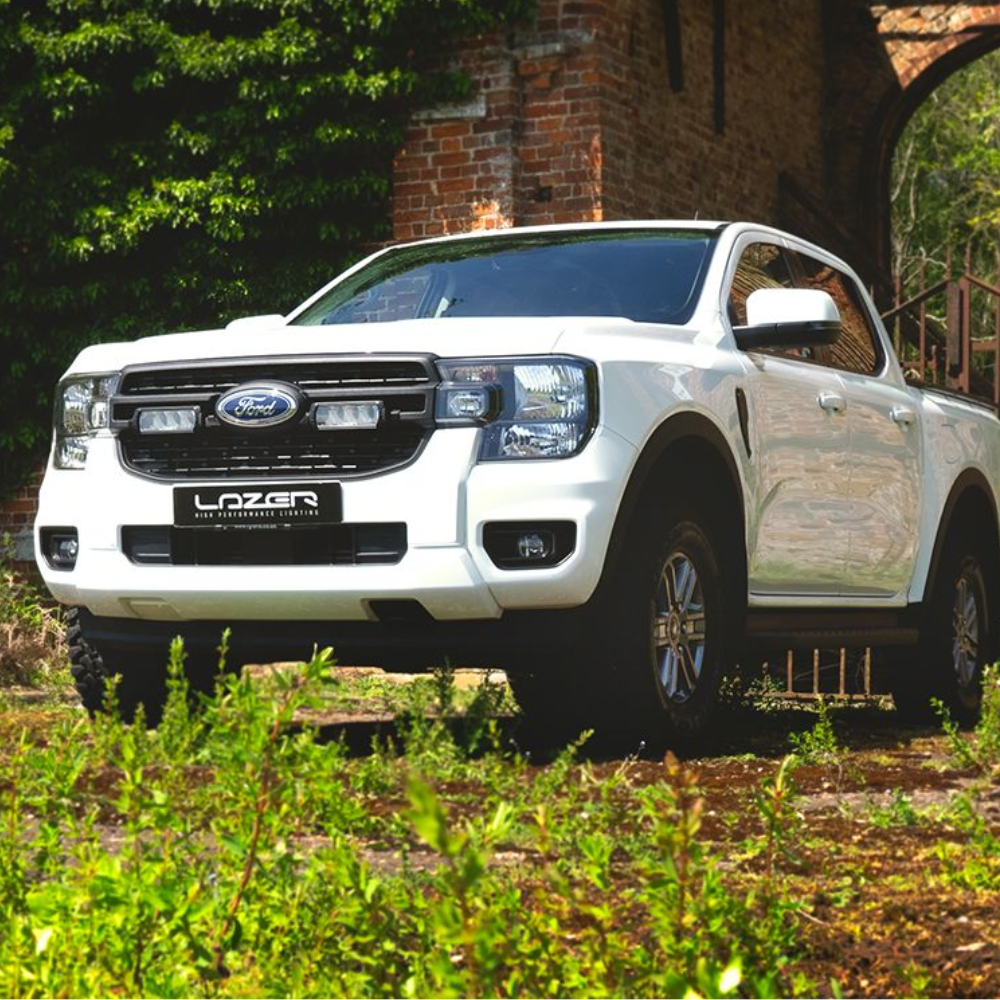

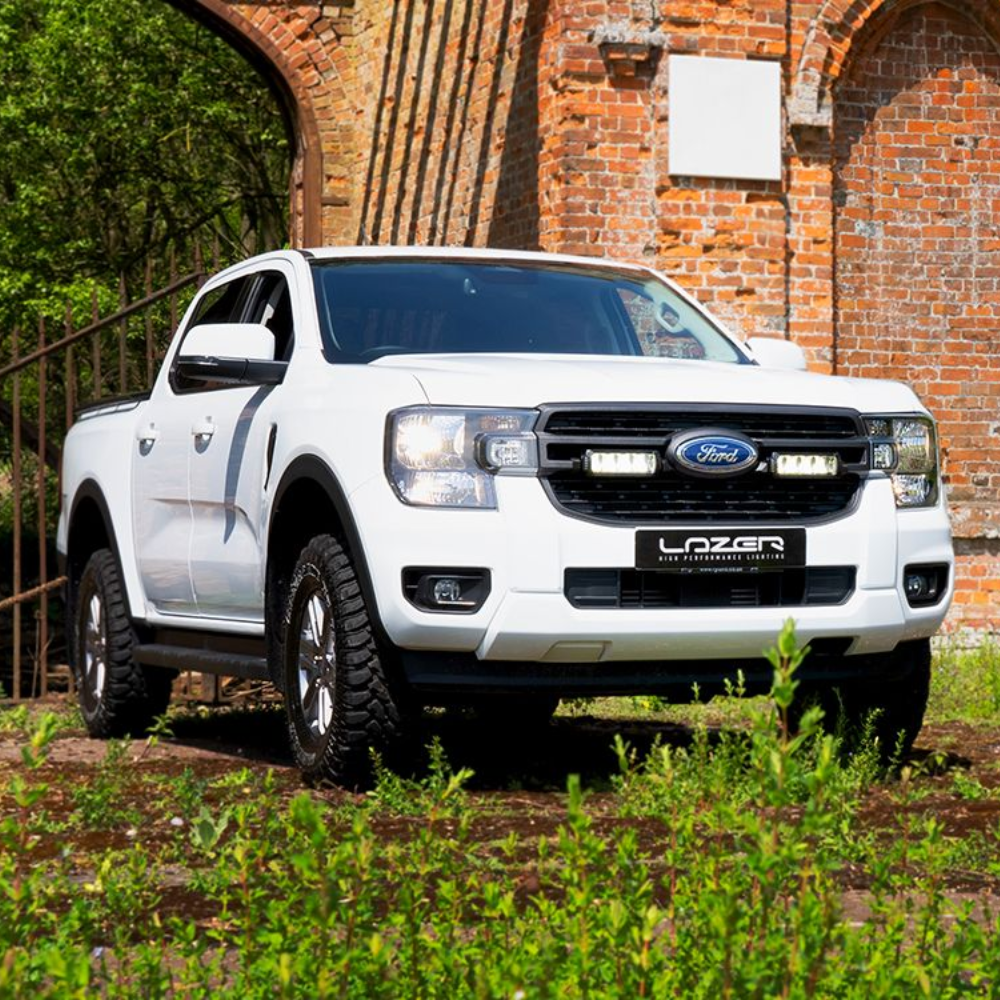

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED lights, effortlessly set within the front grille of the Ford Ranger XL/XLT/Tremor (2023+).

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

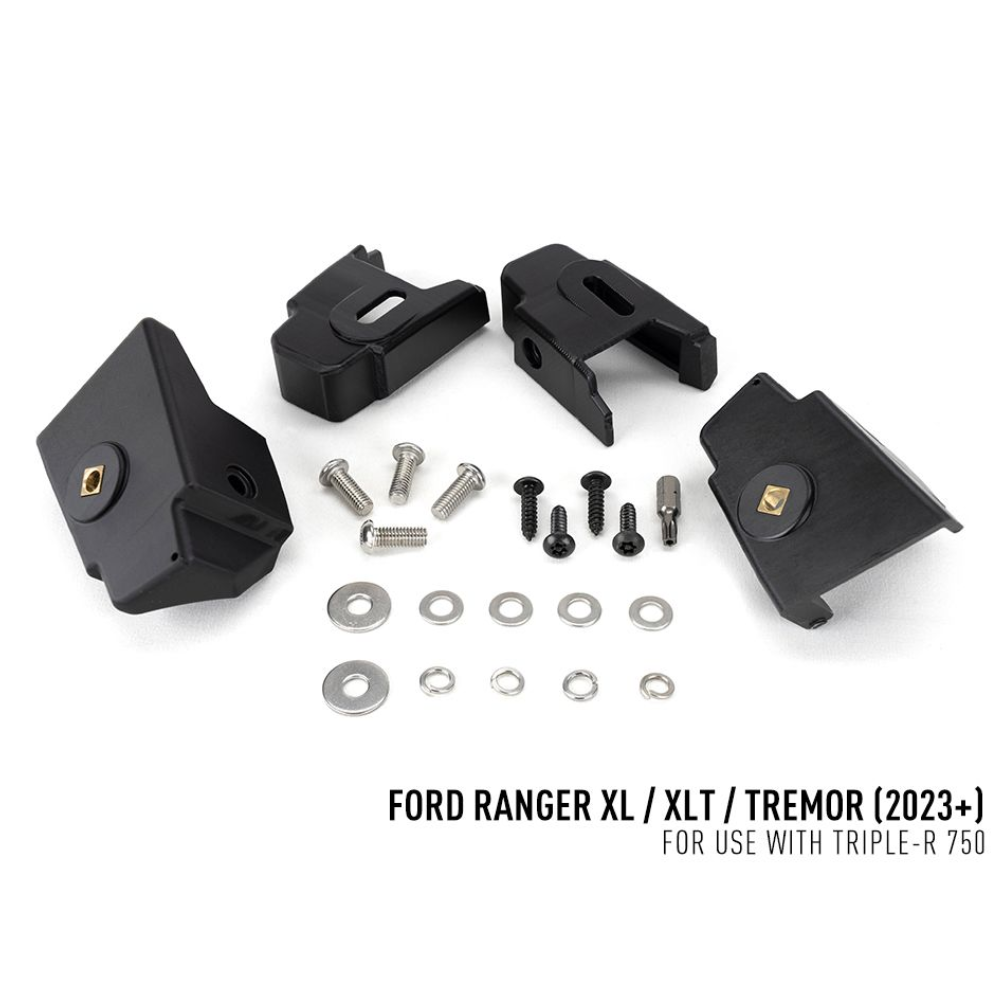

The Ford Ranger XL/XLT/Tremor kit, designed for MY23+ vehicles, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

The Ford Ranger XL/XLT/Tremor (2023+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

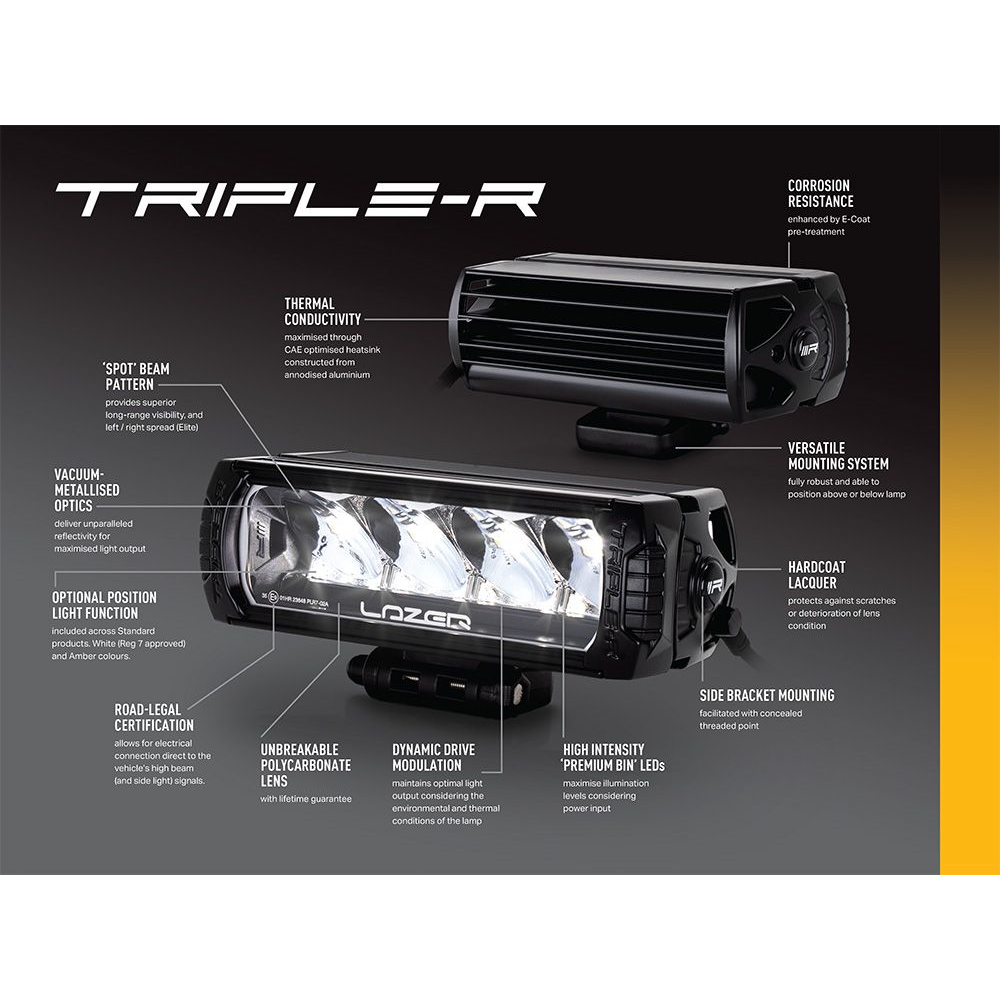

• Bespoke vehicle integration kit for Lazer LED light installation
• Custom fit for Ford Ranger XL/XLT/Tremor (2023+)
• Designed for use with Triple-R 750 High Performance LED lights
• Added option for white or amber position/side light function (Standard model only)

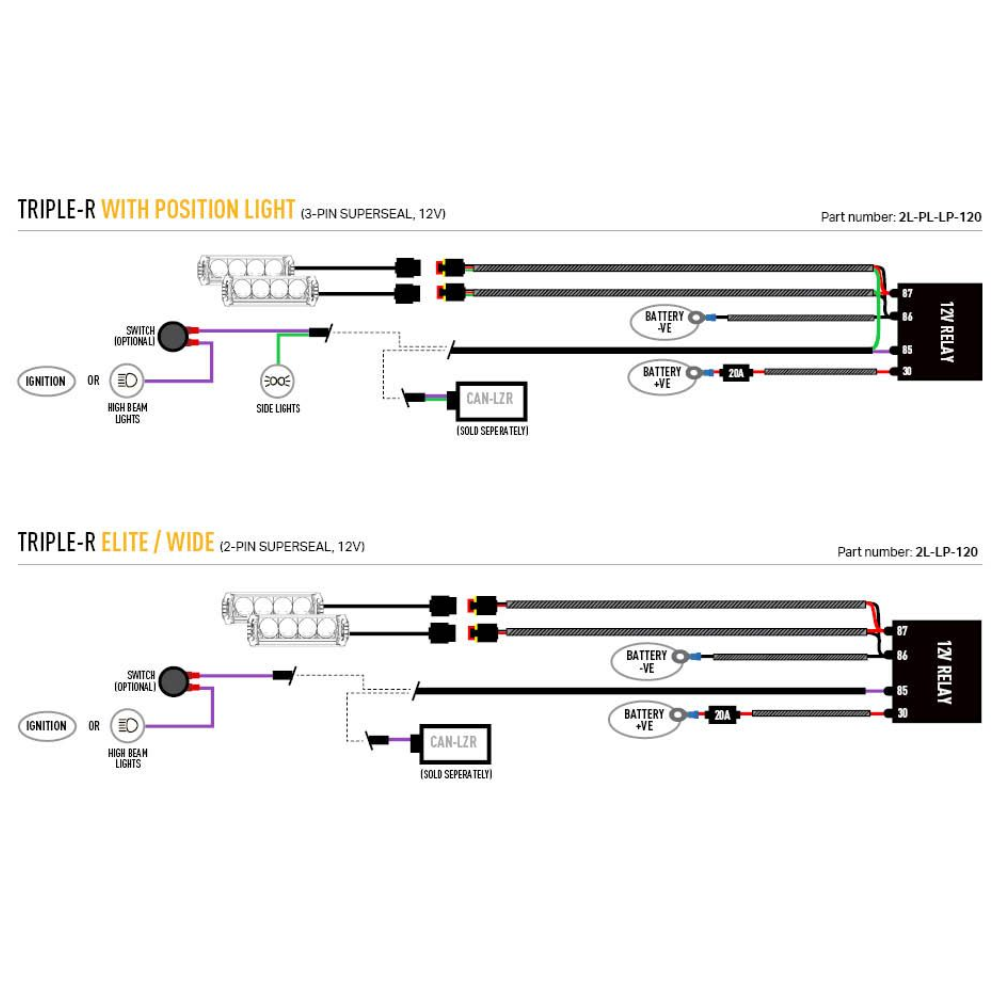

• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Brackets made from high strength, UV -stable, composite material
• Installation completed with grille left in-situ on vehicle (cutting guides included)
• Fully road-legal
• 5-year warranty
• Made in Britain

What's included:

1x Grille Mounting Kit (Includes cutting guides)
2x Triple-R 750 LED Lamps

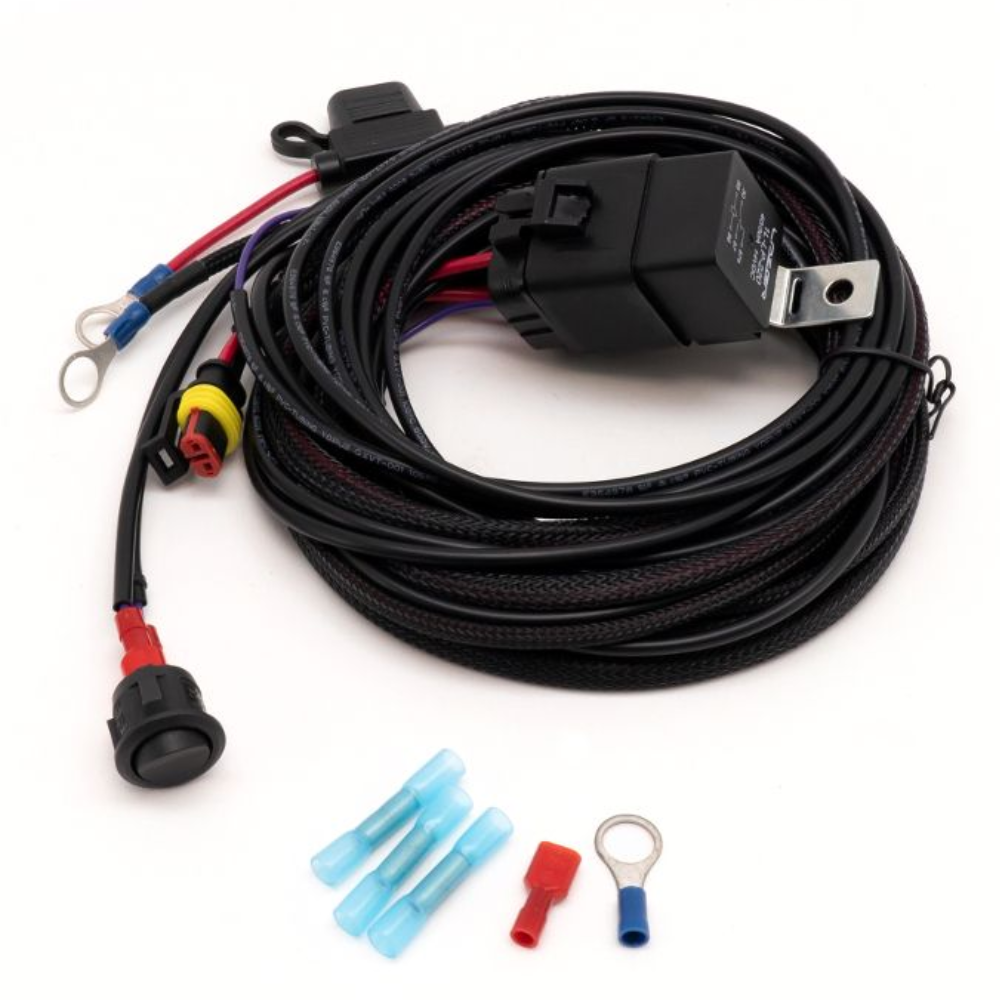

1x Two-Lamp Wiring Kit
Installation Instructions


Technical Specifications:

	2x TRIPLE-750 WIDE	2x TRIPLE-R 750	2x TRIPLE-R 750 BEACON (BOOST MODE)	2x TRIPLE-R 750 ELITE (BOOST MODE)
Voltage Range (DC)	10-32V	10-32V	10-32V	10-32V
LED Life	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Weight	2.6 kg	2.6 kg	2.6 kg	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm	9240 Lm	10800 Lm	10136 Lm
Total Driver 'FOV' Flux †	5266 Lm	5572 Lm	2484 Lm	6680 Lm
Colour Temperature	5000K	5000K	5000K	5000K
Power Consumption	88 Watts	88 Watts	104 Watts	104 Watts
Current Draw (14.4V)	6.2 Amps	6.2 Amps	7.4 Amps	7.2 Amps
Connector	2-Pin Superseal (+25cm Cable)	3-Pin Superseal (+25cm Cable)	6-Pin Superseal (+25cm Cable)	2-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #	IP68	IP68	IP68	IP68
High Beam (E9 approval)	ECE R149 - Ref: 2x 20	ECE R112 - Ref: 2x 35	ECE R149 - Ref: 2x 10 (Low Output Mode)	ECE R112 - Ref: 2x 12.5 (Low Output Mode)
Position Light (White)	N/A	ECE R7	ECE R7	N/A
EMC Certification	ECE R10	ECE R10	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2	ISO 7637-2	ISO 7637-2

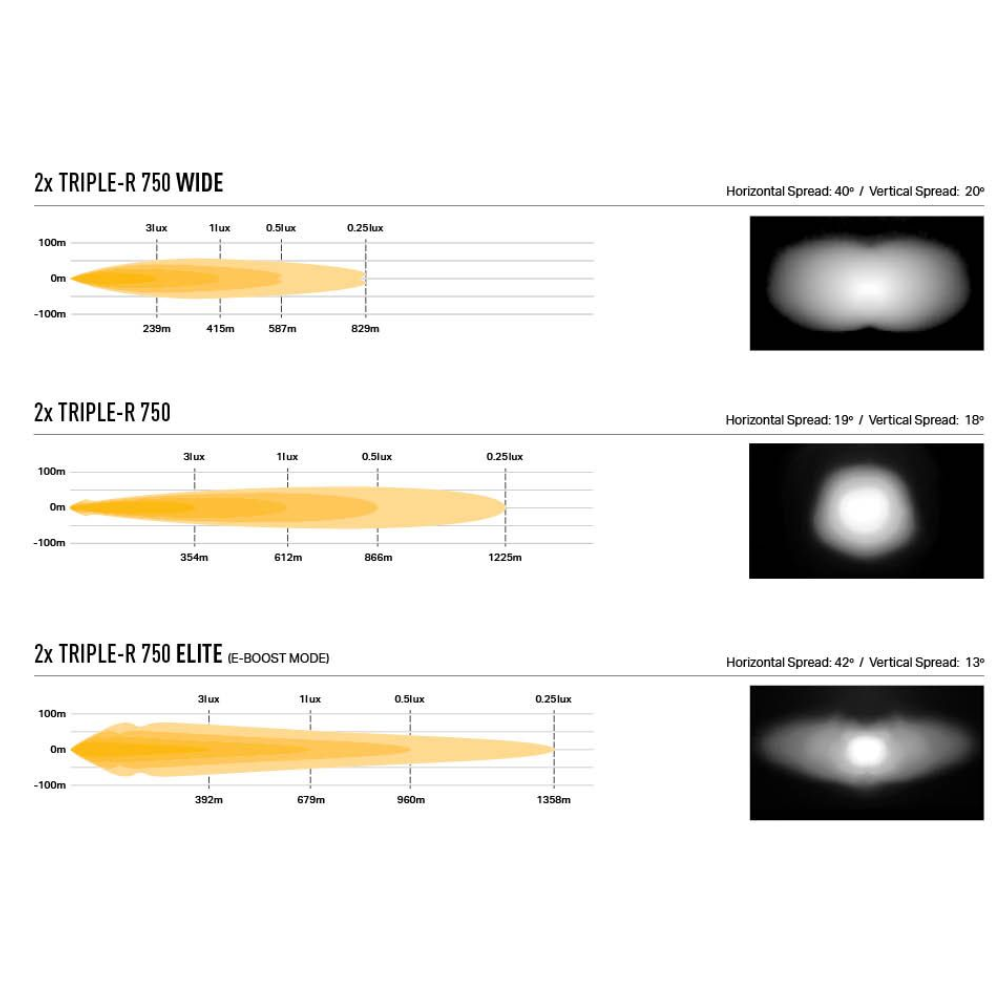

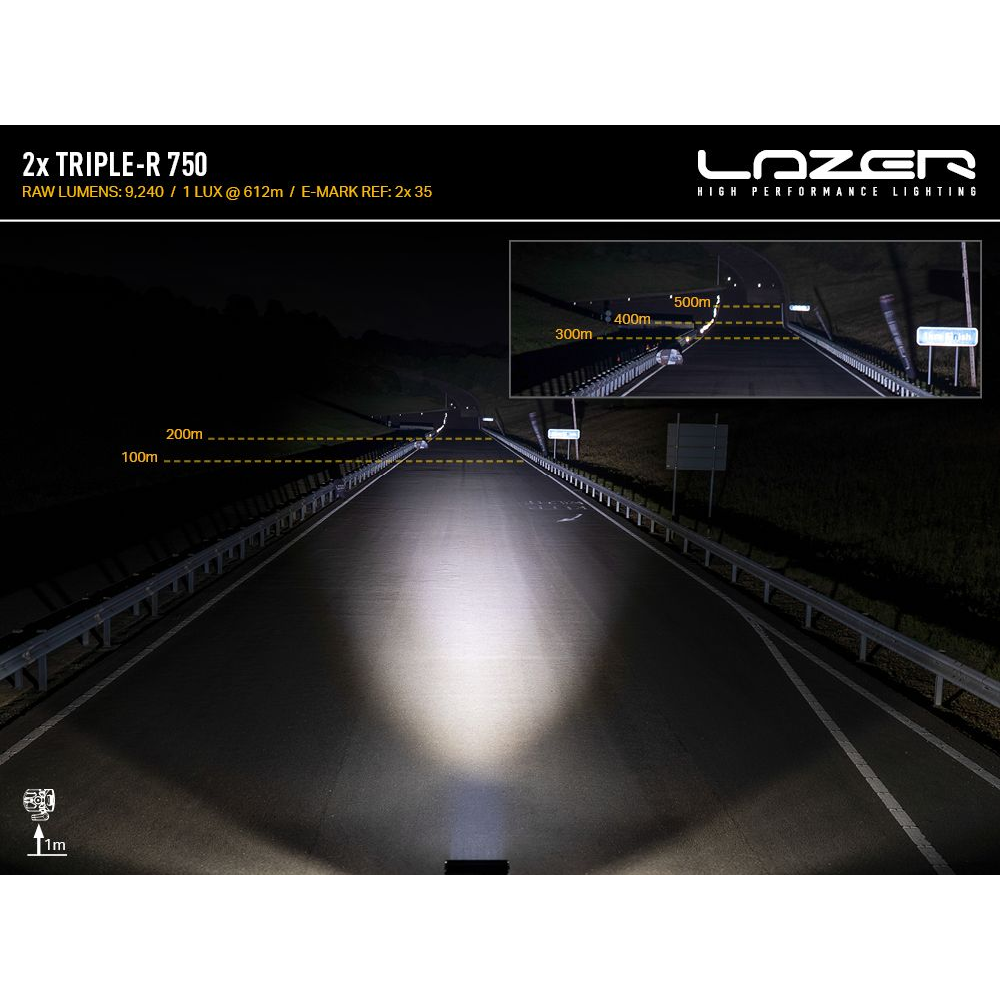

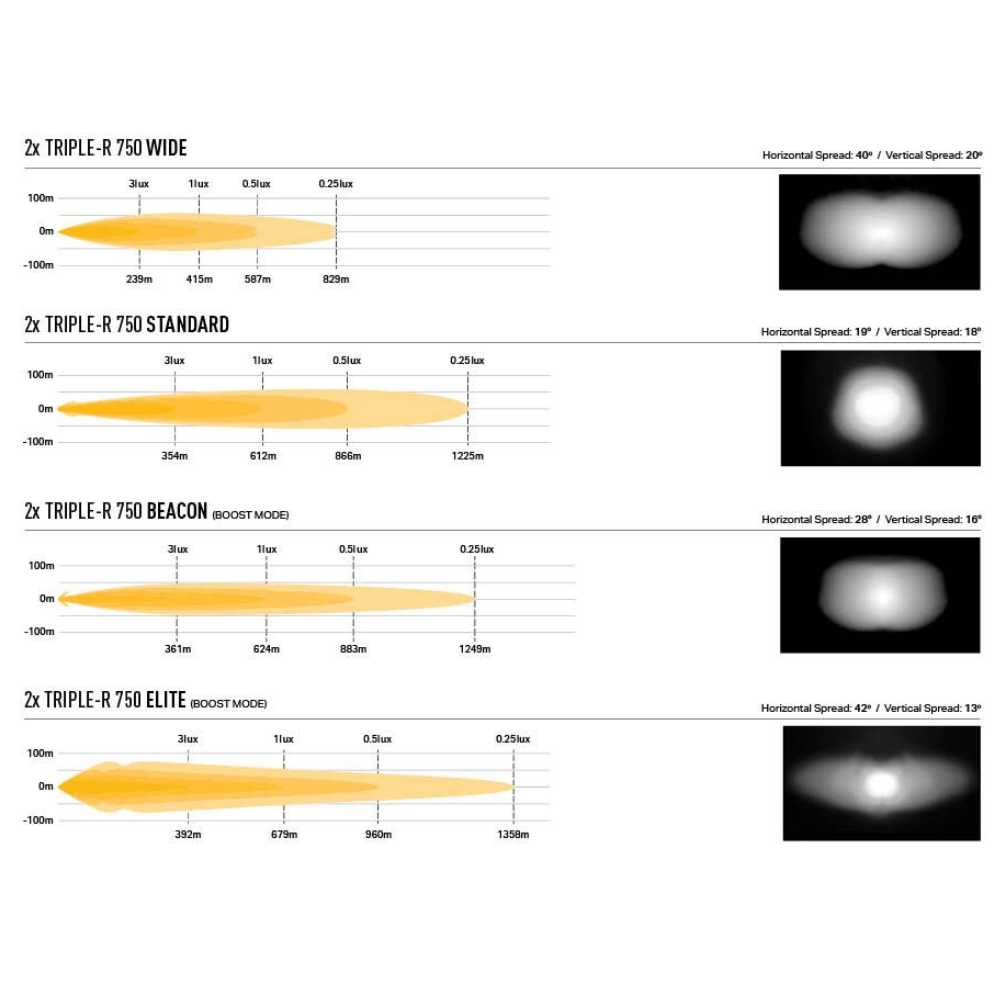

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	40° / 20°	19° / 18°	28° / 16°	42° / 13°

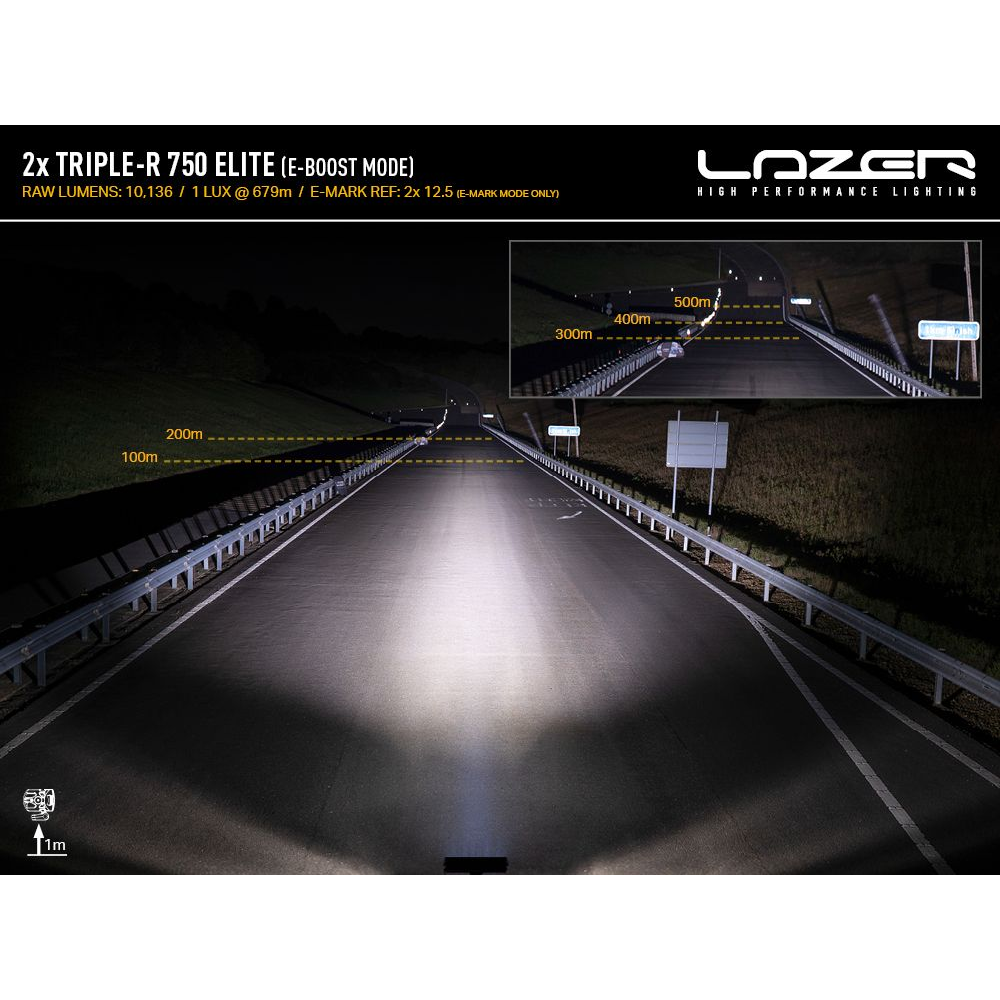

0.25 Lux	829m	1225m	1249m	1358m
0.5 Lux	587m	866m	883m	960m
1 Lux	415m	612m	624m	679m
3 Lux	239m	354m	361m	392m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
