Lazer Lamps Ford Ranger / Raptor 2023+ Glide Roof Pods PN: RK-BLK-01K-FR
RK-BLK-01K-FR

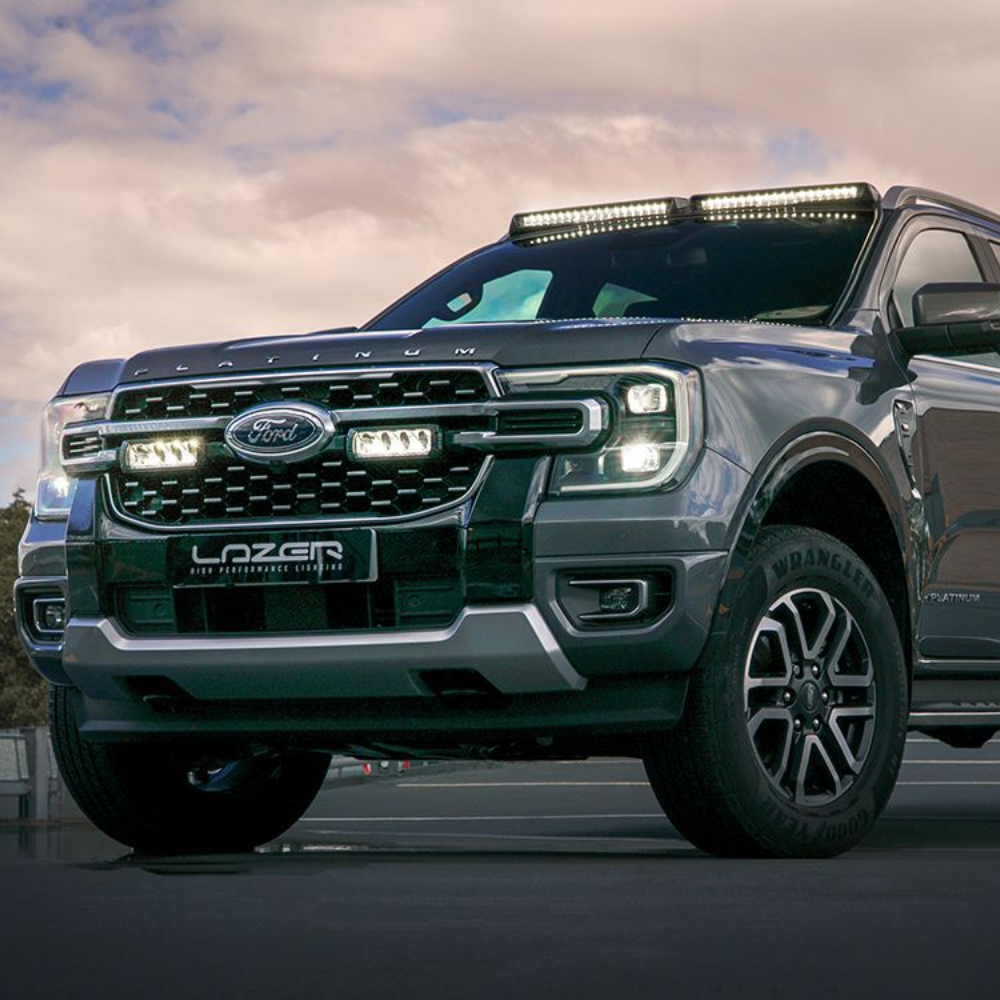

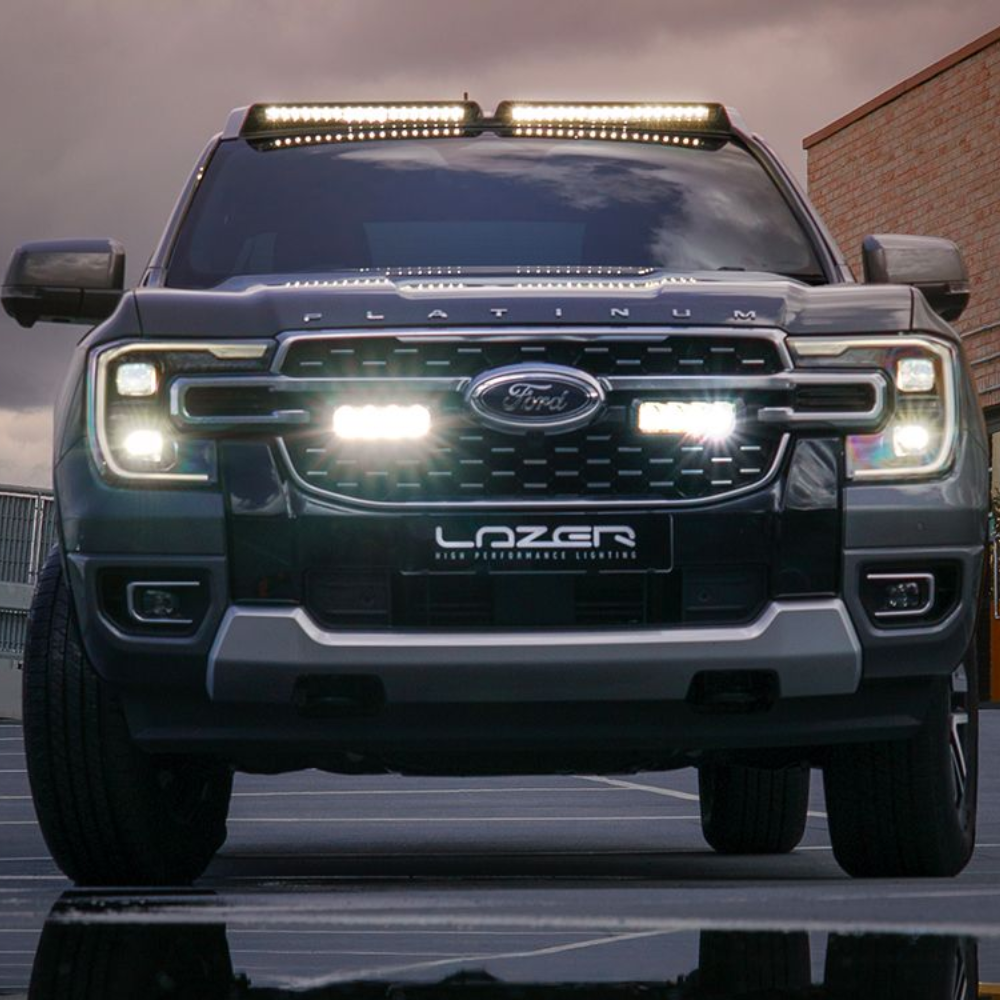

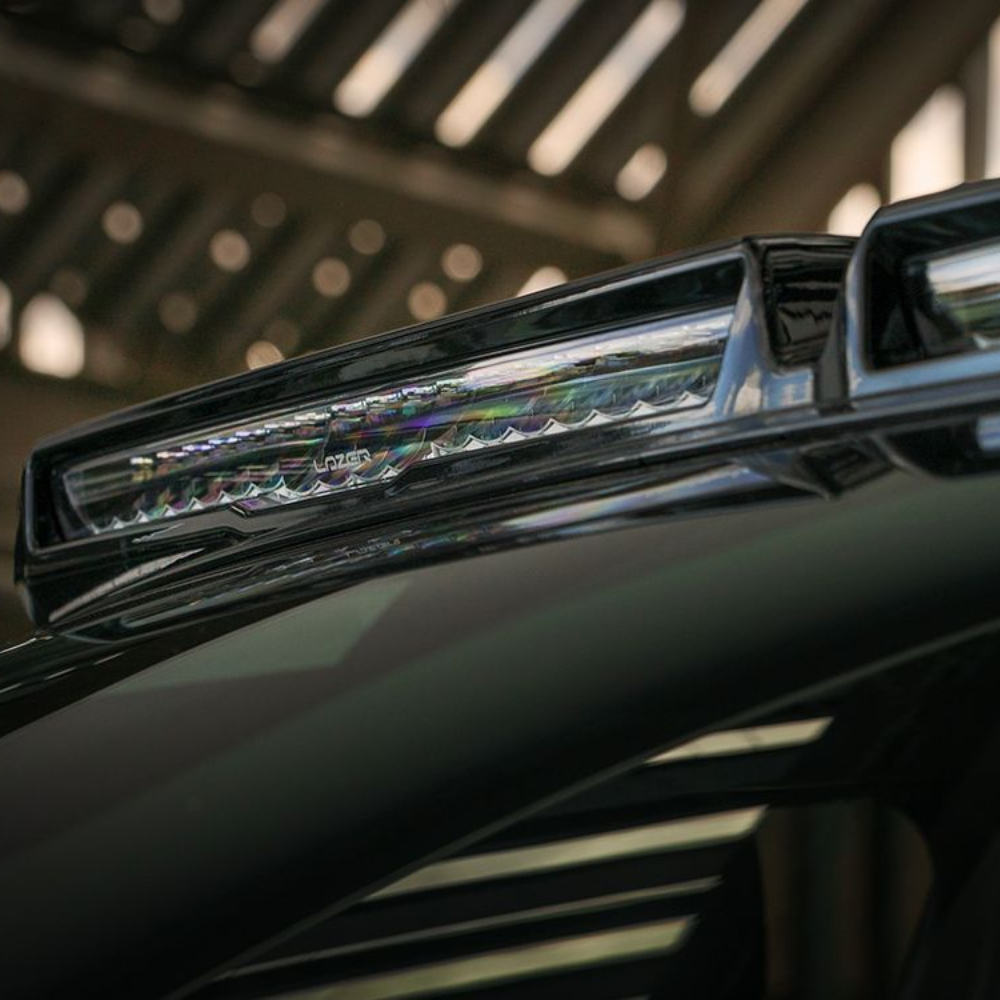

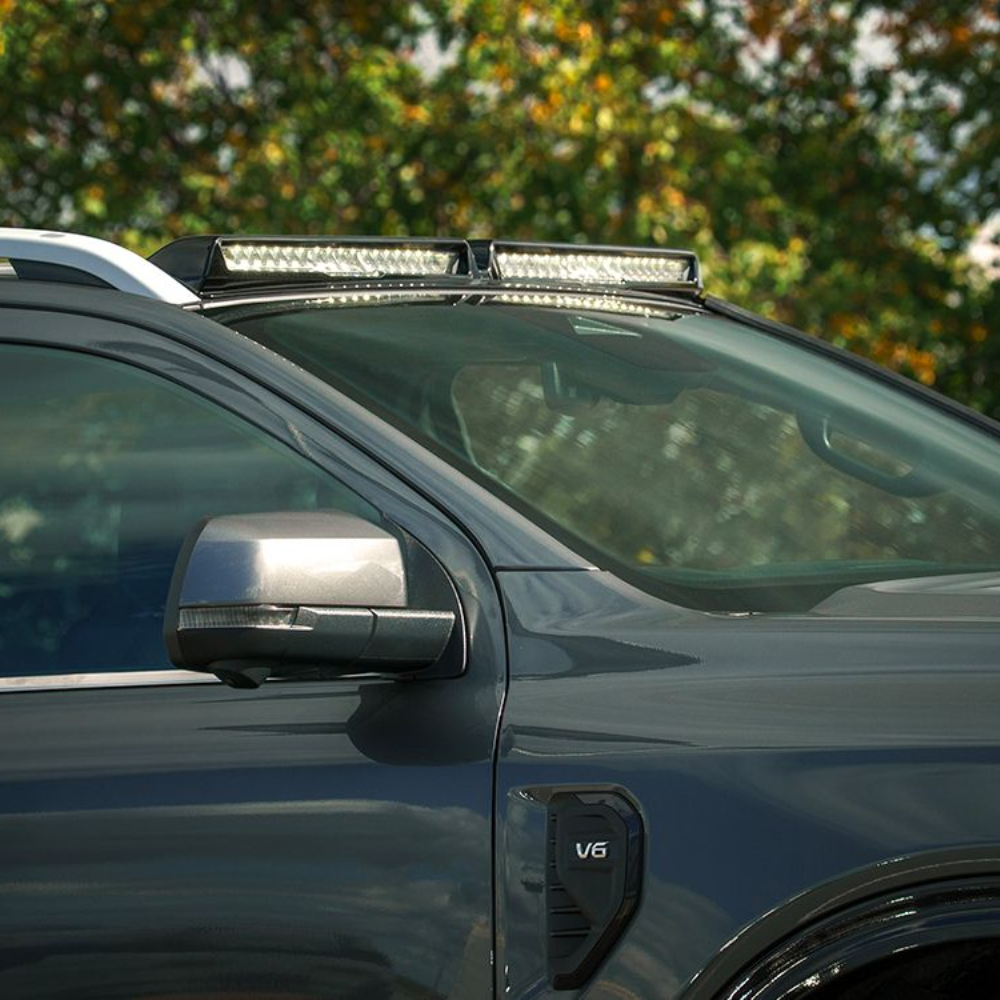

Specifically engineered for the Ford Ranger/Raptor, introducing Lazer’s custom-made LED Light Pod for model year 2023+ vehicles. The pod is engineered to house 2x Glide (Single E-mark) high-performance LED light bars, a sleek install that delivers an incredible 23,000 raw lumens for a transformational night driving experience.
excl. VAT £1,080.00
(incl. VAT £1,296.00)
(incl. VAT £1,296.00)
You might also be interested in these

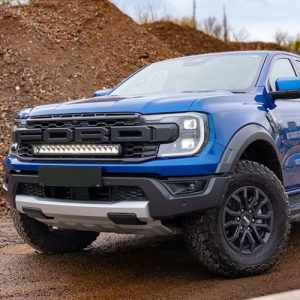

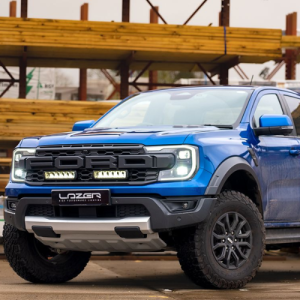

-02.png "Lazer Lamps Ford Ranger Raptor (2023+) Triple-R 850 Grille Kit PN: GK-RAP")

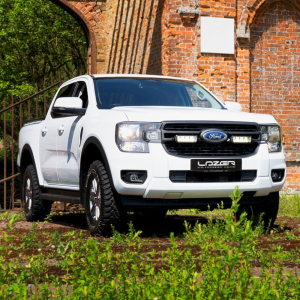

.png "Lazer Lamps Ford Ranger Wildtrack (2023+) Triple-R 1250 Grille Kit PN: GM-FR-05K")
-02.png "Lazer Lamps Ford Ranger Raptor (2023+) Triple-R 16 Elite Grille Kit PN: GK-RAP-ELITE-03K")
Specifically engineered for the Ford Ranger/Raptor, introducing Lazer’s custom-made LED Light Pod for model year 2023+ vehicles. The pod is engineered to house 2x Glide (Single E-mark) high-performance LED light bars, a sleek install that delivers an incredible 23,000 raw lumens for a transformational night driving experience. The lights used in this kit have been re-approved (to UNECE Reg 149, E-Ref 12.5) as ‘single lamps’, ensuring compliance of this product even within markets in Europe that require lamps to be mounted in pairs, and with a low reference number thanks to Lazer’s dual output ‘flash-to-dim’ functionality.
Constructed from high-strength PC-ASA material, the pod is supplied with an automotive-grade 2K gloss black paint finish, and blends seamlessly with your vehicle for an installation with a true OE look and finish. Additionally, for customers wanting/needing a ‘no-drill’ solution, with the pod bonded to the roof (and removable if needed), a wire concealer is included in the kit that allows for the lamps’ cable to be routed down the outside of the vehicle A-Pillar, negating the need for drilling your vehicle’s roof.
The pod is supplied with lights pre-mounted and with a wiring loom to enable connection within the vehicle’s original electrical system. For vehicle’s with LED Matrix headlights (depending on the vehicle trim level), we recommend pairing this kit with with Lazer’s market-leading CANNY solution, which ensures the lamps activate only when the road ahead is clear of oncoming cars, and the roof lights come on with the vehicle matrix high beam.
Like all Lazer products, the Ranger/Raptor Roof Pod, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5-year warranty.
Product Features:
What's Included:
Technical Specifications:
Constructed from high-strength PC-ASA material, the pod is supplied with an automotive-grade 2K gloss black paint finish, and blends seamlessly with your vehicle for an installation with a true OE look and finish. Additionally, for customers wanting/needing a ‘no-drill’ solution, with the pod bonded to the roof (and removable if needed), a wire concealer is included in the kit that allows for the lamps’ cable to be routed down the outside of the vehicle A-Pillar, negating the need for drilling your vehicle’s roof.
The pod is supplied with lights pre-mounted and with a wiring loom to enable connection within the vehicle’s original electrical system. For vehicle’s with LED Matrix headlights (depending on the vehicle trim level), we recommend pairing this kit with with Lazer’s market-leading CANNY solution, which ensures the lamps activate only when the road ahead is clear of oncoming cars, and the roof lights come on with the vehicle matrix high beam.
Like all Lazer products, the Ranger/Raptor Roof Pod, plus lights, are designed, engineered, and manufactured in the UK to the highest standards, and backed up by our comprehensive 5-year warranty.
Product Features:
- Low-profile light POD featuring twin Glide high-performance LED driving lights
- Custom-fit for the Ford Ranger / Raptor (2023+)
- Constructed from UV-stable, PC-ASA material – Gloss black painted
- UNECE approved Reg 149 (Class B Driving Light, E-Ref 12.5) for on-road high beam function – Low Output/E-Mark mode only
- Dual-output functionality controlled via Lazer’s ‘Flash-To-Dim’ technology
- Supplied with positioning templates, VHB positioning tabs (to hold the pod in place while the silicon adhesive sets) and silicon adhesive for (semi-)permanent placement of the pod.
- Includes twin-lamp wiring harness kit.
- Wire concealer included for customers who prefer a ‘no-drill’ solution.
- 5-year warranty
- Designed and manufactured in the UK
What's Included:
- Roof Pod (2x Glide pre-mounted)
- Positioning Templates (LH/RH)
- VHB Cleaning Sachet (x5)
- Black Dow Corning (1x Tube)
- One-Lamp Wiring Kit + Y-Splitter
- 12V Power Relay
- Cable Grommet (x1)
- Heat Shrink Butt Connector (x2)
- 1.2m Wire Concealer
Technical Specifications:
2x GLIDE (BOOST MODE) | |
|---|---|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 0.68 kg (per lamp) |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 23,000 Lm |
| Total Driver 'FOV' Flux † | 13,916 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 240 Watts |
| Peak Current Draw | 19.2 Amps |
| Current Draw (14.4V) | 16.6 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) |
| CERTIFICATION | |
| IP Rating # | IP68 |
| High Beam (E9 approval) | ECE R149 (Double E-Mark) - Ref: 2x 12.5 - Low Output mode only (per lamp) |
| EMC Certification | ECE R10 |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| PHOTOMETRIC DATA | |
| Horizontal / Vertical Beam Angle | 64° / 13° |
| 0.25 lx Line | 1549m |
| 0.5 lx Line | 1095m |
| 1 lx Line | 775m |
| 3 lx Line | 447m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
