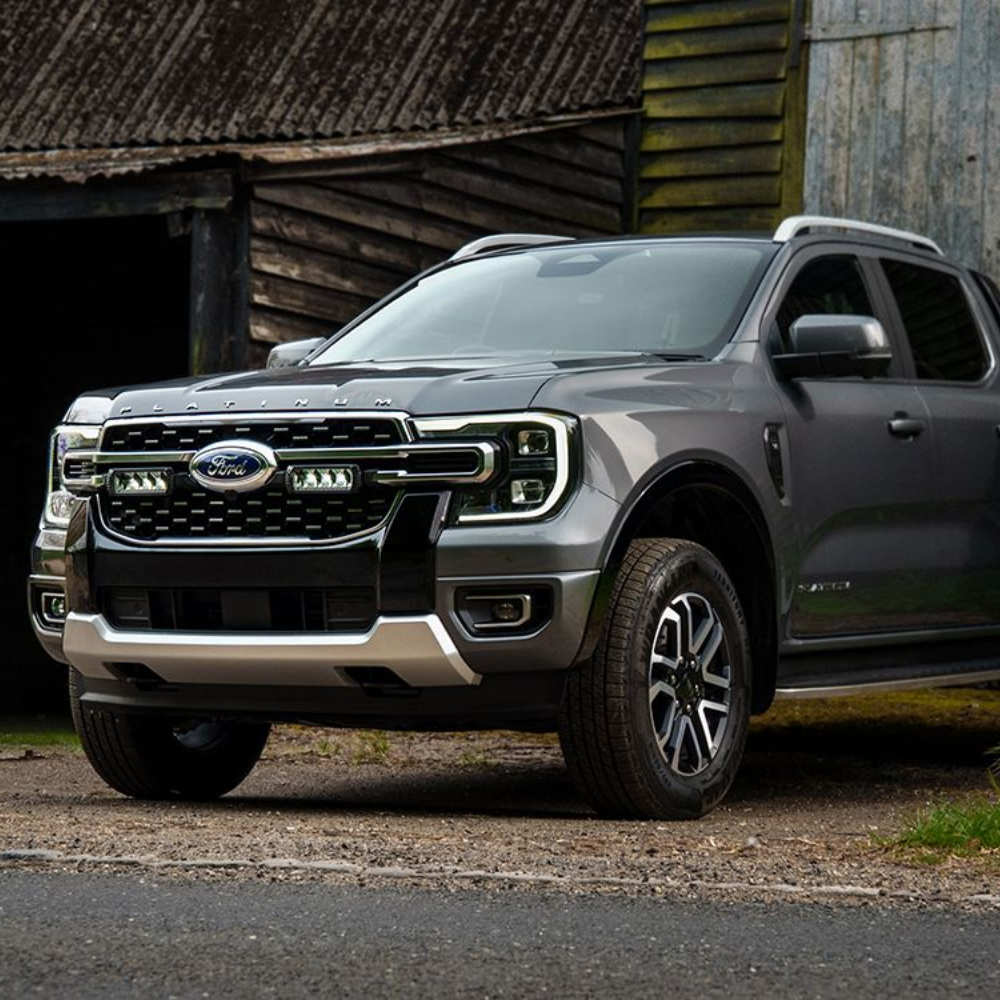

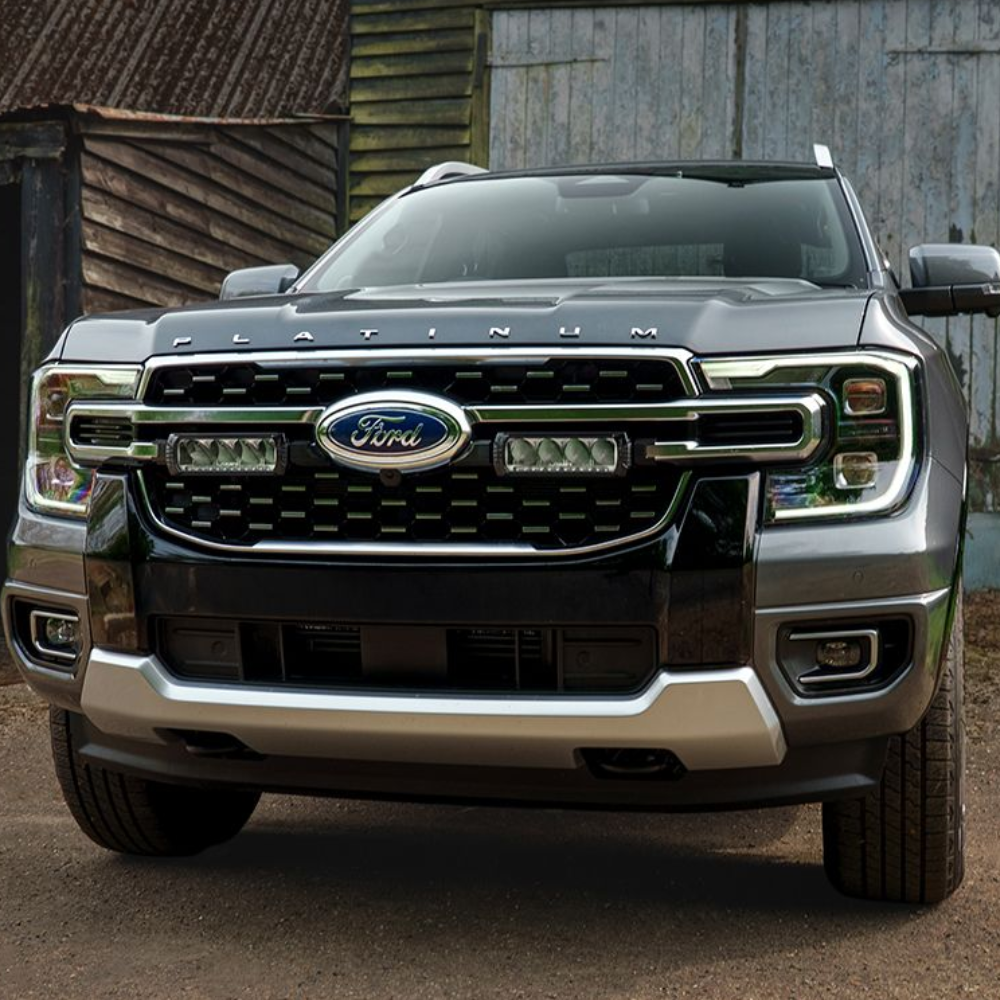

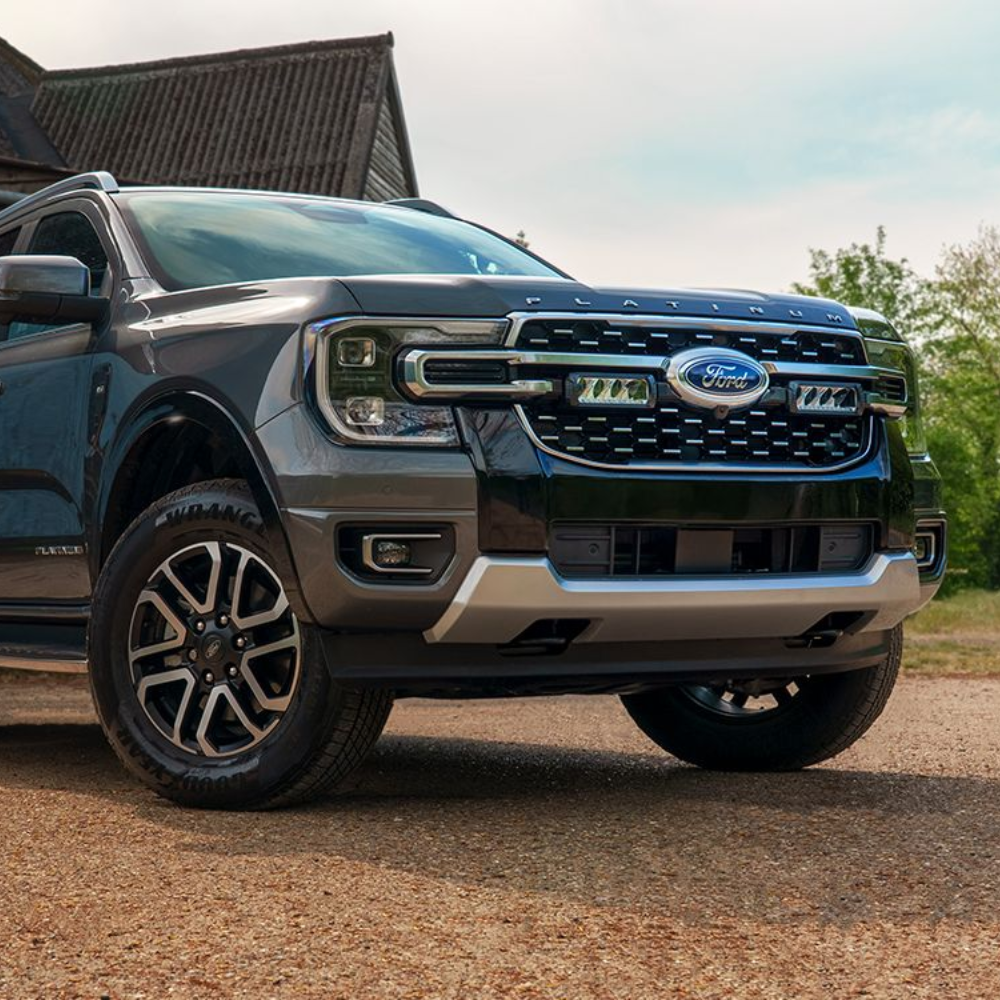

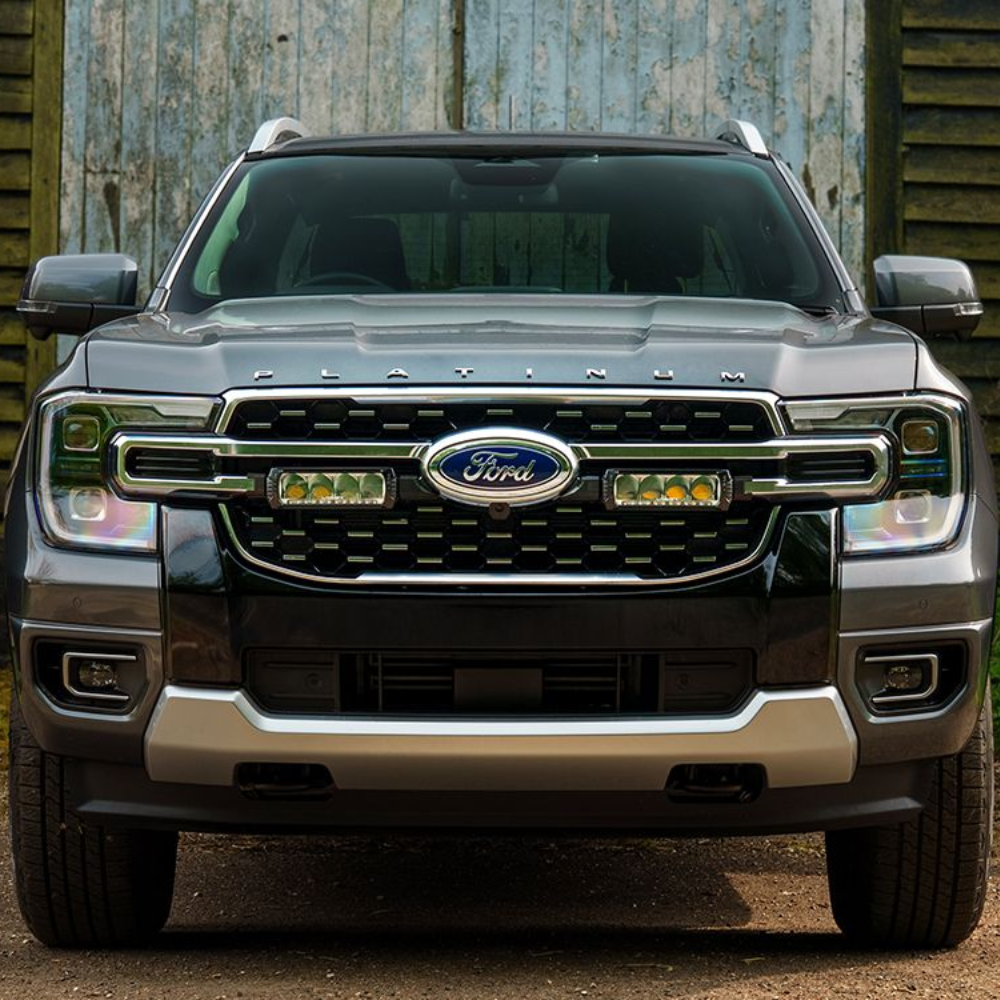

Lazer Lamps Ford Ranger Platinum (2023+) Triple-R 750 Grille Kit PN: GK-FR-09K

Upgrade the look and performance of your Ford Ranger Platinum (2023+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

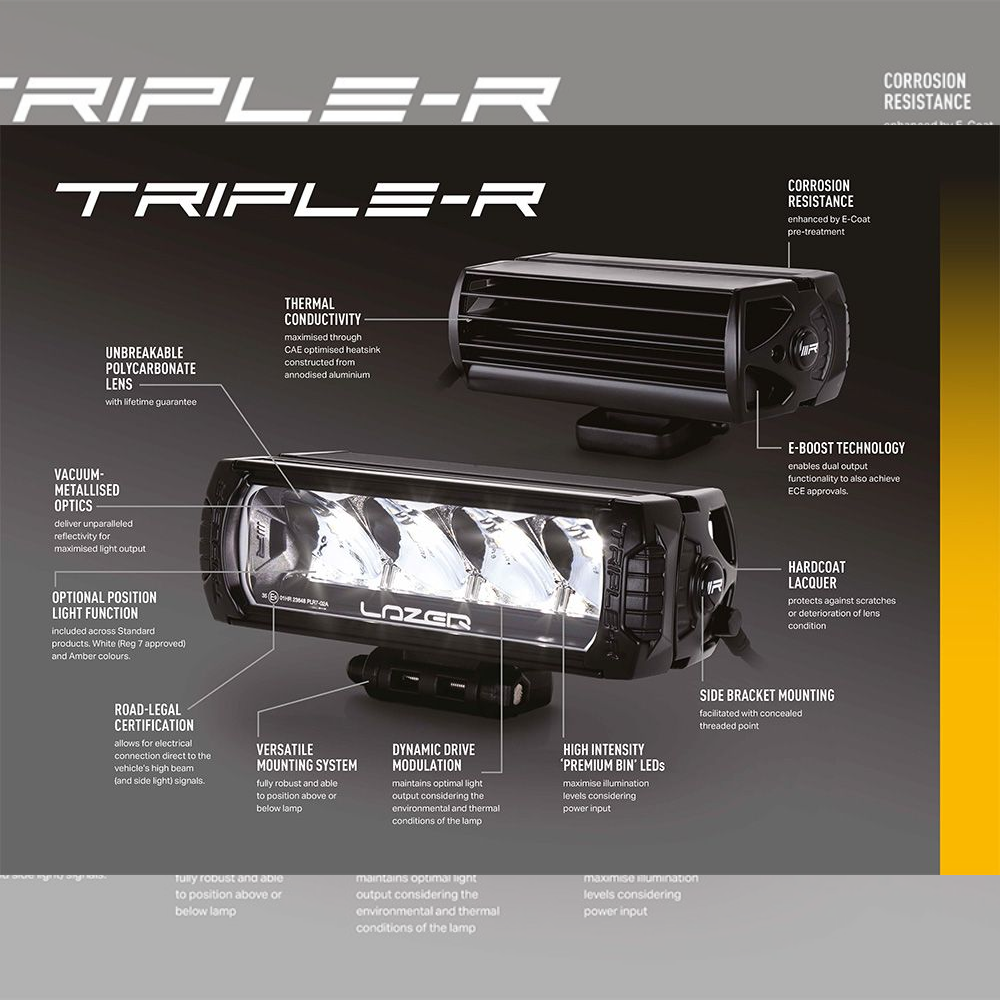

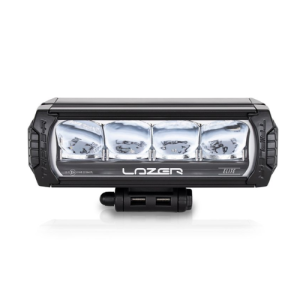

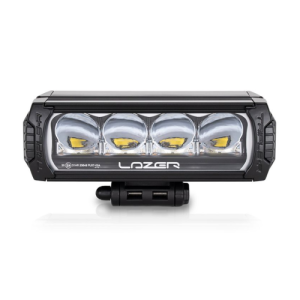

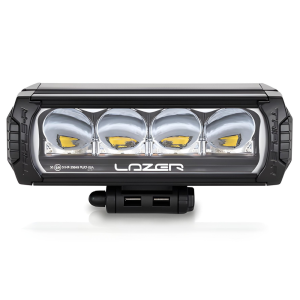

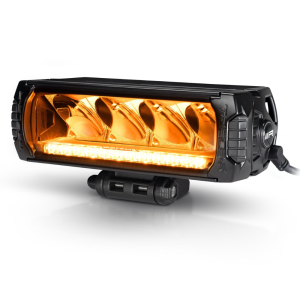

Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in four variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. The Wide offers a broader beam and a lower ECE Regulation 149 reference - no boost cap required, making it ideal for customers in countries with specific lighting regulations. Designed for versatility, the Beacon variant has an integrated amber beacon and Position Light function, along with advanced features like flash-to-dim. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

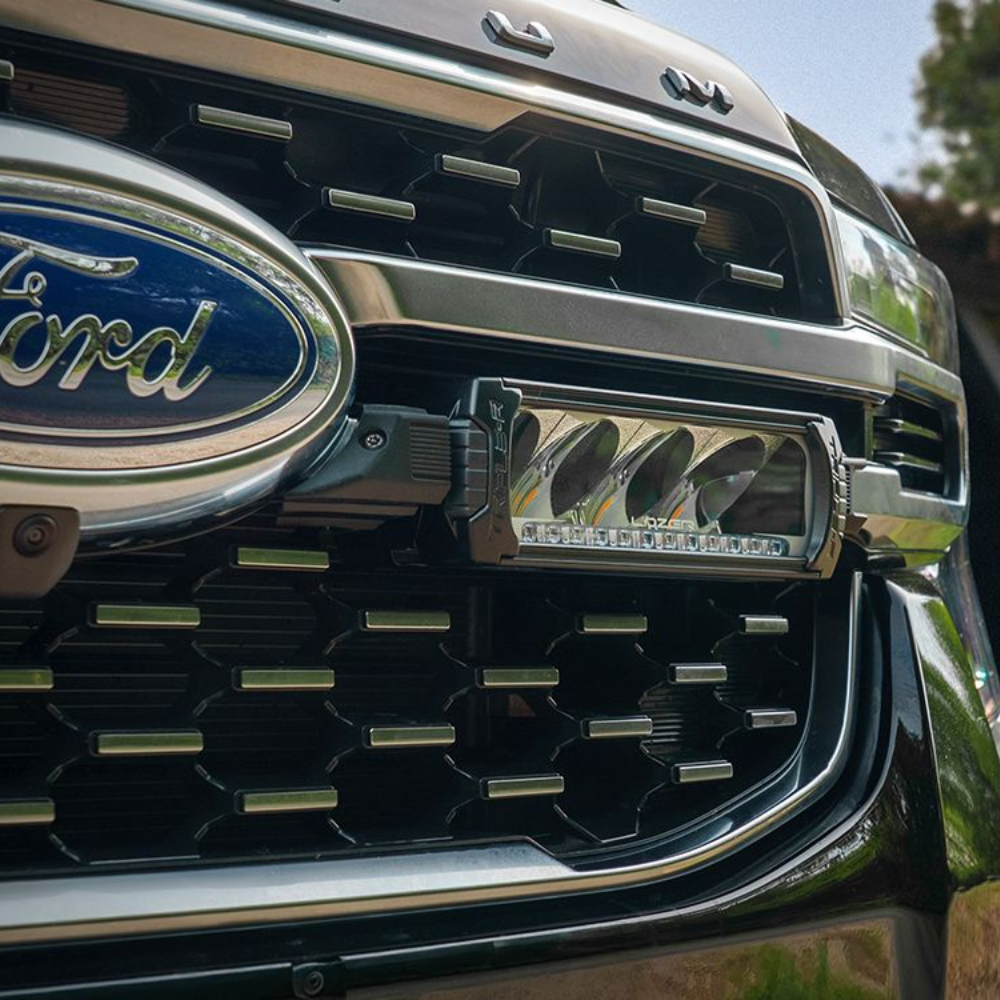

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: The Ford Ranger Platinum (2023+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

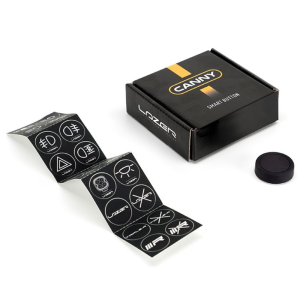

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface.

Whats included:

1x Grille Mounting Kit (includes cutting guides)
2x Triple-R 850 LED Lamps

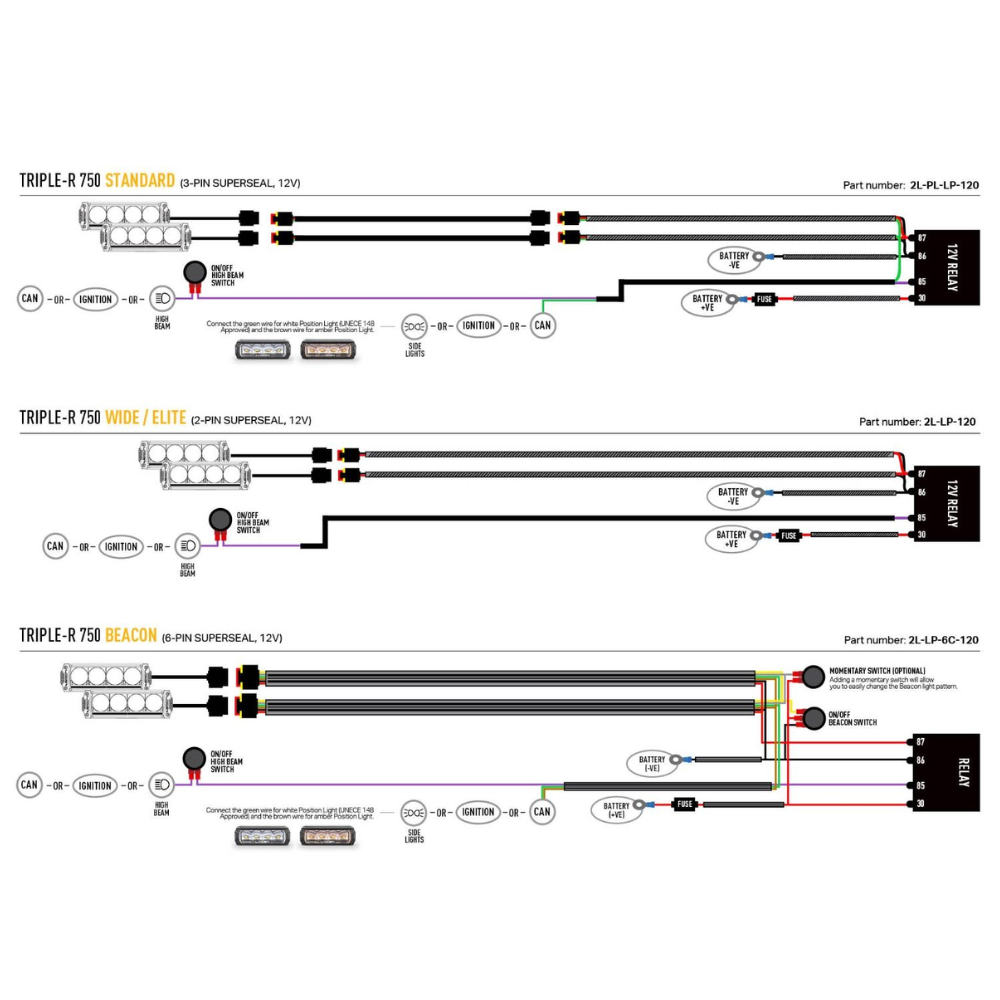

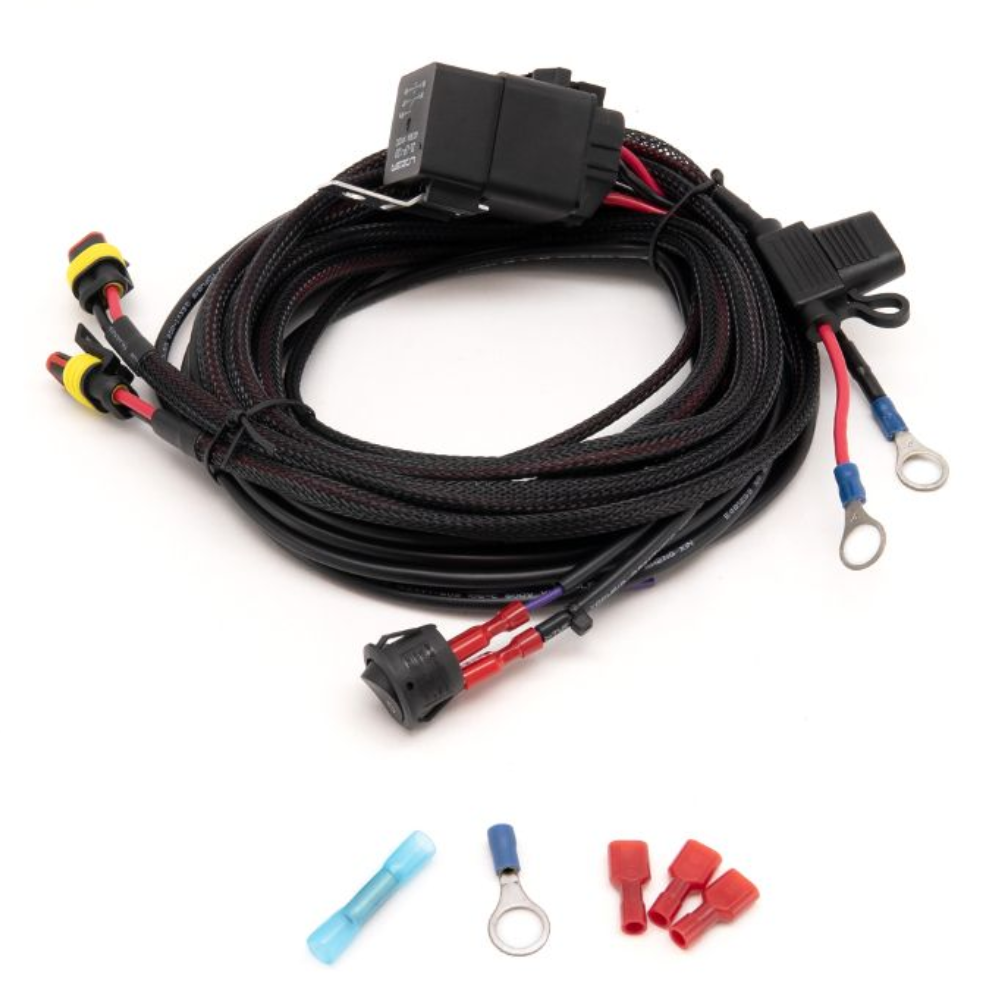

1x Two-Lamp Wiring Kit
Installation Instructions

Product Features:

Vehicle-specific brackets for seamless, OE-style grille integration

Tailored fit for Ford Ranger Platinum (2023+)

Designed for use with Triple-R 750 LED Lights – Standard, Wide, Beacon, and Elite variants

Includes precision-engineered brackets and a two-lamp wiring kit

Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install

Brackets are manufactured from high-strength, UV-stable composite material

Fully road-legal and ECE approved

Backed by a comprehensive 5-year warranty

Technical Features:

	2x TRIPLE-750 WIDE	2x TRIPLE-R 750	2x TRIPLE-R 750 BEACON (BOOST MODE)	2x TRIPLE-R 750 ELITE (BOOST MODE)
Voltage Range (DC)	10-32V	10-32V	10-32V	10-32V
LED Life	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Weight	2.6 kg	2.6 kg	2.6 kg	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm	9240 Lm	10800 Lm	10136 Lm
Total Driver 'FOV' Flux †	5266 Lm	5572 Lm	2484 Lm	6680 Lm
Colour Temperature	5000K	5000K	5000K	5000K
Power Consumption	88 Watts	88 Watts	104 Watts	104 Watts
Current Draw (14.4V)	6.2 Amps	6.2 Amps	7.4 Amps	7.2 Amps
Connector	2-Pin Superseal (+25cm Cable)	3-Pin Superseal (+25cm Cable)	6-Pin Superseal (+25cm Cable)	2-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #	IP68	IP68	IP68	IP68
High Beam (E9 approval)	ECE R149 - Ref: 2x 20	ECE R112 - Ref: 2x 35	ECE R149 - Ref: 2x 10 (Low Output Mode)	ECE R112 - Ref: 2x 12.5 (Low Output Mode)
Position Light (White)	N/A	ECE R7	ECE R7	N/A
EMC Certification	ECE R10	ECE R10	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2	ISO 7637-2	ISO 7637-2

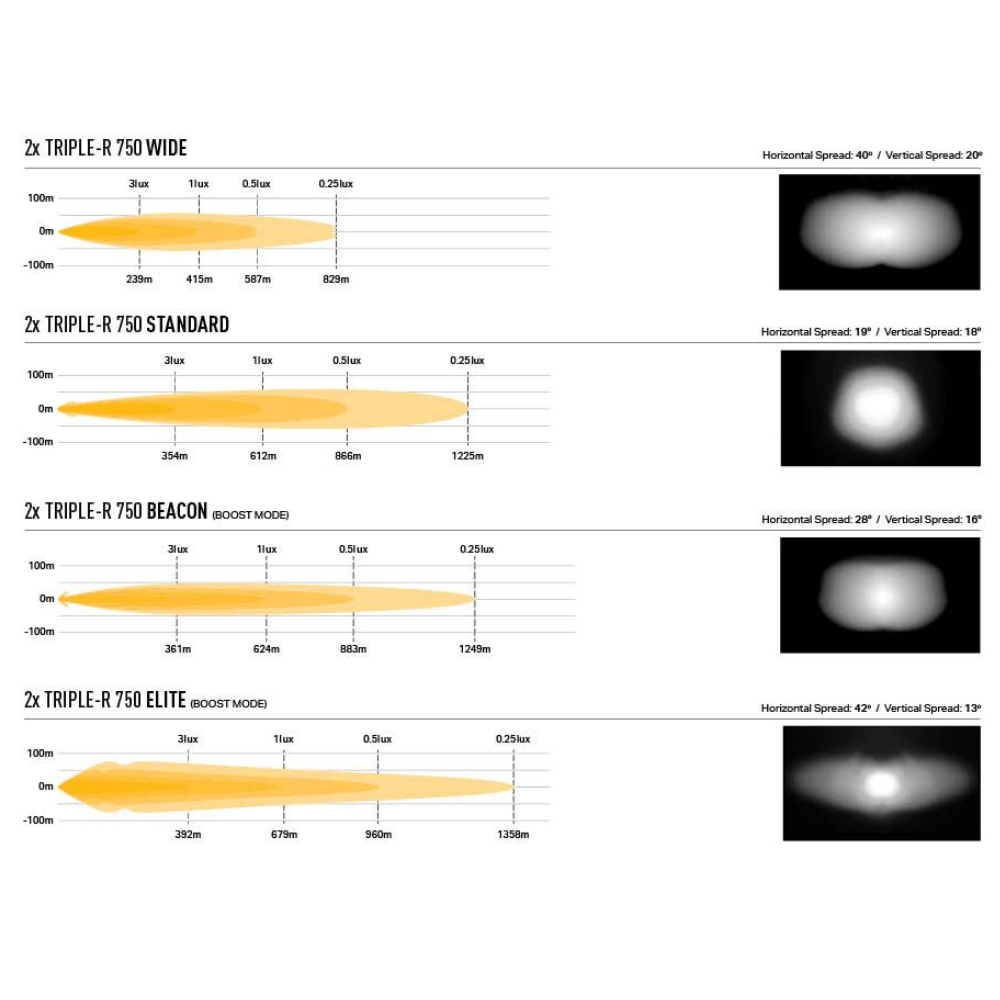

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	40° / 20°	19° / 18°	28° / 16°	42° / 13°
0.25 Lux	829m	1225m	1249m	1358m
0.5 Lux	587m	866m	883m	960m
1 Lux	415m	612m	624m	679m
3 Lux	239m	354m	361m	392m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
