Lazer Lamps Ford Ranger (2016-2022) Linear 18 Bumper Beam Mounting Kit PN: VIFK-RANGER

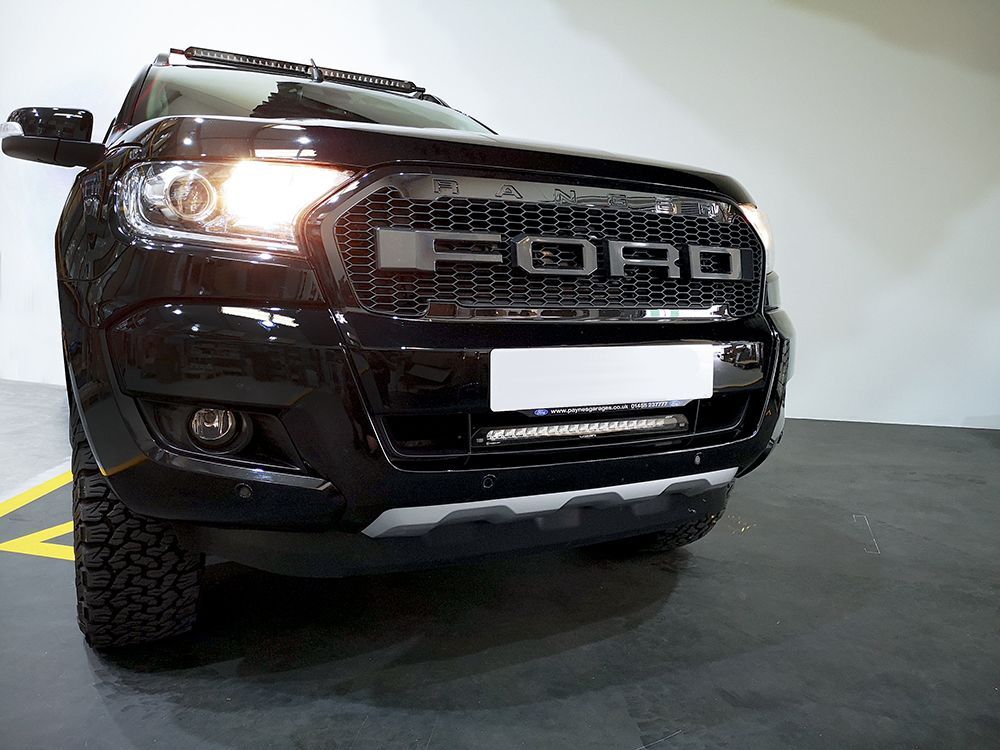

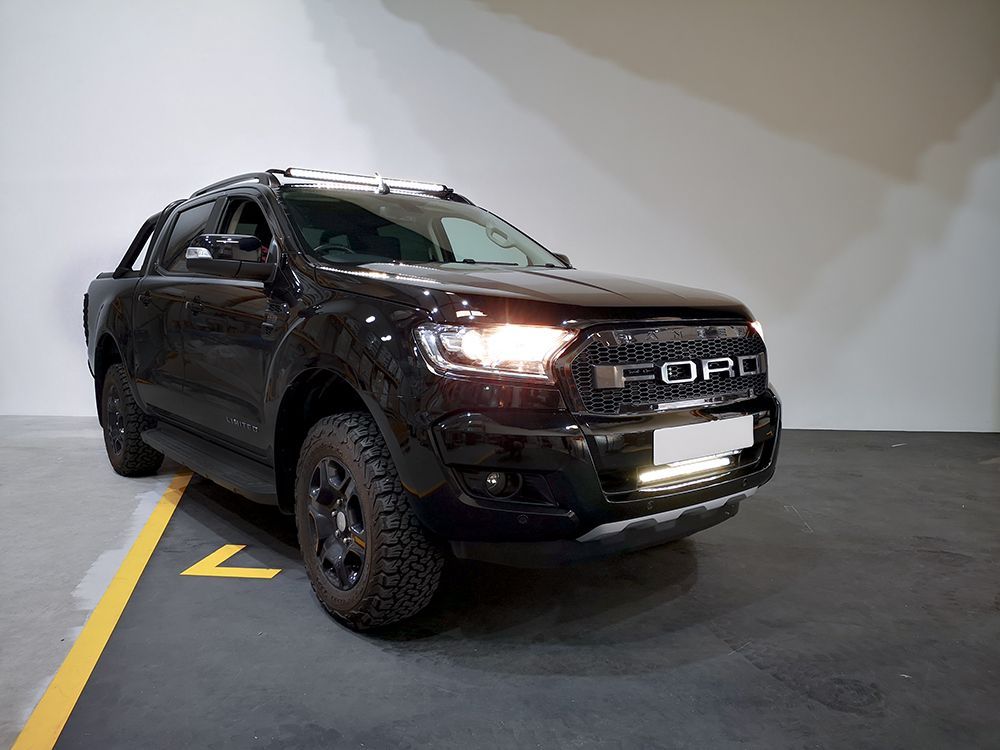

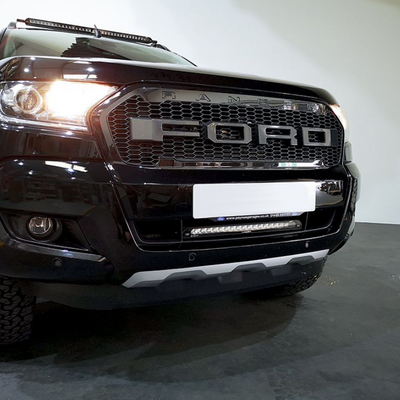

Effortlessly positioned into the lower front grille, secured to the vehicles bumper beam, the Lazer Lamps vehicle integration kit for the Ford Ranger (2016-Present), allows for flush mounting of our class-leading Linear-18 Standard, Elite (also avaliable with Position Light), or Elite with Intelligent Low Beam Assist, for an auxiliary LED driving light installation that impresses day and night.
Effortlessly positioned into the lower front grille, secured to the vehicles bumper beam, the Lazer Lamps vehicle integration kit for the Ford Ranger (2016-Present), allows for flush mounting of our class-leading Linear-18 Standard, Elite (also avaliable with Position Light), or Elite with Intelligent Low Beam Assist, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
E-mark certification allows for connecting into the vehicle's electrical system so that the light activates with the vehicle's standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Ford Ranger lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.
The mounting of the light is quick and simple, while the resulting setup is secure and robust, with anti-theft fasteners included. Like all lighting products from Lazer Lamps, the Linear-18's are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
Please note - not suitable for vehicles with ACC (Adaptive Cruise Control)
- Auxiliary spotlight installation for Ford Ranger (2016-Present)
- Optimised mounting for Linear-18
- Secured to vehicle’s bumper beam bar for additional security
- Vehicle wiring kits and CANbus Interfaces available
- Fully road-legal
- 5-year warranty
- Made in Britain
Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1090 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 45 |
| DIMENSIONS | |
| Width | 532 mm |
| Depth | 62 mm |
| Height | 40 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 deg |
| 0.25 lx Line | 975 metres |
| 0.5 lx Line | 690 metres |
| 1 lx Line | 488 metres |
| 3 lx Line | 282 metres |
