Lazer Lamps AIR-55 411mm Auxiliary LED Driving Lamp With Dual Colour Position Light and Strobe PN: 0A55-STRB-B

When your truck is your livelihood and it represents you and your business, it deserves the best! Introducing AIR, Lazer Lamps’ latest LED light bar range specially designed and engineered with the heavy truck and commercial vehicle market in mind. The AIR-55 with Beacon represents exceptional value for money considering the high beam lighting performance through to the UNECE approved beacon function. Symbolic of the AIR range, every consideration has been given through our in-house UK design, engineering, and manufacturing functions to present a high-performance LED solution with striking product design elevated by a monocoque lens construction and signature position light feature. Expectant of any Lazer product, the lighting performance and build quality is completely assured.

Emitting 6,800 raw lumen, and with 1 lux delivered to 524m, the AIR-55 is a very capable LED light bar at a competitive price point. Furthermore the light distribution has been carefully engineered with the vertical and horizontal spread optimised for road use including from higher vehicle mounting positions. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

Amplifying the appeal of the AIR-55, the Beacon function variant is approved to UNECE Reg65 as a narrow-field, night-limits, (XA1) beacon light, with 2 different amber warning light patterns which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand.

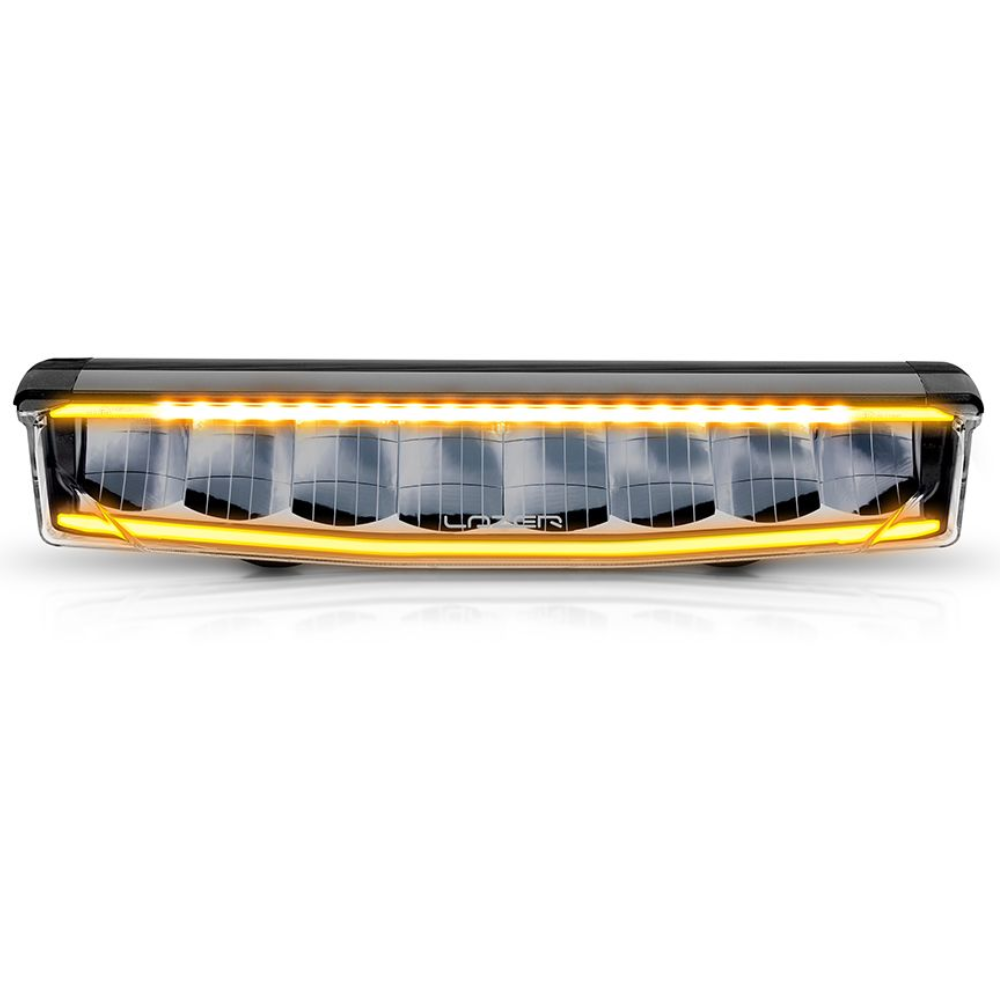

Aside from the enviable levels of high beam illumination provided, the AIR products all feature an integrated ‘twin’ white or amber position light. Aside from the safety benefits, utilising the latest technologies and materials has created a distinctive signature appearance viewed from near or afar. When operating the white position light this is approved to the UNECE Reg148 standard for on-road use. For customers looking for a dynamic start-up or welcome mode, when starting your vehicle or turning on your side/position lights, the AIR-55 Beacon can be activated to either gradually brighten at start-up, or gradually brighten while cycling between the white and amber colours (or vice versa).

The styling and build quality of the AIR products is amplified by its injection moulded monocoque polycarbonate lens. Boasting a lifetime guarantee on the ‘unbreakable’ lens, finished with hardcoat lacquer (an example of one of the upstream manufacturing process Lazer also manages in-house), the lens flows down and under the lamp, with a textured appearance to the underside. The unique lamp design is enhanced thanks to the supplied innovative ‘Centre Mount’ system which permits the light to sit much lower relative to the mounting point for a clean sleek installation.

Like all Lazer high-performance lights, the AIR range is designed, engineered, and built in-house, in our UK premises. You can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

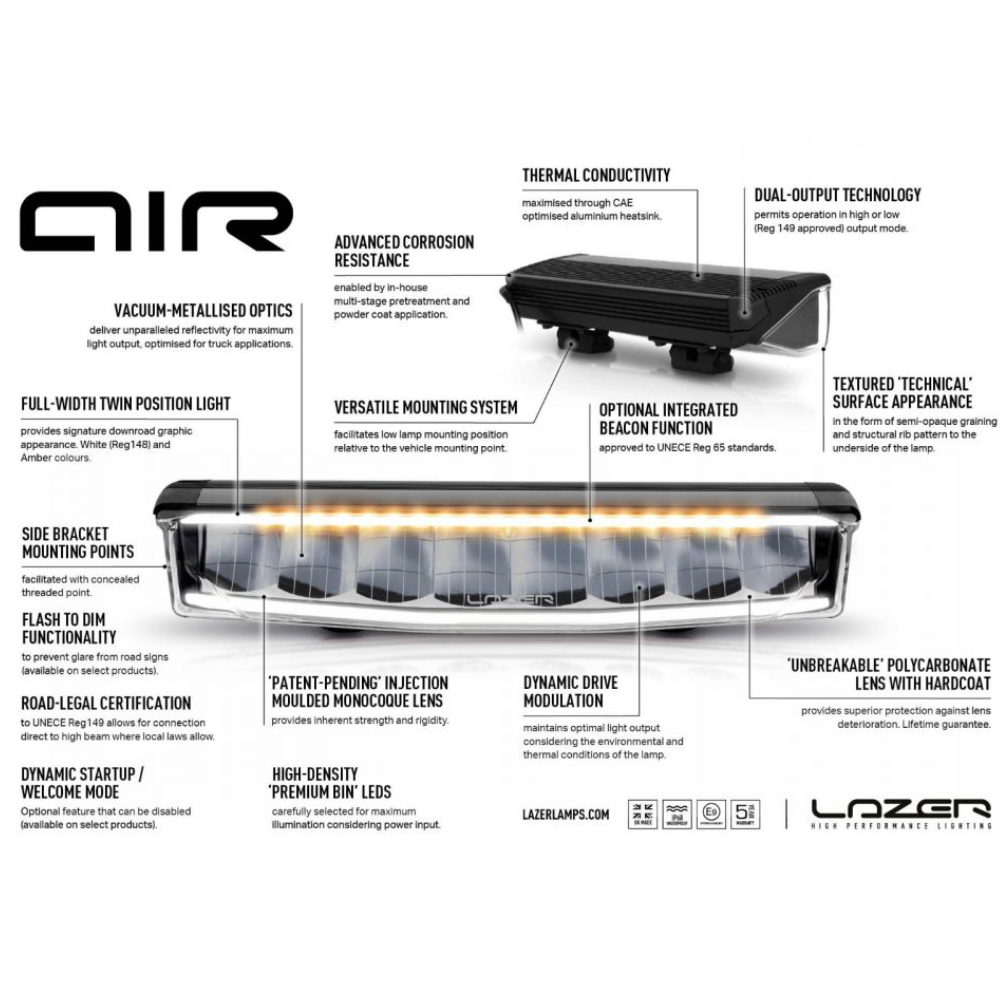

Product Features:

• Patent-pending injection moulded monocoque lens with texture effect to the underside
• Adoption of the latest high-efficiency premium-bin LEDs
• Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
• Flash-to-dim functionality for avoiding glare from road signs (for example)
• Dual-output functionality – High and Low output modes
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Low output mode only)
• Integrated white (UNECE Reg 148 approved) or amber position light function
• Integrated amber flashing beacon function – UNECE Reg 65 (XA1)
• Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.
• Dynamic start-up / Welcome Mode – two options activated as/if required.
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
• IP68 watertight
• 5-year warranty
• 20cm lamp cable complete with male/female 6-pin Superseal connectors
• Designed & manufactured in Britain

Technical Specifications:

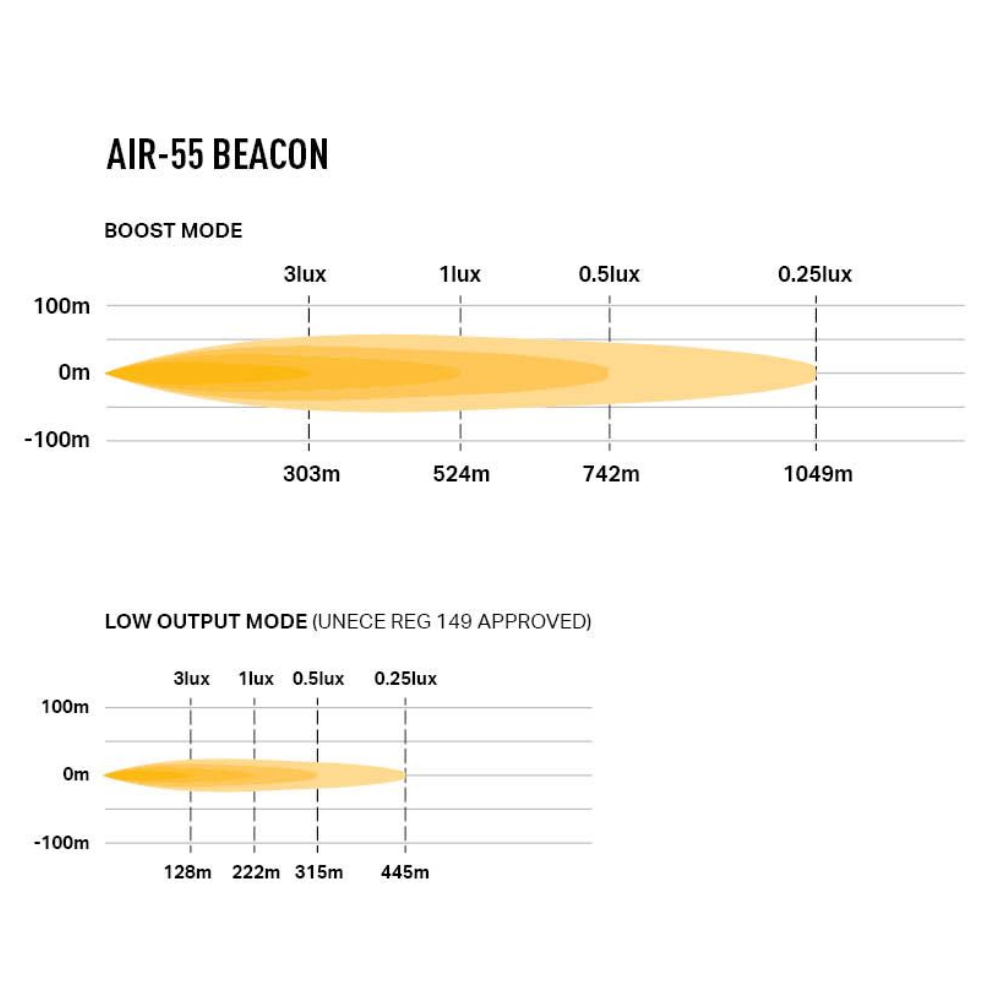

1x AIR-55 with Beacon BOOST MODE LOW OUTPUT/ E-MARK MODE Voltage Range (DC) 10-32V LED Life 50,000 hours Weight 1.65 kg HIGH BEAM FUNCTION Total Luminous Flux 6,800 Lm 1,224 Lm Total Driver 'FOV' Flux † 4,488 Lm 808 Lm Colour Temperature 5000K Power Consumption 55 Watts 9 Watts Peak Current Draw 6.1 Amps 1.05 Amps Current Draw (14.4V) 4 Amps 0.9 Amp Connector 6-Pin Superseal (+20cm Cable) DIMENSIONS Width 411 mm Depth 106 mm Height 82 mm CERTIFICATION IP Rating # IP68 High Beam (E9 approval) ECE R149 - Ref: 12.5 (in Low Output Mode only) Position Light (white only) ECE R148 Beacon Function ECE R65 (XA1) EMC Certification ECE R10 Salt Spray Test ISO 9227 Dump Load Protection ISO 7637-2 PHOTOMETRIC DATA Horizontal / Vertical Beam Angle 34° / 13° 0.25 lx Line 1049m 445m 0.5 lx Line 742m 315m 1 lx Line 524m 222m 3 lx Line 303m 128m † - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here. # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
