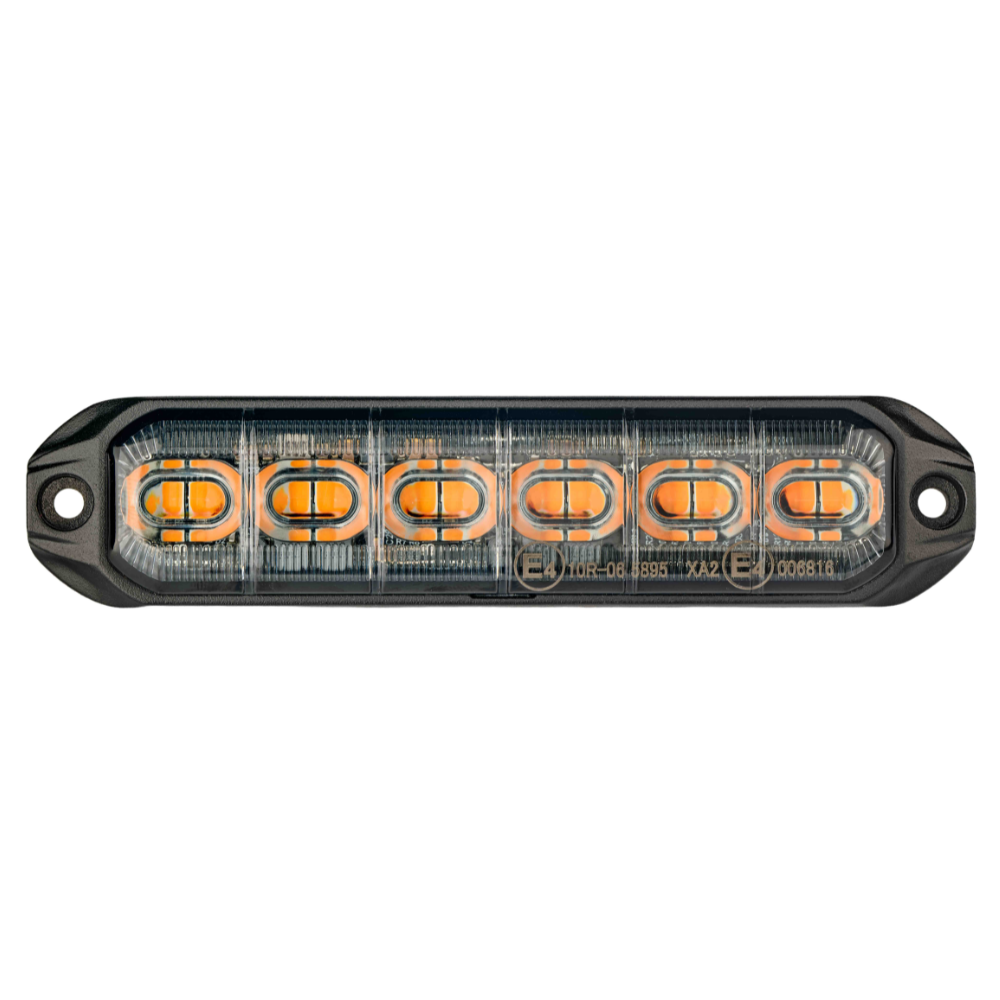

LAP Electrical 6 LED 10/30v R65 Amber Strobe PN: BLED6A

LAP Electrical 6 LED 10/30v R65 Amber Strobe PN: BLED6A a High-power hazard illumination designed for the most demanding commercial environments.

The new LAP Electrical ‘BLED’ range delivers exceptional road warning visibility wrapped in ultra-tough protection. Built with high-power 1.5W amber LED pairs, these commercial-grade surface-mount modules deliver fully certified ECE R65 Class I & Class II warning light output.

Available in 3, 4, and 6 double LED models, the BLED series is engineered with heavy-duty die-cast aluminum housing and impact-resistant polycarbonate lenses to withstand stone chips, severe vibration, and extreme weather conditions.

Key Features

• High-Power Amber LEDs: Fitted with 1.5W amber LED pairs for high-intensity output that meets ECE R65 Class I & II road compliance.
• Heavy-Duty Die-Cast Aluminum Housing: Provides superior structural strength, corrosion resistance, and thermal management for long operational life.
• Tough Polycarbonate Lens: Offers clear optical performance and high impact resistance against site debris and flying gravel.
• IP67 & IP69K Ingress Protection: Completely dust-tight and resistant to high-pressure, hot-water jet washing—ideal for heavy construction, agricultural, and highway vehicles.
• Synchronized & Alternating Flash: Easily link multiple units via the included 300mm multi-core cable to create coordinated perimeter warning setups.
• Extreme Temperature Reliability: Built to operate reliably in severe conditions ranging from -30°C to +50°C.

Range Specifications & Model Breakdown

BLED3A - 3 Double LED Pairs - 85 x 29 x 11 mm - 0.5A @ 12V , 0.3A @ 24V, ECE R65 Class I & II
BLED4A - 4 Double LED Pairs - 104 x 29 x 11 mm, 0.6A @ 12V / 0.4A @ 24V, ECE R65 Class I & II
BLED6A - 6 Double LED Pairs - 128 x 29 x 11 mm, 0.9A @ 12V / 0.5A @ 24V, ECE R65 Class I & II

General Technical Specs

• Operating Voltage: 10–30V DC (Multi-Voltage)
• Cable Length: 250mm multi-core wiring harness
• 9 Flash Modes: Multi-pattern (Single flash meets ECE R65) - Includes cruise / steady burn mode
• Housing Finish: Black powder-coated die-cast aluminum
• Environmental Protection: IP67 & IP69K rated

Installer Tip: Use the yellow synchronization wire on the 250mm multi-core lead to connect multiple BLED modules for synchronized or alternating flash patterns across the vehicle grille, sides, or rear.
To change the flash pattern connect the yellow wire to the red positive wire for 1 second
