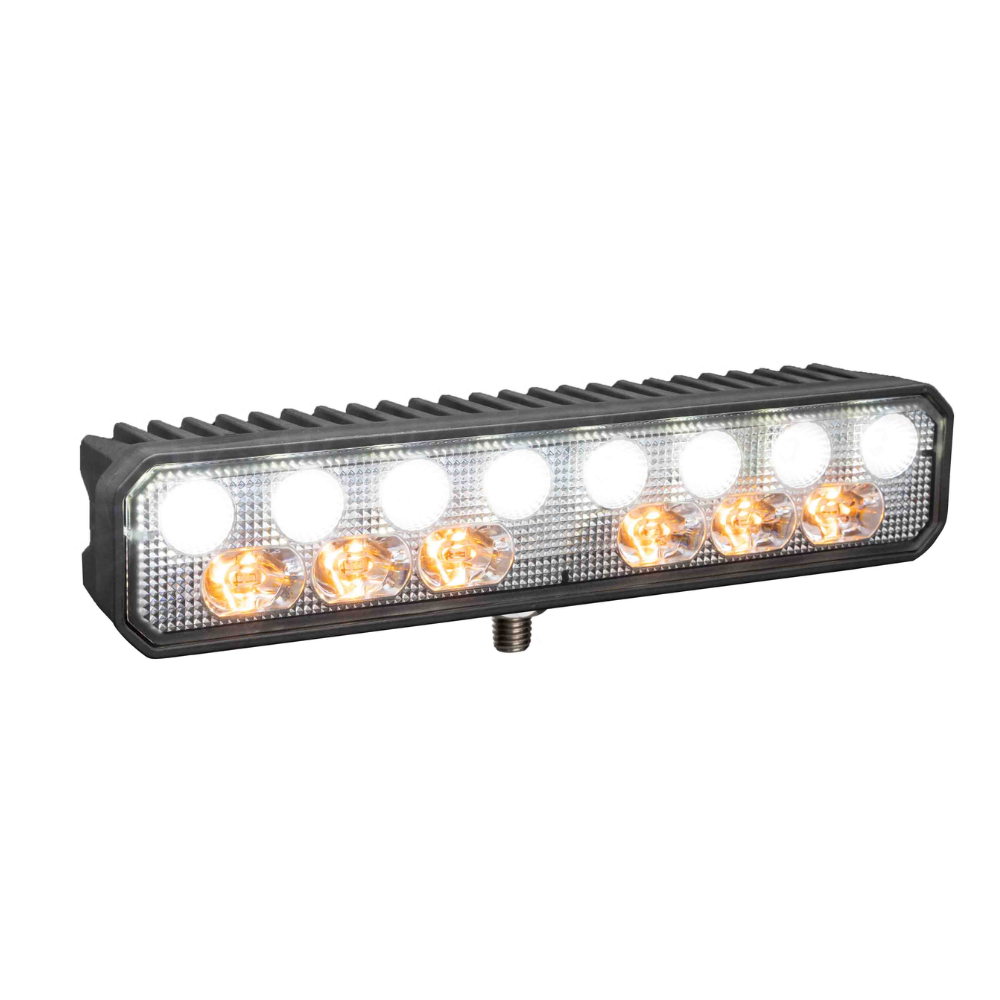

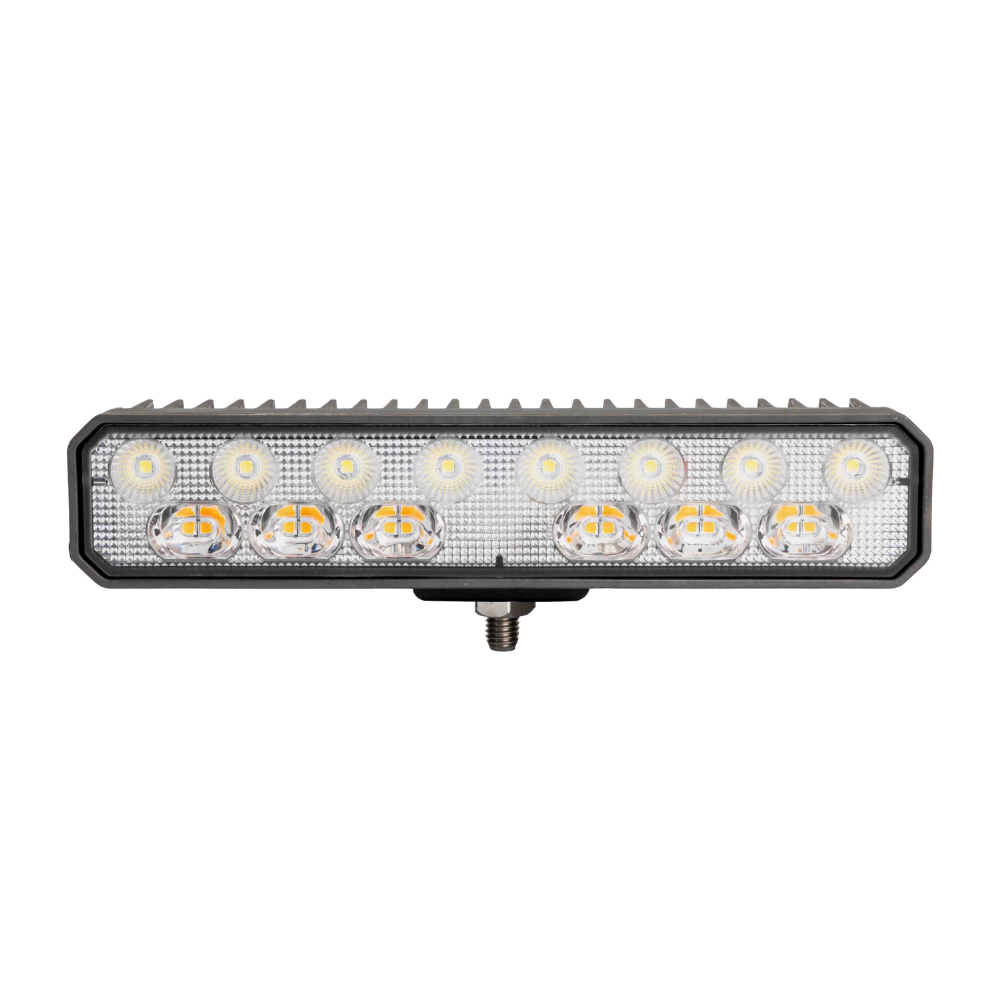

LAP Electrical 3780 Lumen Work Lamp with R65 Amber Strobe PN: LAP-CX4012AC

LAP Electrical 3780 Lumen Work Lamp with R65 Amber Strobe PN: LAP-CX4012AC (Amber/Clear)

The LAP CX4012AC is a high-performance, ultra-compact surface-mount LED warning module engineered for commercial, agricultural, and emergency service vehicles. Featuring dual-color versatility with amber and clear (white) LEDs, it provides powerful light output, high-grade weather resistance, and compliance with European vehicle lighting standards.

Key Features

Dual-Color Output (Amber/Clear): Provides versatile warning patterns in a single compact housing, ideal for dual-purpose lighting applications.
ECE R65 Class II Approved: Complies with strict European standards for high-intensity emergency and safety warning lights (ECE R65 / ECE R10 for EMC).
Multi-Voltage Compatibility: Operates smoothly across both 12V and 24V vehicle systems (10–30V DC).
Multiple Flash Patterns: Equipped with selectable flash patterns and synchronization capability with other CX series modules.
Weatherproof & Robust: Sealed to IP67 standards, protecting internal electronics against dust, water immersion, and harsh high-pressure washing.
Low-Profile Surface Mount: Designed for clean, flush mounting on grilles, bodywork, or bumpers without altering vehicle aerodynamics.

Technical Specifications

• Model: LAP CX4012AC
• LED Colors: Amber / Clear (White)
• Operating Voltage: 10–30V DC (12V/24V)
• Approval / Compliance: ECE R65 (Class II), ECE R10 (EMC)
• Ingress Protection: IP67 (Dustproof & Waterproof)
• Mounting Type Surface Mount
• Lens Material High-impact Polycarbonate
• HousingHeavy-duty Aluminum / Polycarbonate Base
• 7 flash patterns
• Dimensions 220mm [L] x 46mm [58mm from the mounting bolt] x 44mm [depth]
• M10 bolt hole

 Applications

* Commercial Fleets & Vans
* Highway Maintenance & Recovery Vehicles
* Agricultural Machinery & Construction Equipment
* Emergency & Support Services Vehicles


Installers Tip: To change the flash pattern touch the white wire to the +red wire for one second, for cruise / steady burn use flash pattern 7.

The LAP CX4012AC is an ECE R65-approved, dual-color (amber/clear) LED surface-mount warning module designed for 12/24V vehicle systems. Built with an IP67 weatherproof housing and multiple flash patterns, it delivers maximum visibility and reliable performance in demanding environments.
