Horpol Rear STI multifunction light CUBE with black frame PN:LZD2877
LZD2877
The Horpol CUBE LZD 2877 rear combination lamp is a modern and visually striking LED lighting solution that combines high functionality with an attractive, minimalist design. Its distinctive light pattern – featuring dynamic, angular lines alongside precise horizontal LED strips – ensures the vehicle immediately stands out on the road. It is designed for drivers who expect more than standard lighting solutions. Stop Tail and Indicator only
excl. VAT £41.66
(incl. VAT £49.99)
(incl. VAT £49.99)
The Horpol CUBE LZD 2877 rear combination lamp is a modern and visually striking LED lighting solution that combines high functionality with an attractive, minimalist design. Its distinctive light pattern – featuring dynamic, angular lines alongside precise horizontal LED strips – ensures the vehicle immediately stands out on the road. It is designed for drivers who expect more than standard lighting solutions.
The product has been developed for a wide range of commercial vehicles. It is ideal for trailers, semi-trailers, trucks, agricultural machinery, and special-purpose vehicles, where durability, resistance, and clear light signaling are essential. Its universal design allows installation on both the left and right sides of the vehicle, as well as in horizontal or vertical positions, making it easy to adapt to various vehicle body types.
The lamp is equipped with three main functions:
– rear NEON position light: 1.3/1.8 W
– brake light: 1.9/2.4 W
– rear NEON turn signal with optional sequential activation: 3.3/4.4 W
The slightly tinted lens gives it a modern appearance without negatively affecting light intensity. Thanks to its universal 12/24 V power supply, the product is compatible with most electrical systems used in vehicles.
Its robust construction and high IP68 protection rating ensure complete resistance to dust, water, and harsh weather conditions, while the operating temperature range from -30°C to +50°C guarantees reliable performance all year round. The lamp meets electromagnetic compatibility (EMC) requirements and holds R148 and R10 approvals, confirming compliance with applicable standards.

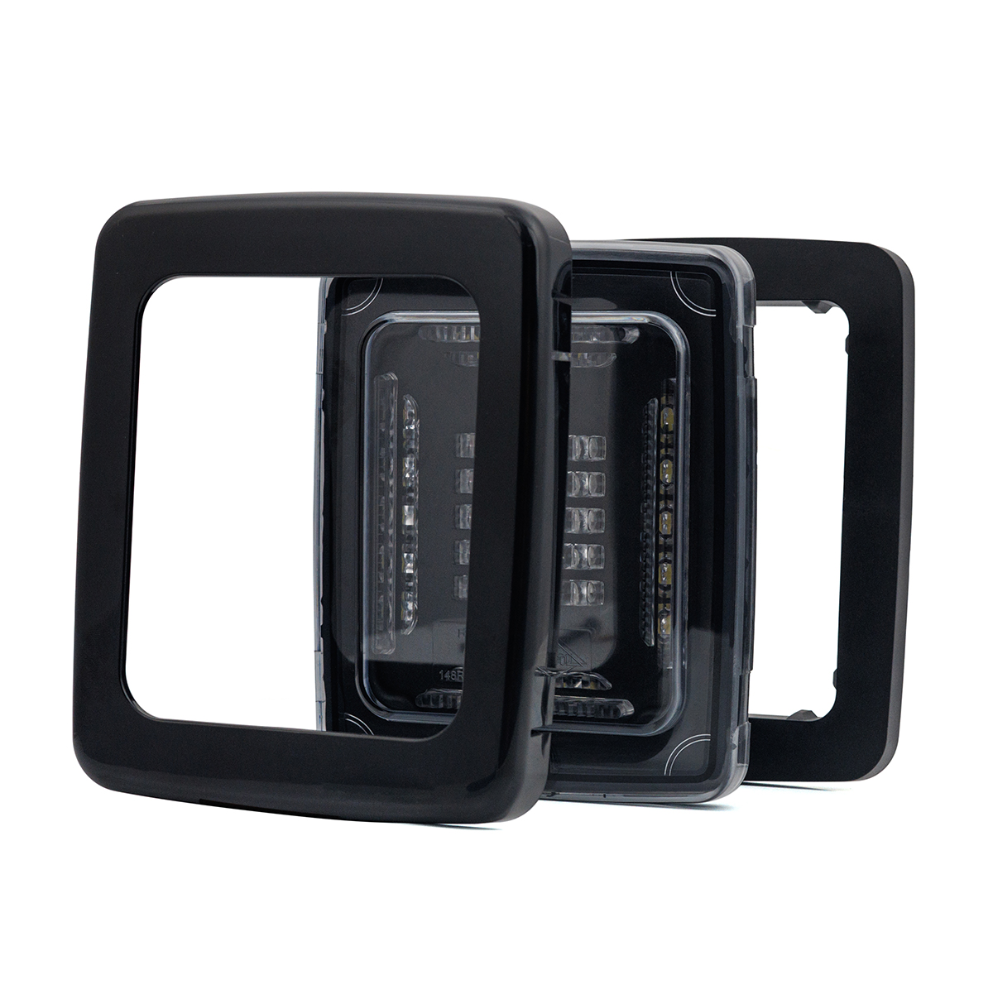

An additional advantage is its installation flexibility – the lamp can be mounted with or without the outer frame, depending on the desired visual effect and vehicle body design. The set also includes a practical spacer frame, enabling stable and aesthetic installation on flat surfaces and making it easier to adapt the lamp to different constructions. A 1-meter cable with clearly color-coded wires significantly simplifies installation. An additional wire (blue) allows for a progressive turn signal effect when two, three, or four lamps are installed side by side, ensuring all modules operate in a consistent, harmonious, and sequential pattern.
Wire designation:
white – ground
black – position light
red – brake light
yellow – turn signal
blue – for achieving a progressive turn signal effect (optional)
The product has been developed for a wide range of commercial vehicles. It is ideal for trailers, semi-trailers, trucks, agricultural machinery, and special-purpose vehicles, where durability, resistance, and clear light signaling are essential. Its universal design allows installation on both the left and right sides of the vehicle, as well as in horizontal or vertical positions, making it easy to adapt to various vehicle body types.
The lamp is equipped with three main functions:
– rear NEON position light: 1.3/1.8 W
– brake light: 1.9/2.4 W
– rear NEON turn signal with optional sequential activation: 3.3/4.4 W
The slightly tinted lens gives it a modern appearance without negatively affecting light intensity. Thanks to its universal 12/24 V power supply, the product is compatible with most electrical systems used in vehicles.
Its robust construction and high IP68 protection rating ensure complete resistance to dust, water, and harsh weather conditions, while the operating temperature range from -30°C to +50°C guarantees reliable performance all year round. The lamp meets electromagnetic compatibility (EMC) requirements and holds R148 and R10 approvals, confirming compliance with applicable standards.
An additional advantage is its installation flexibility – the lamp can be mounted with or without the outer frame, depending on the desired visual effect and vehicle body design. The set also includes a practical spacer frame, enabling stable and aesthetic installation on flat surfaces and making it easier to adapt the lamp to different constructions. A 1-meter cable with clearly color-coded wires significantly simplifies installation. An additional wire (blue) allows for a progressive turn signal effect when two, three, or four lamps are installed side by side, ensuring all modules operate in a consistent, harmonious, and sequential pattern.
Wire designation:
white – ground
black – position light
red – brake light
yellow – turn signal
blue – for achieving a progressive turn signal effect (optional)
- Light group HOR 164
- LED quantity 31
- Light category multifunction rear
- Position light yes
- Brake light Yes
- Indicator light yes
- Supply voltage 12/24V
- Operating temp range from -30°C to +50°C
- Cable 3 x 0.5mm², cable length 1m
- Side universal
- Ingress protection rating IP68
- LED light yes
