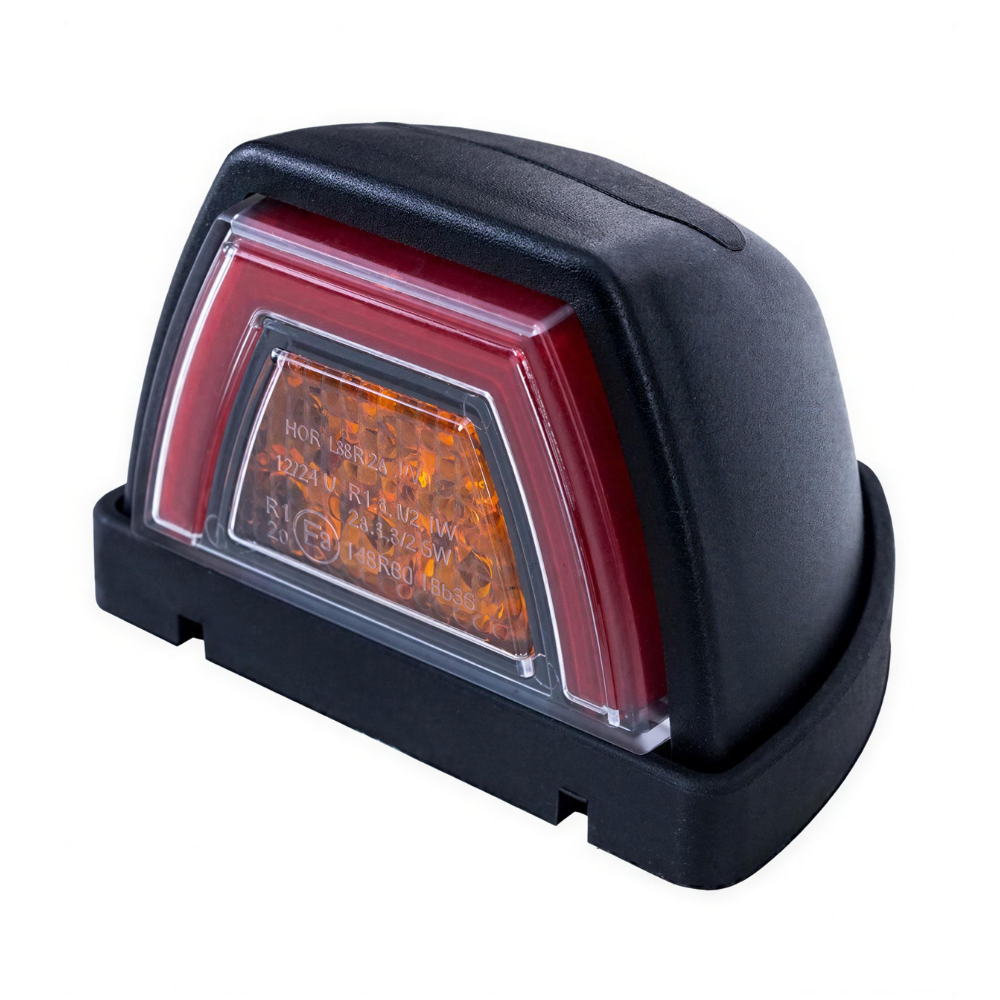

Horpol LZD 3089 Rear Roof Mount Red Tail Light with Indicator PN: LZD_3089

The Horpol LZD 3089 within the HOR 138 Light Group. While the 3089 is designed for the rear of the vehicle, the LZD 3088 is a 2-function front multifunction LED lamp.

Product Overview

The Horpol LZD 3089 is designed primarily for roof, spoiler, or cabin mounting on the front of agricultural, commercial, and industrial vehicles. It features a unique, frosted diffuser that creates an even, glowing white neon outline for the position light, paired with a punchy, integrated amber front turn signal. Thanks to its symmetrical housing, it is fully universal and can be mounted on either the left or right side of the vehicle

DESCRIPTION

Lamp functions:
– front position light (1.1/2.1 W);
– front direction indicator (1.3/2.6 W).

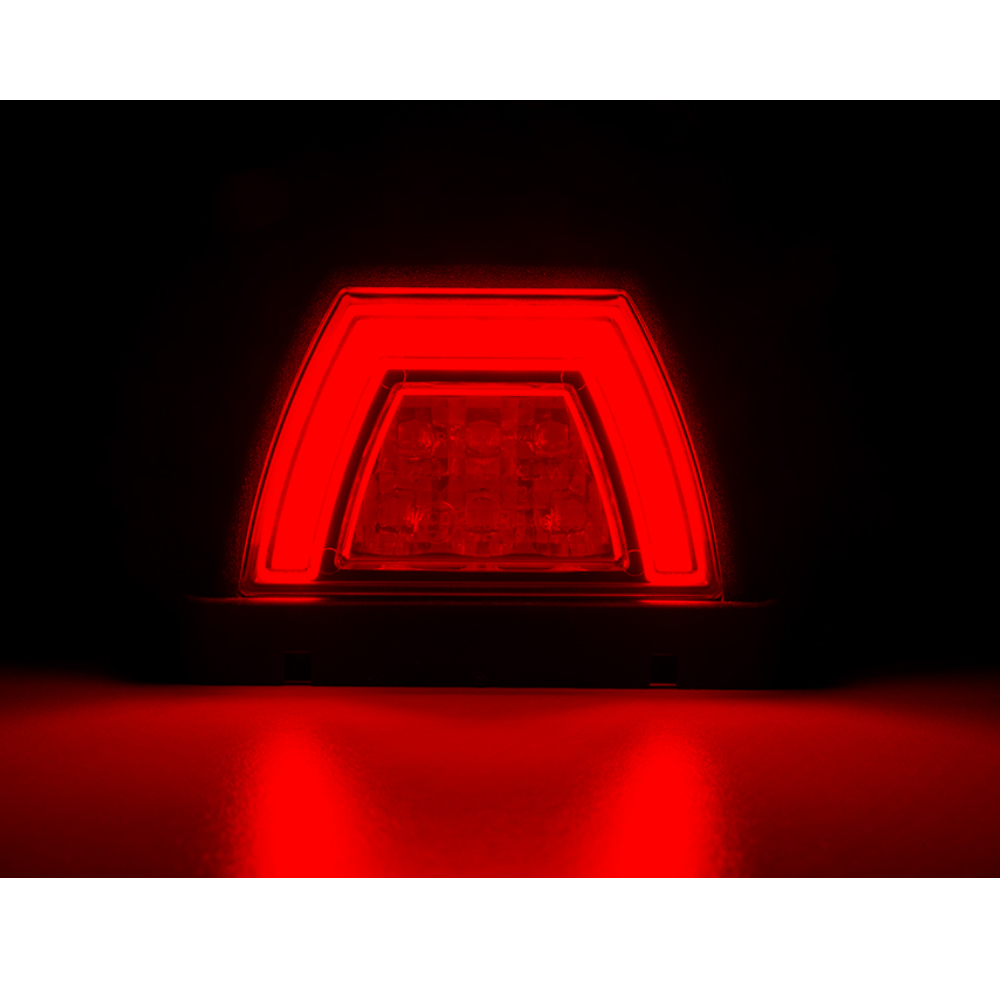

Thanks to the use of a special diffuser, the lamp emits clear, Red NEON position light, emphasising its shape, without blinding other road users. Despite its small size, the direction indicator is very visible even on a sunny day. Modern design and high-quality materials used in its production make it a top-class product. The mounting screws are aesthetically sealed with gaskets.

Key Features & Benefits

• Dual-Function Lighting: Operates simultaneously as a Rear position (Red) light and a direction indicator
• NEON Glow Technology: Uses a specialised diffuser lens to emit a smooth, bold red neon outline rather than harsh, individual LED hotspots.
• High Daytime Visibility: Despite its compact dimensions, the indicator function is designed to be punchy and highly visible, even under direct, bright sunlight.
• Heavy-Duty Hermetic Seal: Boasts an IP68 rating, meaning it is completely dustproof and waterproof (resisting prolonged submersion), making it ideal for high-pressure washing and gruelling off-road environments.
• Universal Compatibility: Symmetrical chassis design means one part number fits both the left and right sides. It also operates on a multi-voltage internal driver (12V/24V).
• Premium Finish: Features integrated rubber gaskets that aesthetically seal the mounting screws, preventing moisture ingress and ensuring a clean installation.
• Road Legal: Fully E9 homologated (certified in Europe) for legal use on public highways.
Technical Specifications

Dimensions & Build

• Width: 72 mm
• Height: 51 mm
• Depth: 57.5 mm
• Light Source: 18 High-Performance LEDs
• Wiring: 0.5-meter fly-lead cable

Performance & Electrical

• Supply Voltage: 12V / 24V DC (Universal)
• Ingress Protection: IP68
• Operating Temperature: -30°C to +50°C
• Certification: E9
