HORPOL LIZARD Rear multifunction light with static direction indicator PN: LZD 3140

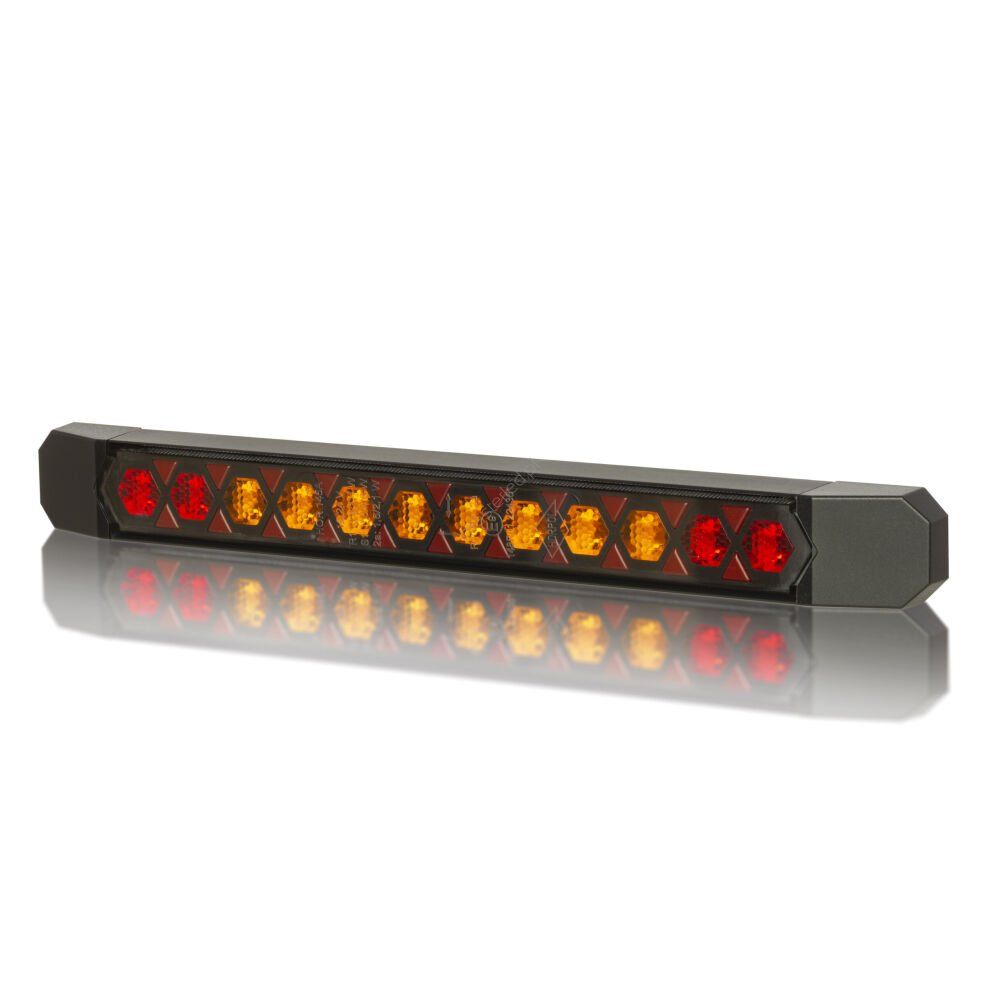

We offer a compact rear combination lamp LIZARD LZD 3140, which combines innovative LED technology with modern design. Thanks to the use of 34 diodes, the lamp ensures excellent visibility in all conditions, making it an ideal solution for various types of vehicles

Key product features :
– The combination lamp LZD 3140 provides three light functions: position, brake, and static turn signal

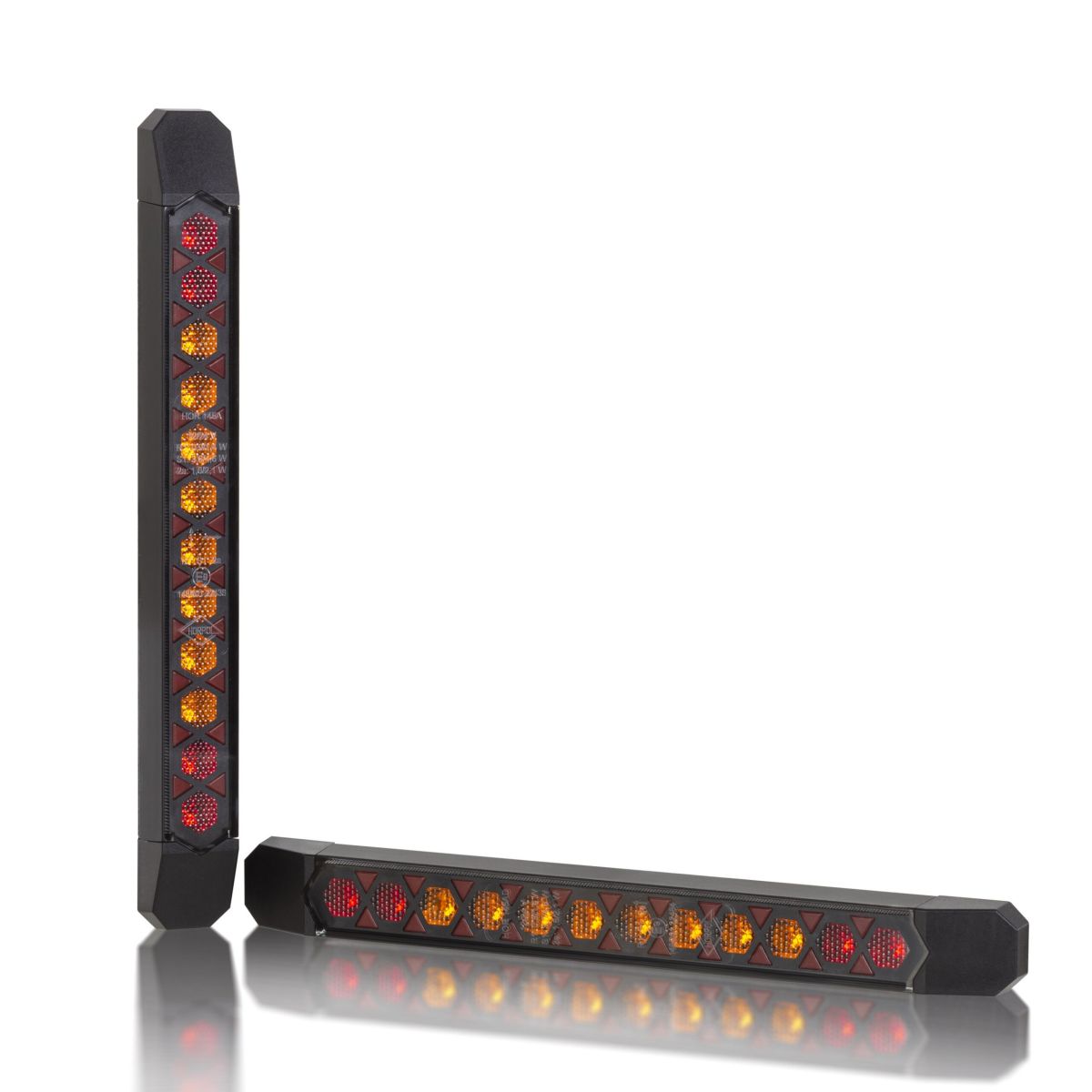

– Universal mounting side. The lamp can be mounted both vertically and horizontally, allowing for easy adaptation to various vehicle designs
– Supply voltage. The lamp operates within the voltage range of 12/24 V
– Wide operating temperature range from -30°C to +50°C. The lamp exhibits resistance to various weather conditions, ensuring its reliability in extreme temperatures
– High resistance. The lamp is fully hermetic (in compliance with ingress protection rating IP 68), resistant to high and low temperatures and mechanical damage
– The lamp's operation is also guaranteed not to interfere with other electrical or electronic devices in the vehicle, which is confirmed by electromagnetic compatibility (EMC) homologation
– Wide application. Ideal for specialized vehicles, semi-trailers, trailers, light electric vehicles, construction machinery, and other utility vehicles

Technical Specification :
- Lamp Group : HOR 145A
- Lamp Category : Rear Combination
- Supply Voltage : 12/24 V
- Cable : 4×0.5 mm2; cable length 1 m
- Brake Light : Yes
- LED Lamp : Yes
- Number of LED diodes : 34
- Rear Position Light : Yes
- Operating Temperature Range : from -30°C to +50°C
- Mounting Side : Universal
- Rear Turn Signal : Yes
- Ingress Protection Class : IP 68
Power Consumption at 12/24 V :
– Rear Position Light : (0.9/1.4 W)
– Brake Light : (3.6/4.6 W)
– Static Rear Turn Signal : (1.6/2.1 W)
