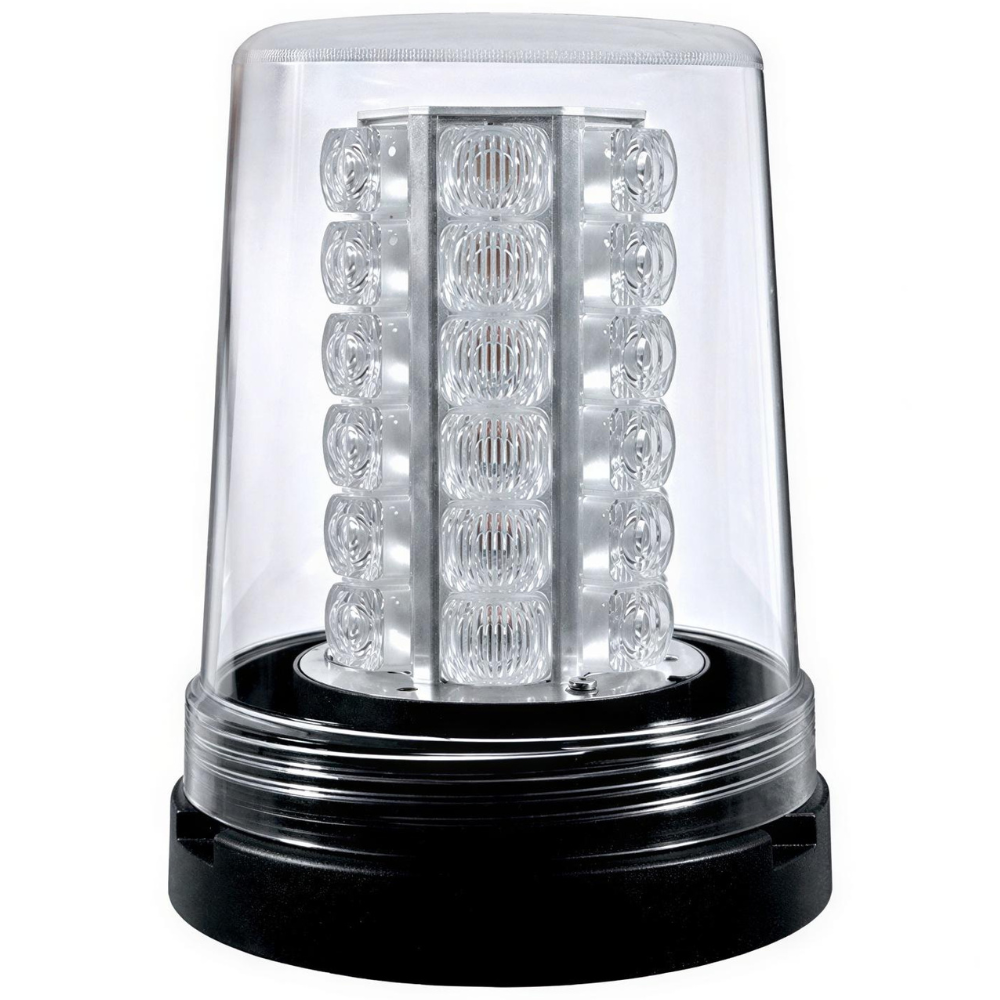

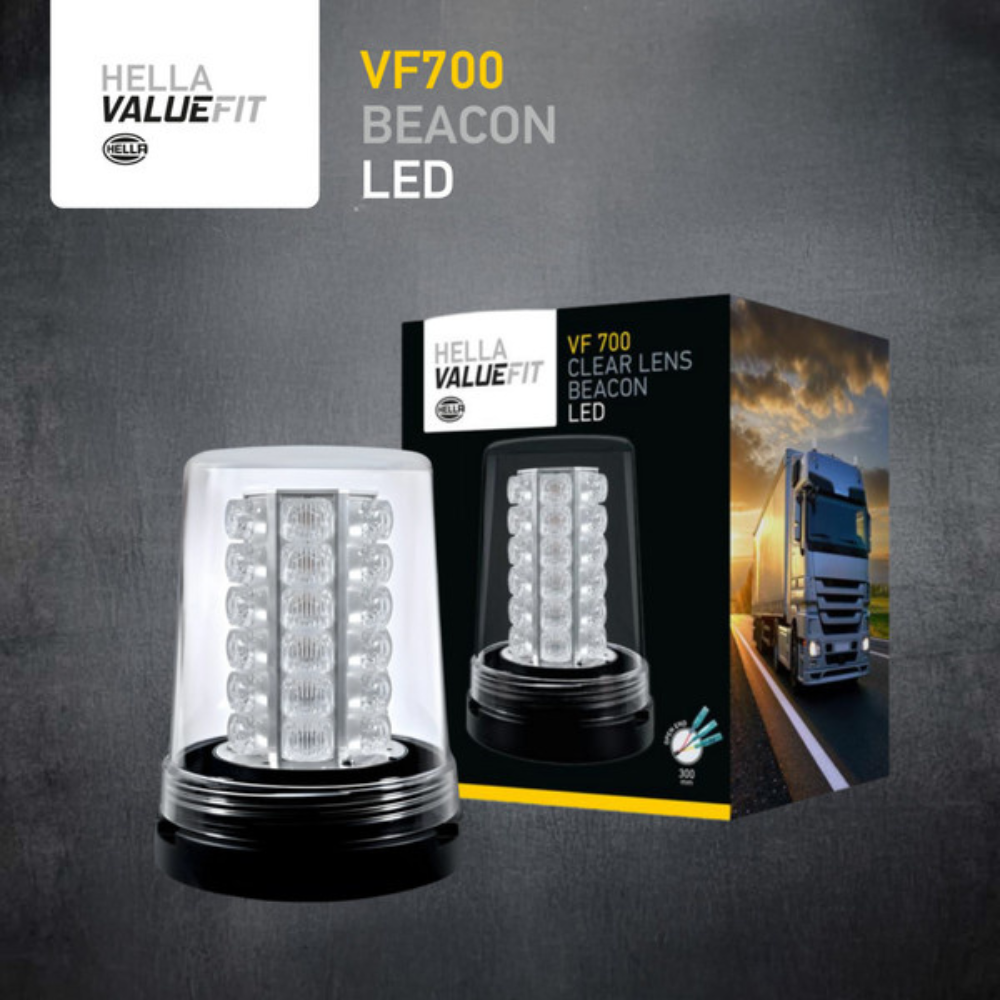

Hella VF 700 LED R65 Amber 3 Bolt Beacon Clear Lens

The Hella VF 700 LED R65 Amber 3 Bolt Beacon Clear Lens from Hella Valuefit with its classic trapezoidal design is ideal for trucks, light and heavy commercial and construction vehicles. With an overall height of 210 mm, it generates an amber warning signal from afar and is prominently visible despite being placed behind auxiliary lights on a roof bar by virtue of its height. The VF 700 LED for fixed mounting offers both a rotating and a double flashing signal function. The product is approved to ECE-R65 TA1 and SAE J845, Class 1 and offers electromagnetic compatibility according to ECE R10, CISPR class 3. The beacon has a stable and robust aluminium housing. The clear version with its design and appearance renders better optical clarity.

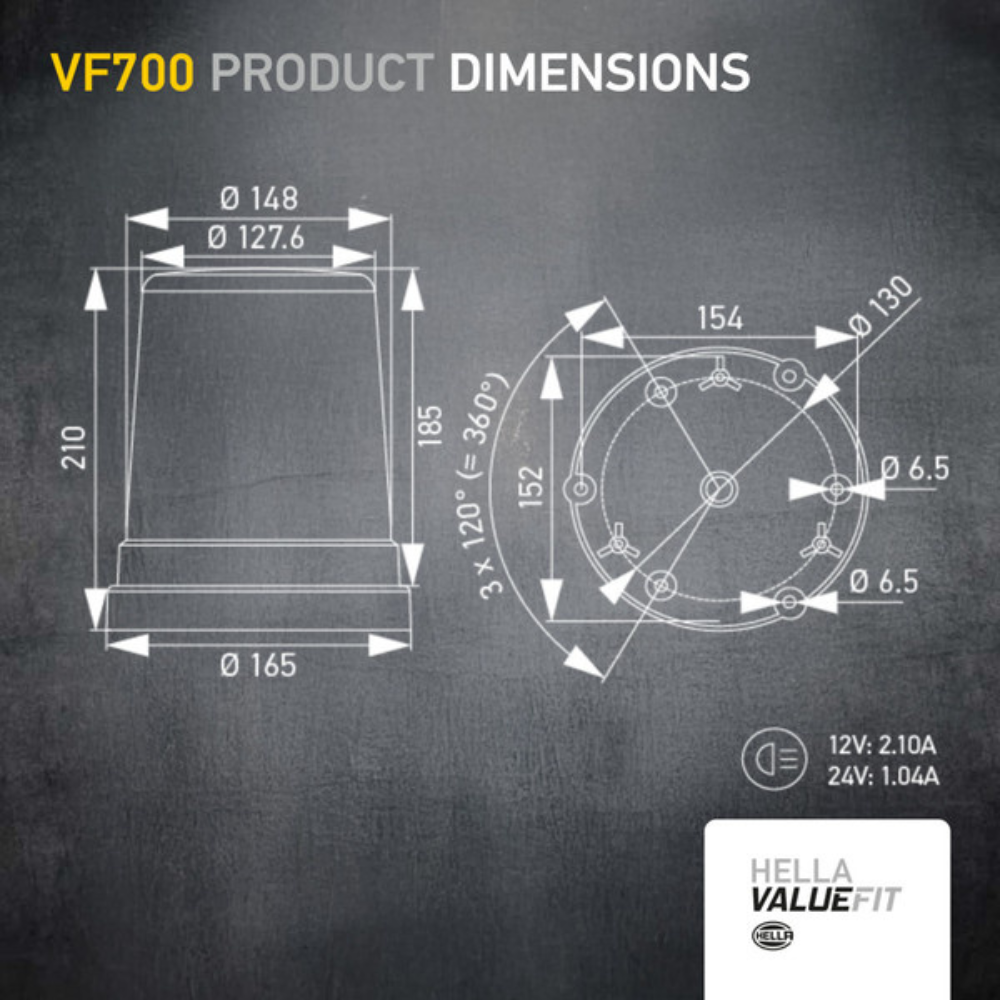

The internal structure of the reflectors enables a homogenous light output across the entire height of the lens. This beacon has been designed for different mounting options. It is compatible with the standard 130 mm bolt circle diameter holes common in Europe and Asia, as well as for the

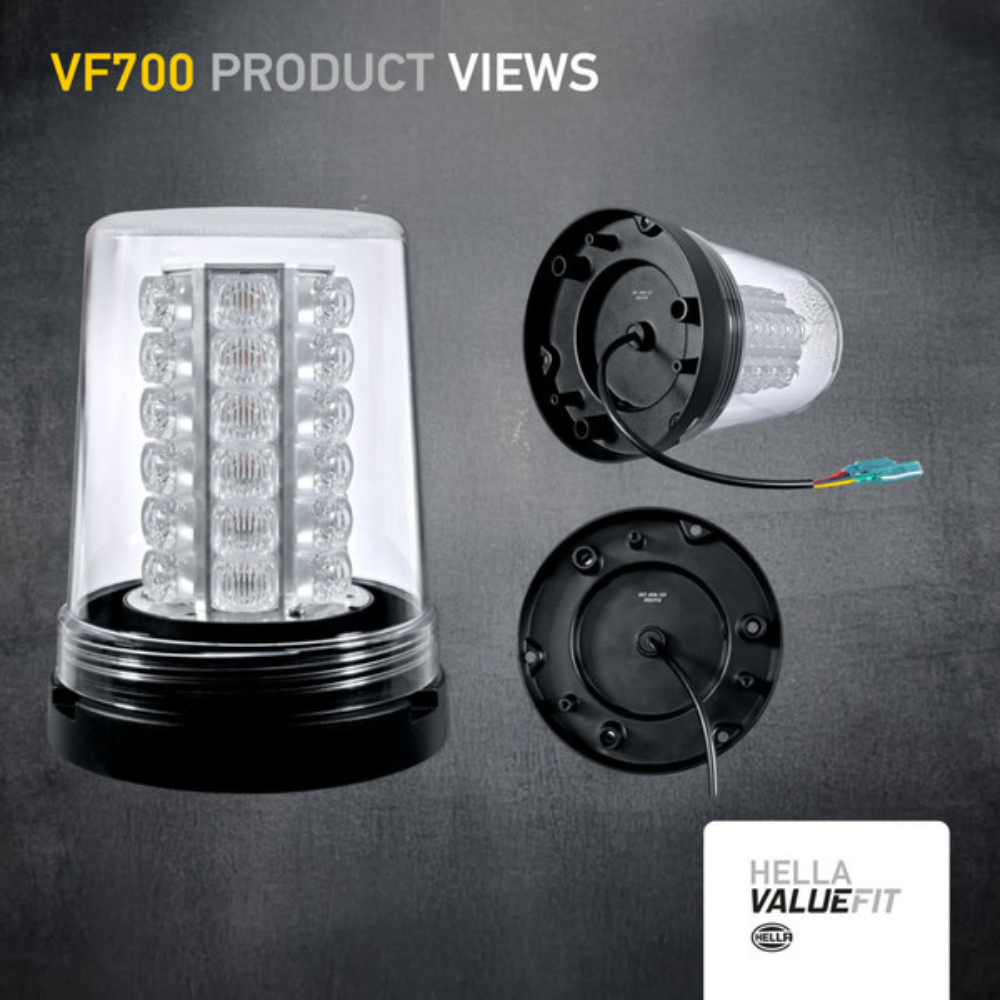

152/154 mm diameter in America. The lens with IP 56 protection can be removed, and the beacon can be mounted from the top of a vehicle, making it an ideal choice for retrofitting on vehicles with rotating halogen beacons or with beacons offering just single functions.

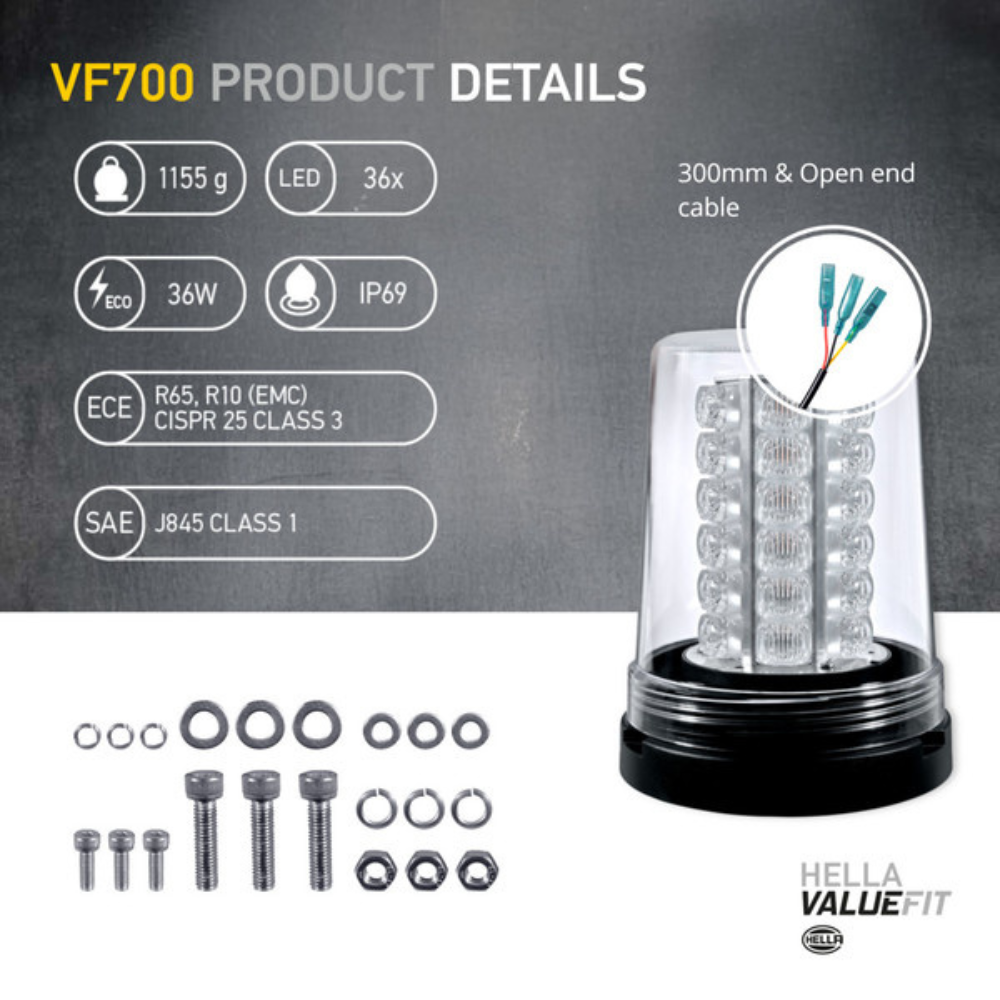

Key Features

Mounting Type	Bolted
Voltage [V]	12; 24
Power Consumption [W]	25
Lamp Type	LED
Light Design	LED
Width [mm]	165
Height [mm]	210

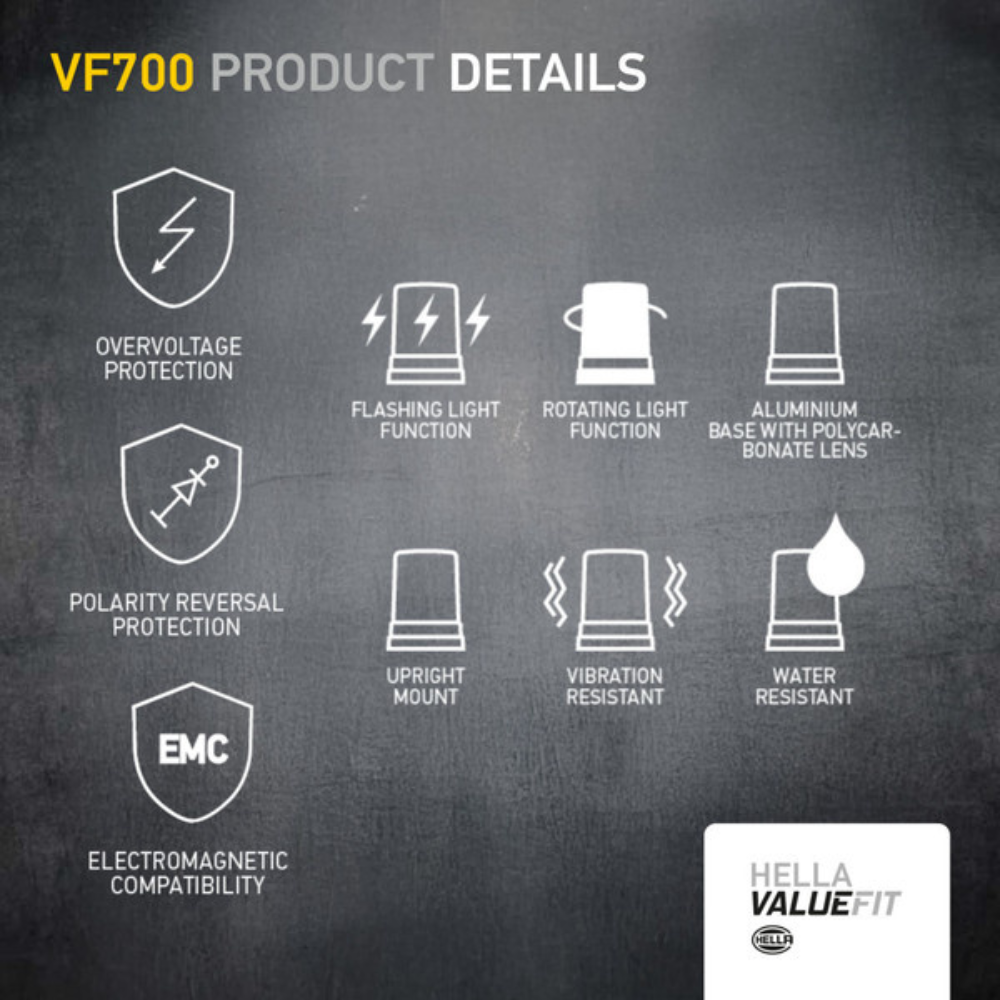

Light Function	with flashing warning signal; with rotating warning signal
Number of light functions	2
Protection Type (IP Code)	IP56
Registration Type	CISPR 25-tested
fulfils ECE standard	R10; TA1
Registration Type	CISPR 25-tested; ECE approved; SAE approved
fulfils SAE standard	J845 Class 1
Lens Colour	Crystal clear
Diffusing Lens Material	PC (Polycarbonate)
Housing Type	Aluminium Housing

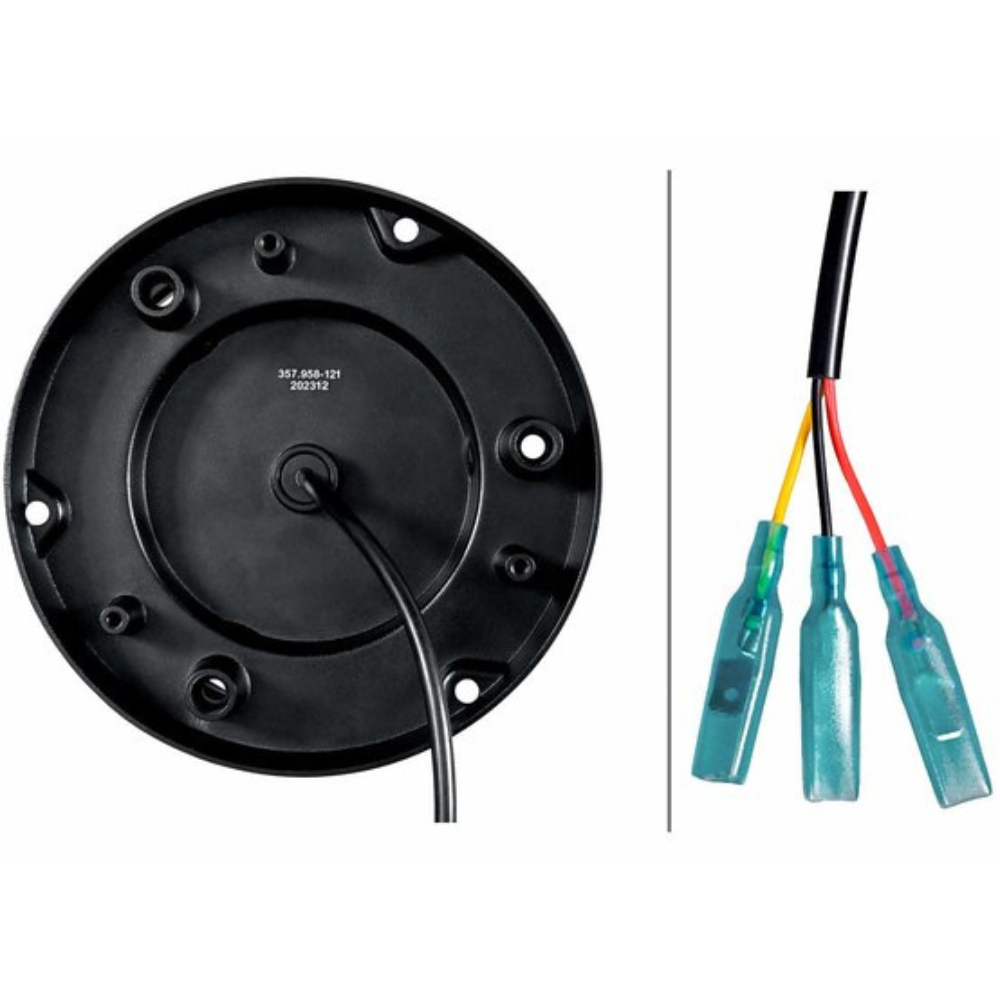

Cable Length [mm]	300
Plug Type	open cable ends
Number of LEDs	36
Temperature range from [°C]	-40
Temperature range to [°C]	60
Weight [g]	1155
