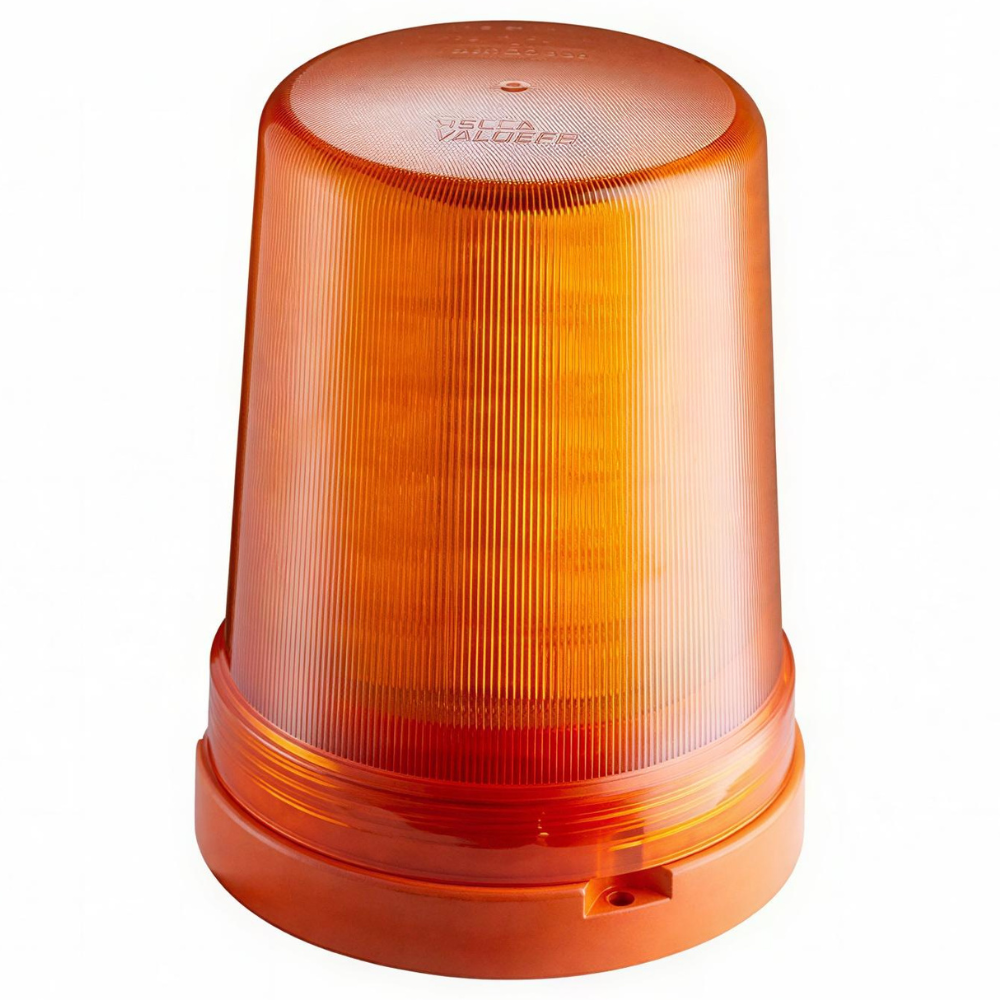

Hella VF 700 LED R65 Amber 3 Bolt Beacon

The Hella VF 700 LED R65 Amber 3 Bolt Beacon from Hella Valuefit with its classic trapezoidal design is ideal for trucks, light and heavy commercial and construction vehicles. With an overall height of 210 mm, it generates an amber warning signal from afar and is prominently visible despite being placed behind auxiliary lights on a roof bar by virtue of its height. The VF 700 LED for fixed mounting offers both a rotating and a double flashing signal function. The product is approved to ECE-R65 TA1 and SAE J845, Class 1 and offers electromagnetic compatibility according to ECE R10, CISPR class 3. The beacon has a stable and robust aluminium housing. The high impact resistant polycarbonate lens for the amber version with texture provides a professional look

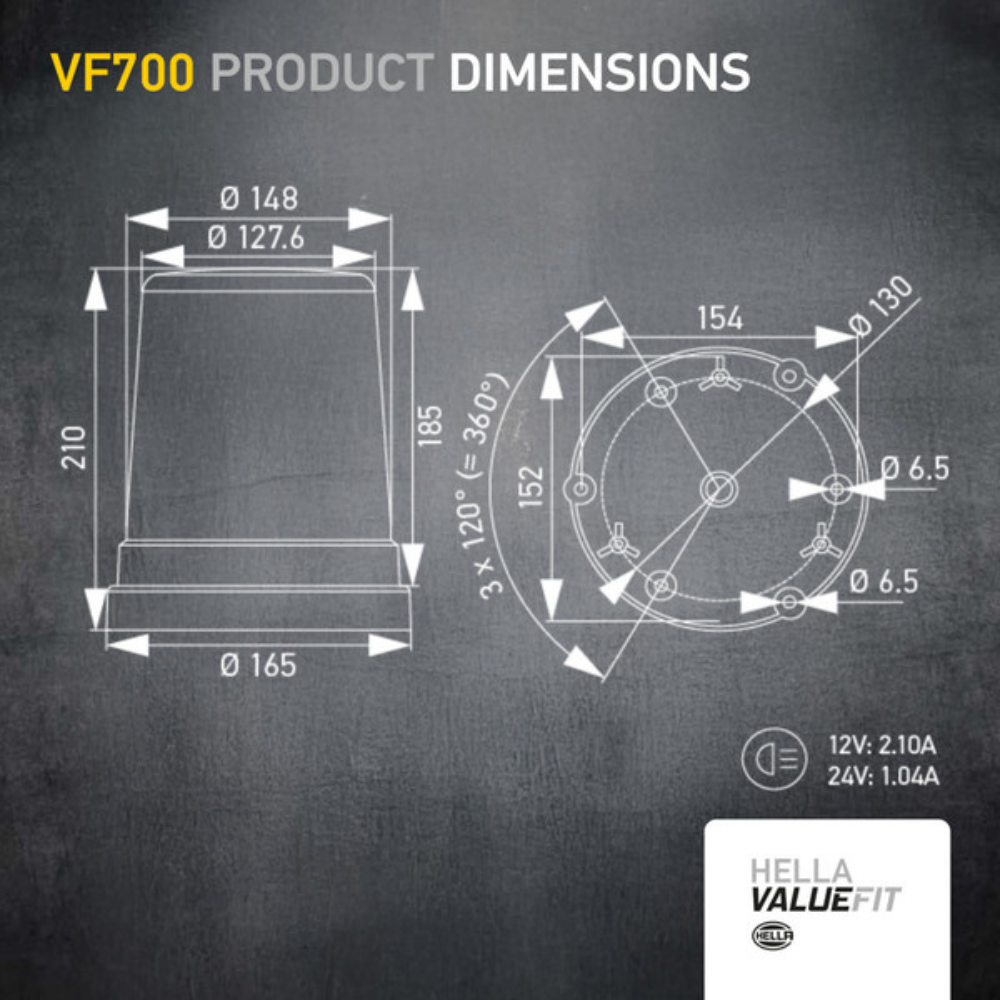

The internal structure of the reflectors enables a homogenous light output across the entire height of the lens. This beacon has been designed for different mounting options. It is compatible with the standard 130 mm bolt circle diameter holes common in Europe and Asia, as well as for the
152/154 mm diameter in America. The lens with IP 56 protection can be removed, and the beacon can be mounted from the top of a vehicle, making it an ideal choice for retrofitting on vehicles with rotating halogen beacons or with beacons offering just single functions.

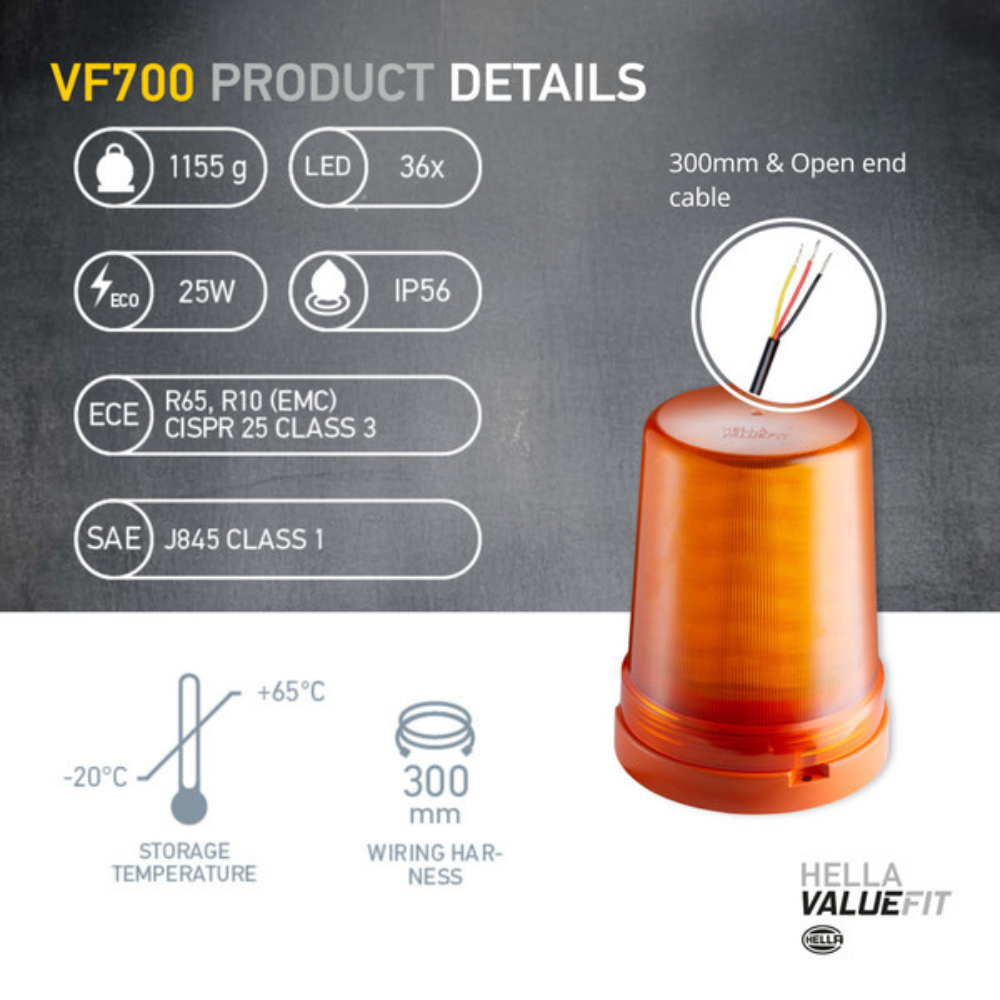

Key Features

Mounting Type	mounting
Voltage [V]	12; 24
Lamp Type	LED
Light Design	LED
Height [mm]	210
Width [mm]	128
Outer Diameter 1 [mm]	165
Light Function	with flashing warning signal; with rotating warning signal
Diffusing Lens Material	PC (Polycarbonate)
Housing material	Aluminium
Temperature range from [°C]	-40
Temperature range to [°C]	60
Registration Type	ECE approved
Protection Type (IP Code)	IP56
fulfils ECE standard	R10; TA1
Registration Type	ECE approved
fulfils SAE standard	J845 Class 1
Registration Type	ECE approved

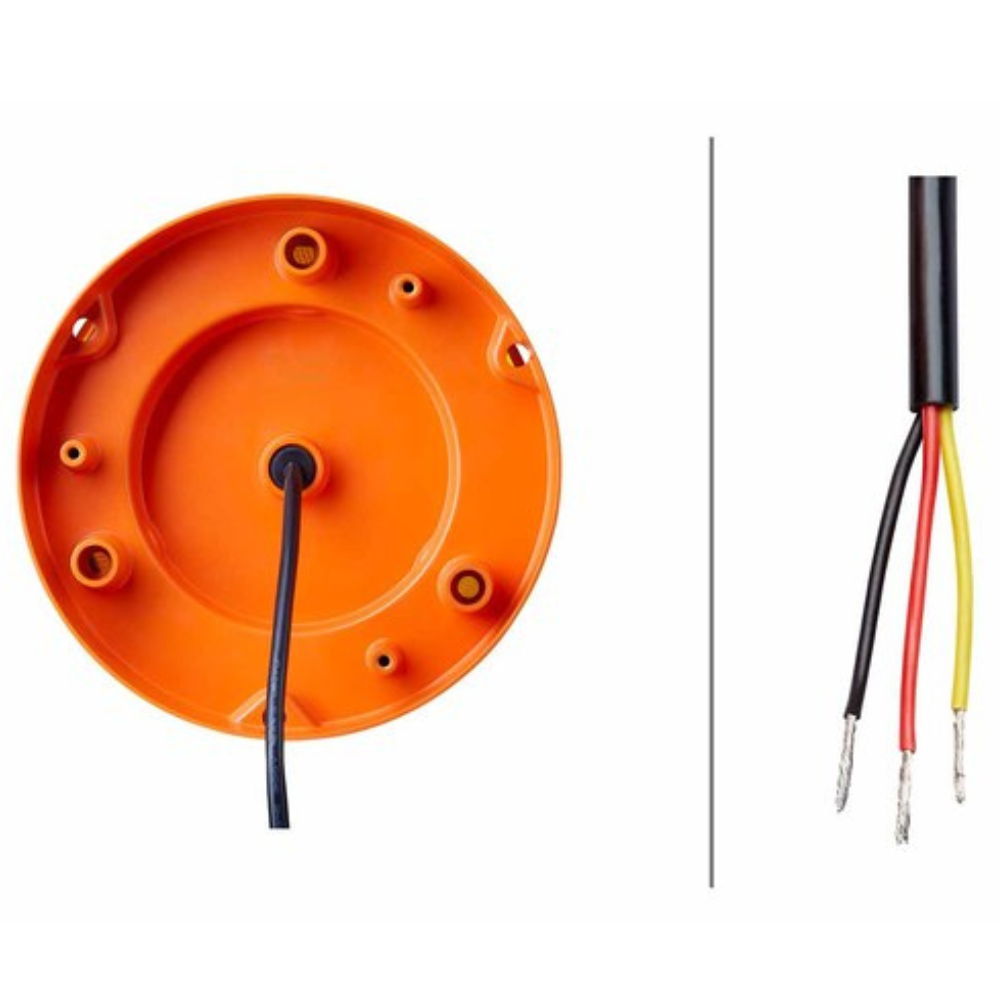

Plug Type	open cable ends
fulfils EMC/CISPR standard	Class 3
Weight [g]	1155
Cable Length [mm]	300
Number of LEDs	36
Power Consumption [W]	25
