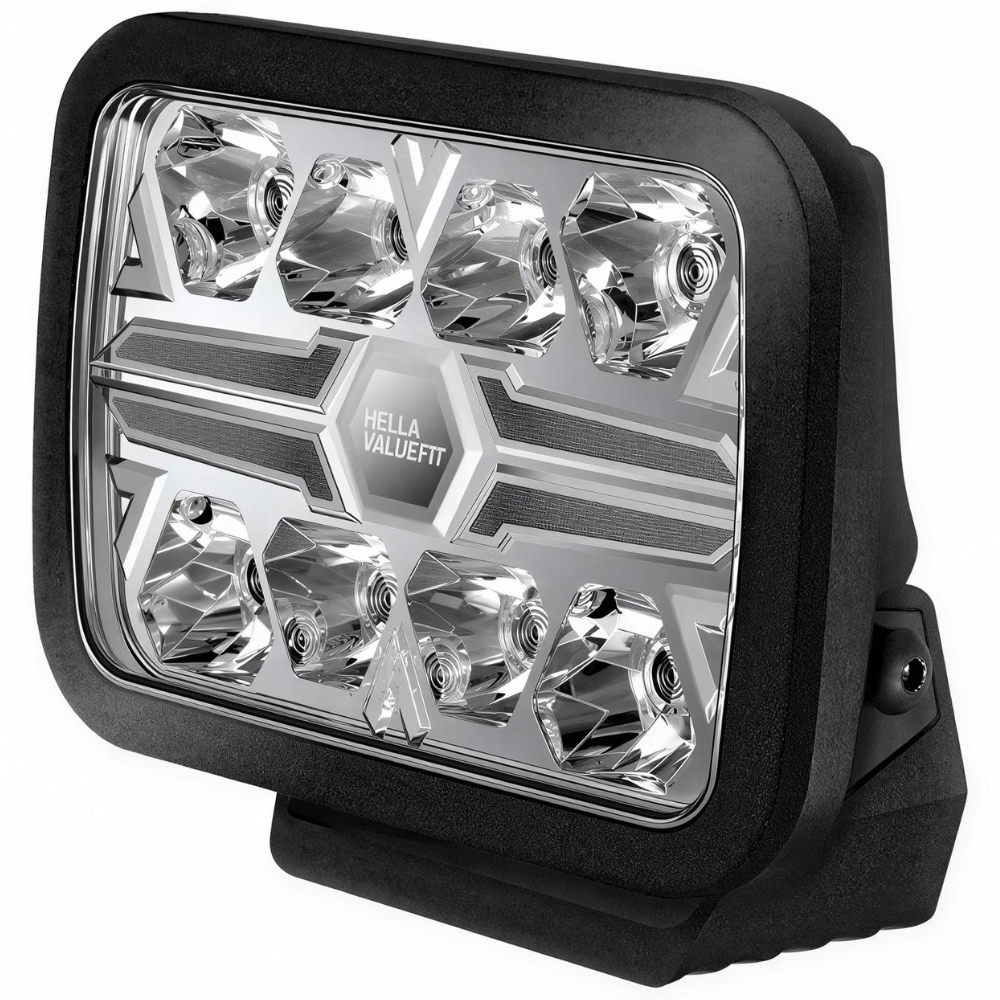

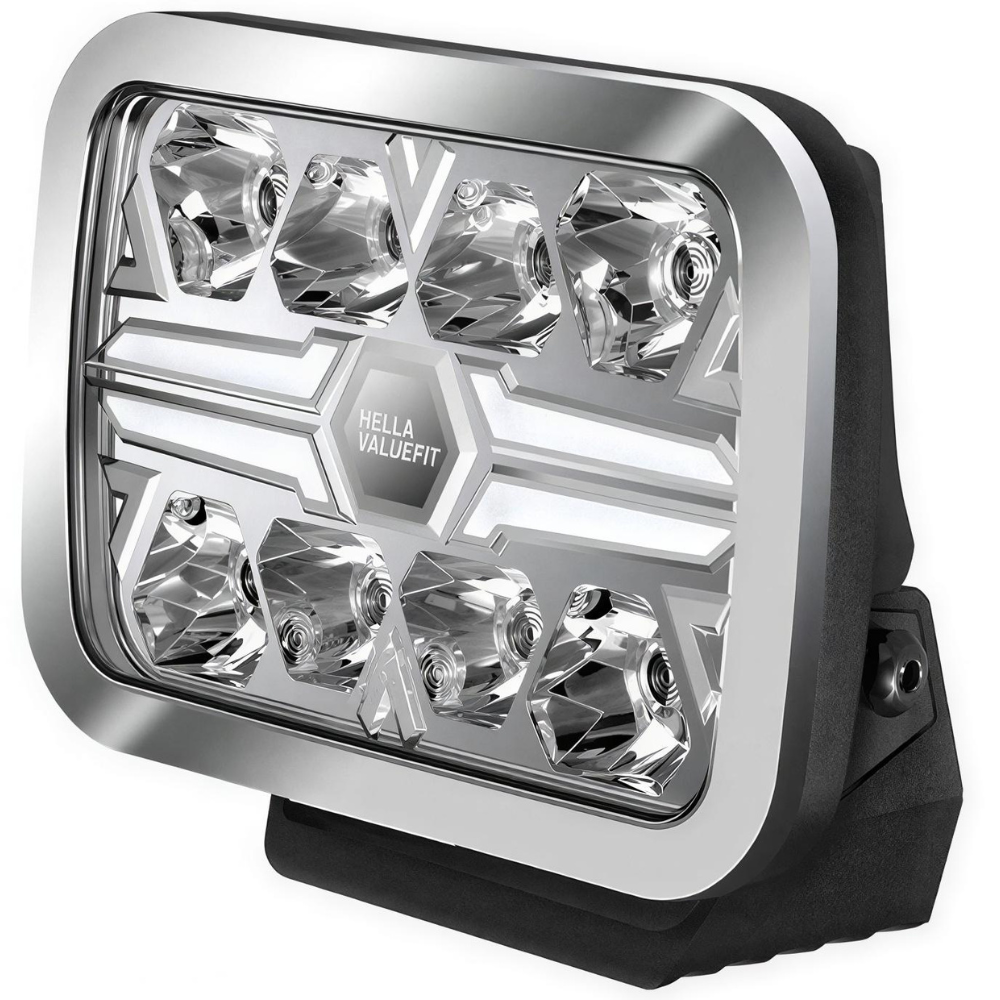

Hella Valuefit Blade 9" Rectangular Driving Light With Dual Colour Position Light

The Hella Valuefit Blade 9" Rectangular Driving Light With Dual Colour Position Light combines bold styling with outstanding driving performance, making it the perfect upgrade for commercial vehicles, 4x4s, pick-ups and trucks. Featuring HELLA's distinctive Blade position light, this auxiliary driving lamp delivers a modern OEM appearance while providing exceptional visibility on country roads, motorways and off-road terrain. Its unique rectangular design offers a contemporary alternative to traditional round driving lights, helping your vehicle stand out both day and night.

Producing up to 2,600 lumens with a Reference 25 beam pattern, the Blade delivers a powerful long-range driving beam with an impressive illumination distance of up to 450 metres at 1 lux. The integrated position light can be configured in white for road use or amber for off-road applications, giving installers the flexibility to create a unique lighting signature while maintaining ECE compliance where applicable.

Built to withstand demanding working environments, the Blade features a durable die-cast aluminium housing, an impact-resistant polycarbonate lens, and a glass fibre-reinforced mounting bracket. With IP67 and IP69K ingress protection, it is resistant to dust, water and high-pressure cleaning, making it ideal for year-round use on commercial and specialist vehicles.

Designed for 12V and 24V electrical systems, the Blade is supplied with a 500mm cable and offers simple installation on bumpers, roof bars, bull bars and commercial vehicle accessories. Whether you're driving rural roads, working on-site or travelling off-road, the HELLA VALUEFIT Blade delivers dependable lighting performance with premium styling.

Key Features

• 9-inch rectangular LED driving light
• Distinctive HELLA Blade position light design

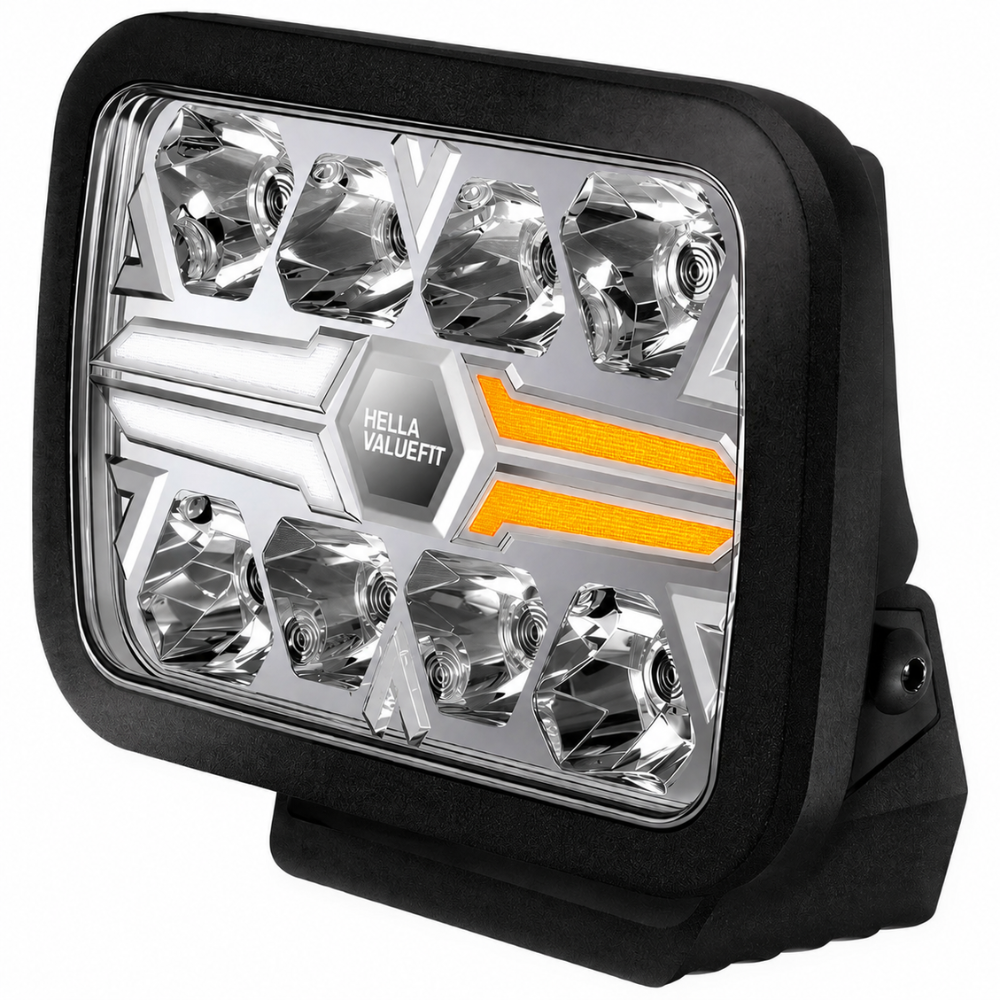

• Selectable white or amber position light
• Powerful 2,600 lumen LED output
• 450 metre beam distance (1 lux)
• Reference 25 driving beam
• 6000K daylight white colour temperature
• Multi-voltage 12V & 24V operation
• Robust die-cast aluminium housing
• Impact-resistant polycarbonate lens

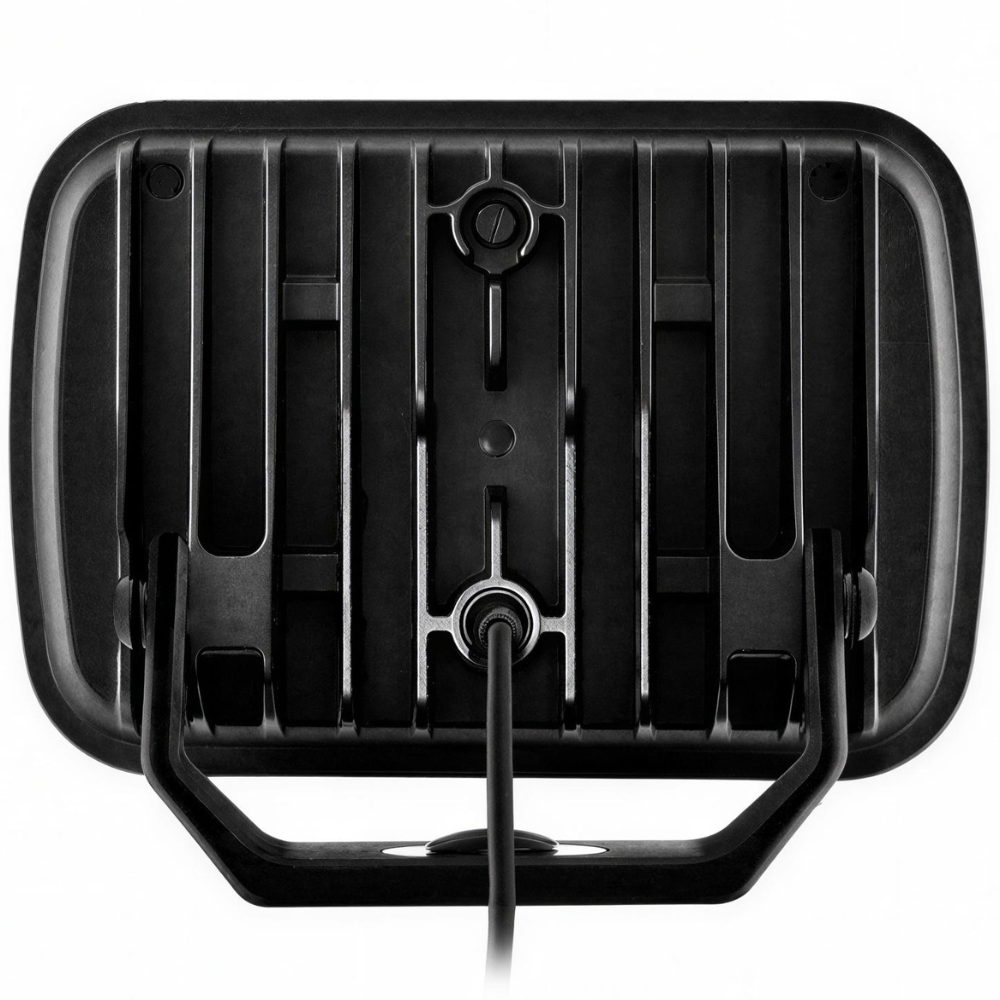

• Glass fibre reinforced mounting bracket
• IP67 & IP69K rated
• ECE R10, R148 & R149 approved
• 500mm pre-wired cable
• Suitable for upright mounting

Mounting Type	Bolted
Fastening Type	Vertical
Lamp Type	LED
Light Design	LED
Voltage [V]	12; 24
Power Consumption [W]	36

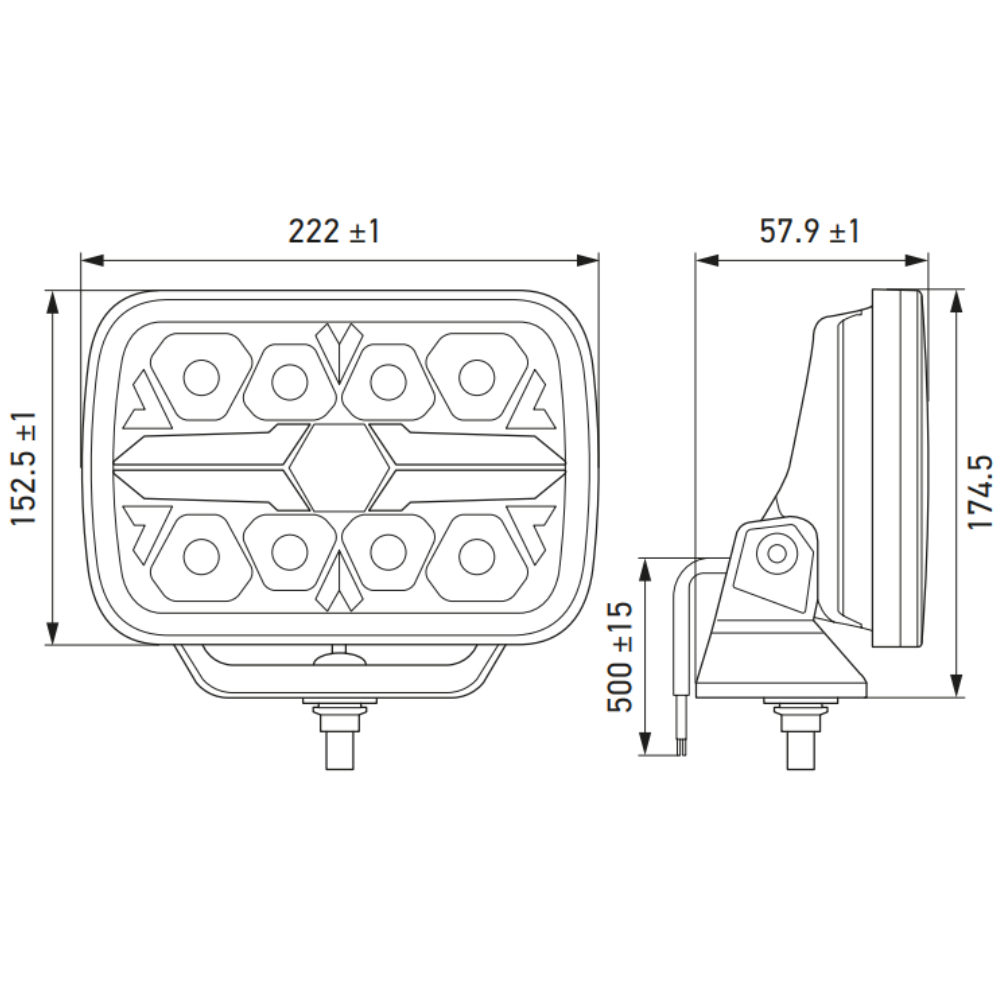

Length [mm]	159
Height [mm]	153
Overall Height [mm]	175
Width [mm]	222
Depth [mm]	58
Fitting Depth [mm]	58
Light Function	with low beam (LED); with position light (LED)
Number of light functions	2
Colour	black
Light colour	white; yellow (amber)
Number of LEDs	8
Colour Temperature [K]	6000
Registration Type	ECE approved
fulfils ECE standard	R10; R148; R149
Protection Type (IP Code)	IP67; IP69K
Cable Length [mm]	500
Lens Colour	Crystal clear
Frame Colour	black
Shape	rectangular
Housing Colour	black
Diffusing Lens Type	Clear diffusing lens
Housing material	Aluminium
Length [inch]	9
Luminous Flux [lm]	2600
Weight [g]	1550
Reference number	25
