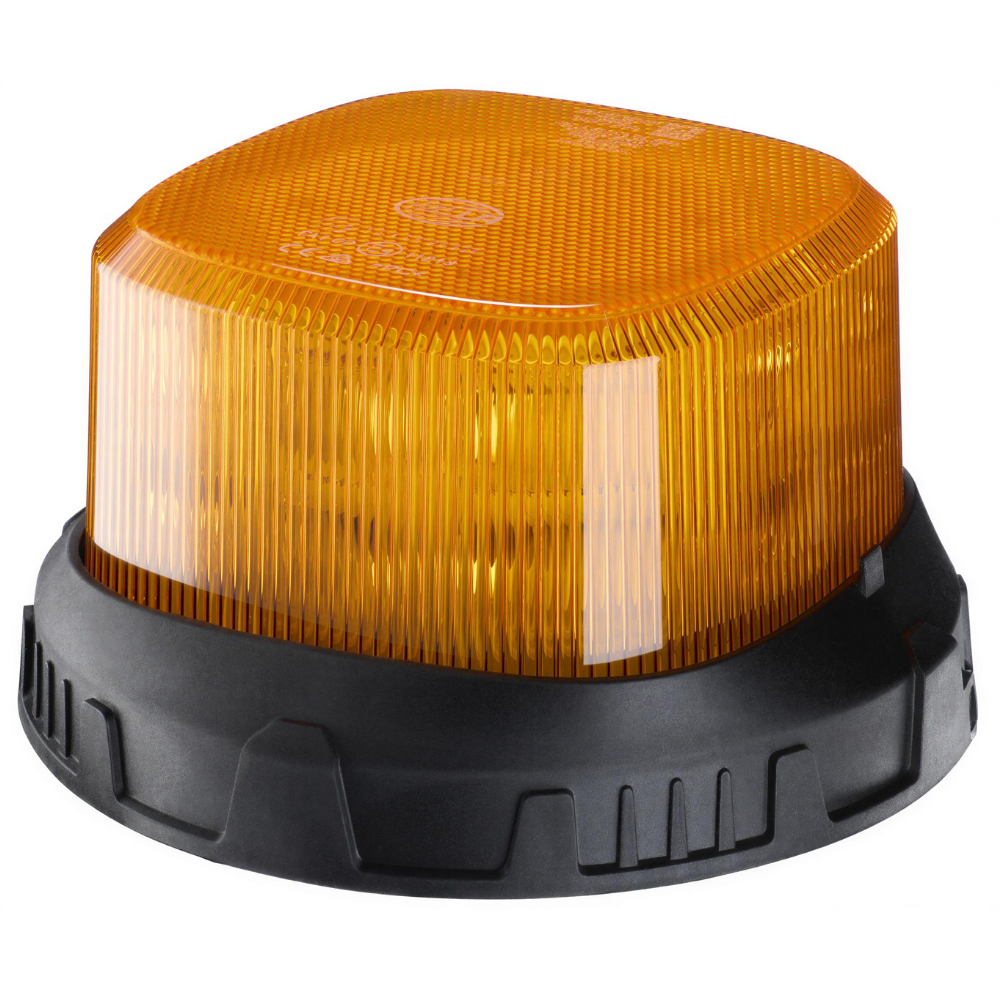

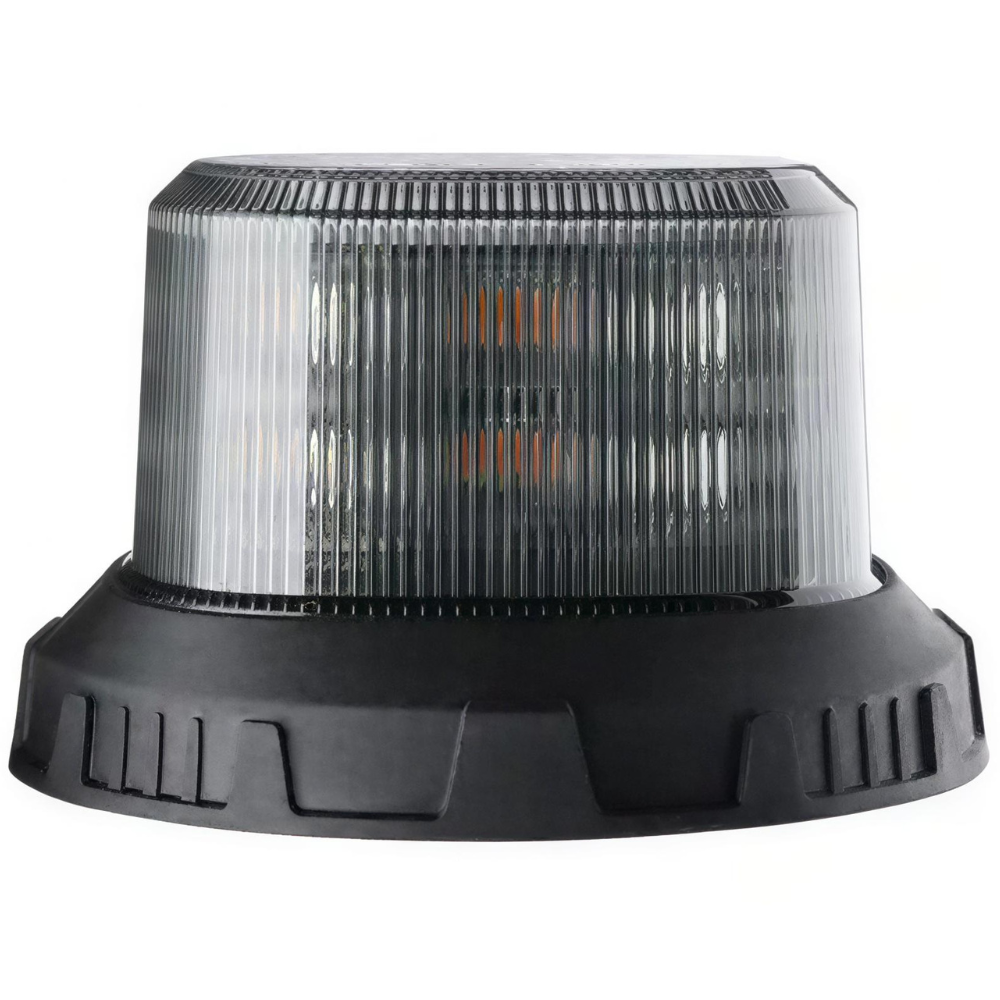

Hella K-LED Quadra Amber R65 LED Beacon

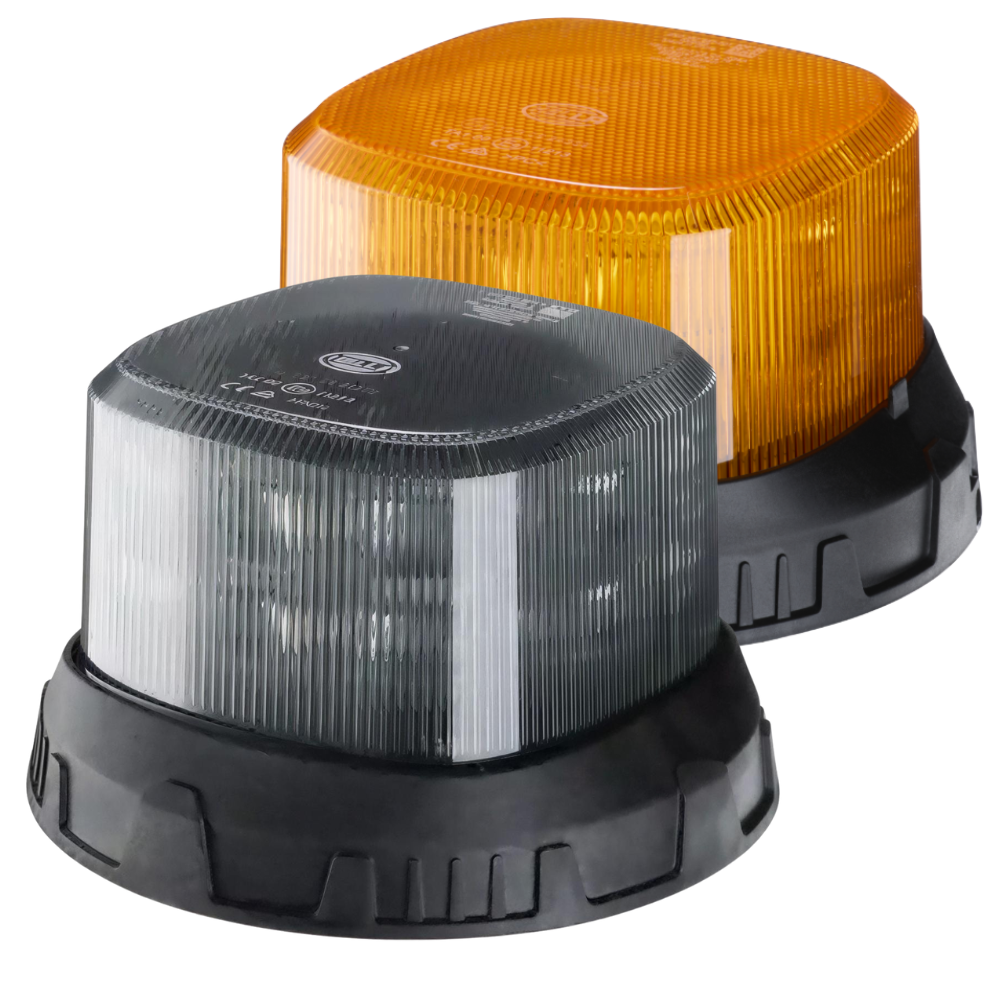

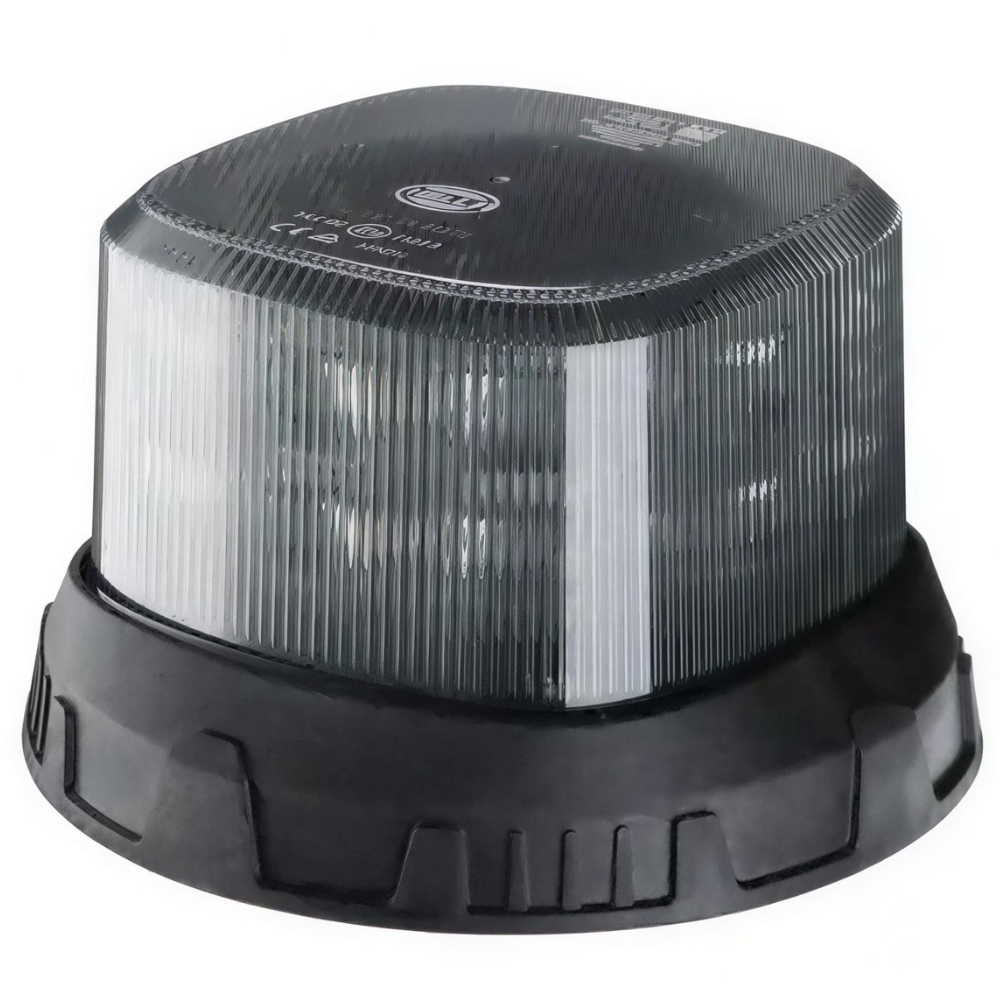

The Hella K-LED Quadra Amber R65 LED Beacon impresses with its innovative QUADRA design, which combines traditional and modern elements. Particularly worth mentioning is the very first light dome in a dark colour to come from HELLA, which undoubtedly creates a striking look.

The K-LED Quadra impresses with its dual light function, boasting rotating and flashing options. Thanks to its robust construction with an aluminium base plate for heat dissipation and a more resilient polycarbonate lens, the lamp is suitable for the toughest conditions.

Main Features:

• 2 Flash Patterns: Double flash and rotating

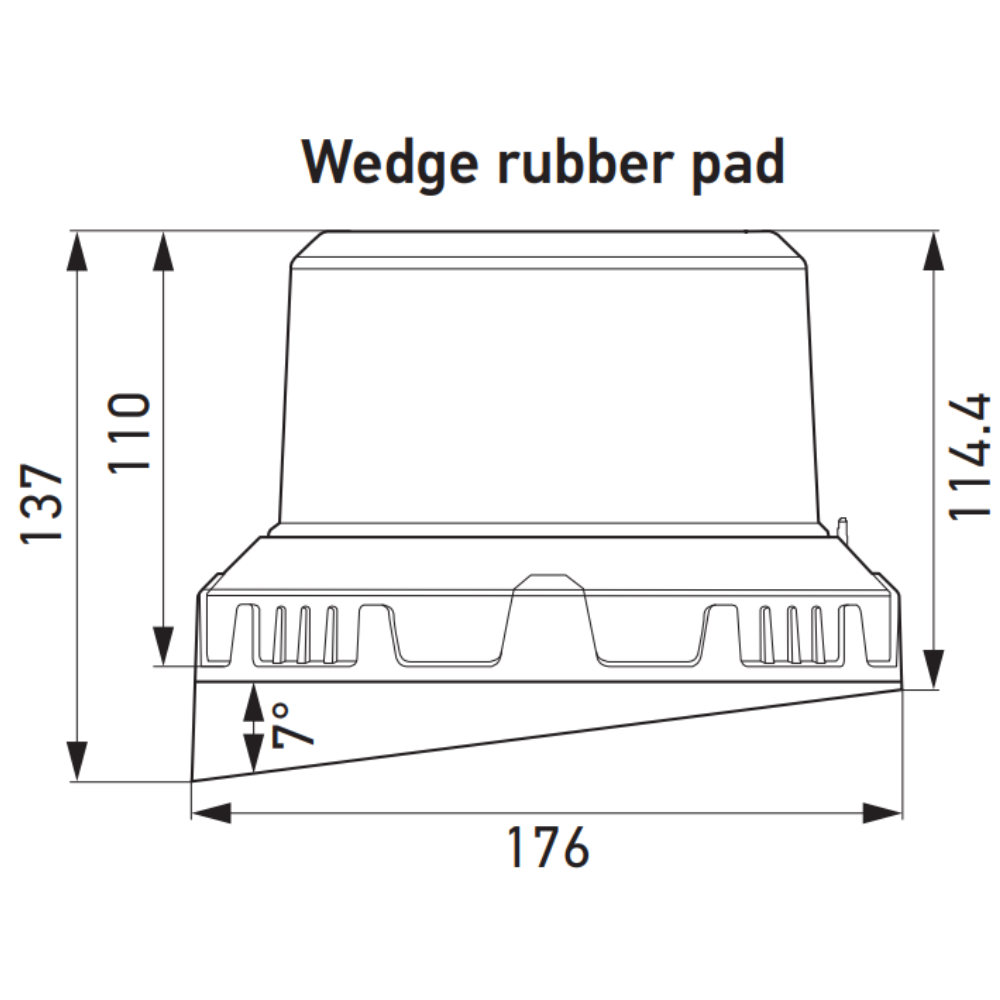

• Supplied with an angled rubber wedge
• EMC: CISPR 25 Class 5 and ADR certification for safe operation in hazardous goods vehicles
• ECE R10, ECE R65 TA2, ADR/GGVSEB, SAE J845 Class 1
• Day and night modes (class 2 approval)
• Dual voltages 12/24V
• IP Rating - IP67, IP69K
• ADR/GGVS approved

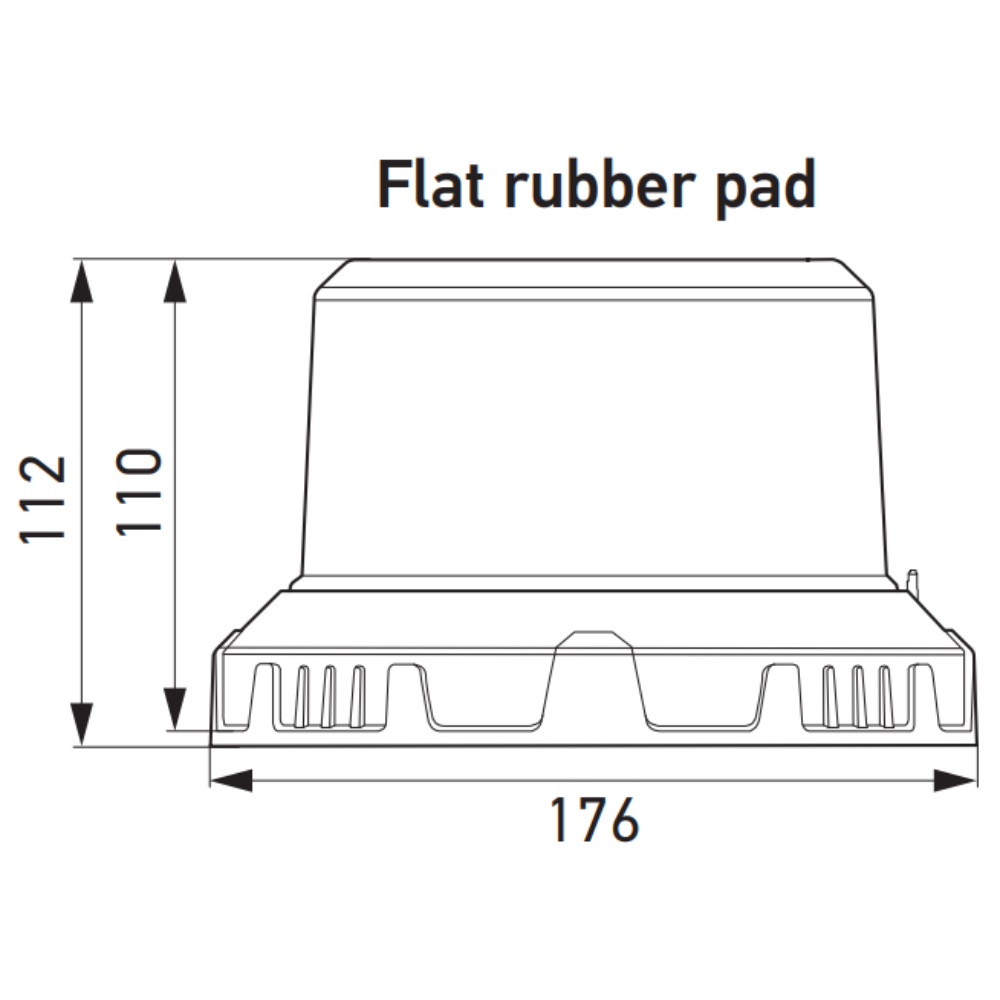

• Dimensions - (H) 110m x (W) 176mm
• Cable Length - 300mm
• Operating Temperature -40 °C - +60 °C
• Weight - 1340g

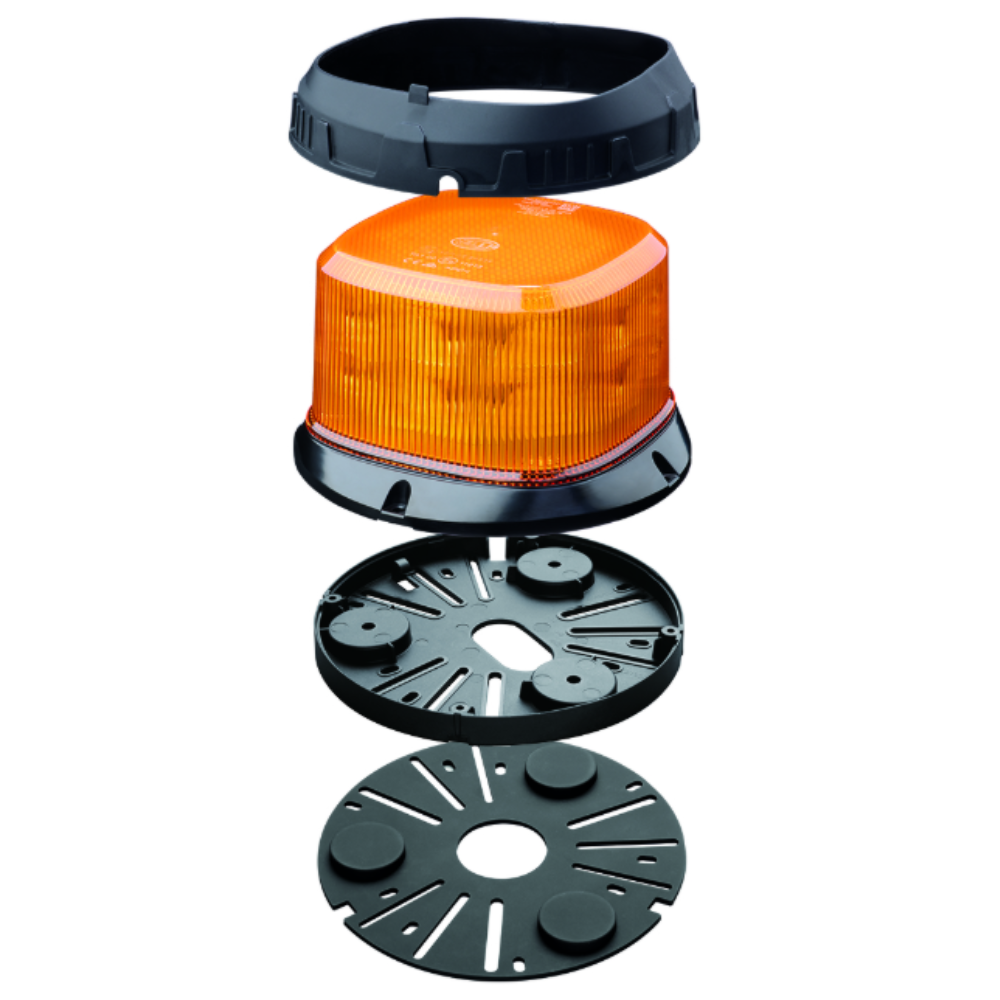

Innovative QUADRA design inspired by the seamless fusion of geometric contours and smoothly radiused corners, creating an aerodynamic appearance. The Unique shape blends with a traditional amber lens and the addition of HELLA’s first dark lens. Its robust build quality and flexible mounting options make this warning device a compelling choice for customers. The build quality is unparalleled with a vibration resistance of
9.6G is enabled by a robust aluminium base for effective heat dissipation, coupled with a strong polycarbonate lens. The versatile mounting options make it a unique offering across the world, making it a compelling choice for retrofitting, replacing or standardisation across fleets.
