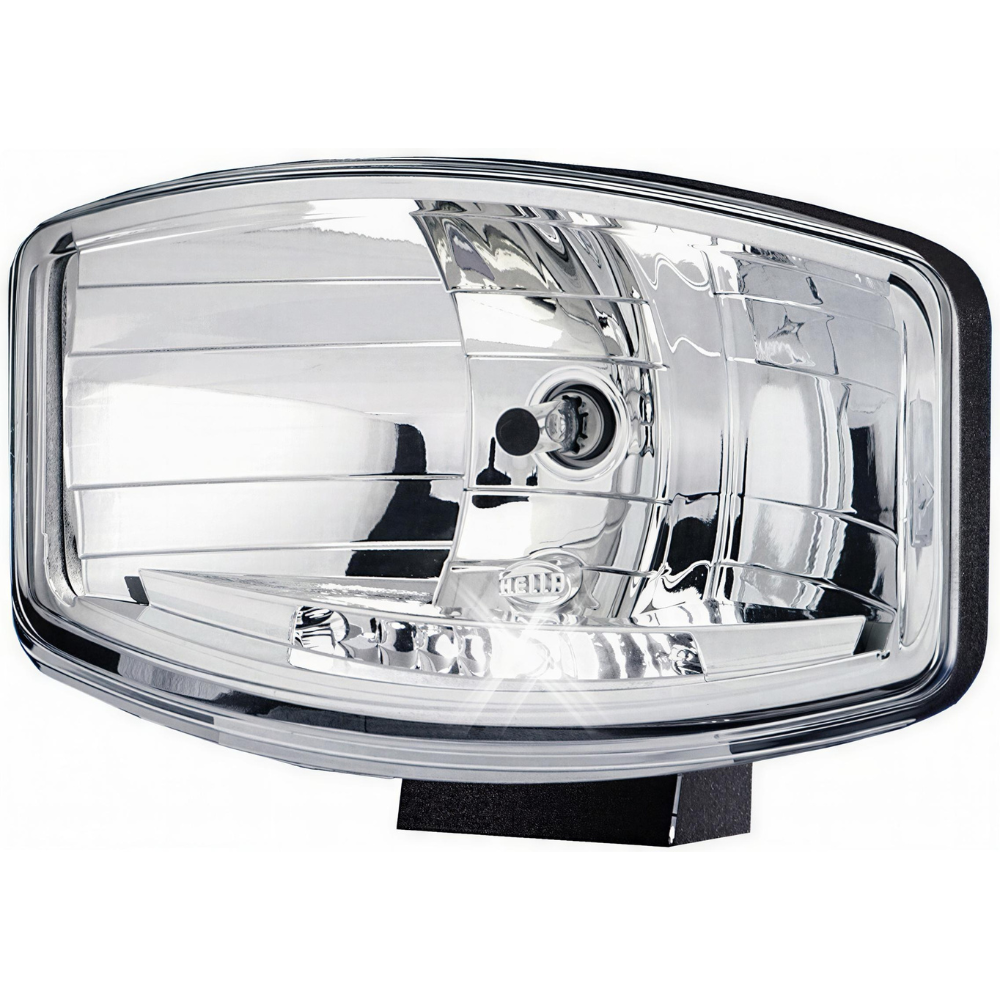

Hella Jumbo 320FF Halogen Driving Light With Position Light

The Hella Jumbo 320FF Halogen Driving Light With Position Light is a premium rectangular halogen driving light engineered to provide exceptional long-range visibility for commercial vehicles, HGVs, 4x4s and specialist vehicles. Combining HELLA's proven Free-Form (FF) reflector technology with a rugged, heavy-duty construction, the Jumbo 320 delivers powerful forward illumination while maintaining the durability expected from one of the world's leading automotive lighting manufacturers.

Designed specifically for larger vehicles, the Jumbo 320 features specially developed High-Boost Free-Form reflectors that maximise the output from the H7 halogen bulb, producing a focused driving beam with a Reference 37.5 light distribution. The result is excellent long-distance visibility, making it ideal for rural roads, highways and off-road environments.

This version (1FE 008 773-041) also incorporates an integrated LED white position light, featuring six high-performance LEDs that create a distinctive modern appearance while increasing the vehicle's visibility during daylight and night-time driving. The additional position light enhances safety without compromising the classic styling of the Jumbo 320.

Manufactured using a durable black polymer housing with a die-cast metal reflector, the Jumbo 320 is built to withstand demanding commercial use. It can be installed in either an upright or pendant mounting position, making it suitable for roof bars, bull bars, bumpers and commercial vehicle installations. Compatible with both 12V and 24V electrical systems, the lamp is an excellent choice for vans, trucks, agricultural machinery and plant equipment.

Key Features

• Genuine HELLA Jumbo 320 FF driving light
• Part Number: 1FE 008 773-041
• High-performance H7 halogen driving lamp
• Integrated LED white position light (6 high-power LEDs)
• Advanced Free-Form (FF) High-Boost reflector
• Long-range Reference 37.5 driving beam
• Suitable for 12V & 24V vehicles
• Robust black polymer housing
• Die-cast metal reflector
• Clear impact-resistant lens
• Upright or pendant mounting
• ECE R112 approved driving light
• ECE R7 approved position light
• Ideal for commercial vehicles, trucks and 4x4s

Additional Information

Mounting Type	Bolted
Fastening Type	Swivelling Mounting Bracket
Light Design	Halogen
Lamp Type	H7; W5W
Voltage [V]	12; 24
Fitting Position	Left; Right

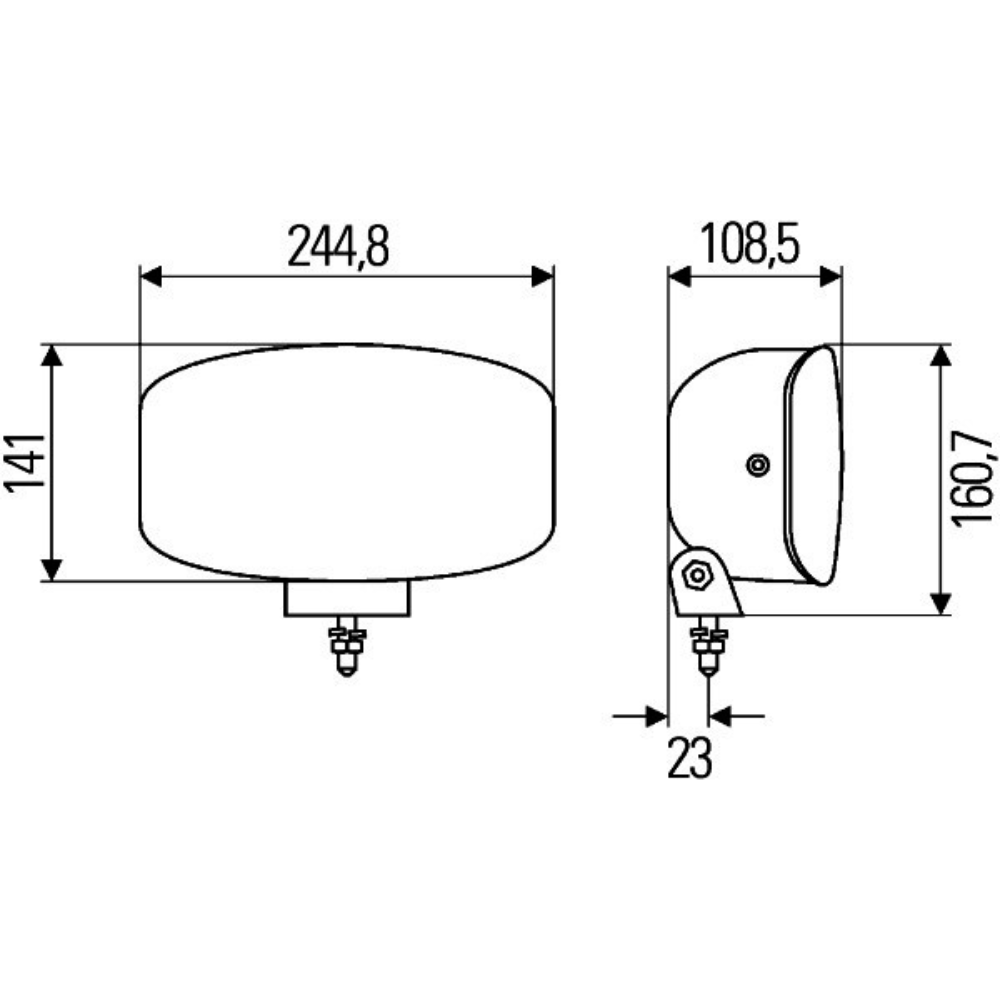

Length [mm]	141
Height [mm]	141
Overall Height [mm]	161
Width [mm]	247
Depth [mm]	109
Fitting Depth [mm]	23
Length [inch]	6
Colour	black
Light colour	white
Light Function	with high beam; with position light
Number of light functions	2
Frame Colour	black
fulfils ECE standard	R112; R7
Reference number	37.5
Housing Colour	black
Lens Colour	Crystal clear
Shape	rectangular
Diffusing Lens Type	Clear diffusing lens
without bulb
Registration Type	ECE approved
Power Consumption [W]	5; 55
Weight [g]	1145

OE References

DAF	866417
IVECO	500051174
LAND ROVER	11466
MAN	ZF429500041
SCANIA	1906621
SCANIA	20223656
