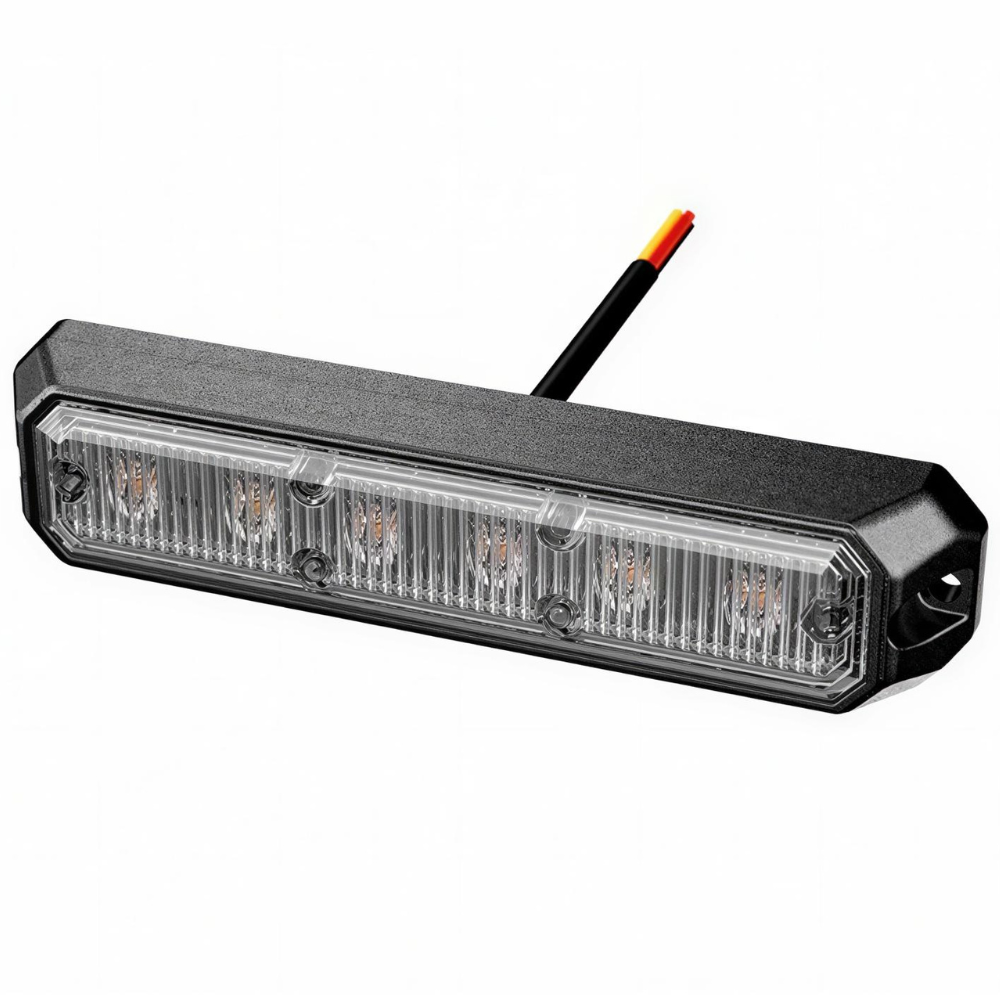

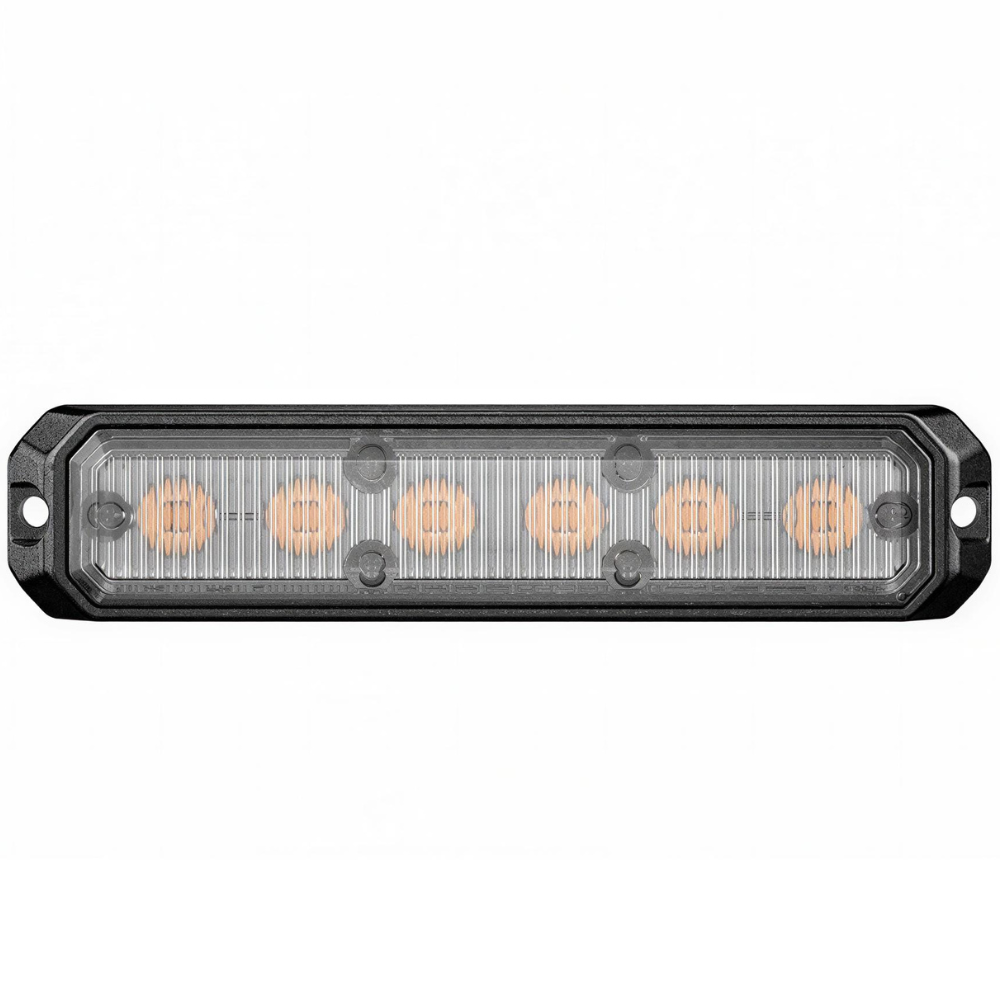

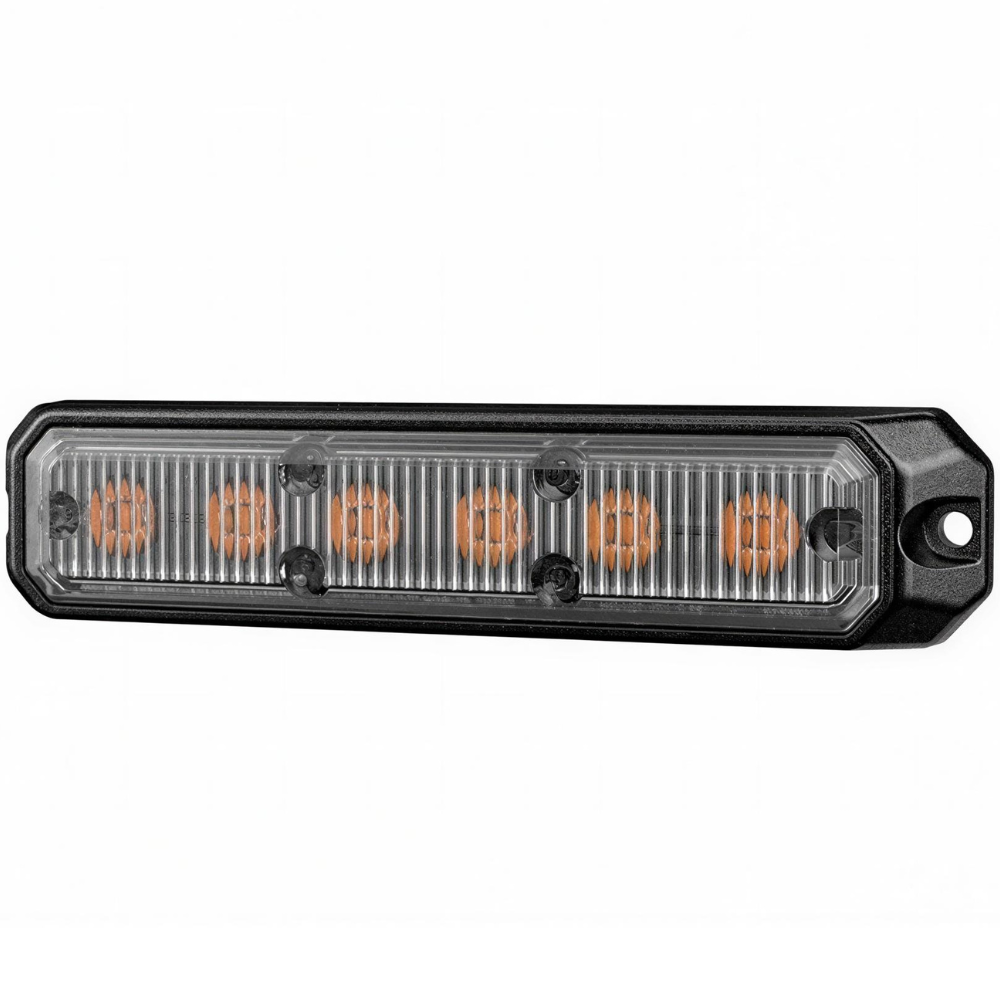

Hella BST 2.0 R65 6 LED Surface Mount Strobe

The Hella BST 2.0 R65 6 LED Surface Mount Strobe is a premium surface-mounted LED strobe designed to deliver outstanding visibility for commercial vehicles, recovery trucks, highways fleets, utility vehicles, agricultural machinery and emergency support vehicles. Combining six high-performance LEDs with precision-engineered optics, the BST 2.0 produces an intense amber warning signal that meets the latest ECE R65 Class 2 requirements for professional vehicle warning lighting.

Designed for demanding environments, the BST 2.0 features a compact, low-profile housing that can be mounted horizontally to provide a clean OEM-style installation. Five selectable flash patterns allow the warning light to be configured for different applications, while synchronisation capability enables multiple lamps to operate together in either simultaneous or alternating flash sequences for maximum vehicle conspicuity.

A day/night mode allows adjusts light intensity to provide maximum daytime visibility while reducing glare during night-time operation. This makes the BST 2.0 ideal for vehicles operating around live traffic, construction sites and public highways.

Manufactured to HELLA's renowned OEM standards, the BST 2.0 features a durable aluminium housing, crystal-clear polycarbonate lens and IP67/IPX9K protection against water, dust and high-pressure washing. Suitable for both 12V and 24V electrical systems, it offers long-lasting, maintenance-free LED performance with built-in overvoltage protection for maximum reliability.

Key Features

• Genuine HELLA BST 2.0 LED warning light
• Part Number: 2XD 018 160-001
• Six high-output power LEDs
• ECE R65 Class 2 (XA2/XR2) approved
• ECE R10 EMC approved
• Eight selectable flash patterns
• Synchronisation with multiple warning lamps
• Simultaneous or alternating flash operation
• Integrated day/night brightness mode
• Cruise mode
• Compact low-profile surface mount design
• Multi-voltage 10–30V DC
• Suitable for 12V & 24V vehicles
• IP67 & IPX9K ingress protection
• Aluminium housing with polycarbonate lens
• 200mm cable with open wire ends
• Built-in overvoltage protection
• ADR approved for hazardous goods vehicles

Ideal Applications

Highway maintenance vehicles
Recovery trucks
Commercial vans
Utility fleets
Agricultural machinery
Construction equipment
Municipal vehicles
Escort vehicles
Plant machinery
Specialist commercial vehicle conversions

Why Choose the HELLA BST 2.0?

The HELLA BST 2.0 is designed for fleet operators and professional installers who require maximum warning performance in a compact package. Its six high-performance LEDs, Class 2 R65 approval, synchronisation capability and day/night operation make it one of the most versatile surface-mounted warning lamps in the HELLA range. Built to OEM quality standards, it delivers exceptional reliability in the harshest operating environments while maintaining a discreet, modern appearance.

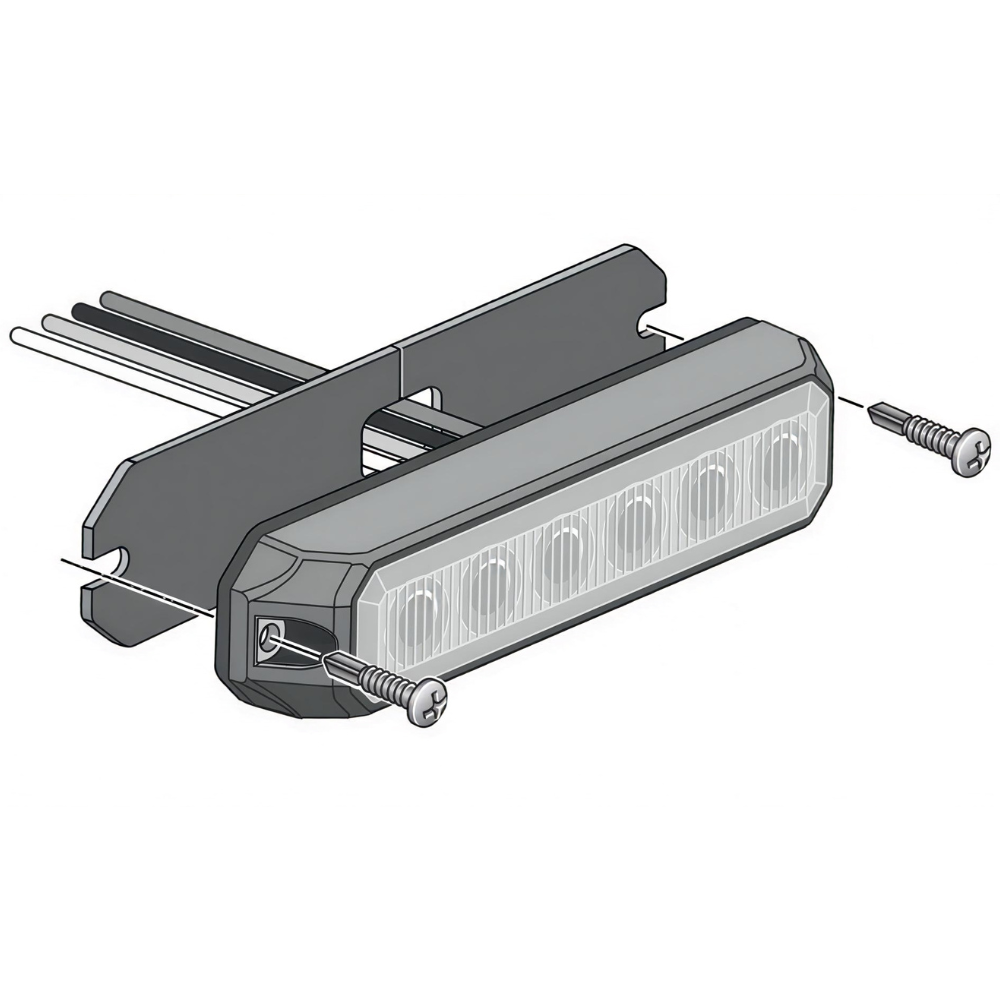

Mounting Type	Screw Connection
Lamp Type	LED
Light Design	LED
Voltage [V]	12; 24
Fitting Position	frontal sided

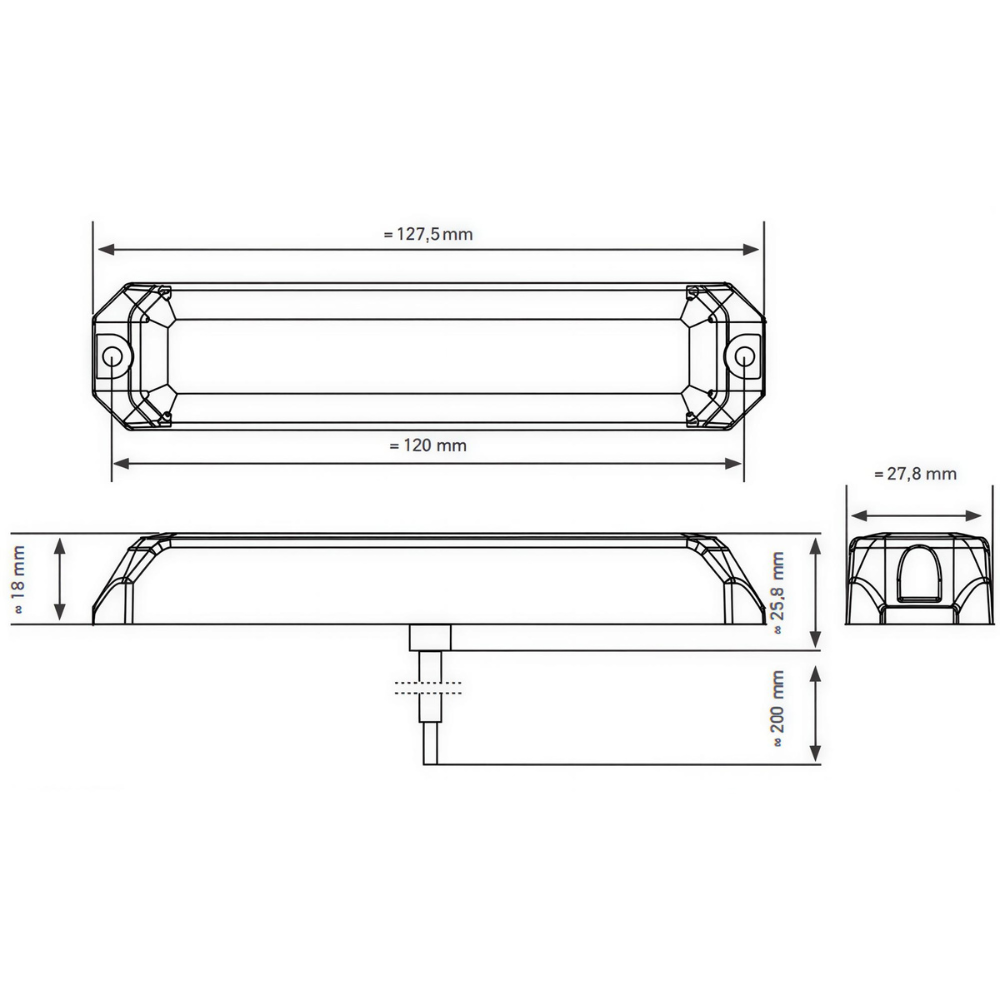

Height [mm]	28
Width [mm]	127.5
Depth [mm]	18
Total Depth [mm]	25.8
Distance of mounting bores [mm]	120
Light Function	Double flasher; Simple Flasher; with day/night mode; with flashing warning signal
Light colour	yellow (amber)
Number of LEDs	6
Plug Type	open cable ends
Cable Length [mm]	200
Protection Type (IP Code)	IP67; IPX9K
Registration Type	ADR/GGVS approved
fulfils ECE standard	R10; R65; XA2
7439-92-1; Lead
Registration Type	ADR/GGVS approved
fulfils EMC/CISPR standard	Class 3
Fastening Type	for horizontal fastening
Reverse polarity protection	Yes
Power Consumption [W]	14.8
Housing Colour	black
Diffusing Lens Material	PC (Polycarbonate)
LED Colour	yellow (amber)
Lens Colour	Crystal clear
Housing material	Aluminium
Temperature range from [°C]	-40
Temperature range to [°C]	60
Weight [g]	290
