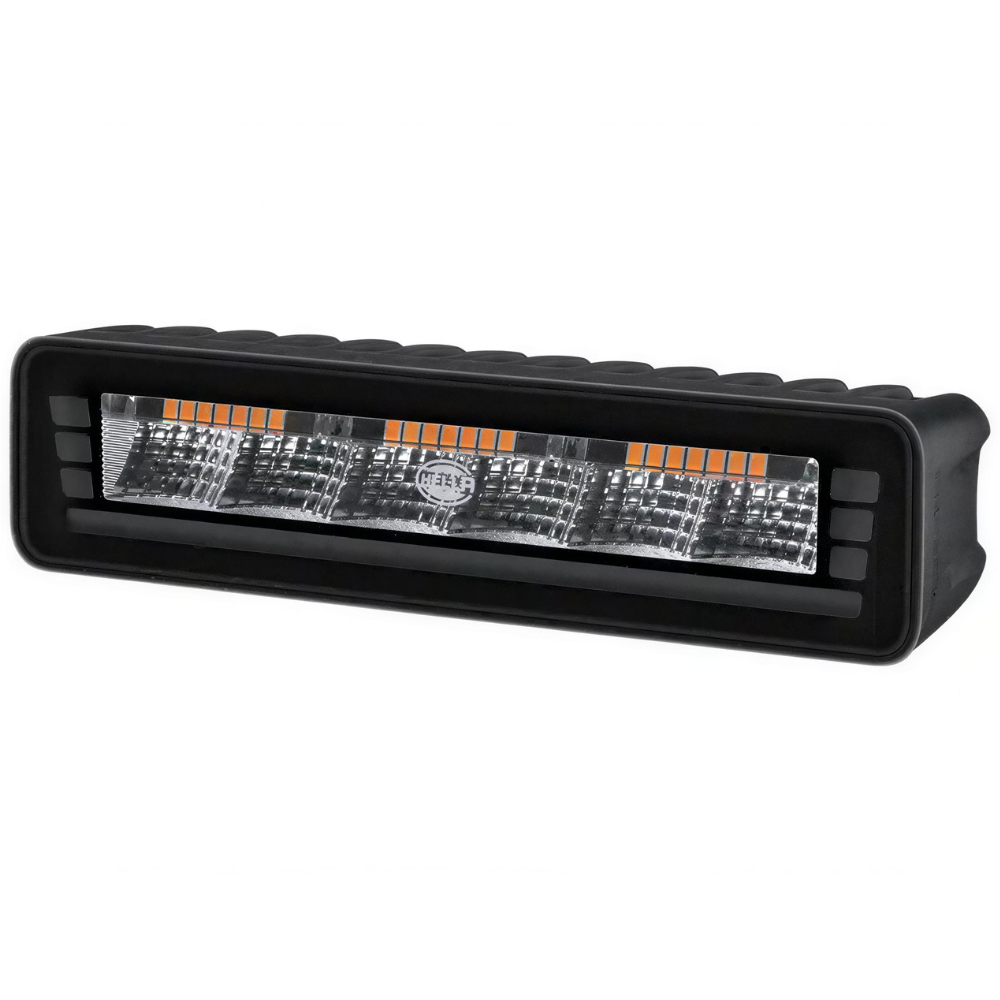

Hella Black Magic Edgeless Pro Mini 7" Work Lamp

The Hella Black Magic Edgeless Pro Mini combines cutting-edge LED technology with a sleek, edgeless design to deliver exceptional lighting performance in a compact 7-inch package. Engineered for professional users, this premium LED light bar is ideal for commercial vehicles, 4x4s, pickups, recovery trucks, agricultural machinery and off-road vehicles.
Featuring HELLA's innovative indirect reflector technology, the Edgeless Pro Mini produces a powerful, uniform beam with up to 3,540 lumens while maintaining a distinctive modern appearance. Available as both a work light and reversing light, selected models also include integrated white, amber or red position lights and an ECE R65-approved amber warning flash function, making it one of the most versatile compact light bars on the market.

Constructed from a durable aluminium housing with an electrophoretic coating and fitted with an impact-resistant polycarbonate lens, the Black Magic Edgeless Pro Mini is built to withstand harsh working environments. With IP68 and IP69K protection, it is resistant to dust, water ingress and high-pressure washing, ensuring dependable performance whatever the conditions.

Compatible with 12V and 24V electrical systems, this premium HELLA light bar is perfect for fleet vehicles, utility vehicles, overland builds and professional installations where reliability and style are equally important.

Key Features

• Premium 7" HELLA Black Magic Edgeless Pro Mini LED light bar
• Innovative edgeless design for a modern OEM appearance
• Moving position light animation with the Welcome and Goodbye function
• Powerful light output of up to 3,540 lumens
• Advanced indirect reflector technology for a smooth, homogeneous beam
• Available as a work lamp or reversing lamp

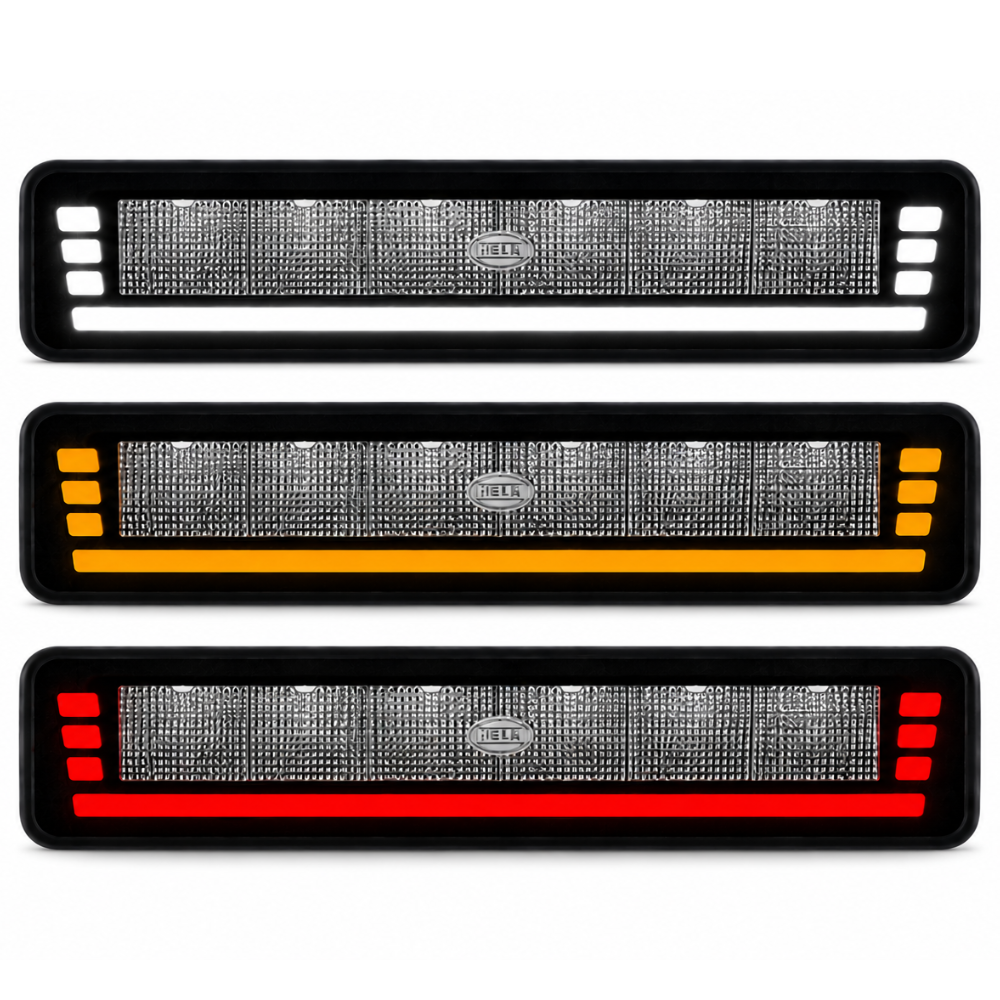

• Models available with white, amber or red LED position lights
• Selected models include an integrated ECE R65 amber warning flash function
• Robust aluminium housing with corrosion-resistant electrophoretic coating
• Impact-resistant polycarbonate lens
• Multi-voltage 10-30V DC operation
• Suitable for both 12V and 24V vehicles
• IP68 & IP69K rated for maximum protection against water and dust
• ECE approved models available (R10, R148 and R65 depending on variant)
• Dimensions 177 x 57 x 64.8mm

7" Black Magic Edgeless Pro Mini work lamp (Spot or Flood)

• Work lamp with LED position light (white or amber): 6 LEDs, with warning flash function (amber): 27 LEDs
• Colour Temperature: 5700K
• IP Rating: IP68, IP69K
• Max Power Consumption: 24W
• Approvals: ECE-R10, position light white: ECE-R148, warning flash function: ECE-R65
• EMC: Warning flash function: CISPR 25 Class 2
• Mounting: Flexible centre bracket for rear mounting
• Cable Length: 800mm cable with open tail ends

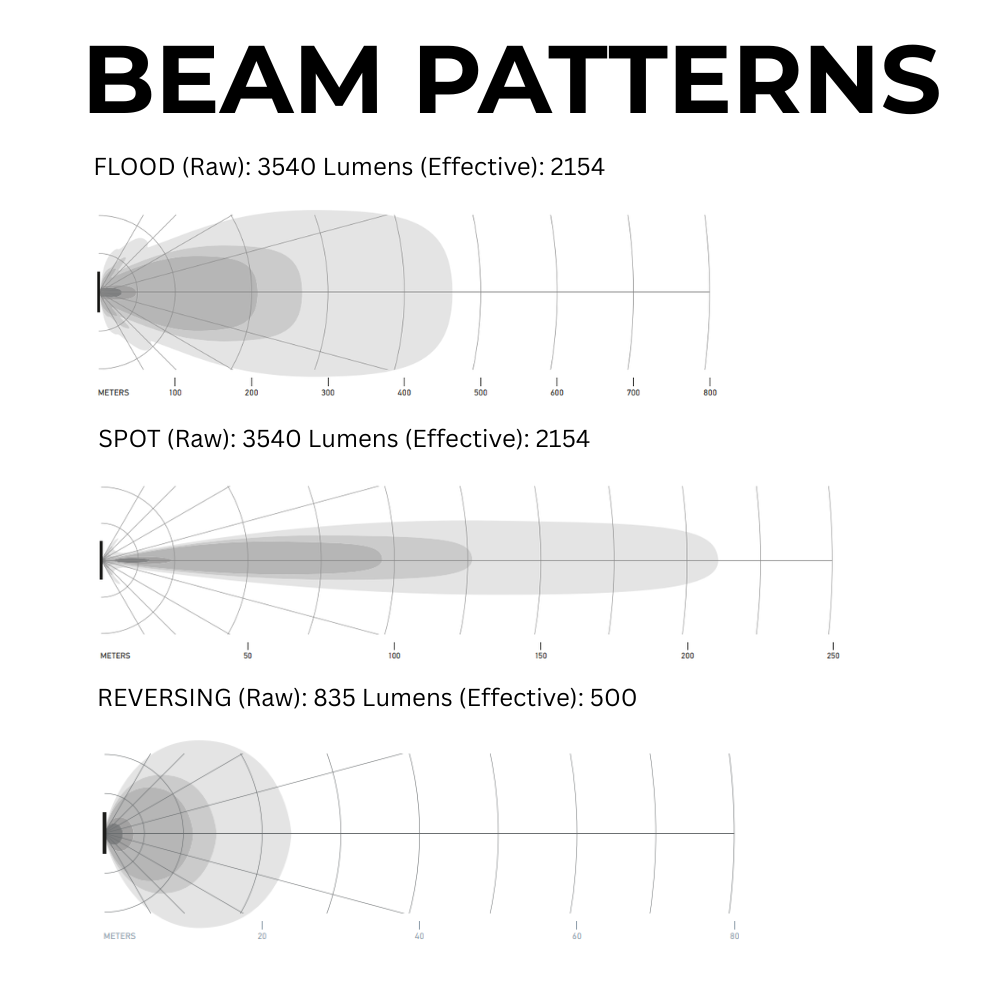

• Light Output (Raw): 3540 Lumens (Effective): 2154

7" Black Magic Edgeless Pro Mini work lamp (Reversing)

• Reversing lamp with LED position light (amber or red): 6 LEDs, with warning flash function (amber): 27 LEDs
• Colour Temperature: 5700K
• IP Rating: IP68, IP69K
• Max Power Consumption: 9 W without warning flash function, 12 W with warning flash function
• Approvals: ECE-R10, position light red, reversing lamp: ECE-R148, warning flash function: ECE-R65
• EMC: Warning flash function: CISPR 25 Class 2
• Mounting: Flexible centre bracket for rear mounting
• Cable Length: 2000mm cable with open tail ends
• Light Output (Raw): 835 Lumens (Effective): 500 Lumens

Part Numbers:

1FB 358 236-201 - Flood Beam with Strobe, White and Amber Position Light
1FB 358 236-231 - Flood Beam, White and Amber Position Light
1FB 358 236-211 - Spot Beam with Strobe, White and Amber Position Light
1FB 358 236-241 - Spot Beam, White and Amber Position Light
2ZR 358 236-221 - Reversing Beam with Strobe, Red and Amber Position Light
2ZR 358 236-251 - Reversing Beam, Red and Amber Position Light
