Hella Black Magic Edgeless Cube 3.2" Work Light (Flood) Kit With Harness
Part Number: 1FA 358 176-811
The Hella Black Magic Edgeless Cube 3.2" Work Light (Flood) Kit With Harness is a premium twin-pack LED work light kit designed to deliver exceptional short-range illumination for 4x4s, pick-ups, commercial vehicles, agricultural machinery and construction equipment.
excl. VAT £89.99
(incl. VAT £107.99)
(incl. VAT £107.99)
Hella Black Magic Edgeless Cube 3.2" Work Light (Flood) Kit With Harness
Part Number: 1FA 358 176-811
The Hella Black Magic Edgeless Cube 3.2" Work Light (Flood) Kit With Harness is a premium twin-pack LED work light kit designed to deliver exceptional short-range illumination for 4x4s, pick-ups, commercial vehicles, agricultural machinery and construction equipment. Combining HELLA's renowned lighting technology with a distinctive full-black "Black Magic" design, this complete kit provides everything required for a professional installation, making it the ideal upgrade for off-road and utility vehicles.
Each compact 3.2-inch cube light is equipped with four high-performance LEDs, producing an impressive 3,000 lumens of bright 5,700K daylight-white illumination. The wide flood beam delivers excellent close-range visibility, making it perfect for lighting work areas, tracks, campsites, loading zones and off-road terrain. The specially designed reflector ensures an even light distribution while minimising glare.
The Black Magic Cube Kit features HELLA's signature edgeless blackout styling, including black aluminium housings and black stainless-steel mounting brackets. The slim, seamless design helps prevent dust, mud and debris from accumulating around the edges, while the rugged construction ensures reliable performance in the harshest environments. With IP68 and IP69K protection ratings and ECE R10 approval, the kit is built to withstand water, dust, vibration and high-pressure washing.

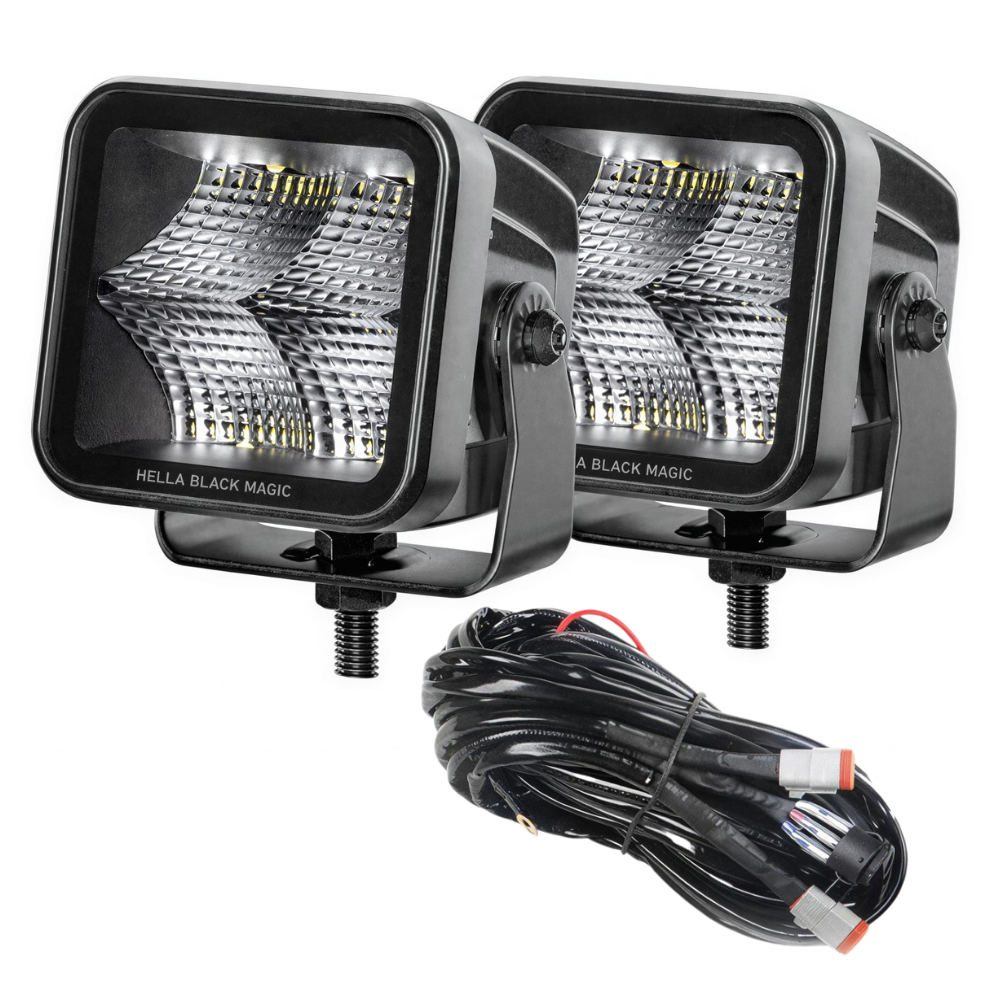

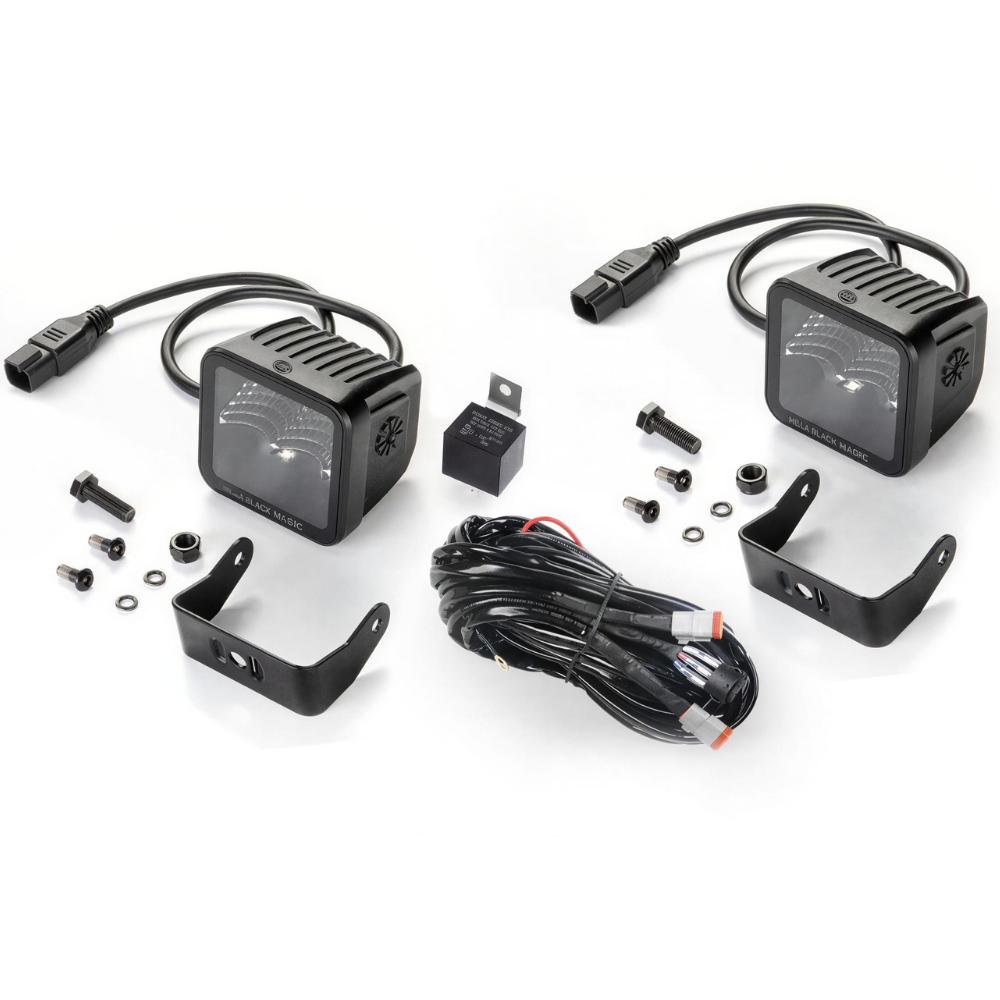

Unlike purchasing individual lamps, this complete kit includes two LED cube lights, a pre-wired wiring harness, DT connectors, relay, switch and all the components needed for a straightforward installation. Suitable for both 12V and 24V electrical systems, the kit offers a professional OEM-quality solution with minimal installation time.
Whether fitted to a 4x4, recovery truck, utility vehicle or agricultural machine, the HELLA Black Magic Cube Kit delivers premium styling, exceptional durability and powerful illumination wherever reliable auxiliary lighting is required.
Key Features
Additional Information
Each compact 3.2-inch cube light is equipped with four high-performance LEDs, producing an impressive 3,000 lumens of bright 5,700K daylight-white illumination. The wide flood beam delivers excellent close-range visibility, making it perfect for lighting work areas, tracks, campsites, loading zones and off-road terrain. The specially designed reflector ensures an even light distribution while minimising glare.
The Black Magic Cube Kit features HELLA's signature edgeless blackout styling, including black aluminium housings and black stainless-steel mounting brackets. The slim, seamless design helps prevent dust, mud and debris from accumulating around the edges, while the rugged construction ensures reliable performance in the harshest environments. With IP68 and IP69K protection ratings and ECE R10 approval, the kit is built to withstand water, dust, vibration and high-pressure washing.
Unlike purchasing individual lamps, this complete kit includes two LED cube lights, a pre-wired wiring harness, DT connectors, relay, switch and all the components needed for a straightforward installation. Suitable for both 12V and 24V electrical systems, the kit offers a professional OEM-quality solution with minimal installation time.
Whether fitted to a 4x4, recovery truck, utility vehicle or agricultural machine, the HELLA Black Magic Cube Kit delivers premium styling, exceptional durability and powerful illumination wherever reliable auxiliary lighting is required.
Key Features
- Genuine HELLA Black Magic Cube Kit
- Part Number: 1FA 358 176-811
- Twin-pack of 3.2" LED flood lights
- Powerful 3,000 lumen output per lamp
- Wide flood beam for short-range illumination
- Four high-performance LEDs per lamp
- 5,700K daylight white colour temperature
- Premium all-black "Black Magic" design
- Robust die-cast aluminium housings
- Black stainless-steel mounting brackets
- Multi-voltage 10–30V DC (12V & 24V systems)
- IP68 & IP69K rated
- ECE R10 approved
- Supplied with complete wiring harness
- Includes DT connectors, relay and switch
- 500mm cables with DT connectors
- Suitable for upright or pendant mounting
- Compact design for universal installation
Additional Information
| Mounting Type | mounting |
| Fastening Type | Swivelling Mounting Bracket |
| Lamp Type | LED |
| Light Design | LED |
| Voltage [V] | 12; 24 |
| Width [mm] | 81 |
| Depth [mm] | 68 |
| Height [mm] | 83 |
| Light Distribution | Short-Range Illumination |
| fulfils ECE standard | R10 |
| Plug Type | DEUTSCH plug |
| Protection Type (IP Code) | IP68; IP69K |
| Luminous Flux [lm] | 3000 |
| Colour Temperature [K] | 5700 |
| Number of LEDs | 4 |
| Power Consumption [W] | 40 |
| Cable Length [mm] | 500 |
| Housing Colour | black |
| with cable; with switch | |
| Shape | Square |
| Quantity Unit | Kit |
| Quantity | 2 |
| Length [inch] | 3.2 |
| Brand | HELLA |
| Product line | Black Magic Edgeless |
