Hella Black Magic Edgeless Cube 3.2" Recessed Work Light (Flood) Kit With Harness

The Hella Black Magic Edgeless Cube 3.2" Recessed Work Light (Flood) Kit With Harness is a premium twin LED flood light kit designed for seamless, integrated vehicle installations. Featuring two compact 3.2-inch Black Magic Cube LED flood lights with a flush-mount design, this kit delivers powerful close-range illumination while maintaining a sleek OEM appearance. It is ideal for 4x4s, pick-ups, commercial vehicles, agricultural machinery and specialist off-road vehicles where discreet yet powerful lighting is required.

Each light is equipped with four high-performance LEDs, producing 3,000 lumens of bright 5,700K daylight-white illumination. The flood beam pattern provides excellent short-range visibility, making it perfect for illuminating work areas, tracks, campsites, loading zones and challenging off-road terrain. Advanced reflector technology ensures an even light distribution while minimising glare.

The Black Magic Cube Flush Mount Kit features HELLA's distinctive full blackout appearance, with black die-cast aluminium housings and a sleek edgeless design that resists the build-up of dirt and debris. Built for demanding environments, each lamp is rated IP68 and IP69K, offering outstanding protection against dust, water ingress and high-pressure washing. With ECE R10 approval, the kit is fully compatible with modern vehicle electrical systems.

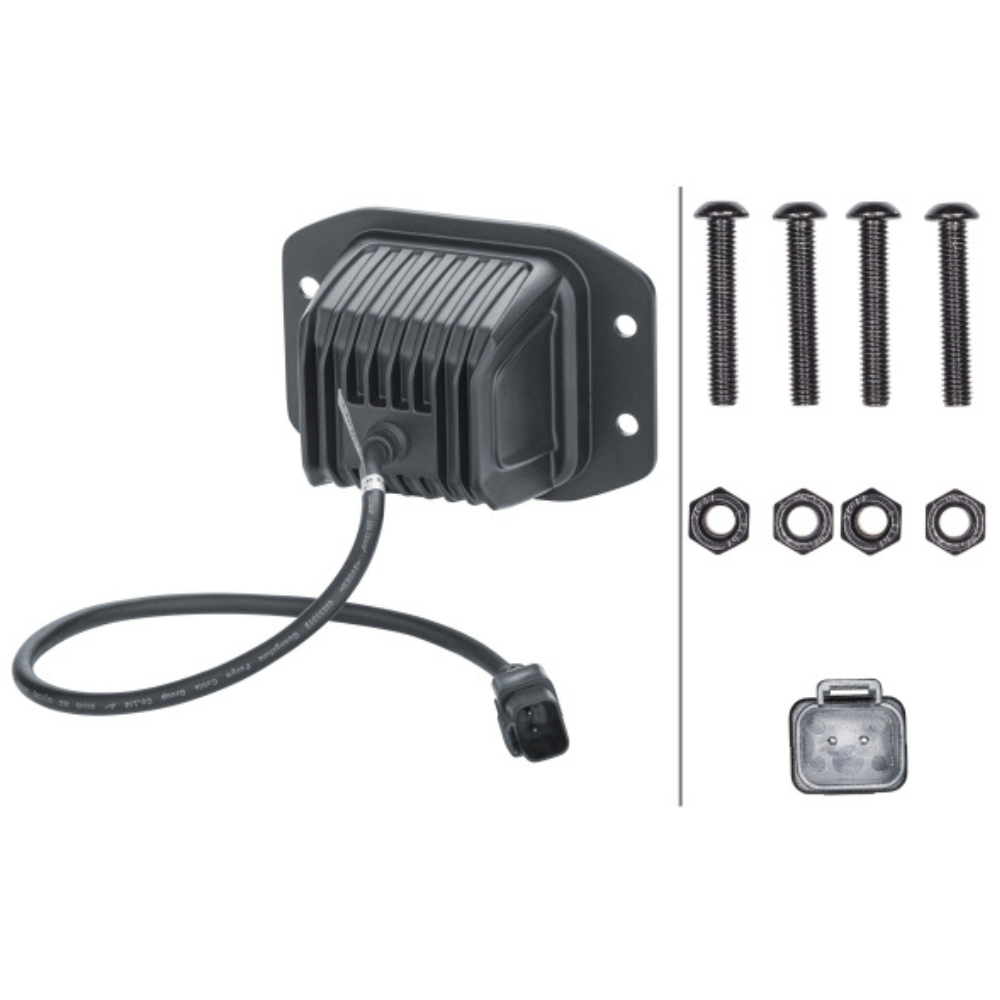

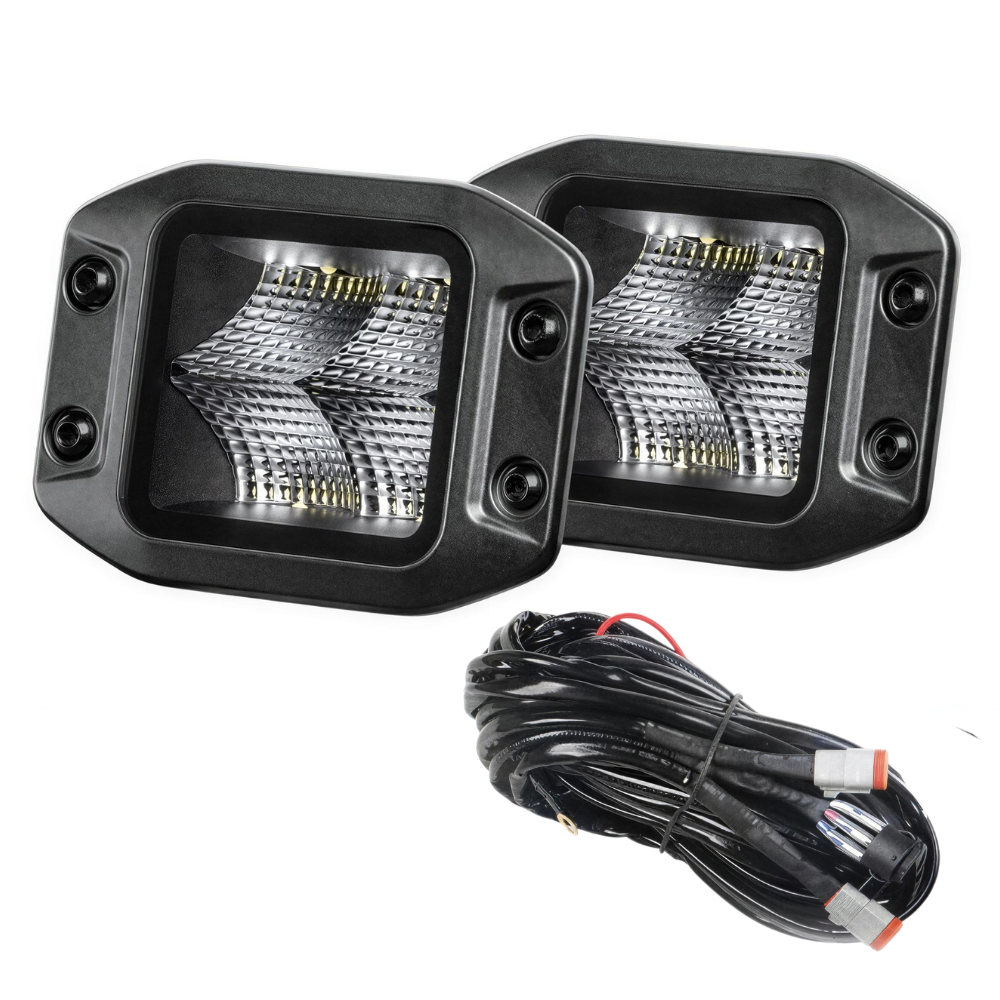

Unlike conventional bracket-mounted work lights, this version is specifically designed for flush mounting, allowing the lights to be neatly integrated into bumpers, grilles, canopies and custom bodywork for a clean factory-style finish. Supplied as a complete kit, it includes two LED lights, a wiring harness with DT connectors, relay, illuminated switch, adapter harness and installation instructions, making installation straightforward and professional.

Whether you're building an overland vehicle, upgrading a recovery truck or fitting lighting to agricultural or construction equipment, the HELLA Black Magic Cube Flush Mount Kit delivers premium styling, exceptional durability and dependable HELLA performance.

Key Features

• Genuine HELLA Black Magic Cube Flush Mount Kit
• Part Number: 1FA 358 176-831
• Twin 3.2-inch LED flood lights
• Designed for flush mounting
• Powerful 3,000 lumen output per lamp
• Wide flood beam for short-range illumination
• Four high-performance LEDs per light
• 5,700K daylight white colour temperature
• Premium Black Magic full-black design
• Compact, edgeless housing
• Die-cast aluminium construction
• Multi-voltage 10–30V DC (12V & 24V systems)
• IP68 & IP69K ingress protection
• ECE R10 approved
• 500mm cables with DT connectors
• Complete installation kit included

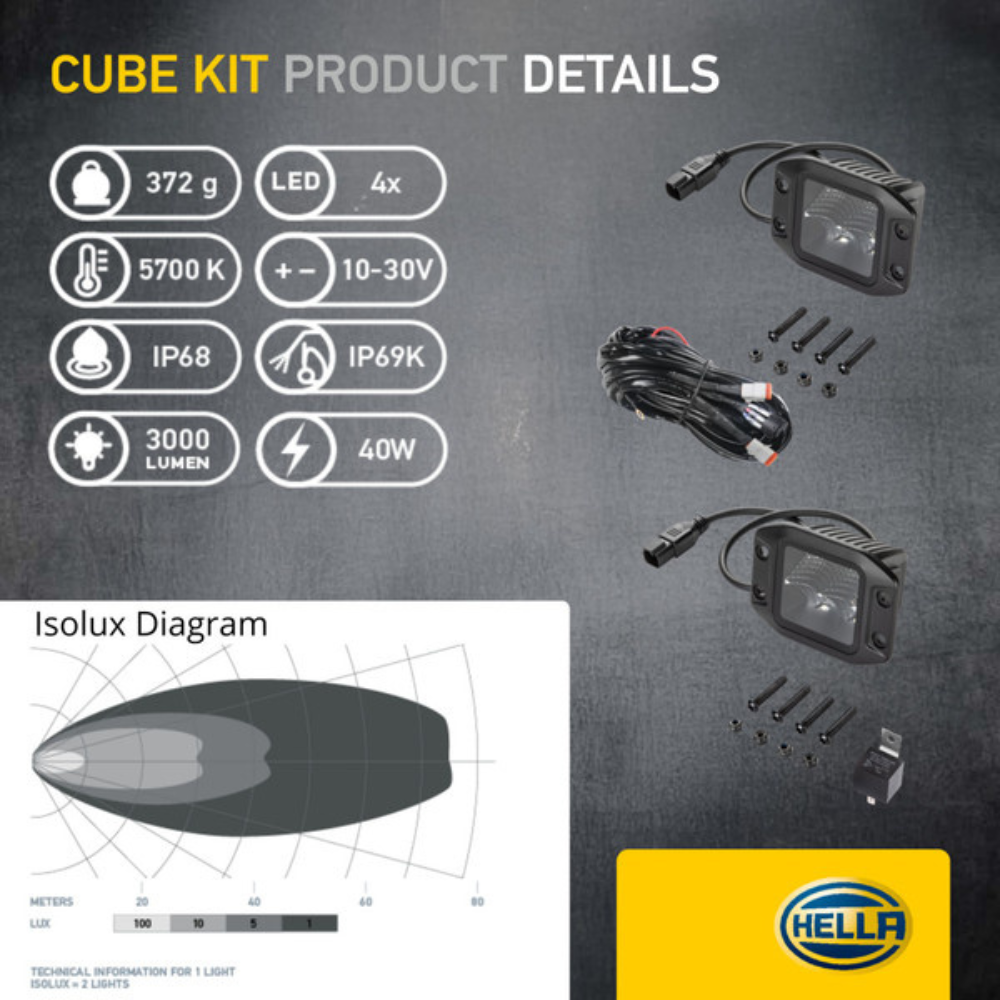

Additional Information

Mounting Type	Fitting
Fastening Type	Four-point attachment
Lamp Type	LED
Light Design	LED
Voltage [V]	12; 24

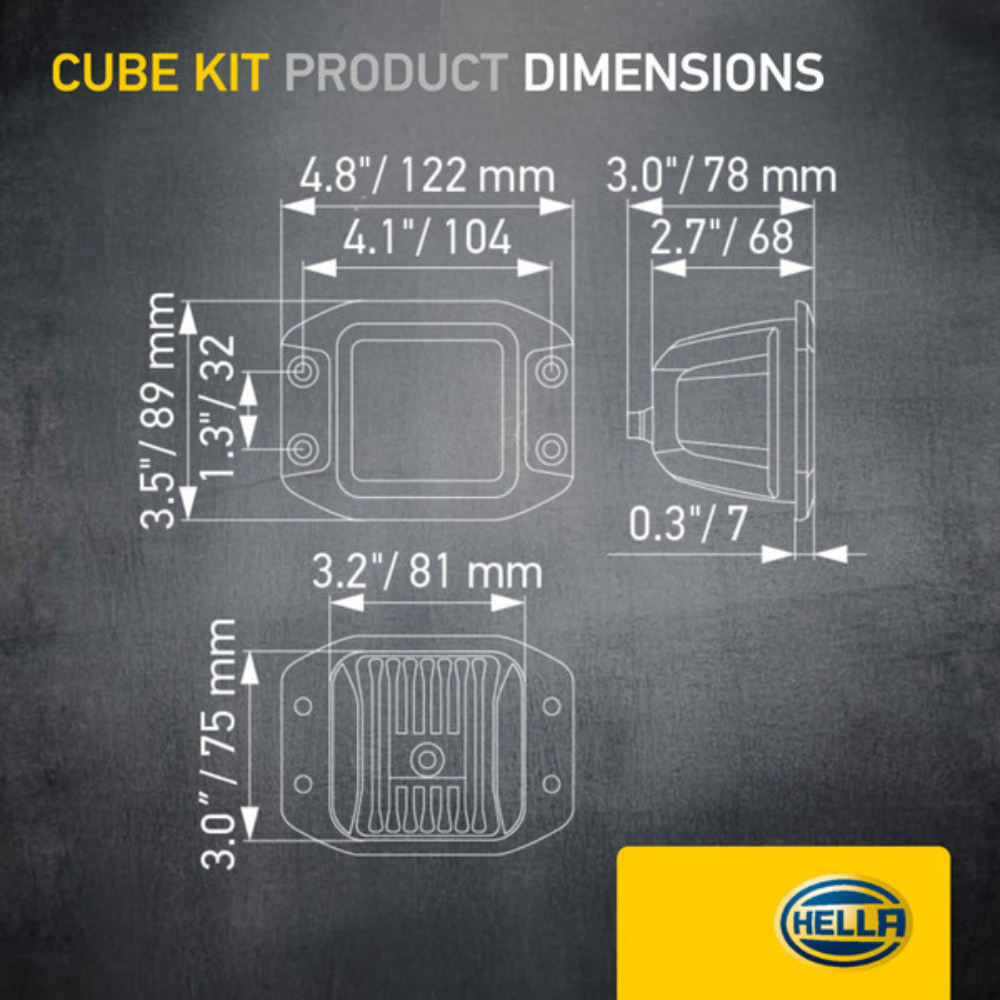

Width [mm]	122
Depth [mm]	72
Height [mm]	89
Light Distribution	Short-range illumination
fulfils ECE standard	R10
Plug Type	DEUTSCH plug
Protection Type (IP Code)	IP68; IP69K
Luminous Flux [lm]	3000
Colour Temperature [K]	5700
Number of LEDs	4
Power Consumption [W]	40
Cable Length [mm]	500
Housing Colour	black
Light Distribution	Short-range illumination
with cable; with switch
Shape	Square
Quantity Unit	Kit
Quantity	2
Assy./disassy. by qualified personnel required!
Length [inch]	3.2
Brand	HELLA
Product line	Black Magic Edgeless
