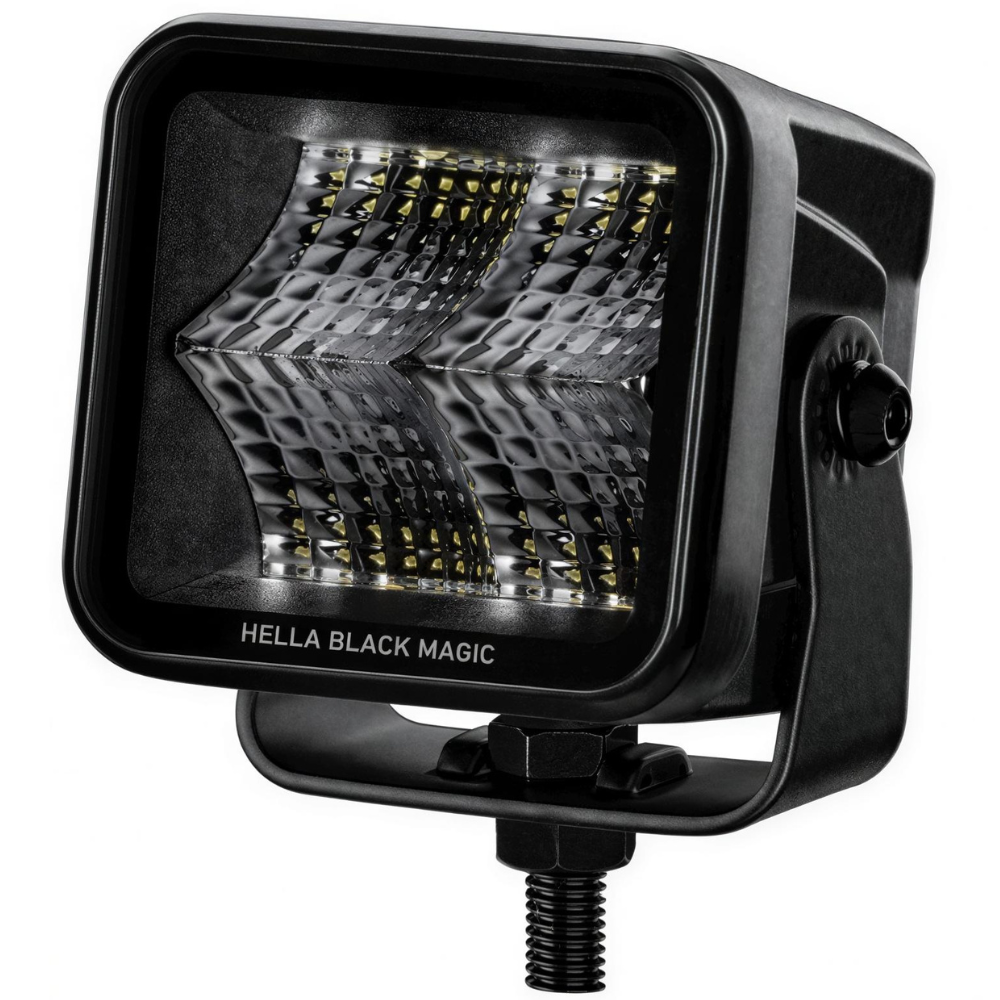

Hella Black Magic Edgeless Cube 2.7" Work Light (Flood) Kit With Harness
Part Number: 1FA 358 176-801
The Hella Black Magic Edgeless Cube 2.7" Work Light (Flood) Kit With Harness package, designed to deliver outstanding close-range illumination in a compact, easy-to-install solution. Ideal for 4x4s, pick-up trucks, commercial vehicles, agricultural machinery and construction equipment, this premium kit combines HELLA's renowned lighting technology with a distinctive Black Magic blackout design for exceptional performance and modern styling.
excl. VAT £82.73
(incl. VAT £99.28)
(incl. VAT £99.28)
Hella Black Magic Edgeless Cube 2.7" Work Light (Flood) Kit With Harness
Part Number: 1FA 358 176-801
The Hella Black Magic Edgeless Cube 2.7" Work Light (Flood) Kit With Harness package, designed to deliver outstanding close-range illumination in a compact, easy-to-install solution. Ideal for 4x4s, pick-up trucks, commercial vehicles, agricultural machinery and construction equipment, this premium kit combines HELLA's renowned lighting technology with a distinctive Black Magic blackout design for exceptional performance and modern styling.
Each 2.7-inch LED cube produces 1,400 lumens of bright, daylight-white illumination from four high-performance LEDs, providing a wide flood beam that is perfect for lighting work areas, loading zones, campsites and off-road terrain. With a 5,700K colour temperature, the lamps deliver crisp, natural-looking light that improves visibility while reducing eye strain during extended use.
Built for the toughest environments, the Black Magic Cube Kit features robust die-cast aluminium housings, black stainless-steel mounting brackets and HELLA's signature full blackout appearance. The sleek, edgeless design helps prevent dirt and debris from collecting around the lamp, while IP68 and IP69K protection ensures reliable performance in rain, mud, dust and during high-pressure washing. The lights are also ECE R10 approved, making them suitable for modern vehicle electrical systems.

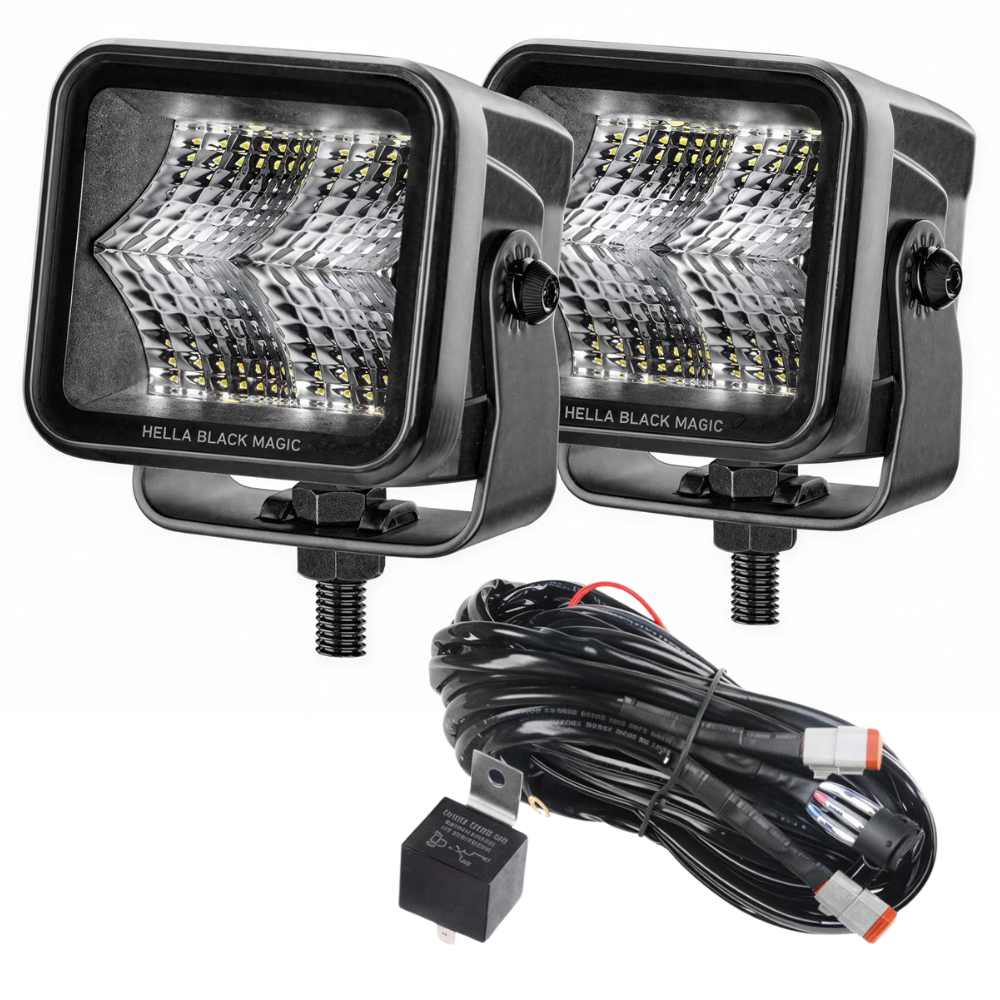

Designed for fast, professional installation, the kit includes two LED flood lights, a pre-wired wiring harness with DT connectors, relay, illuminated switch and installation instructions. Operating on 10–30V DC, the kit is compatible with both 12V and 24V vehicles, making it an excellent choice for both recreational and professional applications.
Whether you're upgrading a work vehicle, equipping an overland build or adding reliable auxiliary lighting to heavy machinery, the HELLA Black Magic Cube Kit delivers premium OEM quality, outstanding durability and dependable performance.
Key Features
Additional Information
Each 2.7-inch LED cube produces 1,400 lumens of bright, daylight-white illumination from four high-performance LEDs, providing a wide flood beam that is perfect for lighting work areas, loading zones, campsites and off-road terrain. With a 5,700K colour temperature, the lamps deliver crisp, natural-looking light that improves visibility while reducing eye strain during extended use.
Built for the toughest environments, the Black Magic Cube Kit features robust die-cast aluminium housings, black stainless-steel mounting brackets and HELLA's signature full blackout appearance. The sleek, edgeless design helps prevent dirt and debris from collecting around the lamp, while IP68 and IP69K protection ensures reliable performance in rain, mud, dust and during high-pressure washing. The lights are also ECE R10 approved, making them suitable for modern vehicle electrical systems.
Designed for fast, professional installation, the kit includes two LED flood lights, a pre-wired wiring harness with DT connectors, relay, illuminated switch and installation instructions. Operating on 10–30V DC, the kit is compatible with both 12V and 24V vehicles, making it an excellent choice for both recreational and professional applications.
Whether you're upgrading a work vehicle, equipping an overland build or adding reliable auxiliary lighting to heavy machinery, the HELLA Black Magic Cube Kit delivers premium OEM quality, outstanding durability and dependable performance.
Key Features
- Genuine HELLA Black Magic Cube Kit
- Part Number: 1FA 358 176-801
- Complete kit with 2 × 2.7" LED flood lights
- 1,400 lumens output per lamp

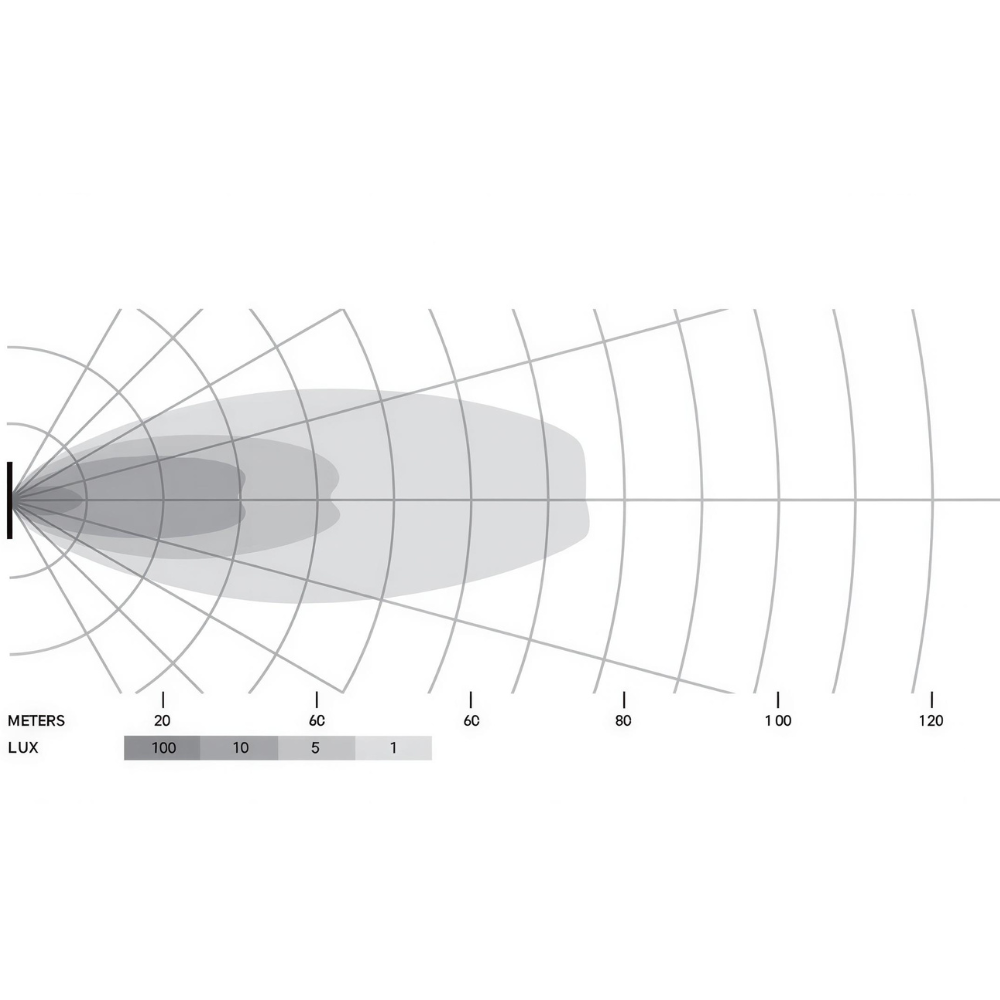

- Wide flood beam for close-range illumination
- Four high-performance LEDs per light
- 5,700K daylight white colour temperature
- Premium Black Magic full-black styling
- Heavy-duty die-cast aluminium housings

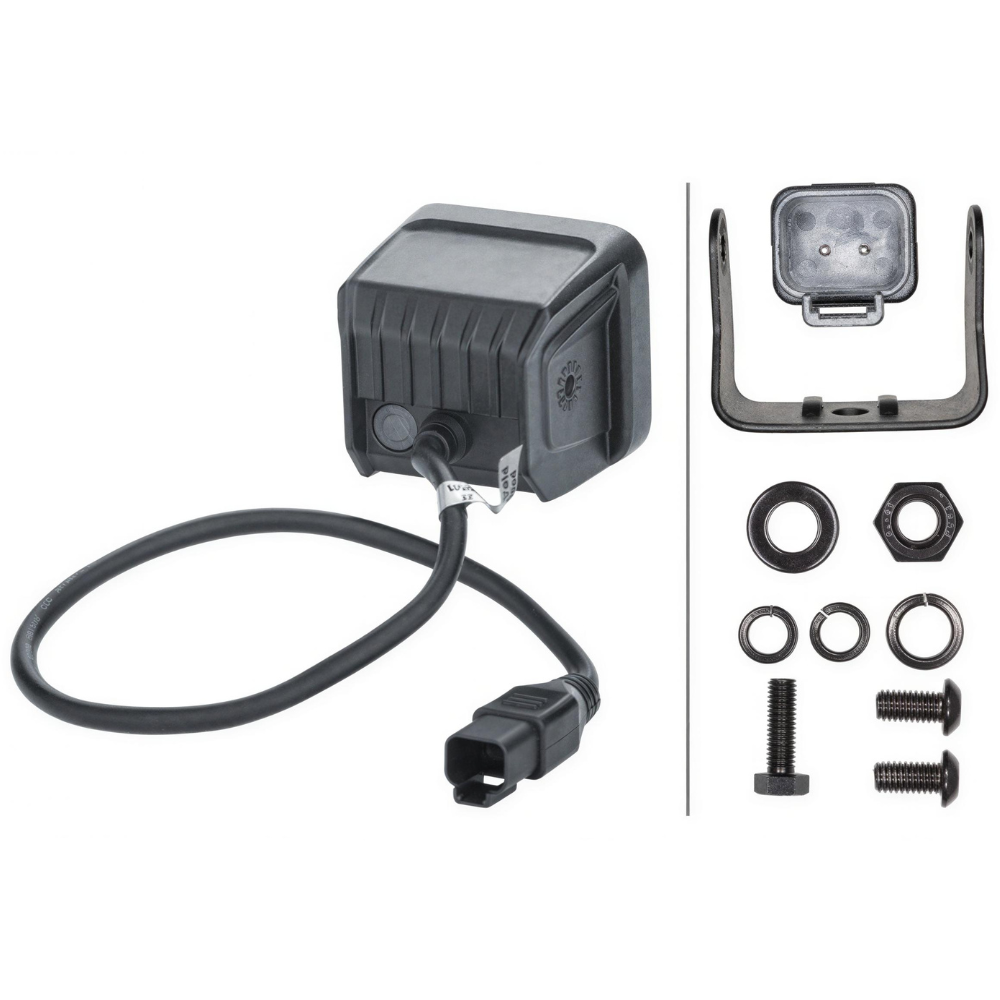

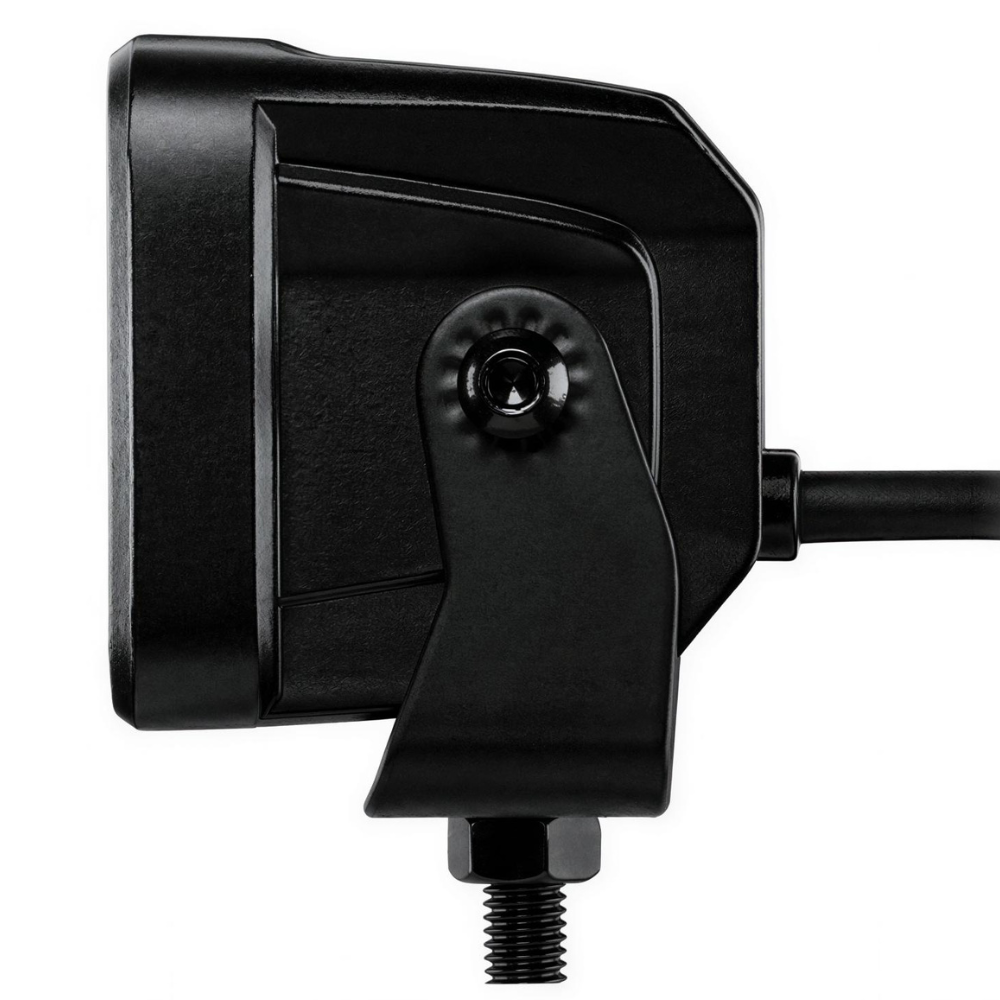

- Black stainless-steel mounting brackets
- Multi-voltage 10–30V DC (12V & 24V systems)
- IP68 & IP69K ingress protection
- ECE R10 approved
- 500mm cables with DT (DEUTSCH) connectors
- Compact design for universal installation
- Suitable for upright or pendant mounting

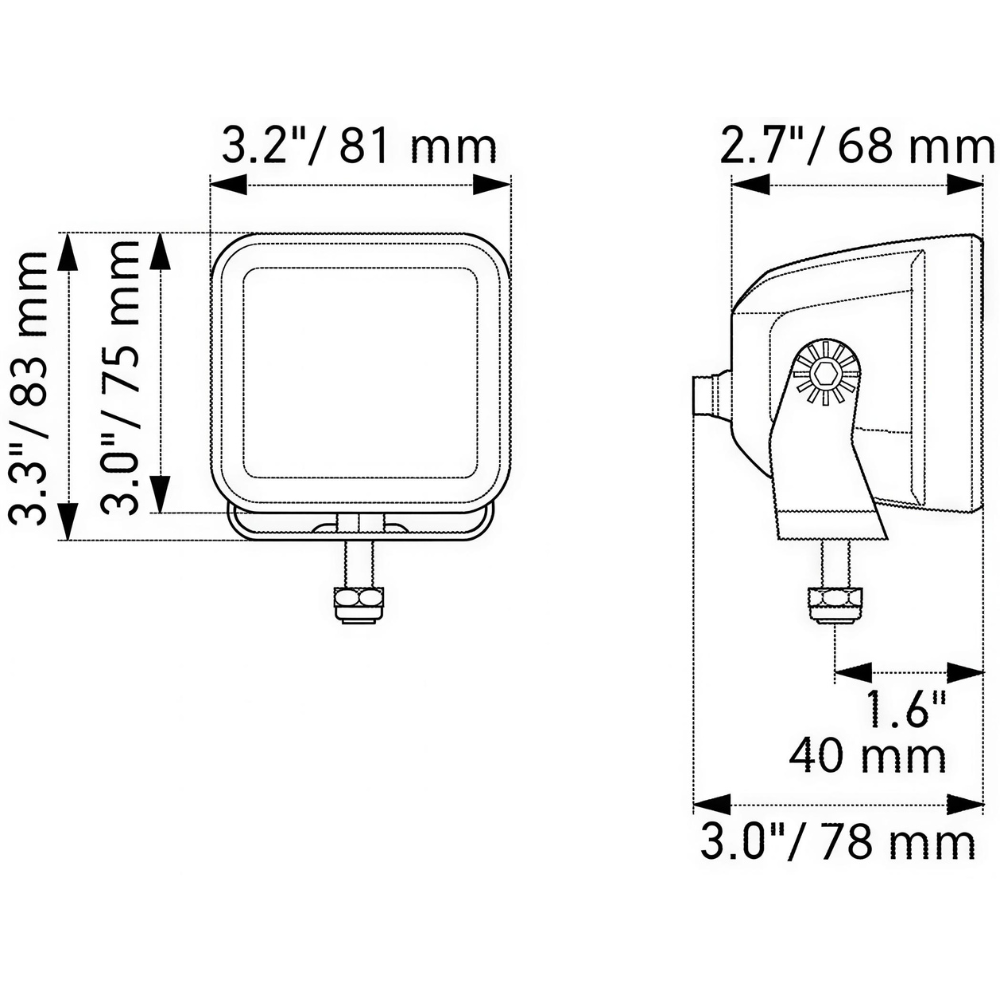

Additional Information
| Mounting Type | mounting |
| Fastening Type | Swivelling Mounting Bracket |
| Lamp Type | LED |
| Light Design | LED |
| Voltage [V] | 12; 24 |
| Width [mm] | 70 |
| Depth [mm] | 60 |
| Height [mm] | 72 |
| fulfils ECE standard | R10 |
| Plug Type | DEUTSCH plug |
| Protection Type (IP Code) | IP68; IP69K |
| Luminous Flux [lm] | 1400 |
| Colour Temperature [K] | 5700 |
| Number of LEDs | 4 |
| Power Consumption [W] | 20 |
| Cable Length [mm] | 500 |
| Housing Colour | black |
| Light Distribution | Short-Range Illumination |
| with cable; with switch | |
| Shape | Square |
| Quantity Unit | Kit |
| Quantity | 2 |
| Length [inch] | 2.7 |
| Assy./disassy. by qualified personnel required! | |
| Brand | HELLA |
| Product line | Black Magic Edgeless |
