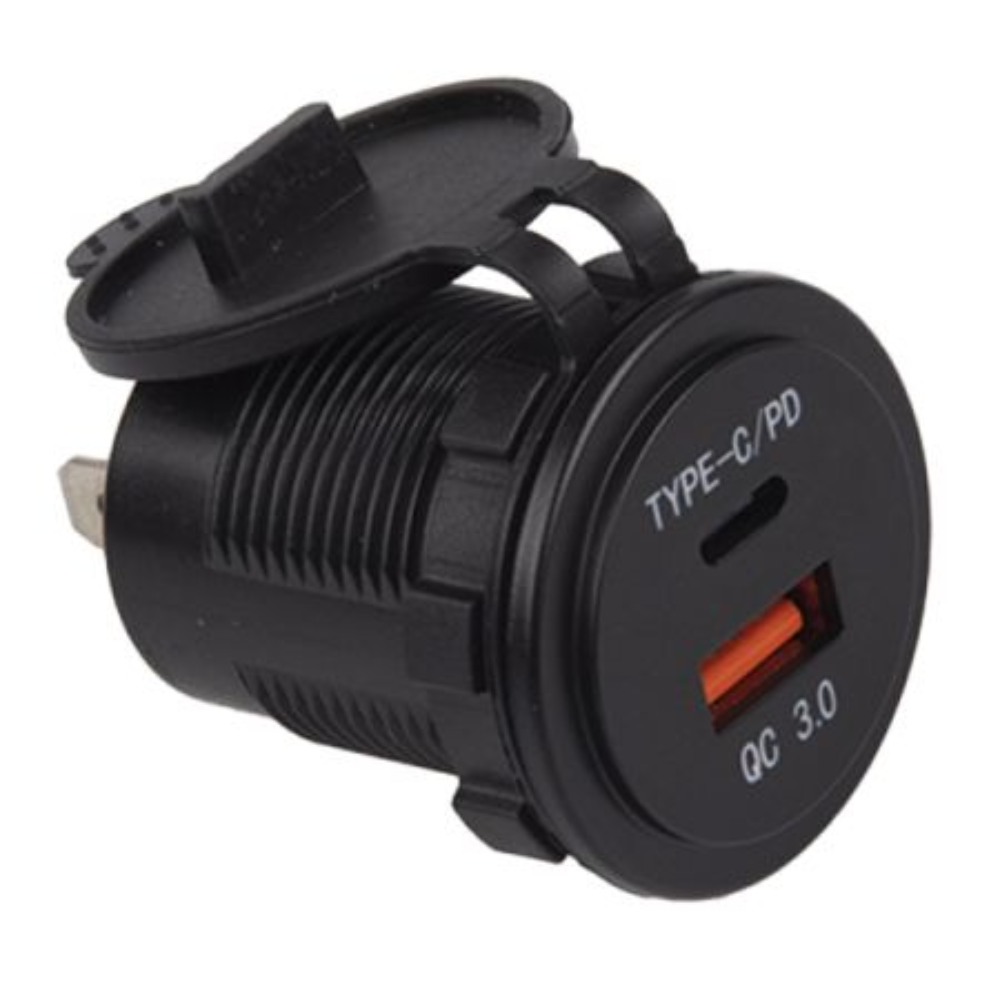

Durite 18W Dual USB Type-A and Type-C Ports Power Socket - 3A, 12/24V PN: 0-601-20

The Durite 0-601-20 is a heavy-duty, flush-mount dual USB charging socket designed specifically for automotive, commercial fleet, marine, and leisure vehicle applications. It provides a modern power solution by upgrading standard 12V/24V electrical systems to support modern fast-charging protocols.

This socket features two distinct ports that distribute up to 18W of maximum power per port using intelligent negotiation based on the connected device:
• USB Type-A Port: Equipped with Quick Charge (QC 3.0) technology.
• USB Type-C Port: Equipped with Power Delivery (PD) technology.

Output Multi-Volt Intelligent Range: Depending on what device is plugged in, each port dynamically shifts its voltage and amperage to maximise charging speeds without damaging electronics:

• 5V at 3.0A (Standard high-speed charging)
• 9V at 2.0A (Fast-charging mode for modern smartphones)
• 12V at 1.5A (Max voltage delivery for tablets and larger electronics)

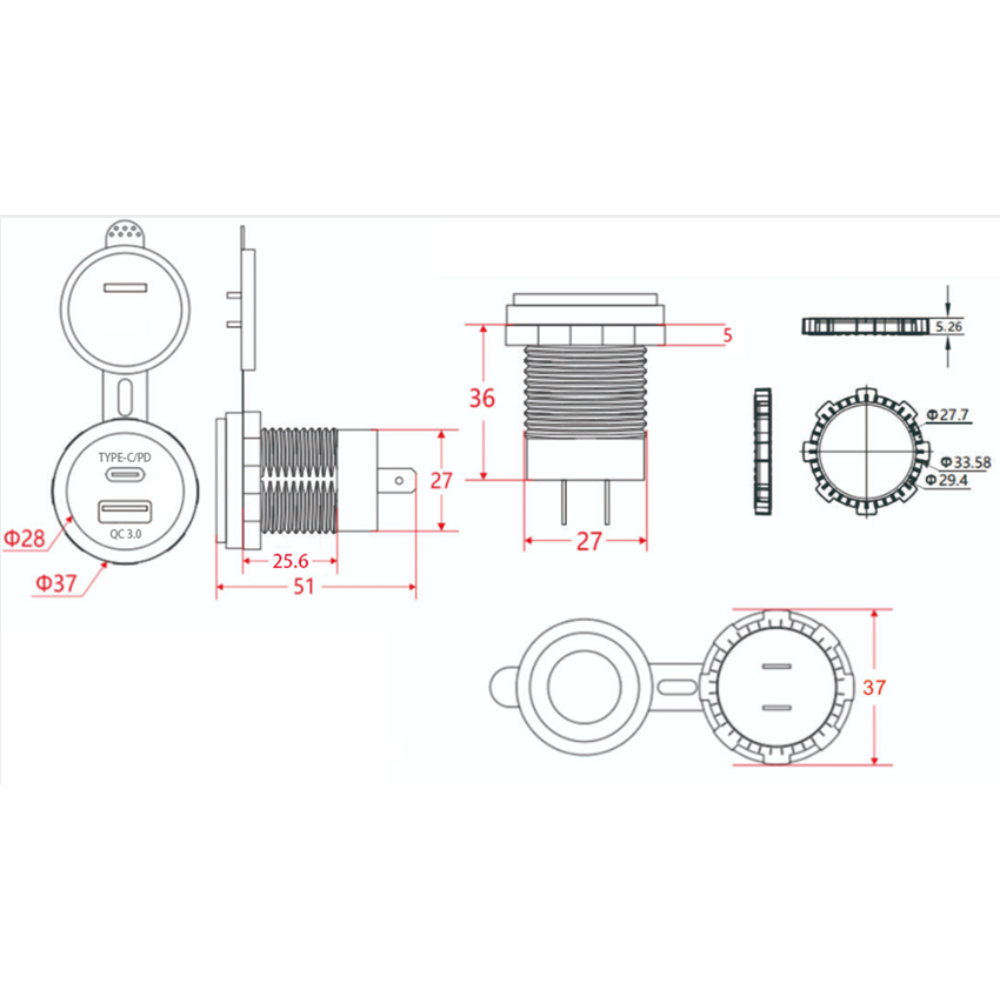

The socket follows the universal standard size footprint for automotive dashboard cutouts, matching standard cigarette lighter dimensions.

• Panel Hole Cutout Size: Ø 28mm diameter.
• Outer Bezel Diameter: 37mm.
• Mounting Method: Standard flush panel mount. It is supplied with a heavy-duty plastic rear hex nut that threads down the socket body to lock it tightly against the backside of the dashboard or panelling
